Olympus JetHeat OLY-J5/3 Manual de usuario

INDUSTRIAL FAN HEATERS

Output: 5Kw, 9Kw, 15Kw 3 HEAT SETTINGS

Model Nos: Olympus JetHeat OLY-J5/3, OLY-J9/3, OLY-J15/3

1.2. GENERAL SAFETY

1.2.1. MAINTENANCE PRECAUTIONS

WARNING! Disconnect the heater from the mains power





1.2.2. POSITIONING OF HEATER

WARNING! DO NOT use the heater near flammable material

liquids, solids, gases or compressed gas cylinders etc.

DO NOT place the heater close to a bath, wash basin, shower,

swimming pool or any other water-filled area or wet surface.

DO NOT place the heater up against any surface such as a

wall, door or furniture etc.

DO NOT place the heater immediately below any electrical

outlet.

Position the heater at least a minimum of 0.5mtr at the rear

and sides, and 2mtr at the front, from any walls or objects.

DO NOT place the heater on a raised surface or anywhere

where it could topple over.

Original Language UK English

1.1. ELECTRICAL SAFETY

WARNING! ELECTRICAL INSTALLATION OF THE HEATER

TO A 3-PHASE 415 VOLT SUPPLY MUST ONLY BE

CARRIED OUT BY A QUALIFIED ELECTRICIAN.

Make sure the power supply cable is correctly connected

to the earth. It is the user’s responsibility to read,

understand and comply with the following:

You must check all electrical equipment and appliances to

ensure they are safe before using. You must inspect power

supply leads, plugs and all electrical connections for wear and

damage. You must ensure the risk of electric shock is

minimised by the installation of appropriate safety devices. An

RCCB (Residual Current Circuit Breaker) should be

incorporated in the main distribution board. You must also read

and understand the following instructions concerning electrical

safety.

1.1.1. The Electricity At Work Act 1989 requires all portable

electrical appliances, if used on business premises, to be tested

by a qualified electrician, using a Portable Appliance Tester

(PAT), at least once a year.

1.1.2. The Health & Safety at Work Act 1974 makes owners of

electrical appliances responsible for the safe condition of the

appliance and the safety of the appliance operator. If in any

doubt about electrical safety, contact a qualified electrician.

1.1.3. Ensure insulation on all cables and the product itself is safe

before connecting to mains power supply.

1.1.4. Ensure that cables are always protected against short circuit

and overload.

1.1.5. Regularly inspect power

supply, leads, plugs and all

electrical connections for

wear and damage,

especially power

connections, to ensure that

none are loose.

1.1.6. Important: Ensure the

voltage marked on the

product is the same as the

electrical power supply to

be used. A three phase

plug must be fitted to this

1.1.7. DO NOT pull the powered appliance by the power cable.

1.1.8. DO NOT pull power plugs from sockets by the power cable.

1.1.9. DO NOT use worn or damage leads, plugs or connections.

Immediately replace or have repaired by a qualified electrician.

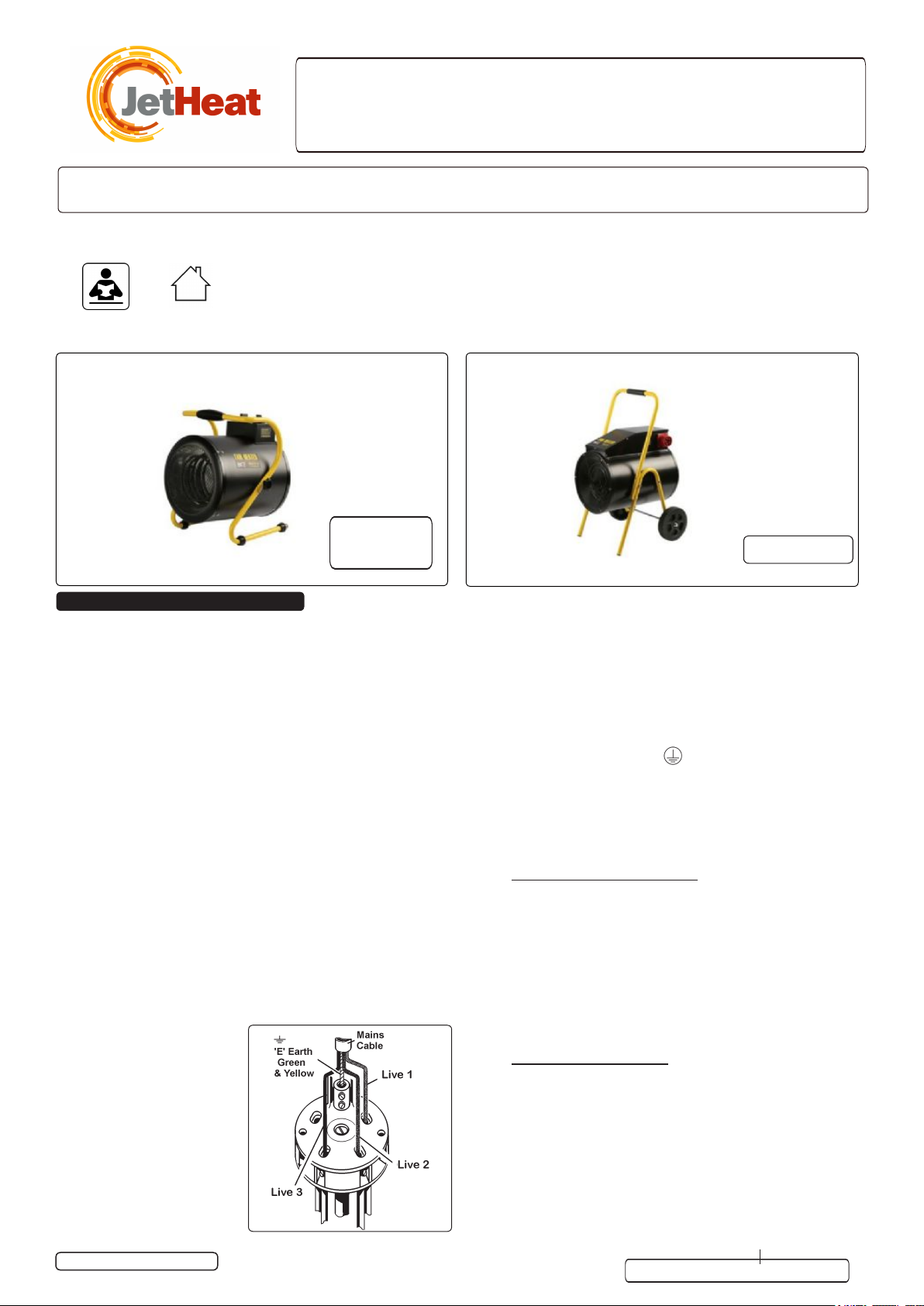

1.1.10. This product must be fitted with a 3-phase plug according

to the diagram, and will require a minimum of 16Amps per

phase for OLY-J5/3 and OLY-J9/3, the OLY-J15/3 is 32Amps for

the 15Kw. You must contact a qualified electrician to ensure

an appropriately fused supply is available. Connect GREEN/

YELLOW wire to earth (E) terminal. Connect the live wires

to live 1, 2 and 3. When completed, check that there are no

bare wires, that all wires have been connected correctly, that

the cable external insulation extends beyond the cable

restraint and that the cable restraint is tight.

1. SAFETY

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT

CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL

INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

Refer to

Instructions

Indoor Use

Only

Olympus OLY-JetHeat | Issue 2) 17/08/16

OLY-J15/3

OLY-J5/3

OLYJ9/3

Thank you for purchasing a Olympus Industrial Appliances JetHeat product. Manufactured to a high standard, this product will, if used

according to these instructions and maintained properly, give you years of trouble free performance.

appliance.

supply before servicing or performing any maintenance.

Servicing or maintenance must only be carried out by an

authorised service agent.

Check that the heater is in sound condition and good working

order. Take immediate action to repair or replace damaged

parts.

Use recommended parts only. Unapproved parts may be

dangerous and will invalidate the warranty.

DO NOT attempt to repair a damaged heater, contact an

authorised service agent.

MANUAL FOR

4. ASSEMBLY (OLY-J15/3 ONLY)

1.2.3. OPERATIONAL PRECAUTIONS

The heater must only be used by people who have read these

instructions and have been trained in its use.

DO NOT obstruct the air inlet and outlet sections of the heater.

DO NOT cover the heater.

DO NOT touch the heater casing or grille when first switched

off, as these will be very hot and will take time to cool.

DO NOT get the heater wet or use in areas of high

condensation.

DO NOT allow the power lead to touch hot surfaces.

DO NOT connect the heater to a timer device or other

equipment than can automatically switch the heater on or off.

If an extension cable is required it must be of the same cross

section as the heater cable. It must be as short as possible

and fully unwound.

DO NOT connect other appliances to the same mains socket as

the heater.

1.2.4. COMMON SENSE PRECAUTIONS

DO NOT operate the heater when you are tired or under the

influence of alcohol, drugs or intoxicating medication.

DO NOT stand on the heater.

DO NOT use the heater with wet hands or when there is water

on the power cord.

Ensure that the heater is correctly turned off when not in use

and store in a safe, dry, childproof location.

DO NOT use the heater for anything other than its intended

purpose. It is designed to provide heat in enclosed areas larger

than 4m³, such as workshops and other industrial areas. It is

not suitable for drying clothes or laundry.

Electric fan heaters for industrial applications. JetHeat Model

Numbers: OLY-J5/3 & OLY-J9/3 feature two heat settings and

fan only option. Model No. OLY-J15/3 features three heat

settings and adjustable thermostat control with fan only option.

Auto cooling system to prevent unit from overheating during

use. A totally dry heat with no condensation, no gas, no fumes,

no smell. Ideal for workshops and garages. Model No. OLY-

J5/3 & OLY-J9/3 are supplied with three phase power cable

and plug. Model No. OLY-J15-3 supplied with three phase

plug (extension lead required).

Model No: ..... OLY-J5/3...OLY-J9/3...OLY-J15/3

Class: ............IPX4. ........ IPX4 ......... IPX4

Max. Power:........ 5000W. .......9000W ....... 15000W

Supply: .........415V-16A. .....415V-16A ...... 415V-32A

Heat Settings: ....2500/5000W. .. 4500/9000W ....5000/10000/15000W

Setting Range

Thermostat:....... 0 - 40ºC. ......0 - 40ºC ........0 - 40ºC

Size (mm): .....315x330x400. .....350x405x460 .... 495x520x860

fig.

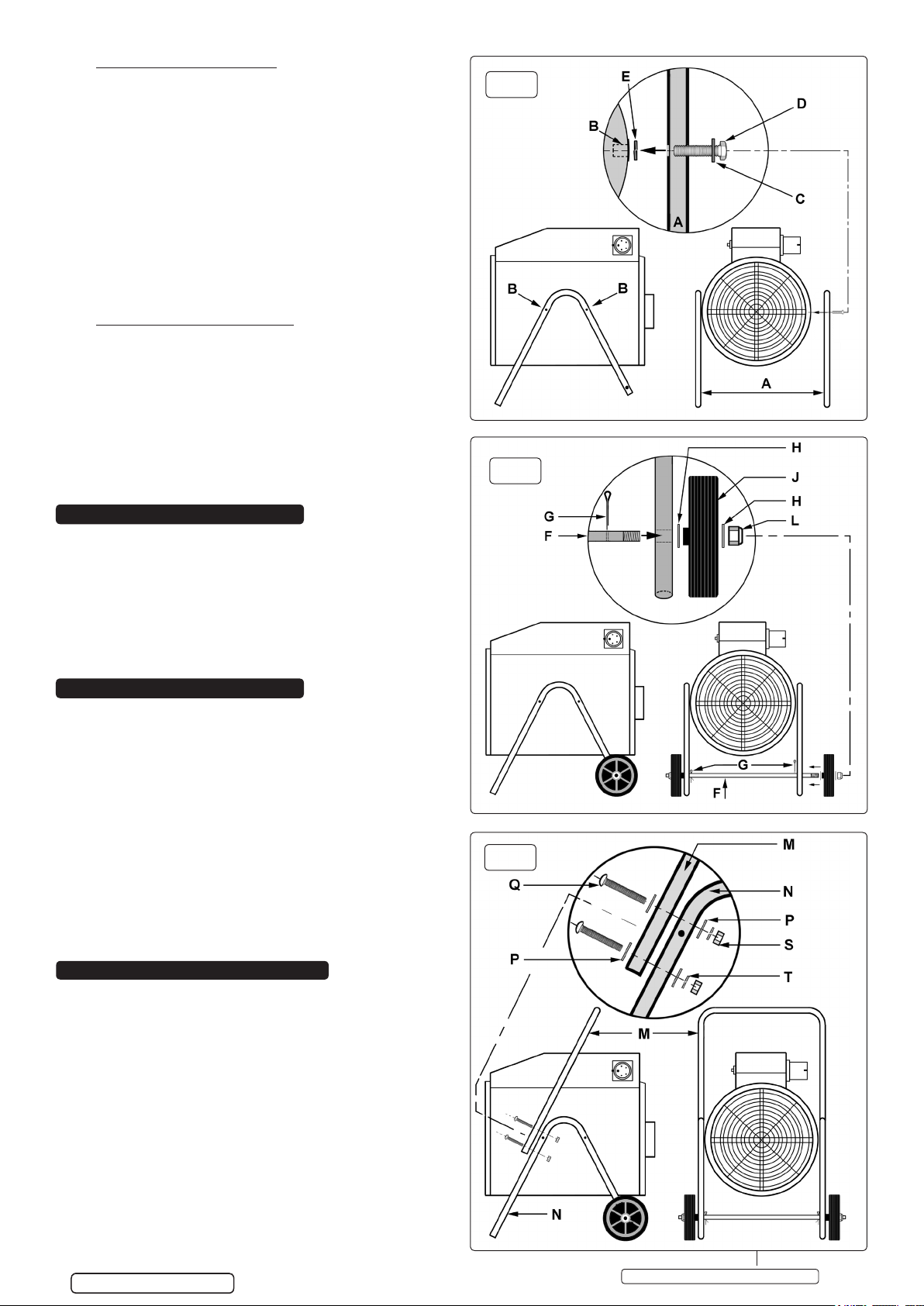

4.1. ASSEMBLY OF THE LEGS. (See fig.1)

4.1.1. On either side of the heater body there are two threaded inserts

(B) for mounting the 'V' shaped leg frames (A). Note that the

axle hole at the shorter end of the 'V' frames should be

orientated towards the back of the heater.

4.1.2. Take two M8 x 40mm bolts (D) and slide a plain washer (C) onto

each one. Insert a bolt through each of the mounting holes on

the leg frame and slide a split washer (E) over each protruding

bolt. Align the bolts with the two threaded inserts (B) on the

heater body and screw them down securely.

4.1.3. Mount the other 'V' frame to the other side of the heater body in

the same way.

4.2. ASSEMBLY OF THE WHEELS. (See fig.2)

4.2.1. Take the axle rod (F) and insert it through the holes in the 'V'

frames so that the threaded rod ends protrude equally either

side. Retain the axle rod in this position by inserting a split pin

(G) through the holes situated just on the inside of each leg

frame.

Original Language UK English

IMPORTANT!

This unit is designed to raise the ambient temperature

of an entire room, the temperature of the air coming out of the

front of the heater will be warmer than the general temperature

of the room, but there may not be a significan increase owing to

the large volume of air passing over the element. For the same

reason, the element is hot during operation, but does not glow.

The room temperature depends on room size, insulation and

ambient temperature, which will increase as the room warms.

2. INTRODUCTION

3. SPECIFICATION

Olympus OLY-JetHeat | Issue 2) 17/08/16

4.2.2. Slide a plain washer (H) over each end of the axle rod, followed

by a wheel (J) followed by anther plain washer (H).

4.2.3. Screw a nyloc nut (L) onto each end of the axle by hand until it

begins to bite. Hold one nut steady with a 19mm spanner and

progressively tighten each nut until it bottoms out on the thread.

4.3. ASSEMBLY OF THE HANDLE. (See fig.3)

4.3.1. Slide a plain washer over each of the four M5 x 50mm bolts

supplied.

4.3.2. Lay the 'U' shaped handle frame onto the front face of the leg

frames and align the two holes at each end of the handle frame

with the two holes in each leg frame. Insert two bolts at each

joint as indicated in fig.3.

4.3.3. Whilst continuing to support the handle frame slide a plain

washer (P) followed by a split washer (T) onto the end of each

protruding bolt and retain them with a nut (S). Tighten all four

nuts with an 8mm spanner. 5. OPERATION (ALL HEATERS)

5.1. Position heater in an upright position on a firm surface and at a

safe distance from any obstructions, flammable substances etc.

Keep to a minimum of 0.5mtr clearance at the rear and sides,

and 2mtr clearance at the front.

5.2. Connect the heater to a suitable mains supply.

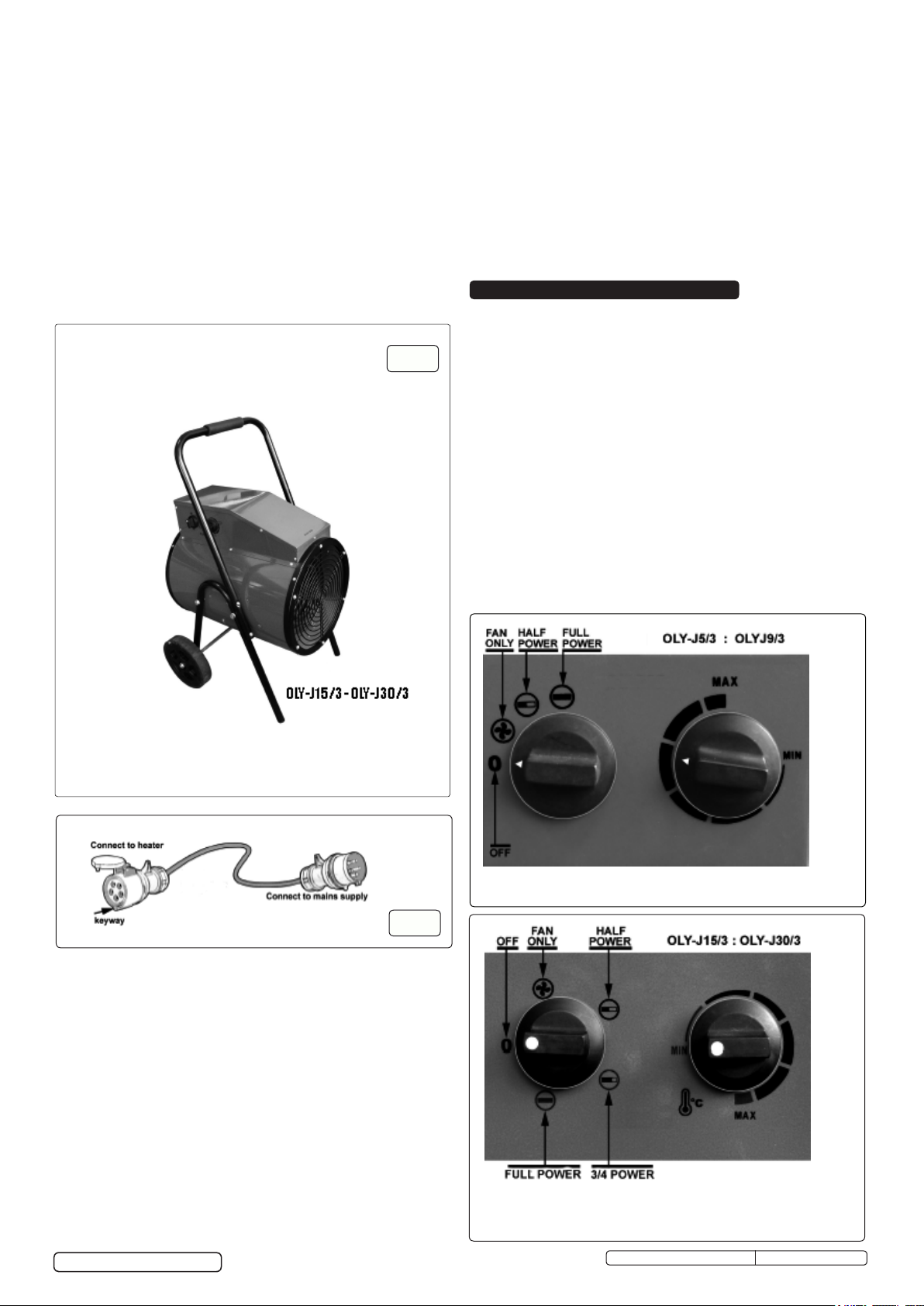

5.3. Referring to either fig.6 or fig.7, set the thermostat dial to the

maximum setting (fully clockwise).

5.4. The heater will switch on when the power setting selector is set

to one of the power settings.

NOTE: It will take up to three minutes for the heater to reach

optimum temperature.

5.5. Once the room reaches the required temperature, turn the

thermostat dial slowly counter-clockwise until the thermostat

clicks, leave the dial in this position and the room temperature

will be maintained at this setting. The heater will continue to

operate until the power switch is turned to the OFF position.

5.6. For fan only operation, turn the power/fan selector to the fan

only setting and set the thermostat to its minimum setting.

5.7. When not in use, disconnect the heater from the mains supply.

Store it in a safe, dry, childproof location.

fig.

Original Language UK English

4.4. CONNECTING OLY-J15/3 TO MAINS SUPPLY

4.4.1. The OLY-J15/3 heater is supplied with a protected 5 pin

4.4.2. Before connecting the OLY-J15/3 to the mains ensure that the

selector switch is set to OFF and the thermostat is set at

minimum.

4.4.3. Hold open the protective cover on the socket connector on the

extension lead as shown above and present it to the heater

connector in the correct orientation so that the spigot on the

heater connector passes into the keyway on the socket

connector. Push the socket connector fully home.

4.4.4. Connect the other end of the extension cable to the mains

supply.

restricted. If the temperature of the front grille reaches 45ºC a

a thermal cutout will operate, turning off the heating elements.

When the fan has cooled the unit to 40ºC, normal thermostatic

operation will resume.

4.5.2. AUTO COOLING. It is recommended that the thermostat should

be set to the minimum to cool the unit prior to switching off. If

the unit is switched off when operating at full temperature, and

the front grille has reached 45ºC, the time delay thermostat will

keep the fan running to cool down the unit. When the front grille

has cooled to 40ºC the fan will stop running.

4.5.3. NOTE: Auto cooling will only function if the unit is plugged

into the mains and the mains is ON.

fig.

connector mounted on the side of the control housing. In order

to connect to the mains it will be necessary to have the

extension cable shown in fig.5 made up by a qualified

electrician. (This cable is available from your supplier part no.

OLY-CAB/1.6/15KW.) The cable should be no shorter than

1.6m and no longer than 3.0m.

Olympus OLY-JetHeat | Issue 2) 17/08/16

4.5. OLY-J15/3 THERMOSTATIC PROTECTION.

4.5.1. The OLY-J153 has a thermal cut out to prevent the unit

from overheating for any reason, especially if the air input is

WARNING! Before attempting any maintenance, ensure that the unit

is unplugged from the mains power supply and that it has cooled down.

6.1. Clean the heater with a soft dry cloth only. DO NOT use

abrasives or solvents.

6.2. Periodically check the heater grille to ensure that it is not

blocked. No other maintenance is necessary. If a problem with

the heater is experienced, or if the power lead or plug is

damaged, contact your local authorised service agent for repair.

DO NOT dismantle or tamper with the heater, as this may be

dangerous and will invalidate the warranty.

NOTE: It may take up to three minutes for the heater

elements to reach optimum temperature. This is normal

and not a fault state.

6. MAINTENANCE

Environmental Protection

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,

taken to a recycling centre and disposed of in a manner which is compatible with the environment.

When the product becomes completely unserviceable and requires disposal, drain off any fluids (if applicable)

into approved containers and dispose of the product and the fluids according to local regulations.

WEEE Regulations

Dispose of this product at the end of its working life in compliance with the EU Directive on

Waste Electrical and Electronic Equipment (WEEE). When the product is no longer required, it must be disposed

of in an environmentally protective way. Contact your local solid waste authority for recycling information.

NOTE: It is a Martin Industries Limited policy to continually improve products and as such we reserve the right to alter data, specifications and component

parts without prior notice. IMPORTANT: No liability is accepted for incorrect use of this product.

WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any warranty claim.

01234 841221

01234 852662

10 Grisedale Court, Woburn Road

Industrial Estate, Kempston, Bedfordshire,

MK42 7EE,United Kingdom

www.orionair.co.uk

Original Language UK English

info@orionair.co.uk

Olympus OLY-JetHeat | Issue 2) 17/08/16

CE Rated

UK Distributor: Orion AC & R Limited

7.WARRANTY

Your product is guaranteed for a period of 12 months from the

date of purchase.

Please register your product warranty online at

www.martinindustries.co.uk. Here you will find the Terms & Conditions of

Warranty that apply to your product and an online registration form.

Please retain your original receipt and all packaging as they will be

required for a claim under warranty or if the product needs to be

collected for repair.

IMPORTANT: No liability is accepted for incorrect use of this product.

Este manual sirve para los siguientes modelos

Otros manuales de Calentador de Olympus

Olympus

Olympus JetHeat OLY-J3/1 Manual de usuario

Manuales populares de Calentador de otras marcas

oventrop

oventrop Regucor Series Manual de usuario

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manual de usuario

ELMEKO

ELMEKO ML 150 Manual de usuario

BN Thermic

BN Thermic 830T Manual de usuario

KING

KING K Series Guía

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guía de inicio rápido

Well Straler

Well Straler RC-16B Manual de usuario

EUROM

EUROM 333299 Manual de usuario

Heylo

Heylo K 170 Manual de usuario

Eterna

Eterna TR70W Manual de usuario

Clarke

Clarke GRH15 Manual de instrucciones

IRSAP

IRSAP The Radiator Company Ovali Manual de usuario

Empire Heating Systems

Empire Heating Systems WCC65 Manual de usuario

Wetekom

Wetekom 92 86 43 Manual de usuario

Desa

Desa SPC170-F Manual de usuario

Watlow

Watlow Watrod Electric Tubular Heaters Manual de usuario

Haverland

Haverland ECO-DRY GPS Series Manual de lista de piezas

Stelpro

Stelpro ASILVC2060 Series Manual de usuario
