Olympus U 1200 Manual de usuario

DIGITAL CAMERA

Instruction

Manual

Getting to know your

camera better

Quick Start Guide

Get started using your

camera right away.

Button operations

Menu operations

Printing pictures

Using OLYMPUS Master

(Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please

read these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual

in a safe place for future reference.

(We recommend that you take test shots to get accustomed to your camera before taking important

photographs.

(In the interest of continually improving products, Olympus reserves the right to update or modify

information contained in this manual.

(The screen and camera illustrations shown in this manual were produced during the development stages

and may differ from the actual product.

Appendix

d4351_e_0000_7.book Page 1 Wednesday, August 1, 2007 1:52 PM

Contents

Test out the functions of the camera

buttons by following along with the

illustrations.

Learn how to print pictures you have

taken.

Learn how to transfer and save

pictures to a computer.

Find out more about camera

operations and how to take better

pictures.

Read about convenient functions and

safety precautions on how to use your

camera more effectively.

Learn about the menus that control

the functions and settings for basic

operation.

Button operations

Menu operations

Printing pictures

Getting to know your camera

better

Appendix

P. 11

P. 19

P. 39

P. 53

P. 64

Using OLYMPUS Master P. 45

Quick Start Guide P. 3

d4351_e_0000_7.book Page 2 Wednesday, August 1, 2007 1:52 PM

Quick Start Guide

Gather these items (box contents)

(Pull the strap tight so that it does not come loose.

Digital Camera Strap LI-42B

Lithium Ion Battery

LI-40C

Battery Charger

USB Cable AV Cable OLYMPUS Master 2

Software CD-ROM

Items not shown: Instruction Manual (this manual) and warranty card.

Contents may vary depending on purchase location.

Attach the strap

Quick Start Guide

d4351_e_0000_7.book Page 3 Wednesday, August 1, 2007 1:52 PM

Quick Start Guide

Prepare the camera

a. Charge the battery.

(Battery comes partially charged.

b. Insert the battery and an xD-Picture Card (optional).

Charging Indicator

Light On (Red): Charging

Light Off: Charging complete

(Charging time: Approx. 5 hours)

AC Wall Outlet

Power Cable

Battery

Charger

Lithium Ion Battery

Battery lock knob

(Insert the battery by putting in the

marked side first, with the marks toward

the battery lock knob.

If you insert the battery incorrectly, you will not be

able to remove it. Do not use force. Contact

authorized distributors/service centers.

Damage to the battery exterior (scratches, etc.) may

produce heat or an explosion.

(To remove the battery, slide the battery

lock knob in the direction of the arrow.

d4351_e_0000_7.book Page 4 Wednesday, August 1, 2007 1:52 PM

Prepare the camera

Quick Start Guide

(You can shoot pictures with this camera even without using an optional xD-

Picture Card™ (hereinafter referred to as “the card”). If you shoot pictures with

this camera without using an xD-Picture Card, the pictures will be recorded in

the internal memory. For details on the card, please refer to “The card” (P. 66).

Notch (Orient the card as shown, and insert the

card straight in until it clicks into place.

(To remove the card, push the card all

the way in, release slowly, grasp the

card, then remove.

Contact area

d4351_e_0000_7.book Page 5 Wednesday, August 1, 2007 1:52 PM

Quick Start Guide

Turn the camera on

This explains how to turn on the camera in shooting mode.

a. Set the mode dial to K.

Still picture shooting modes

b. Press the obutton.

(To turn off the camera, press the obutton once again.

KThis function allows you to shoot with the camera’s automatic settings.

hThis function reduces the blur incurred by a moving subject, or camera shake

when taking pictures.

sThis function allows you to shoot pictures by selecting a scene according to the

shooting condition.

gThis function allows you to set the target items by following the shooting guide

displayed on the screen.

• When the date and time have

not yet been set, this screen will

appear.

When viewing pictures

(playback mode)

When shooting movies

(shooting mode)

When shooting still pictures (shooting mode)

oButton

CANCEL

Y/M/D

Y M D TIME

TIME

----.--.-- --:--

Hint

The directions of the arrow pad (1243) are indicated with

1243 in this manual.

d4351_e_0000_7.book Page 6 Wednesday, August 1, 2007 1:52 PM

Quick Start Guide

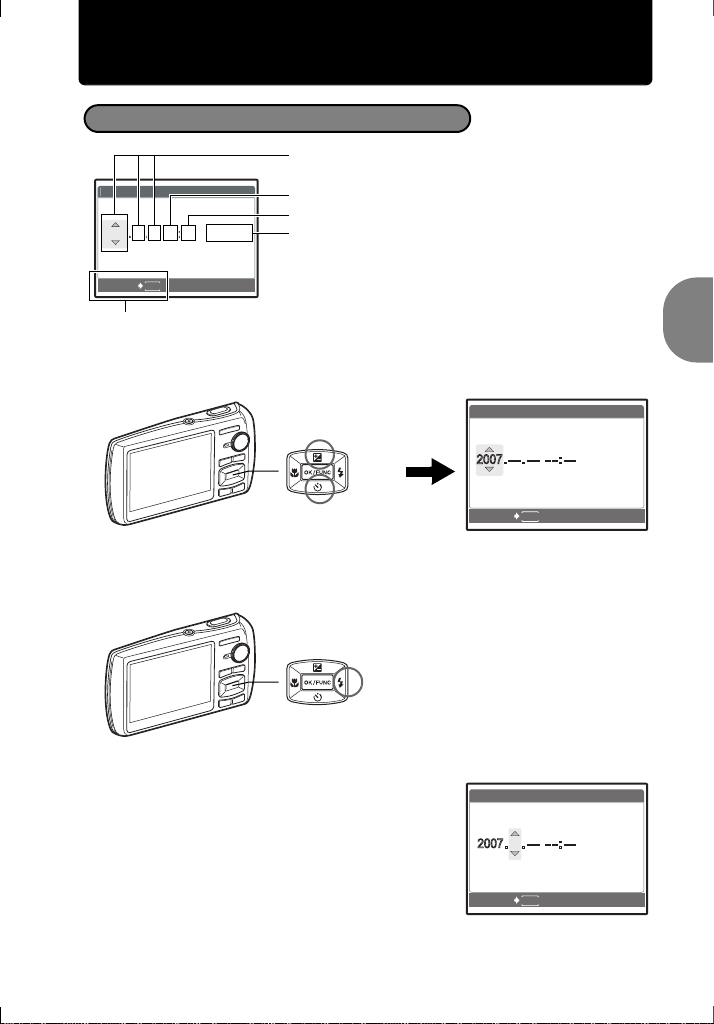

Set date and time

a. Press the 1Fbutton and the 2Ybutton to select [Y].

• The first two digits of the year are fixed.

b. Press the 3#button.

c. Press the 1Fbutton and the 2Y

button to select [M].

d. Press the 3#button.

About the date and time setting screen

Y-M-D (Year-Month-Day)

Exits a setting.

Minute

Date formats (Y-M-D, M-D-Y, D-M-Y)

Hour

CANCEL

Y/M/D

Y M D TIME

TIME

----.--.-- --:--

2YButton

1FButton

CANCEL

Y/M/D

Y/ M /D

TIME

3#Button

CANCEL

Y/M/D

Y/ M /D

TIME

d4351_e_0000_7.book Page 7 Wednesday, August 1, 2007 1:52 PM

Set date and time

Quick Start Guide

e. Press the 1Fbutton and the 2Y

button to select [D].

f. Press the 3#button.

g. Press the 1Fbutton and the 2Y

button to select the hours and minutes.

• The time is displayed in the 24-hour format.

h. Press the 3#button.

i. Press the 1Fbutton and the 2Y

button to select [Y/M/D].

j. After all items have been set, press the ebutton.

• For precise time setting, press the ebutton as the time signal strikes 00 seconds.

CANCEL

Y/M/D

Y/ M /D

TIME

CANCEL SET

Y/M/D

Y/ M /D

TIME

CANCEL SET

Y/M/D

Y/ M /D

TIME

eButton

4000

×3000

3000

[IN

]

[ ]

d4351_e_0000_7.book Page 8 Wednesday, August 1, 2007 1:52 PM

Quick Start Guide

Take a picture

a. Hold the camera

c. Shoot

Horizontal grip Vertical grip

b. Focus

Shutter Button

(Pressed

halfway)

When the focus and exposure are

locked, the green lamp lights up,

and the shutter speed and aperture

value are displayed.

Place this mark over your

subject.

The number of storable

still pictures is displayed.

4000

×3000

3000

[IN

]

[ ]

1/1000

F2.8

(Pressed

completely)

Shutter Button

The card access lamp blinks.

d4351_e_0000_7.book Page 9 Wednesday, August 1, 2007 1:52 PM

Quick Start Guide

View pictures

a. Set the mode dial to q.

a. Press the 4&button and the 3#button to display the picture

that you want to erase.

b. Press the f/Sbutton.

c. Press the 1Fbutton to select [YES] and press the ebutton

to erase the picture.

100-0001

[IN

]

12:30

'07.12.26

Arrow Pad

Next Picture

Prev. Picture

Mode Dial

oButton

Erase pictures

f/SButton

SET

BACK

YES

[IN]

ERASE

1FButton

eButton

SET

BACK

YES

ERASE

d4351_e_0000_7.book Page 10 Wednesday, August 1, 2007 1:52 PM
