Olympus IR 500 - 4MP Digital Solutions Camera Manual de usuario

Supplementary

Information for

REFERENCE MANUAL

About the Functions Added

in Dock&Done 2.0 Update

Digital Camera

IR-500

00E up date Adam .book Page 1 Thursday, March 24, 2005 1:57 AM

About this manual

This manual explains the main functions added or changed when the camera is updated to the

version compatible with Dock&Done 2.0, and their operation. For information about the

functions other than those added or changed by updating, refer to the Reference Manual supplied

with the camera.

Trademarks

Q, and OLYMPUS Master are trademarks of OLYMPUS CORPORATION.

Main functions added or changed in

Dock&Done 2.0

POWER

Playing back image files stored in

the storage unit on the monitor of

the camera

Cradle

Saving the images on the camera to a

CD or DVD using the DVD storage unit

Digital camera

Remote control*

Dock&Done-compatible

storage unit (hard disk/DVD)*

* Sold separately

Easy control of the

playback and printing

with the remote control

00E up date Adam .book Page 2 Thursday, March 24, 2005 1:57 AM

Main functions added or changed in Dock&Done 2.0

Print reservation Canceling all of the current print reservations and making

new reservations gP.5

Dock&Done

function

Support for the optional Dock&Done-compatible DVD

Storage gP.6

Playing back images stored on a storage unit gP.10

Saving images on the camera to a CD or DVD gP.14

Printing images played back gP.16

Resetting print reservations automatically after printing is

complete gP.19

Remote control Support for the optional remote control (RM-100) gP.20

Camera setting Switching the display language gP.28

You can select the display language among from English and

the language selected when updating.

Item “ERASE STORED IMAGE” in the setup menu changed

to “STORE AND”

The options “ON” and “OFF” have also been changed to

“ERASE” and “KEEP” respectively. For details about the

function and its operation, see “Erasing the image data

automatically after storing them onto the storage unit (ERASE

STORED IMAGE)” (P.157) in the Reference Manual supplied

with the camera.

00E up date Adam .book Page 3 Thursday, March 24, 2005 1:57 AM

Table of contents

About this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Main functions added or changed in Dock&Done 2.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Making print reservations 5

Canceling all of the current print reservations and making new reservations . . . . . . . . . . . . . . . . 5

Using the Qfunctions 6

Using the Dock&Done-compatible storage unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Storing camera images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Playing back images on the storage unit (Storage Playback) . . . . . . . . . . . . . . . . . . . . . . . . . 10

Creating a disk for storing images (CREATE SHARE DISK) . . . . . . . . . . . . . . . . . . . . . . . . 14

Printing images being played back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Printing images on the camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Printing images on the storage unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Configuring camera settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Resetting the print reservation automatically after printing is complete . . . . . . . . . . . . . . . . . 19

Using the remote control for playback 20

Setting up the camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Operating the camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Using the direct buttons on the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Others 23

Error message list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

If a problem arises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

List of added or changed menu items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

00E up date Adam .book Page 4 Thursday, March 24, 2005 1:57 AM

Making print reservations

Canceling all of the current print reservations and making new reservations

Making print reservations

Canceling all of the current print

reservations and making new reservations

1Turn the mode dial to q, then

press p.

The playback menu appears.

2Press a, cto select “<,” then

press d.

When there is a print reservation(s), the screen to cancel

or keep the reservation(s) appears.

3Press a, cto select “RESET,” then press

All print reservations are canceled.

4Make new reservations.

For detailed procedure to make print reservations, see

“Making print reservations (DPOF)” (P.182) in the Reference Manual supplied with the

camera.

Tips

•If you want to make additional reservations without canceling current reservations, select “KEEP” in step

•If you want to cancel print reservations for specific images, select “KEEP” in step 3, and cancel

reservations frame by frame. For detailed procedure to cancel print reservations frame by frame, see

“Canceling print reservations” (P.189) in the Reference Manual supplied with the camera.

OPEN

QUICK

VIEW

OPEN

POWER

Mode dial

pbutton

abcd

buttons

9button

INFO STANDARD

PRINT ORDERED

KEEP

RESET

PRINT ORDER

SELECT

00E up date Adam .book Page 5 Thursday, March 24, 2005 1:57 AM

Using the Qfunctions

Using the Dock&Done-compatible storage unit

Using the Qfunctions

Using the Dock&Done-compatible storage

unit

You can use the optional Dock&Done-compatible DVD Storage as well as the optional

Dock&Done-compatible HD Storage. The DVD storage unit allows you to save camera images

to a CD or DVD.

For detailed operations of the Dock&Done-compatible storage unit (hard disk/DVD), refer to the

instruction manual of the storage unit.

Storing camera images

You can store only new images on the Dock&Done-compatible storage unit (hard disk/DVD).

The “STORE” setting is set to “STORE” for newly taken images. Once an image is stored, the

setting is canceled automatically to prevent storing the same image multiple times.

1Dock the cradle on the storage unit.

PUSH

00E up date Adam .book Page 6 Thursday, March 24, 2005 1:57 AM

Using the Qfunctions

Using the Dock&Done-compatible storage unit

2Connect the AC adapter to the storage unit and the power cord to a wall

outlet.

3Set the Dock&Done mode/PC mode switch on the storage unit to

“QDOCK,” and turn on the storage unit.

Wait until the ACCESS indicator on the storage unit goes off.

PCDOCK

ACCESS indicator

00E up date Adam .book Page 7 Thursday, March 24, 2005 1:57 AM

Using the Qfunctions

Using the Dock&Done-compatible storage unit

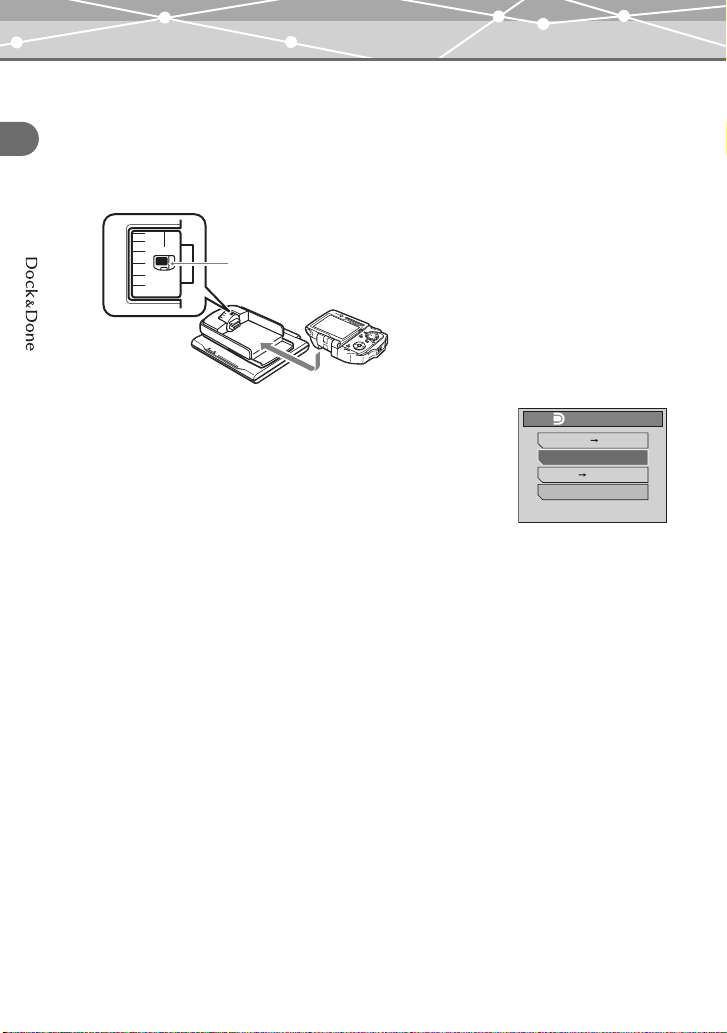

4Set the camera on the cradle with the multi-swing display opened.

•The camera turns on, and the “QDOCK MODE” screen appears.

•The camera is powered by the AC adapter of the storage unit.

•When an unformatted disk is inserted in the DVD storage unit, the disk format screen

appears. For details, refer to the instruction manual of the DVD storage unit.

5Press a, ct o select “STOR E O N LY,” then

press 9.

When the images have been stored, the camera turns off

automatically.

Turn the camera connector dial of the cradle

to this mark.

STORE ONLY

EXIT

20SEC. TILL AUTO STORE

DOCK MODE

STORE SEL. PRINT

STORE PRINT

00E up date Adam .book Page 8 Thursday, March 24, 2005 1:57 AM

Using the Qfunctions

Using the Dock&Done-compatible storage unit

“QDOCK MODE” screen menu

The available menu varies depending on the camera settings and whether print reservations have

been made or not.

STORE:PRINT: Stores new images on the storage unit, and then prints images with

print reservations.

STORE ONLY: Stores new images on the storage unit.

STORE:SEL. PRINT: Stores new images on the storage unit, and then prints selected

images.

PRINT: Prints images with print reservations.

SEL. PRINT: Prints selected images.

EXIT: Exits without storing or printing.

Tips

•You can also individually select the images to be stored on the storage unit. g“Setting images to store

on a QDock&Done-compatible storage unit (STORE)” (P.129) in the Reference Manual supplied with the

camera

•You can also set the camera to automatically erase images after they have been stored on the storage unit.

g“Erasing the image data automatically after storing them onto the storage unit (ERASE STORED

IMAGE)” (P.157) in the Reference Manual supplied with the camera

•When the camera is off, the camera battery is charged by the AC adapter of the storage unit.

•Packet-writing software is required on your PC if you want to view images stored on a disk using the DVD

storage unit. For details about the packet-writing software, refer to the instruction manual of the DVD

storage unit.

00E up date Adam .book Page 9 Thursday, March 24, 2005 1:57 AM

Using the Qfunctions

Using the Dock&Done-compatible storage unit

Playing back images on the storage unit (Storage Playback)

You can use the camera’s monitor to view images stored on the Dock&Done-compatible storage

unit (hard disk/DVD).

Before operating the menus, make sure the camera, cradle and storage unit are set up.

1If the “QDOCK MODE” screen is displayed,

press a, cto select “EXIT,” then press

The mode selection screen appears.

2Press a, cto select “STORAGE,” then

press 9.

Data on the storage unit are displayed in the multi-year

display.

Turn the zoom lever to switch to the 12-month, one-

month, index, or single-frame display.

3In the calendar display, select the date of

the image you want to play back, then press

The images in the selected date are displayed in the 9-

frame index display.

CAMERA

STORAGE

SELECT MODE

SELECT

2004

2003

2005

00E up date Adam .book Page 10 Thursday, March 24, 2005 1:57 AM
