●Thank you for purchasing an Olympus digital camera. Before you start to

use your new camera, please read these instructions carefully to enjoy

optimum performance and a longer service life. Keep this manual in a

safe place for future reference.

●We recommend that you take test shots to get accustomed to your

camera before taking important photographs.

●In the interest of continually improving products, Olympus reserves the

right to update or modify information contained in this manual.

●The screen and camera illustrations shown in this manual were produced

during the development stages and may differ from the actual product.

Instruction Manual

book_FE370_en.indb 1 6/12/2008 10:43:24 AM

Step 4

Step 1

Step 3

Step 2

How to Use the Camera

“Three Types of Setting Operations” (p. 3)

Printing

“Direct printing (PictBridge)” (p. 38)

“Print Reservations (DPOF)” (p. 41)

Shooting and Playing Back Images

“Shooting, Playback, and Erasing” (p. 15)

Preparing the Camera

“Preparing the Camera” (p. 10)

Names of Parts ......................................6

Preparing the Camera .........................10

Shooting, Playback, and Erasing.......15

Using Shooting Modes........................18

Using Shooting Functions..................20

Using Playback Features ....................23

Menus for Shooting Functions...........25

Menus for Playback, Editing, and

Printing Functions...............................30

Menus for Other Camera Settings .....34

Printing .................................................38

Using OLYMPUS Master 2...................44

Usage Tips ...........................................46

Appendix ..............................................51

Index .....................................................65

ContentsContents

book_FE370_en.indb 2 6/12/2008 10:43:26 AM

Printed in China VS704401

1AG6P1P4943--

book_FE370_en.indb 70 6/12/2008 10:45:16 AM

DIGITAL CAMERA

●Thank you for purchasing an Olympus digital camera. Before you start to

use your new camera, please read these instructions carefully to enjoy

optimum performance and a longer service life. Keep this manual in a

safe place for future reference.

●We recommend that you take test shots to get accustomed to your

camera before taking important photographs.

●In the interest of continually improving products, Olympus reserves the

right to update or modify information contained in this manual.

●The screen and camera illustrations shown in this manual were produced

during the development stages and may differ from the actual product.

Instruction Manual

book_FE370_en.indb 1 6/12/2008 10:43:24 AM

Step 4

Step 1

Step 3

Step 2

How to Use the Camera

“Three Types of Setting Operations” (p. 3)

Printing

“Direct printing (PictBridge)” (p. 38)

“Print Reservations (DPOF)” (p. 41)

Shooting and Playing Back Images

“Shooting, Playback, and Erasing” (p. 15)

Preparing the Camera

“Preparing the Camera” (p. 10)

Names of Parts ......................................6

Preparing the Camera .........................10

Shooting, Playback, and Erasing.......15

Using Shooting Modes........................18

Using Shooting Functions..................20

Using Playback Features ....................23

Menus for Shooting Functions...........25

Menus for Playback, Editing, and

Printing Functions...............................30

Menus for Other Camera Settings .....34

Printing .................................................38

Using OLYMPUS Master 2...................44

Usage Tips ...........................................46

Appendix ..............................................51

Index .....................................................65

ContentsContents

book_FE370_en.indb 2 6/12/2008 10:43:26 AM

Printed in China VS704401

1AG6P1P4943--

book_FE370_en.indb 70 6/12/2008 10:45:16 AM

Using the FUNC Menu (p. 22)Using the FUNC Menu (p. 22)

Frequently used shooting menu functions can be set with less

Steps using the FUNC menu.

Using the Direct Buttons (p. 20 to 24)Using the Direct Buttons (p. 20 to 24)

Frequently used shooting functions can be accessed using the

direct buttons.

Zoom lever (p. 20)

Shutter button (p. 15)

Kbutton (shooting) (p. 16)

qbutton (playback) (p. 16)

Fbutton (exposure compensation) (p. 21)

&button (macro) (p. 21)

#button (ash) (p. 20)

Ybutton (self-timer) (p. 21)

g/Ebutton (information display change/

menu guide) (p. 18, 22, 23)

button (print) (p. 38, 40)

"/button (backlight boost/erase) (p. 21/ p. 17)

button (p. 22)

Arrow pad

button

Buttons in use

book_FE370_en.indb 4 6/12/2008 10:43:30 AM

MEMO

book_FE370_en.indb 69 6/12/2008 10:45:16 AM

This example describes how to use the menus to set the

[POWER SAVE].

xSETUP (shooting mode /playback mode top menu) X

POWER SAVE (Submenu 1) XON (Submenu 2)

1Set the mode dial to a position other than

The symbol in “Menu

Settings” (p. 25 to 29)

indicates available shooting

modes.

2Press the button.

Press the 

button to return to

the previous screen

in any Step after

Step 2.

RESET

CAMERA

SILENT

MODE

SILENT

MODE

EXIT SET


QUALITY


QUALITY

SETUP

SCENE

Shooting mode top menu

3Use abcd to select the desired

menu, and press the button.

Pressing and

holding the E

button displays

an explanation

(menu guide) of the

selected option.

BACKUP

SETUP

SET

ENGLISH

PIXEL MAPPING

MEMORY FORMAT

EXIT

Submenu 1

Please read “Menu Settings” (p. 25 to 37) while referring to this page.

button Arrow pad

button

Buttons in use

4Use ab to select the desired

submenu 1, and press the button.

POWER SAVE

SETUP

OFF

NTSCVIDEO OUT

EXIT SET

POWER SAVE

OFF

SETUP

AUTO

AUTOVIDEO OUT

SET

BACK

POWER SAVE

OFF

Page tab Submenu 2

To quickly move to the desired submenu,

press cto highlight the page tab, and then

use ab to move the page. Press dto

return to the submenu.

Some menus include submenus that appear

by pressing the button.

5Use ab to select the submenu 2,

and press the button.

Once a setting is made, the display returns to

the previous screen.

There may be

additional operations.

“Menu Settings” (p. 25

to 37)

6Press the button to complete the

setting.

●

Three Types of Setting Operations

Ebutton

Using the MenuUsing the Menu

Various camera settings can be accessed through the

menus, including functions used during shooting and

playback and the date/time and screen display.

There may be unavailable menus depending on other

related settings or the position of the mode dial.

POWER SAVE

SETUP

NTSCVIDEO OUT

EXIT SET

book_FE370_en.indb 3 6/12/2008 10:43:27 AM

Using the FUNC Menu (p. 22)Using the FUNC Menu (p. 22)

Frequently used shooting menu functions can be set with less

Steps using the FUNC menu.

Using the Direct Buttons (p. 20 to 24)Using the Direct Buttons (p. 20 to 24)

Frequently used shooting functions can be accessed using the

direct buttons.

Zoom lever (p. 20)

Shutter button (p. 15)

Kbutton (shooting) (p. 16)

qbutton (playback) (p. 16)

Fbutton (exposure compensation) (p. 21)

&button (macro) (p. 21)

#button (ash) (p. 20)

Ybutton (self-timer) (p. 21)

g/Ebutton (information display change/

menu guide) (p. 18, 22, 23)

button (print) (p. 38, 40)

"/button (backlight boost/erase) (p. 21/ p. 17)

button (p. 22)

Arrow pad

button

Buttons in use

book_FE370_en.indb 4 6/12/2008 10:43:30 AM

MEMO

book_FE370_en.indb 69 6/12/2008 10:45:16 AM

This example describes how to use the menus to set the

[POWER SAVE].

xSETUP (shooting mode /playback mode top menu) X

POWER SAVE (Submenu 1) XON (Submenu 2)

1Set the mode dial to a position other than

The symbol in “Menu

Settings” (p. 25 to 29)

indicates available shooting

modes.

2Press the button.

Press the 

button to return to

the previous screen

in any Step after

Step 2.

RESET

CAMERA

SILENT

MODE

SILENT

MODE

EXIT SET


QUALITY


QUALITY

SETUP

SCENE

Shooting mode top menu

3Use abcd to select the desired

menu, and press the button.

Pressing and

holding the E

button displays

an explanation

(menu guide) of the

selected option.

BACKUP

SETUP

SET

ENGLISH

PIXEL MAPPING

MEMORY FORMAT

EXIT

Submenu 1

Please read “Menu Settings” (p. 25 to 37) while referring to this page.

button Arrow pad

button

Buttons in use

4Use ab to select the desired

submenu 1, and press the button.

POWER SAVE

SETUP

OFF

NTSCVIDEO OUT

EXIT SET

POWER SAVE

OFF

SETUP

AUTO

AUTOVIDEO OUT

SET

BACK

POWER SAVE

OFF

Page tab Submenu 2

To quickly move to the desired submenu,

press cto highlight the page tab, and then

use ab to move the page. Press dto

return to the submenu.

Some menus include submenus that appear

by pressing the button.

5Use ab to select the submenu 2,

and press the button.

Once a setting is made, the display returns to

the previous screen.

There may be

additional operations.

“Menu Settings” (p. 25

to 37)

6Press the button to complete the

setting.

●

Three Types of Setting Operations

Ebutton

Using the MenuUsing the Menu

Various camera settings can be accessed through the

menus, including functions used during shooting and

playback and the date/time and screen display.

There may be unavailable menus depending on other

related settings or the position of the mode dial.

POWER SAVE

SETUP

NTSCVIDEO OUT

EXIT SET

book_FE370_en.indb 3 6/12/2008 10:43:27 AM

1ySLIDESHOW............... p. 30

2wPERFECT FIX ............. p. 30

3fMY FAVORITE ............. p. 30

4EEDIT

Q(Resize) ............... p. 31

P(Crop) ................... p. 31

EXPRESSION EDIT... p. 31

FACE FOCUS............. p. 31

Menus for Playback, Editing, and Printing Functions

When the qbutton is pressed, settings can be adjusted.

EXIT SET

ERASE

EDIT

PLAYBACK

PERFECT

FIX

PERFECT

FIX

SILENT

MODE

SILENT

MODE

FAVORITE

SLIDE-

SHOW

SLIDE-

SHOW

ORDER

SETUP

Playback mode top menu

INDEX......................... p. 32

EDIT ........................... p. 32

5qPLAYBACK MENU

0(Protect) .............. p. 32

y(Rotate).................. p. 32

R(Add sound to still

images) ................... p. 33

6DERASE......................... p. 33

7<PRINT ORDER............ p. 42

8xSETUP*

*Same as “Menus for

shooting functions”

9jSILENT MODE ............ p. 37

1DIMAGE QUALITY........ p. 25

2KCAMERA MENU

WB.............................. p. 26

ISO ............................. p. 26

FINE ZOOM................ p. 26

IMAGE STABILIZER

(Still images)/

DIS MOVIE MODE

(Movies) .................. p. 27

R(Still images/

movies).................... p. 27

PANORAMA ............... p. 27

AF MODE ................... p. 28

3 f......................... p. 28

4RRESET ........................ p. 29

5 xSETUP

MEMORY FORMAT/

FORMAT ................. p. 34

BACKUP..................... p. 34

W(Language)....... p. 34

PIXEL MAPPING........ p. 34

K/q........................ p. 34

PW ON SETUP .......... p. 35

MENU COLOR ........... p. 35

SOUND SETTINGS.... p. 35

s(Monitor) .............. p. 36

X(Date/time)........... p. 36

VIDEO OUT................ p. 36

POWER SAVE............ p. 37

6jSILENT MODE ............ p. 37

Menu Index

Menus for Shooting Functions

When the Kbutton is pressed and the mode dial is set to

a shooting mode position (APMBEfn),

settings can be adjusted.

RESET

CAMERA

SILENT

MODE

SILENT

MODE

EXIT SET


QUALITY


QUALITY

SETUP

SCENE

3 6

Shooting mode top menu

book_FE370_en.indb 5book_FE370_en.indb 5 6/12/2008 10:43:31 AM6/12/2008 10:43:31 AM

Names of Parts

1Self-timer lamp............................ p. 21

2Multi-connector ............... p. 36, 38, 44

3Strap eyelet................................. p. 10

4Battery/

card compartment cover ............. p. 11

Camera unit

5Flash ........................................... p. 20

6Lens ......................................p. 51, 60

7Microphone ...........................p. 27, 33

8Tripod socket .............................. p. 27

9Speaker ......................................p. 35

book_FE370_en.indb 6book_FE370_en.indb 6 6/12/2008 10:43:33 AM6/12/2008 10:43:33 AM

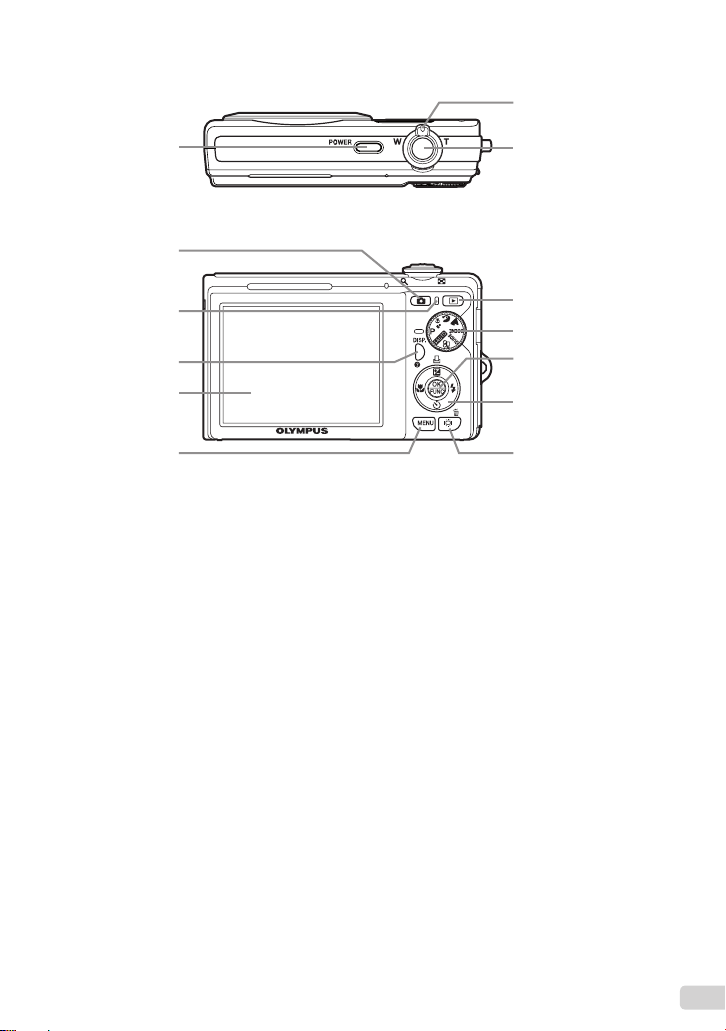

1 obutton ............................p. 13

2Kbutton (shooting)...................p. 16

3Card access lamp .......................p. 53

4DISP./Ebutton

(information display change/

menu guide).................... p. 18, 22, 23

5Monitor............................ p. 13, 15, 46

6mbutton........................... p. 3, 13

7 Zoom lever............................ p. 20, 23

8 Shutter button ....................... p. 15, 46

9qbutton (playback) .................. p. 16

10 Mode dial ................................ p. 3, 13

11 obutton ................................ p. 3, 22

12 Arrow pad ............................... p. 3, 13

F/Pbutton

(exposure compensation/

print) ........................ p. 21/p. 38, 40

&button (macro) ................... p. 21

Ybutton (self-timer) ..............p. 21

#button (ﬂash)...................... p. 20

13 /Dbutton (backlight boost/

erase)..................... p. 21/p. 17, 24, 33

book_FE370_en.indb 7book_FE370_en.indb 7 6/12/2008 10:43:34 AM6/12/2008 10:43:34 AM

Monitor

Shooting mode display

+2.0

1/30

F3.5

ISO

1600

ISO

1600

ORM

11131415 1012

2 54 63

+2.0

00:34

VGA

11 101215

2 54 63

Still image Movie

1Shooting mode............................ p. 15

2Flash mode .................................p. 20

3Silent mode................................. p. 37

4Image stabilization (still image)/

Digital image stabilization (movie)

.................................................... p. 27

5Macro/super macro..................... p. 21

6Battery check ..............................p. 10

7Flash standby/

camera shake warning/

ﬂash charge ....................... p. 20/p. 46

8AF target mark ............................p. 15

9Recording with sound ................. p. 27

10 Number of storable still images/

remaining recording time ... p. 15/p. 19

11 Current memory.......................... p. 52

12 Self-timer ....................................p. 21

13 Aperture value ............................ p. 15

14 Shutter speed ............................. p. 15

15 Exposure compensation ............. p. 20

16 Compression/frame rate ............. p. 25

17 Image size .................................. p. 25

18 ISO.............................................. p. 26

19 White balance .............................p. 26

book_FE370_en.indb 8book_FE370_en.indb 8 6/12/2008 10:43:36 AM6/12/2008 10:43:36 AM

Playback mode display

2008.10.26

12:30

+2.0

F3.5

100-0004

ORM

1/1000

ISO 1

600

ISO 1

600

3 4 51

121314

2008.10.26

12:30

100-0004

00:14

00:34

00:14

00:34

VGA

34 51

1213

Still image Movie

1Silent mode................................. p. 37

2Print reservations/

number of prints................. p. 41/p. 40

3Adding sound.............................. p. 33

4Protect ........................................p. 32

5Battery check ..............................p. 10

6Aperture value ............................ p. 15

7Exposure compensation ............. p. 20

8White balance .............................p. 26

9Image size .................................. p. 25

10 File number....................................... -

11 Frame number/

elapsed time/

total recording time ............ p. 16/p. 17

12 Current memory.......................... p. 52

13 Compression/frame rate ............. p. 25

14 ISO.............................................. p. 26

15 Date and time ............................. p. 13

16 Shutter speed ............................. p. 15

book_FE370_en.indb 9book_FE370_en.indb 9 6/12/2008 10:43:37 AM6/12/2008 10:43:37 AM

Preparing the Camera

Charging the battery

AC outlet

AC cable

Lithium ion

battery

Battery charger

Charging indicator

On: Charging

Off: Charged

Battery comes partially charged. Before

use, be sure to charge the battery until the

charging indicator goes off (for approx.

2.5 hours).

For details on the battery and the charger,

see “Battery and charger” (p. 51).

When to charge the batteries

Charge the battery when the error message

shown below appears.

BATTERY EMPTY

Monitor top right Error message

Flashes in red

Checking the contents of the

box

Digital camera Strap

LI-60B Lithium Ion Battery LI-60C Battery Charger

USB cable AV cable

OLYMPUS Master 2

CD-ROM

microSD Attachment

Other accessories not shown: Instruction Manual (this

manual), warranty card.

Contents may vary depending on purchase location.

Attaching the camera strap

Pull the strap tight so that it does not come

loose.

book_FE370_en.indb 10book_FE370_en.indb 10 6/12/2008 10:43:39 AM6/12/2008 10:43:39 AM

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara digital de Olympus

Olympus

Olympus IS-300 Manual de usuario

Olympus

Olympus 226705 - Stylus 9000 Digital Camera Instrucciones de montaje

Olympus

Olympus SH-60 Manual de usuario

Olympus

Olympus Camedia D-540ZOOM Manual de usuario

Olympus

Olympus SH-2 Manual de usuario

Olympus

Olympus Stylus 7000 Manual de usuario

Olympus

Olympus CAMEDIA C-70 ZOOM Guía de configuración

Olympus

Olympus FE 115 - Digital Camera - 5.0 Megapixel Manual de usuario

Olympus

Olympus CAMEDIA C-4040 Zoom Manual de usuario

Olympus

Olympus CAMEDIA C-5500 Sport Zoom Manual de usuario

Olympus

Olympus E-PL3 Manual de usuario

Olympus

Olympus UltraZoom C-2100U Manual de usuario

Olympus

Olympus Stylus 720 SW Manual de instrucciones

Olympus

Olympus E-PM1 Guía de instalación

Olympus

Olympus CAMEDIA C-3040 Zoom Guía de instalación

Olympus

Olympus E420 - Evolt 10MP Digital SLR Camera Manual de usuario

Olympus

Olympus CAMEDIA C-60 Zoom Manual de usuario

Olympus

Olympus STYLUS TOUGH-8000 Manual de instrucciones

Olympus

Olympus E-PL3 Manual de usuario

Olympus

Olympus FE-4030 Manual de instrucciones

Olympus

Olympus FE 115 - Digital Camera - 5.0 Megapixel Manual de usuario

Olympus

Olympus E-20 - Dual Monaural Earphones Actualización de firmware

Olympus

Olympus E10 - CAMEDIA E 10 Digital Camera SLR Guía de instalación

Olympus

Olympus SP-565 UZ Manual de usuario

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

Sony

Sony MCA-20 Manual de usuario

Sony

Sony Alpha DSLR-A290 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Sony

Sony A6700 Guía del usuario

Canon

Canon EOS ELAN7 Manual de usuario
