Olympus E-PL1 Manual de usuario

9am to 9pm (Monday to Friday) ET

Printed in China VN653501

Thank you for purchasing an Olympus digital camera. Before you start to use your new

camera, please read these instructions carefully to enjoy optimum performance and a

longer service life. Keep this manual in a safe place for future reference.

We recommend that you take test shots to get accustomed to your camera before taking

important photographs.

The screen and camera illustrations shown in this manual were produced during the

development stages and may differ from the actual product.

The contents in this manual are based on ﬁrmware version 1.0 for this camera. If there

are additions and/or modiﬁcations of functions due to ﬁrmware update for the camera, the

contents will differ. For the latest information, please visit the Olympus website.

Basic guide

Quick task index

Table of Contents

1. Basic photography and useful

functions

2. Other shooting options and

advanced settings

3. Flash shooting

4. Shooting and viewing movies

5. Playback options

6. Camera setup

7. Customizing camera settings

8. Printing pictures

9. Connecting the camera to a

computer

.Shooting tips and maintenance

.Information

Instruction Manual

DIGITAL CAMERA

Instruction Manual

$$000S0027ECover.indd1$$000S0027ECover.indd1 2009/12/2119:38:052009/12/2119:38:05

Unpack the box contents

The following items are included with the camera.

If anything is missing or damaged, contact the dealer from whom you purchased

the camera.

Camera

AV cable

(Monaural)

CB-AVC3

USB cable

CB-USB6

PS-BCS1(BCS-1)

Lithium ion charger

PS-BLS1(BLS-1)

Lithium ion battery

StrapBody cap

Computer software (ib)

CD-ROM

Instruction manual

Warranty card

•

Thread the strap in the

direction of the arrows.

Lastly, pull the strap tight

making sure that it is

fastened securely.

Attach the other end of the strap to the other eyelet in the same way.•

Attaching the strap

Indications used in this manual

The following symbols are used throughout this manual.

#Caution

Important information on factors which may lead to a malfunction

or operational problems. Also warns of operations that should be

absolutely avoided.

$Notes Points to note when using the camera.

%Tips Useful information and hints that will help you get the most out of

your camera.

gReference pages describing details or related information.

S0027E.indb2S0027E.indb2 2009/12/2114:52:352009/12/2114:52:35

Preparations for shooting

Basic guide

Charging the battery.

charging indicator

Amber light: Charging in

progress

Blue light: Charging complete

(Charging time: Up to

approximately 3 hours 30

minutes)

Amber blinking: Charging error

AC wall outlet

BCS-1 Lithium

ion charger

Direction indicating mark

BLS-1 Lithium ion battery

AC cable

Charging indicator

Loading the battery.

Battery/card

compartment lock

Battery/card

compartment cover

Direction indicating mark

Removing the battery

Turn off the camera before

opening or closing the battery/card

compartment cover.

To remove the battery, ﬁrst push the

battery lock knob in the direction of

the arrow and then remove.

$Notes

It is recommended to set aside a backup battery for prolonged shooting in case the

battery in use drains.

•

Charging and inserting the battery

S0027E.indb3S0027E.indb3 2009/12/2114:52:362009/12/2114:52:36

Basic guide Preparations for shooting

Loading the card.

Insert the SD/SDHC card

(referred to as “card” in these

instructions) until it locks in

place.

g“Card basics” (P. 95)

#Caution

Turn off the camera before

loading or removing the card.

•

Removing the card

Press the inserted card lightly and it

will be ejected. Pull out the card.

#Caution

Do not remove the battery or

card while the card write indicator

(P. 22) is displayed.

•

Closing the battery/card compartment cover.

Close the cover until you

hear a click.

•

#Caution

Close the battery/card compartment cover when using the camera.

Do not remove the battery or card while the card write indicator (P. 22) is displayed.

Failure to observe this precaution could result in the loss not only of the images

being recorded but also of existing images.

•

Inserting and removing cards

S0027E.indb4S0027E.indb4 2009/12/2114:52:362009/12/2114:52:36

Preparations for shooting

Basic guide

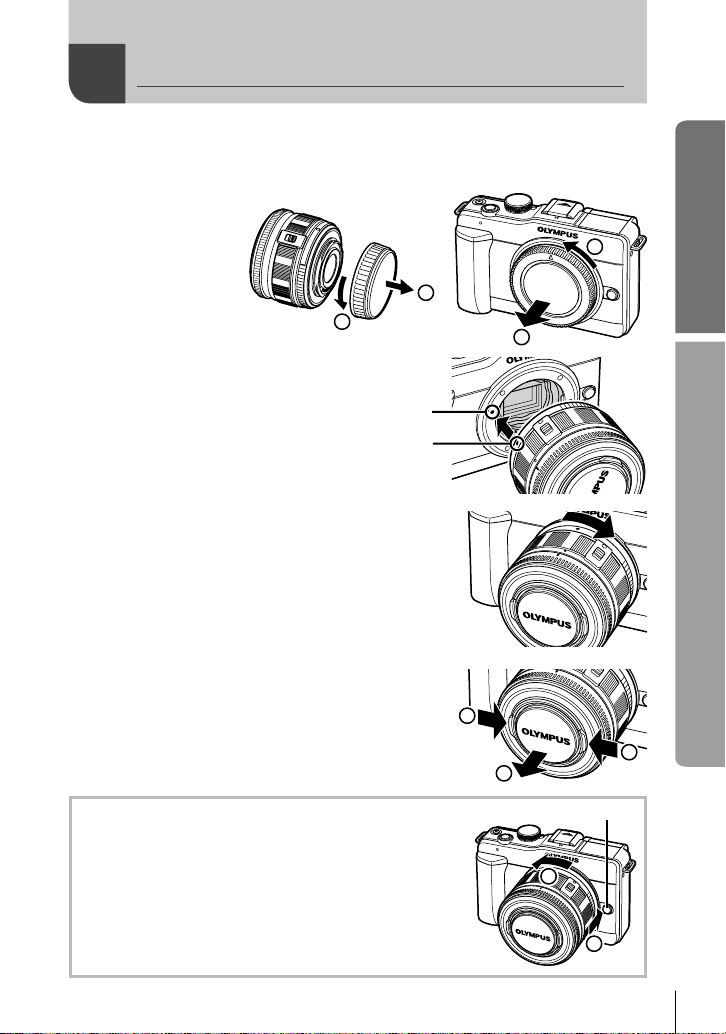

Remove the body cap from the camera and the rear cap from

the lens.

Attach a lens to the

camera.

Align the lens attachment

mark (red) on the camera with

the alignment mark (red) on

the lens, then insert the lens

into the camera's body.

•

Alignment mark

Lens attachment

mark

Rotate the lens in the direction indicated by the

arrow until you hear it click.

#Caution

Make sure the camera is turned off.

Do not press the lens release button.

Do not touch internal portions of the camera.

•

Remove the lens cap.

Removing the lens from the camera

While pressing the lens release button, rotate the lens in

the direction of the arrow.

g “Interchangeable lenses” (P. 97) 2

Lens release button

Attaching a lens to the camera

S0027E.indb5S0027E.indb5 2009/12/2114:52:362009/12/2114:52:36

Basic guide Preparations for shooting

Press the ON/OFF button to turn on the camera.

When the camera is turned on, the (blue) power lamp will light and the monitor

will turn on.

To turn off the power, press the ON/OFF button again.

Set the mode dial to h.

■Mode dial

■ON/OFF button

The (blue) power lamp lights

when the camera is turned on.

•

Dust reduction function

After you turn the camera on, the

camera will remove dust from the

ﬁlter in front of the image pickup

device.

■LCD monitor

When you turn on the power,

the LCD monitor lights up.

•

Battery level

7(green): Camera ready to shoot

8(green): Low battery

9(blinks red): Charge the battery

•

Power on

S0027E.indb6S0027E.indb6 2009/12/2114:52:372009/12/2114:52:37

Preparations for shooting

Basic guide

Date and time information is recorded on the card together with the images. The

ﬁle name is also included with the date and time information. Be sure to set the

correct date and time before using the camera.

Display the menus.

Press the MENU button to display the menus.

MENU button

CARD SETUP

CUSTOM RESET

PICTURE MODE

IMAGE ASPECT

4:3

BACK SET

Select [X] in the [d] (setup) tab.

Use FG to select [d] and press I.•

REC VIEW

MENU DISPLAY

FIRMWARE

ENG.

±0

5SEC

OFF

’

BACK SET

[d] tab

Set the date and time.

Use HI to select items.

Use FG to change the selected item.

Use FG to select the date format.

•

2010

CANCEL

Y/M/D

MD TIME

The time is displayed

using a 24-hour clock.

Save settings and exit.

Press ito set the camera clock and exit to the main menu.

Press the MENU button to exit the menus.

•

Setting the date/time

S0027E.indb7S0027E.indb7 2009/12/2114:52:372009/12/2114:52:37

Basic guide Names of parts and functions

Camera

1Mode dial................................P. 6, 10

2Shutter button ................ P. 11, 12, 46

3ON/OFF button.............................P. 6

4Strap eyelet.................................. P. 2

5Self-timer lamp........................... P. 30

6Lens attachment mark .................P. 5

7Mount (Remove the body cap before

attaching the lens.)

8Microphone ..........................P. 57, 65

9Hot shoe cover

0Built-in ﬂash................................P. 54

aLens release button .....................P. 5

bLens lock pin

cTripod socket

dBattery/card compartment cover

.....................................................P. 3

eBattery/card compartment lock ....P. 3

fConnector cover

gMulti-connector...............P. 67, 84, 87

hHDMI mini-connector (type C)....P. 67

Names of parts and functions

S0027E.indb8S0027E.indb8 2009/12/2114:52:382009/12/2114:52:38

Names of parts and functions

Basic guide

4567

F(Up)/F(Exposure compensation) button

(P. 40)

I(Right)/

#(Flash)

button (P. 54)

G(Down)/jY(Sequential

shooting/Self-timer) button

(P. 30)

H(Left)/

P(AF target)

button (P. 45)

ibutton

(P. 21)

1Flash switch ...............................P. 54

2Accessory port

3LCD monitor......................... P. 22, 23

4q(Playback) button ...........P. 14, 59

5MENU button ............................P. 21

6INFO (Information display)

button ............................. P. 22, 33, 61

7D(Erase) button............P. 15, 59, 66

8Hot shoe...................................P. 100

9</Gbutton ..............P. 80/P. 59, 60

0Ubutton ........................P. 59, 60, 62

aR(Movie) /0(Protect) button

........................ P. 11, 13, 56/P. 59, 65

bSpeaker

cArrow pad

S0027E.indb9S0027E.indb9 2009/12/2114:52:382009/12/2114:52:38

Basic guide Names of parts and functions

Mode dial

Use the mode dial to select the shooting mode. After choosing the shooting

mode, use the shutter button to take photographs and the R(movie) button to

shoot movies.

■Easy shooting modes

AiAUTO (P. 6) Select according to the shooting scene.

The camera sets the appropriate shooting

conditions automatically.

When rotating the mode dial or turning off

the power in the easy shooting modes,

functions with changes made to their

settings are restored to the factory default

settings.

•

ART Art ﬁlter (P. 16)

SCN Scene (P. 17)

■Advanced shooting modes

PProgram shooting (P. 36)

AAperture priority shooting

(P. 37)

SShutter priority shooting

(P. 38)

MManual shooting (P. 39)

For more advanced shooting and

greater creative control, you can

set the aperture value and shutter

speed.

The settings made in the

advanced shooting modes are

retained even if the camera is

turned off.

•

■Movie mode

nMovie (P. 56)

Photo zone

Movie zone

Mode icon

Indicator

%Tips

Resetting camera settings: g “Resetting the camera settings” (P. 70)•

Names of parts and functions

S0027E.indb10S0027E.indb10 2009/12/2114:52:382009/12/2114:52:38

Otros manuales para E-PL1

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara digital de Olympus

Olympus

Olympus E-P2 - PEN 12.3 MP Micro Four Thirds Interchangeable Lens Digital... Manual de usuario

Olympus

Olympus Stylus 840 Manual de usuario

Olympus

Olympus FE-4000 Manual de usuario

Olympus

Olympus PT-051 Manual de usuario

Olympus

Olympus VH-510 Manual de usuario

Olympus

Olympus SC180 Manual de usuario

Olympus

Olympus Camedia E-20P Guía de instalación

Olympus

Olympus FE 130 - 5.1MP Digital Camera Manual de usuario

Olympus

Olympus SP-510UZ Guía de configuración

Olympus

Olympus FE-180/X-745 Guía de configuración

Olympus

Olympus SP-565 UZ Guía de configuración

Olympus

Olympus CAMEDIA C-5500 Sport Zoom Manual de usuario

Olympus

Olympus SP-720UZ Manual de usuario

Olympus

Olympus SP-510UZ Manual de usuario

Olympus

Olympus CAMEDIA C-3030ZOOM Guía de instalación

Olympus

Olympus E-M10 Mark III Manual de usuario

Olympus

Olympus FE170 - 6.0 Megapixel 3x Optical Zoom Digital... Guía de configuración

Olympus

Olympus SZ-14, SZ-12 Guía de instalación

Olympus

Olympus FE 250 - Digital Camera - Compact Manual de usuario

Olympus

Olympus FE 230 - Digital Camera - Compact Guía de instalación

Olympus

Olympus E420 - Evolt 10MP Digital SLR Camera Guía de inicio rápido

Olympus

Olympus D630 - CAMEDIA D 630 Zoom Digital Camera Guía de instalación

Olympus

Olympus C-2040 Manual de usuario

Olympus

Olympus IR 500 - 4MP Digital Solutions Camera Manual de usuario

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

Sony

Sony MCA-20 Manual de usuario

Sony

Sony Alpha DSLR-A290 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Sony

Sony A6700 Guía del usuario

Canon

Canon EOS ELAN7 Manual de usuario
