Olimpia splendid TECHNO TORRE CERAMICO Instrucciones de instalación
1
OSCILLATING CERAMIC HEATER with REMOTE CONTROL
TECHNO TORRE CERAMICO
READ AND SAVE THIS INSTRUCTION
Read carefully before attempting to assemble, install, operate or maintain the heater.
Protect yourself and others by observing all safety information.
Failure to comply with instruction could result in personal injury and/or property damage.
Retain instruction for future reference.
Figure 1 Figure 2 Figure 3
GENERAL SAFETY INFORMATION
1. Use this heater only as described in this manual. ny other use not recommended by the
manufacturer may cause fire, electrical shock, or injury to persons.
2. Make certain that the power source conforms to the electrical requirements of heater.
2
( C220-240V/50Hz)
3. The appliance is not intended for use by young children or infirm persons without
adequately supervision; Young children should be supervised to ensure that they do not
play with the appliance.
4. To reduce the risk of electric shock, this plug is intended to fit in a correct outlet. If the plug
of heater does not fit fully in the outlet, contact a qualified electrician.
5. Where possible, avoid using of extension cords because the extension cord may overheat
and cause a risk of fire. Never use a single extension cord to operate more than one
heater.
6. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent
or a similarly qualified person in order to avoid a hazard.
7. Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust opening
as it may cause an electric shock or fire or damage the heater. Do not block or tamper with
the heater in and manner while it is in operation.
8. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not place
heater on soft surfaces, like a bed, where openings may become blocked.
9. lways place the heater on a stable, flat, level surface when operating, to avoid the
chance of the heater overturning. Locate the power cord so the heater or other objects are
not resting on it, Do not run power cord under carpeting. Do not cover power cord with
throw rugs, runners, or the like. rrange power cord away from room traffic and where it
will not be tripped over.
10. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
lways use handle when moving this heater. Keep combustible materials, such as
furniture, pillows, bedding, papers, clothes and curtains at least 0.9m from the front of the
heater and keep them at least 0.3m from the sides and rear.
11. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming
pool.
12. The heater is intended for household indoor use only.
13. Do not cover!
W RNING: In order to avoid overheating, do not cover the heater.
14. The heater must not be located immediately below a socket- outlet.
15. C UTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout,
this appliance must not be supplied through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on and off by the utility.
3
OPERATION
C ntr l Panel: (Figure 4)
The heater may be operated by the manual controls located on the heater(as shown in
FIGURE 4) or by the remote control(as shown in FIGURE 5)
The heater must be placed on a flat floor or the tip-over switch will shut it off automatically.
1. When heater is plugged in and turn on the power switch on the side of the unit base, there
will be a “beep” and a red power light to indicate that there is power to the unit. The red
power light will be lit until the heater is unplugged from the power outlet.
WARNING: Be sure plug fits tightly in p wer utlet. A l se fit will cause verheating
and damage the plug.
NOTE: Plug and c rd set may feel warm during n rmal usage.
2. P wer button. Press this button will start the heater. Upon turning the heater on, the unit
will be in the FAN mode (25 watts) and the FAN indicator will be light.
3. M de button. When this button is pushed, LOW indicate light comes on and heater is in
the low heat mode.(1100 watts)
4. Press the M de button again and the LOW indicator light goes off and the HIGH indicator
light comes on and the heater now is in HIGH mode (1800 watts).
5. Timer button. Press it once and the light comes on indicating 1/2 hour of time. Press it
again and the light indicates 1 hours. Press it a third time and it indicates 1.5 hours. The
total time that can be indicated at one time is 7.5 hours. Continuing to press the Timer
button will cycle through the settings until all timer lights are off. When the time indicator
lights are off, the heater will run continuously.
6. Oscillati n button. Press this button and the Oscillation light comes on and the heater will
oscillate back and forth. Press it again and the light will go out and the oscillation will stop.
7. The heater must be placed flat on the floor or the tip-over switch will shut it off
automatically.
8. To disconnect heater, press “P wer” button, and turn off the power switch, then remove
plug from outlet.
WARNING：
：：
：DO NOT PLACE THE HEATER UNDER A POWER SOCKET
NEVER LOCATE THE HEATER INTO BATHROOM OR OTHER WET OR
4
DAMP LOCATIONS

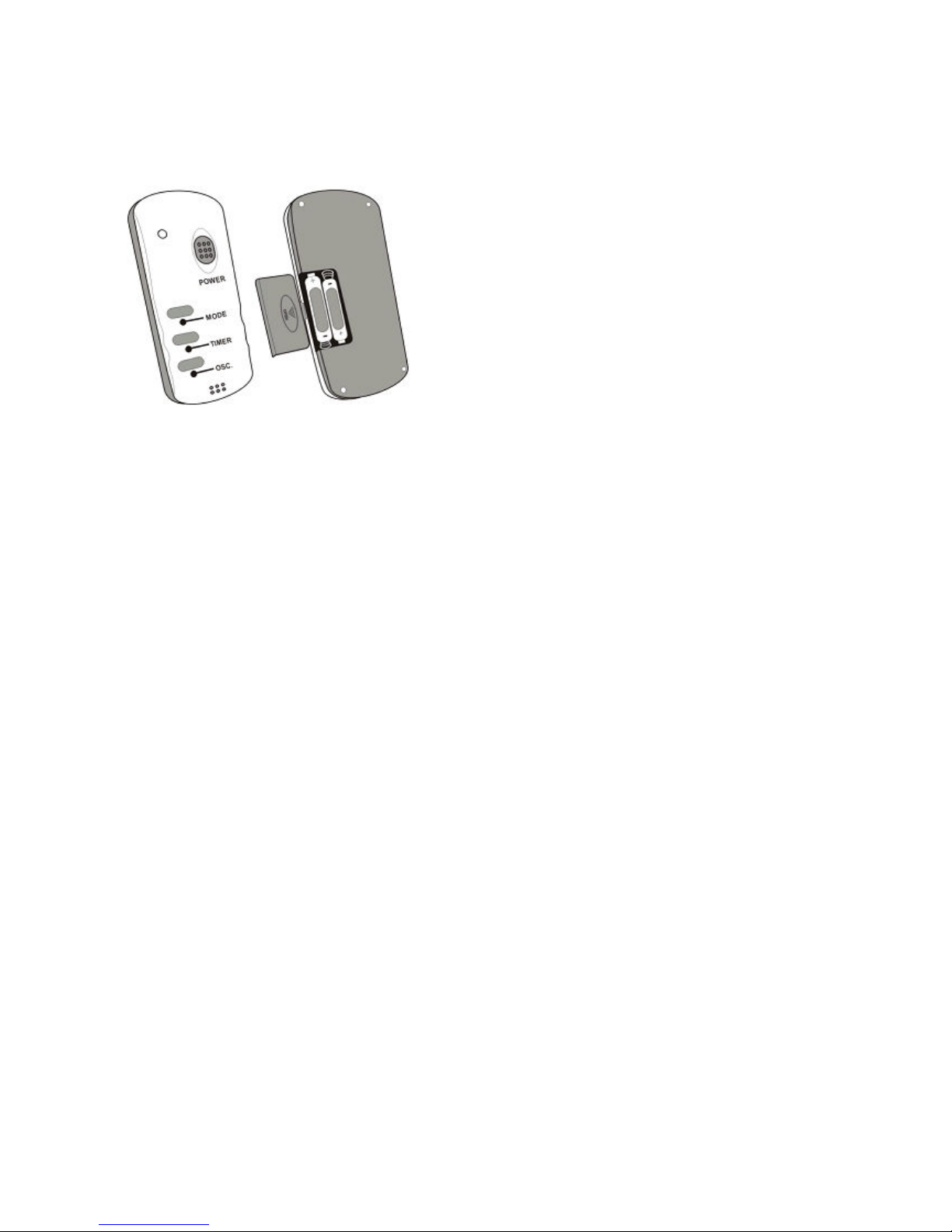

Rem te c ntr l: (Figure 5)
Figure 5
1. Plug the heater into outlet and open the power switch on the side of the unit base.
2. Press the POWER button will start the heater.
3. The MODE, TIMER and OSC. buttons function in the exact same manner as listed in steps
3 through 7 of the operating instructions listed above.
4. When press any button once, the indicated light on remote will flash once.
5. The remote control is powered by two batteries. There is a cover on the back of the
remote control that can be removed for replacement of the batteries as required.
SAFETY FEATURES
1. This heater is equipped with a thermal overload protector. If the overheat temperature is
reached, the heater will be automatically shut off. It can only resume operation when the
user resets the unit. (See RESET INSTRUCTION below)
RESET INSTRUCTION
1. Unplug the heater and wait 10 minutes for the unit to cool down.
2. fter the 10 minutes, plug the unit in again and operate normally.
5
MAINTENANCE
WARNING: ALWAYS UNPLUG THE CORD BEFORE MOVING OR SERVICING.
DO NOT IMMERSE HEATER IN WATER.
CLEANING: Clean the heater rear intake grills with the vacuum brush attachment on your
vacuum cleaner. This will remove lint and dirt form the air intake of the heater. DO NOT
TTEMPT TO T KE HE TER P RT. DO NOT REMOVE GRILL. Clean the body of heater
with a soft cloth moistened with a solution of mild detergent and water. Then dry it with
another cloth.
CAUTION: D n t use gas line, thinner, harsh cleaners, etc., as they will damage the
heater. NEVER USE ALCOHOL OR SOLVENTS.
STORAGE: Store the heater with these instructions in the original carton in a cool, dry place.
CONFORMITY WITH DIRECTIVES
This product is CE marked to denote conformity with Directives 73/23/EEC (Low Voltage) and
89/336/EEC (Electromagnetic Compatibility), as amended.
This symbol on the product or its packaging indicates that the appliance cannot
be treated as normal domestic trash,but must be handed in at a collection point
for recycling electric and electronic appliances.
Your contribution to the correct disposal of this product protects the environment are
endangered by incorrect disposal.
Further information about the reclycling of this product can be obtained from your local town
hall,your refuse collection service,or in the store at which you bought the product.
This regulation is valid only in EU member states.
