Okina USA SIR42-365AIP Guía de inicio rápido

http://www.okinausa.com R201110-V07

SIR42-365AI

SIR42-365AIP Operational Manual

42 IR Day & Night Weatherproof Color Camera

with Mechanical IR Cut Filter

FEATURES

•1/3” Ex-View CCD

•650 TV Lines

•42 IR LED

•3.7mm~12.0mm Aspherical Auto Iris Vari-Focal Lens

•Mechanical IR Cut Filter – ICR

•IR Distance up to 120ft / 40m

Selectable IR projecting distance design (Hi/Mid/Low)

•0.3 Lux @ F1.6

•External Function Adjustors

•Cable Management Bracket; IP66 Rating

•IR “on”: 320mA (Low) / 420mA (Mid) / 750mA (High)

IR “off”: 130mA

•12V DC

http://www.okinausa.com R201110-V07

Disposal of Old Electrical & Electronic Equipment (Applicable in the

European Union and other European countries with separate collection

systems).

This symbol on the product or on its packaging indicates that this product shall not be

treated as household waste. Instead it shall be handed over to the applicable collection

point for the recycling of electrical and electronic equipment. By ensuring this product is

disposed of correctly, you will help prevent potential negative consequences for the

environment and human health, which could otherwise be caused by inappropriate waste

handling of this product. The recycling of materials will help to conserve natural resources.

For more detailed information about recycling of this product, please contact your local city

office, your household waste disposal service or the shop where you purchased the

product.

CAUTION

1. Never point the camera toward the sun

Do not expose the lens directly to the sun or to strong light as this may damage the

pick-up device.

2. Handle this camera with care

Avoid any shock or bumping of the camera. Improper handling could damage the

camera.

3. Requires a proper operating environment

This camera is designed for indoor use. The allowable temperature range for operation

of this camera is between -4°F ~ 122°F / -10°C ~ 50°C.

Please read the Manual before attempting to use this product.

http://www.okinausa.com R201110-V07

4. Clean the front face or lens

It is recommended that the surface be cleaned every 3~6 months. Cleaning should be

done by using a chamois, a very fine soft cloth, lens tissue, or cotton tipped applicator

and ethanol to carefully remove any fingerprint or dust.

5. Check the power source voltage

The power source voltage should be within the specified range. (Camera must meet

the specifications). Camera must be connected to a surge protector at all times.

6. Objects and liquid entry

Never push objects of any kind into this camera as this may touch dangerous voltage

points of short out parts that could result in a fire or electric shock. Never spill any kind

of liquid on the video product.

7. Servicing

Do not attempt to service this video product by yourself as opening or removing covers

may expose you to dangerous voltage or other hazards. Refer all service to qualified

servicing personnel.

8. Damage requiring service

Unplug this video product from the wall outlet and refer service to qualified servicing

personnel under the following conditions:

a. When the power supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the video product.

c. If the video product has been exposed to rain or water.

d. If the video product has been dropped or the cabinet has been damaged.

e. When the video product exhibits a distinct change in performance.

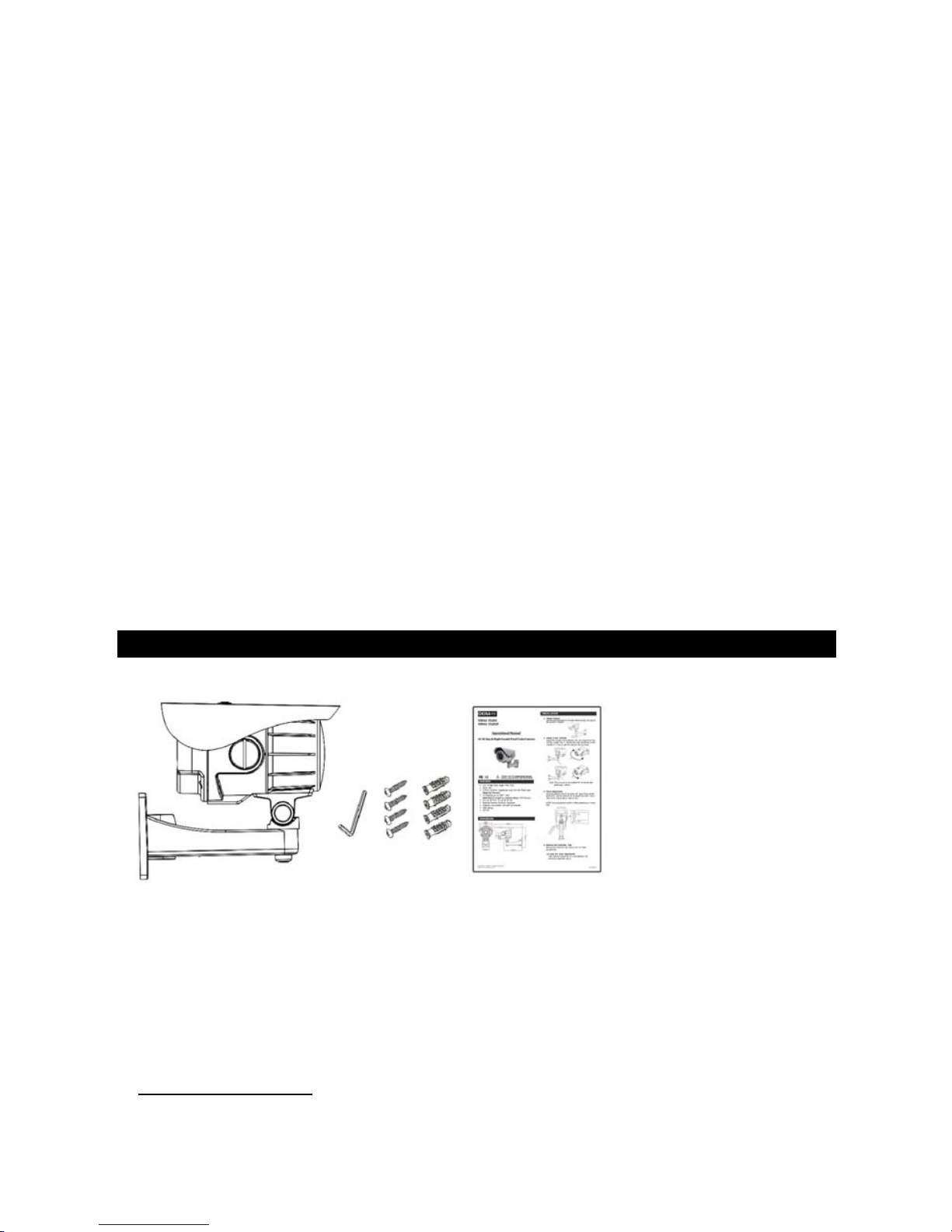

PACKAGE CONTENTS

zOne (1) SIR42-365AI/SIR42-365AIP Camera with power/video cable and sunshield

zOne (1) Allen Wrench

zFour (4) Screws

zFour (4) Wall Anchors

zOne (1) Operational Manual

* For any returns, please include all components listed above with original packaging in

Resalable Condition. Absolutely No Returns will be accepted if any component is

missing/damaged.

http://www.okinausa.com R201110-V07

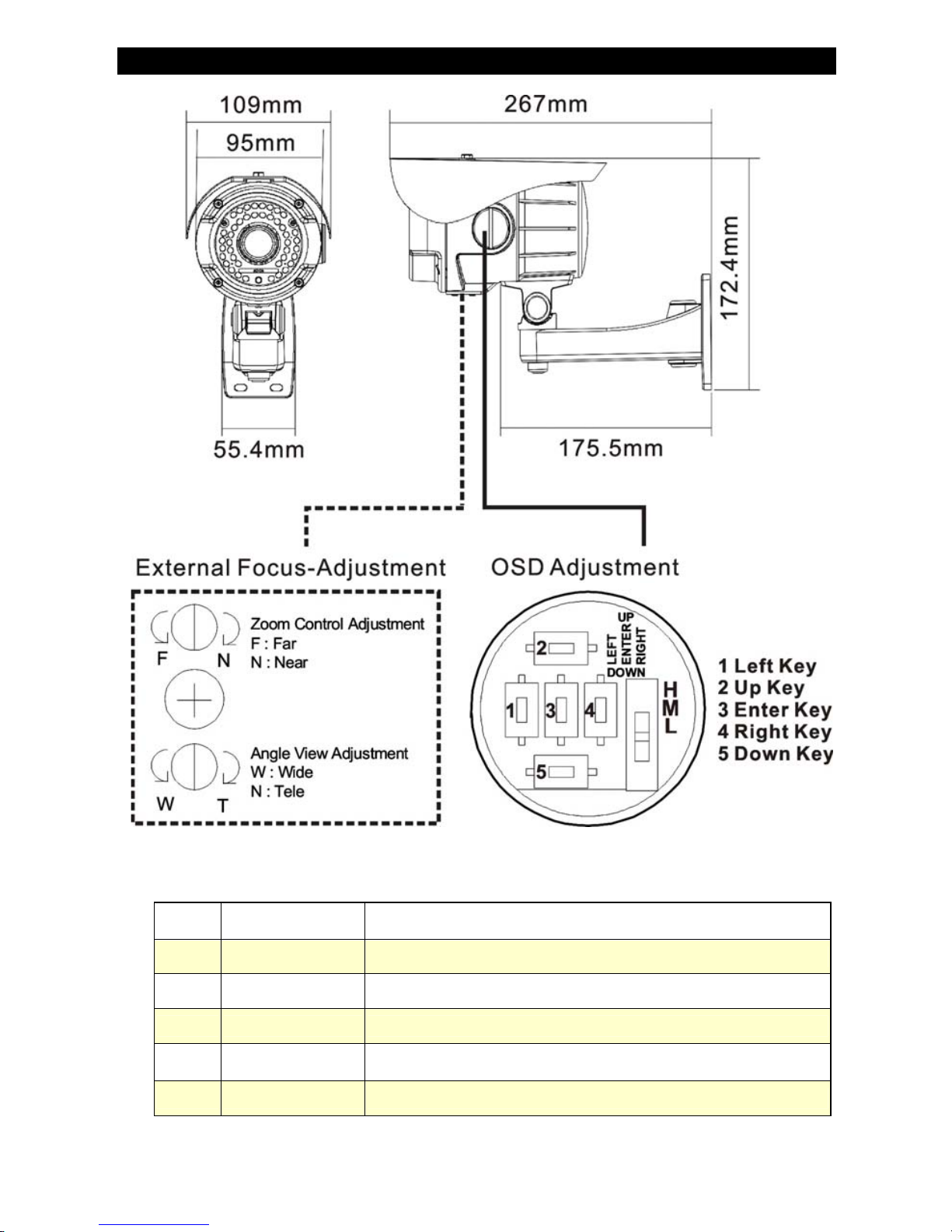

DIMENSIONS & PARTS FUNCTIONS

OSD Button (Menu):

No. Name Function

1 LEFT LEFT

2 UP UP

3 ENTER Get in MENU and ENTER

4 RIGHT RIGHT

5 DOWN DOWN

http://www.okinausa.com R201110-V07

INSTALLATION

1. Install Camera

Use the supplied screws and secure the camera in position.

2. Adjust 2-Axis Bracket

Adjust the bracket while checking the view angle from the monitor. Loosen the

X-Y screws and then adjust the 2-Axis bracket (X-Y Axis) to get the desired

viewing angle.

NOTE: This product is not suitable for horizontal 360° continuous rotation.

http://www.okinausa.com R201110-V07

3. Focus Adjustment

Focus adjustment should be done with zoom focus at the same time. Use the

screwdriver to adjust the zoom/ focus ratio (from wide to tele or near to far).

NOTE: Focus adjustment position differs depending on model type.

4. Remove the Controller Cap

With your free hand or a coin remove the controller cap and make

adjustments.

http://www.okinausa.com R201110-V07

(1) Function Switch

1 Left Key

2 Up Key

3 Enter Key

4 Right Key

5 Down

(2) IR Distance/Power Consumption Adjustment

Installer may use IR adjustment function according to installation

conditions. It is suggested that the view angle should be checked

before setting up the IR distance. Below is the suggested LED

brightness and IR distance adjustment table:

LED

Brightness IR Distance Focal Length Power

Consumption

H (High) 80ft~130ft /

25m~40m 9mm~22mm 750mA

M (Middle) 50ft~80ft /

15m~25m 6mm~12mm 420mA

L (Low) 30ft~50ft /

10m~15m 3.7mm~6mm 320mA

* The suggested LED brightness and IR distance adjustment is for

reference only. Please adjust accordingly in regards to the environment

the camera is mounted. Use less power if there are reflections.

5. Install Sunshield

To install the sunshield, please follow the instruction shown below:

http://www.okinausa.com R201110-V07

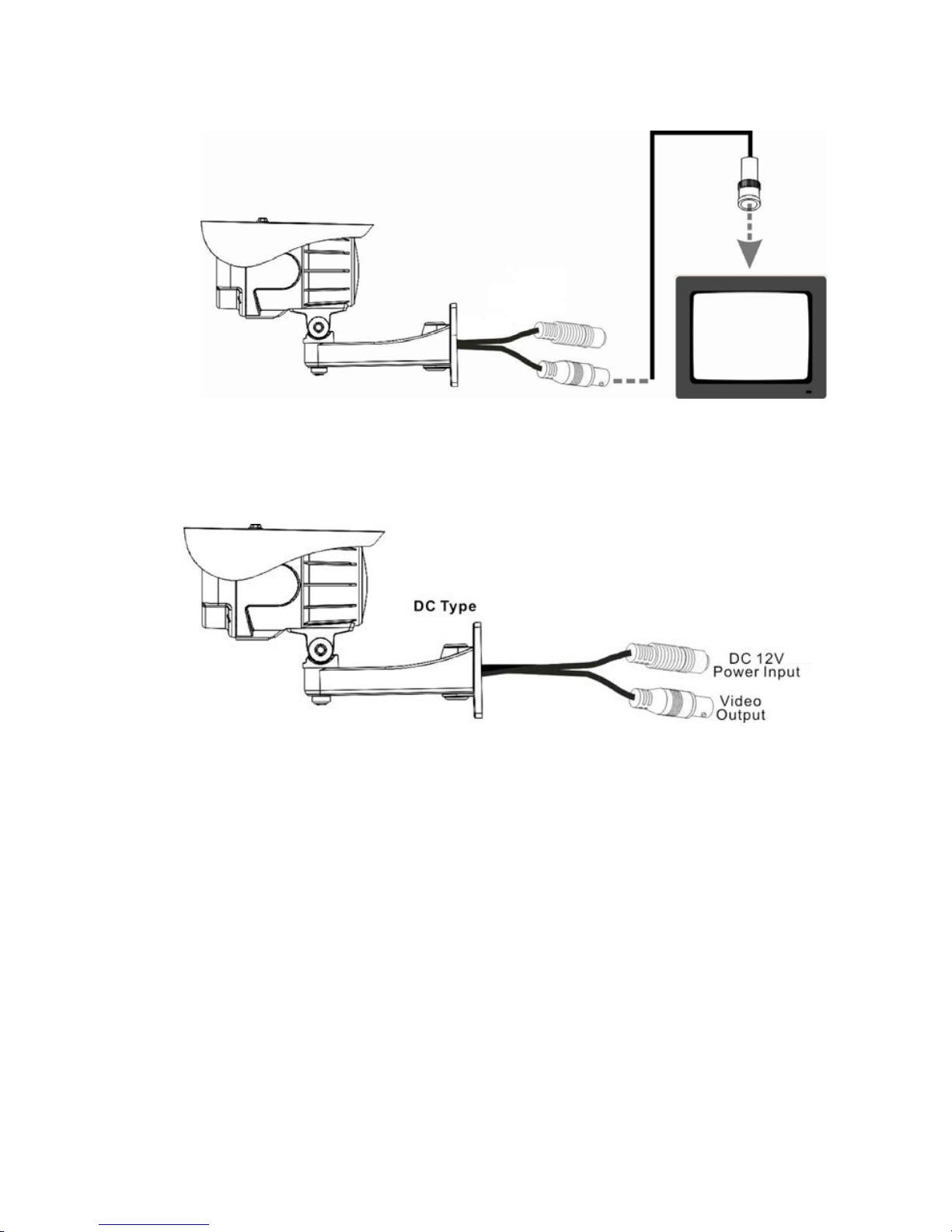

6. Connect to Monitor

Connect the Video-out port of the camera to a monitor. As the connecting method

varies depending on the instrument, therefore refer to the manual supplied with the

instrument for more information.

7. Connect the Power

Connect to a 12V DC, 500mA adaptor.

http://www.okinausa.com R201110-V07

OPERATION

1. OSD Framework

(A) Main Menu Display

OSD Setup Menu page 1

LENS

SHUTTER /AGC

WHITE BAL

BACKLIGHT

ATR

PICT ADJUST

NEXTռ

EXITռSAVE ALL

AUTOռ

ATW

OFF

OSD Setup Menu page 2

PRIVACY

MOTION DET

CAMERA ID

LANGUAGE

CAMERA RESET

BACKռ

EXITռSAVE ALL

OFF

ENGLISH

(B) Main Menu Setup

•In order to display the setup menu on the screen, set the menu

command or press the button panel.

•Use UP/ DOWN control buttons to select each item.

•Use LEFT/ RIGHT control buttons to change the data.

•Use MENU control button to ENTER/ EXIT the menu display.

http://www.okinausa.com R201110-V07

•ռ=ENTER

2. OSD Main Menu Description

LENS: Manual / Auto Selectable

•LENS: MANUAL

Not adjustable.

•LENS: AUTO

TYPE：DC

MODE：AUTO/ OPEN /CLOSE

AUTO

SPEED：000~255

AUTO Camera automatically controls the lens

OPEN Lens fully open

CLOSE Lens fully close

SPEED Lens speed

SHUTTER/AGC: Auto / Manual Selectable

•SHUTTER/AGC: AUTO

HIGH LUMINANCE

MODE：SHUT+AUTO IRIS / AUTO IRIS / SHUT

BRIGHTNESS：000~255

AUTO

LOW LUMINANCE

MODE：AGC / OFF

BRIGHTNESS：x0.25、x0.50、x0.75、x1.00

HIGH LUMINANCE

When LENS is setup to AUTO mode

SHUT+AUTO IRIS: Exposure is controlled by auto electronic shutter

combined with auto iris.
