Ogawa OG-7010 Manual de usuario

USER MANUAL OG-7010

OG-7010

Hello.

Congratulations on purchasing your new Ogawa OG-7010.

At Ogawa we understand every body is diﬀerent and have carefully designed on our massage chair with that in mind.

But enough about us, this is about you. Learning how to use your new chair is simple (we designed it that way).

So let’s get started.

CHAIR

MASSAGE

INTRO

CARE

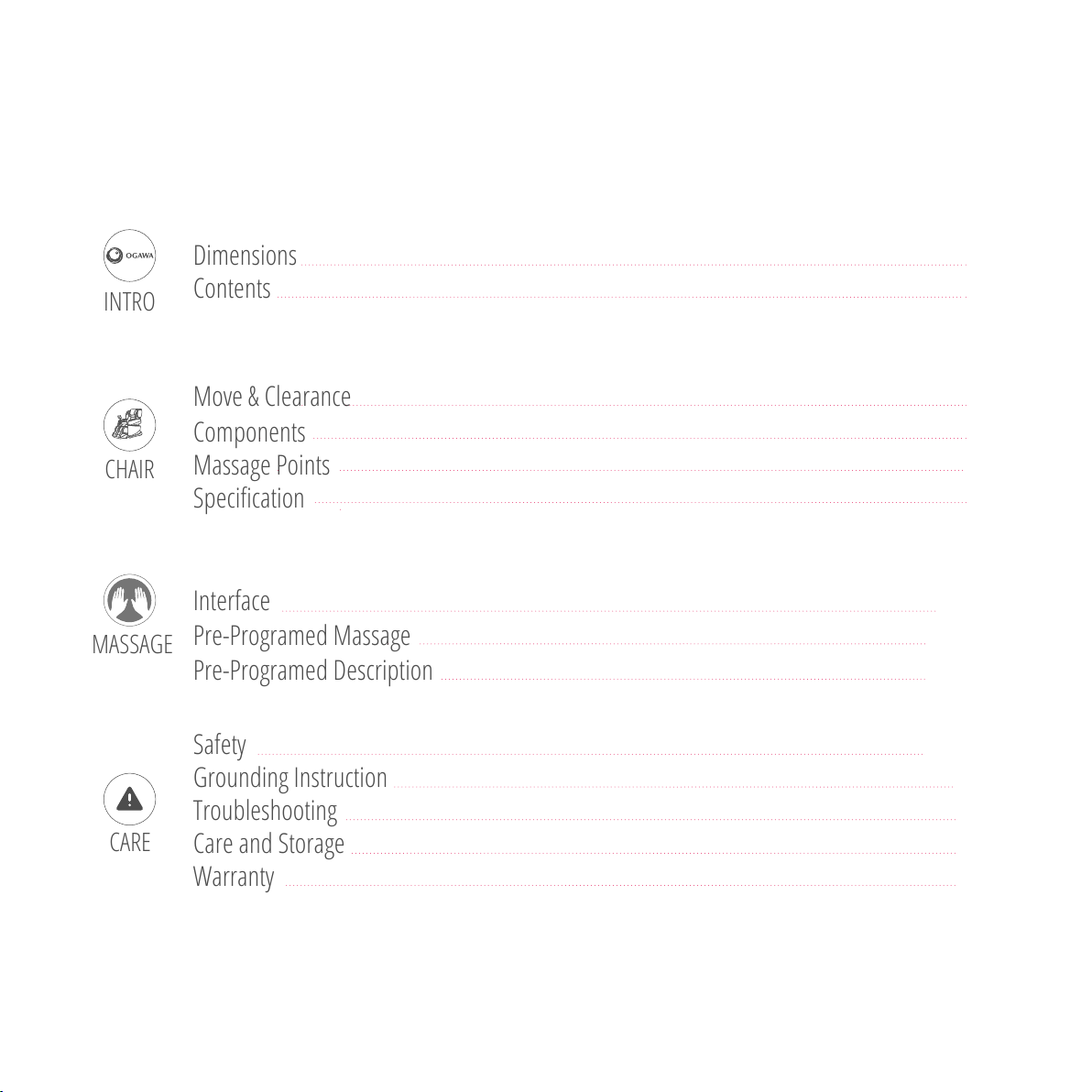

TABLE OF CONTENTS

Dimensions

Contents

Move & Clearance

Components

Massage Points

Speciﬁcation

Interface

Pre-Programed Massage

Pre-Programed Description

Safety

Grounding Instruction

Troubleshooting

Care and Storage

Warranty

9-10

11-30

31-34

35-36

Make sure your door is wider than 36” for the chair to pass through without disassembly

Door width has to be wider than 32”

32”

52.4”

30.1”

27.2”

53.8”

30.1”

22.7”

28.8” 13.2”

36”

50.4”

51.2”

32.7”

DIMENSIONS

First, let’s get your chair inside.

Seat Base

Backrest

Side Panels

Box Box

Box

USER MANUAL OG-7010

OG-7010

CONTENTS

OG-7010 MASSAGE CHAIRTablet RemotePower Cord

Everything you need for a relaxing experience.

User Manual Installation Manual Warranty Postcard

OG-7010

Move & Clearance

Reserve space on left and right Reserve space in the front and back

8” 8”

31.5”

CLEARANCE

HOW TO MOVE

Lift and hold the bottom of the chair One person lift footrest 45 Degrees onto wheels

A few simple steps to ﬁnd the best place for your new chair.

CHAIR COMPONENTS

Note: The speaker will only operate when the massage chair is in operation

Some of your chair’s most important features.

LED + Speaker

Shoulder Panel

Wired Tablet

Holder

Handrest

Backrest

Side Panel

Wheel

Pillow

Seat Pad

Calf Rest

Footrest

To play music using your massage chair’s speakers please connect your

smartphone, tablet, or other electronic device to your chair using bluetooth

MASSAGE POINTS

24 Air Bags

2 Heating Pads

24 Air Bags

2 Rollers

Back Massage Mode Air Bag Heating Pad Roller

CHAIR SPECIFICATIONS

Power Consumption

120W

Max. Time Rate

30 minutes

Shipping Weight

Gross weight: 310.2 lbs

Net Weight: 250.8 lbs

Safety Feature

Equipped with overheating and power

surge detectors safety feature

Dimensions (L x W x H)

Chair Dimension: 51.2" x 32.7" x 50.4"

Reclined Dimension: 72.8" x 32.7" x 40.6"

A few important facts about your massage chair.

Rated Voltage

110 - 120V

Rated Frequency

60Hz

Power of Speakers

2 x 7W（2 sides）

Length of Wiring

Controller wiring 59.1”

Power supply wiring 70.9”

Usage Condition

Environment temperature: 10。

C-40。

Contrasting humidity: 30-85RH

Storage Condition

Storage temperature: -20。

C- 60。

Storage humidity level: 30-85RH

Model No.

OG-7010

WIRED TABLET INTERFACE

We have designed your massage chair’s tablet controller with a user-friendly interface to make using your chair even easier.

Home Screen

Pre-Programed

Massage

Setting

Manual

Custom

Massage

MANUAL CUSTOM SETTING

MASSAGE
