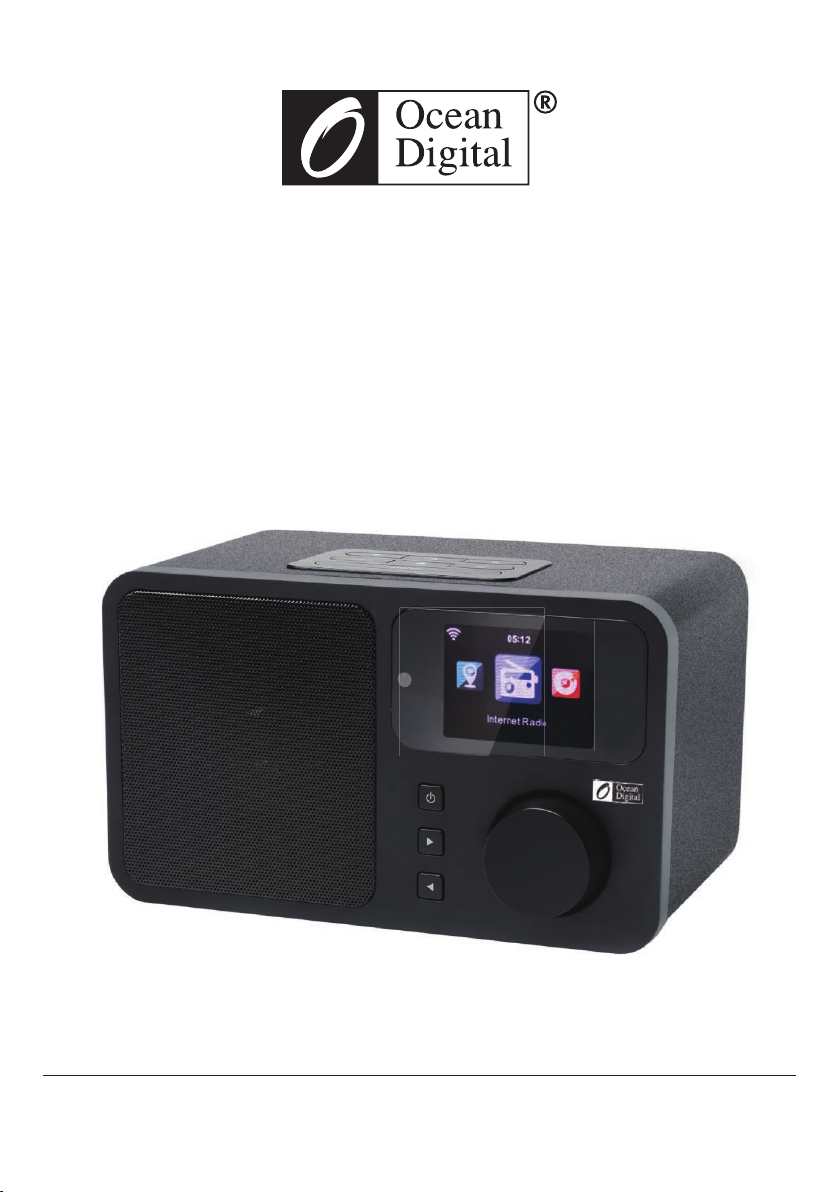

Ocean Digital WR-233 Manual de usuario

Internet Radio

User Manual

WR-233

Please read this user manual carefully before using the receiver.

Welcome

Table of contents

Welcome............................................1

Location of Controls .................................2

Remote control ......................................3

Remote control character list .........................5

Connecting to your WiFi Network ......................6

Start using internet radio .............................7

My Favorite.......................................7

Internet Radio.....................................7

AUX-in...........................................8

Media Centre .....................................8

Configuration ......................................13

Manage my media U ..............................13

Alarm Setting ....................................14

Snooze .........................................15

Sleep Timer Seting ...............................15

Trouble Shooting ...................................16

Technical Specification..............................18

Location of Controls

Front

Back

1 2

3 4 5 6 7

16 17

Top 8 9 10

13 14

15 18

1. Remote control sensor

2. L CD display

3. Speaker

4. Left / Back button

5. Right button

6. Standby button

7. Volume / Dial / Select rotary knob

(Rotate to adjust the volume or browse

the menu. Push down the button to

confirm selection)

8. Up button

9. Favourite button

10. Down button

11. Home button

12. Sleep timer button

13. Alarm button

14. Snooze button

15. 3.5mm Aux-In jack

16. 3.5 mm Line out jack

17. 3.5 mm earphone jack

18. DC jack

Remote Control

1. : Standby button

2. : Mute

3. 0-9: Favorite station key / input letters and

numbers for WiFi Encryption code

4. :Dim the display

5. : Favorite button, adding station to your

favorite list

6.▲: Cursor up

7.▼: Cursor down

8.t: Cursor left / back to previous menu

9.u: Cursor right

10.OK: confirm button

11. : Alarm button

12. : Sleep Timer

13.Vol+: Volume up

14.Vol-: Volume down

15. : Main Menu

16.Mode: Switch between Internet radio,

Media Center (UPnP)

17.EQ: Equalizer

18. :Previous song (for UPnP)

19. : Play/pause (for UPnP)

20. : Next song (for UPnP)

Before you start

Please ensure the following is ready:

• You have a broadband internet connection.

• A wireless (Wi-Fi) broadband router (2.4GHz) is connected to the internet successfully.

The radio supports Wireless B, G and N connection (Wireless N router can also be used with

the setting on B or G).

• You know the Wired Equivalent Privacy (WEP) or Wi-Fi Protected Access (WPA) data

encryption code/password. You need to enter the correct code when the radio is connected

to the wireless router for network connection.

If you do not know the code/password, please contact the person /technician who set up the

router/network for you.

• The radio supports Wireless network connection (Wi-Fi connection).

Precautions

• The radio should not be used in a high temperature or high humidity environment over

prolonged periods of time as this may damage the unit.

• Keep the radio away from liquids as it may get damaged. Please switch off the radio

immediately if water or liquids is spilled into the radio. Consult with the shop you bought this

radio for any question.

• Avoid using or storing the unit in dusty or sandy environment.

• Do not open and repair the radio by yourself.

• Use only the AC adaptor supplied with the radio.

Connecting a power supply with a different rating will cause permanent damage to the radio

and may be hazardous.

• Clean only with dry cloth

Key“0”―― 0,'DEL'

Key“1”―― '1'->'@'->' '（space）->'！'-> “ (double quotes)

->'#'->'$'->'%'->'&'-> '（single quotes）->'（'

->'）'->'*'->'+'->'，'->'-'->'.'->'/'->':'->';'->'<'->'='->'>'->'?'-

>'['->'\'->']'->'^'->'_'->'`'->'{'->'|'->'}'->'~'

Key “2”―― 2,A,B,C,a,b,c

Key“3”―― 3,D,E,F,d,e,f

Key“4”―― 4,G,H,I,g,h,i

Key“5”―― 5,J,K,L,j,k,l

Key“6”―― 6,M,N,O,m,n,o

Key“7”―― 7,P,Q,R,S,p,q,r,s

Key“8”―― 8,T,U,V,t,u,v

Key“9”―― 9,W,X,Y,Z,w,x,y,z

Remark: press '→' to move to next character and press 'OK' button to confirm.

You can also press ↑ ↓ to change the character /number, then press the right key to confirm the

entry.

After you finish the entry, press the select button to confirm.

Switching on the radio

Plug the connector pin of the mains adaptor into the DC jack on the unit. Connect the other end

of the adaptor to the wall socket.

Caution: Use only the main adaptor supplied with the radio. Connecting a power supply with a

different rating will cause permanent damage to the radio and may be hazardous.

The display on the front of the radio will light up and show:

Then you can select your prefer language on the radio.

It will ask you if you want to Enable the “Check Network” when Power on”, it is suggested to

choose “Yes”. Then the radio will always check the available WiFi network automatically.

Remote control character list

Welcome

English

Deutsch

Francais

+01:44

2/7

Connecting to your WiFi Network

The screen below will appear. You can choose Yes to proceed to search for the available WiFi

network. If your router has the WPS function, you can select the “Yes[WPS]” to proceed.

It will then start scanning the network. After the search is done, it will display a list of the

available router.

Choose your router from the list, enter the WEP(Wired Equivalent Privacy) or WPA(Wi-Fi

Protected Access) code. If your network is not configured to be with the WEP or a WPA code,

the unit will connect to the router automatically.

Note: The encryption code would have been set up by the person who set up and

configured your network.

Please refer to the “Remote control character list” for you to enter the passwords. Press the

“→” button to go to the next word, press “←” button to delete the wrong word you have entered.

If you want to enter the passwords on the radio main unit, you can use the Volume Dial rotary

knob. Follow the steps below:

- Rotate the knob to select the character

- Press the button to go to the next entry

- After you finish the entries, push down the Rotary knob to confirm.

The radio will start connecting to the network.

Enter Password

1/1

!MOVE" INPUT:# $ OK8

16:23

01:44

Linksys

Homeaudio

Demo

< 1/6 >

01:01

YE S Yes(W P S) NO

Would you like to

configure Network now?

After the router is connected successfully, it will show “Network OK” and display the menu

screen:

You can now start enjoying the internet radio.

Internet Radio

Choose 'Internet Radio' from the menu, you can see different functions as below:

To start listen the worldwide radio stations, select “Radio Station/Music”,

My Favorite

This is to show the list of your Favorite stations which have been assigned to the presets.

To preset a station:

While you are playing the favorite station, simply hold and press the key until the follow

screen appear.

The icon will appear, it means the station is added to the radio preset.

The presets will be stored in ascending order. You can store up to 250 presets.

You can edit your Favorite list with the following options:

Delete – To delete the selected station

Shift up/Shift down – To shift the selected station to a particular ranking on the list.

Rename – To rename the selected station

Play – press and play the selected station

To do the edit, simply press the button briefly to enter the Preset station list.

Choose the radio station that you want to make with the above changes. Then press the Right

key, it will enter into the list with the options listed above. Then choose your desire action.

1 .977 The 80s Channel

.977 The 90s Chanr

MOVE# 2/2 OK8

Add to My Favorite

08:58

Internet Radio

Delete

Shift Up

Shift Down

< 1/5 >

iRadio

To recall a preset station:

Press the button briefly and choose your desire station.

Remark: Please note Preset 1-5 is reserved for future use and cannot be preset for radio

stations.

Radio Station / Music

Select this option, then you can select your desired radio station by Category, Genre or

Location., etc.

Local Radio

If you want to access quickly the radio station located in your area, select this function and it

will display the list of the stations available in your area.

History

It will show you the radio stations that you have listened in the past.

Service

Search Stations

You can find your desire radio station by entering the name of the radio.

Add New Radio Station

If you cannot find your desire station from the Radio station list and you have the URL address,

you can input the link here and add to your favorite list.

When the radio station is playing, the display will show a color image transmitted from the

radio station.

Aux In

You can enjoy the music from other audio devices by connecting the audio cable to the AUX IN

connector at the rear of the unit, such as mobile phone, MP3 player, etc.

DLNA

The Internet radio can play music stream from DLNA compatible device, provided that the

Internet radio and other DLNA devices are under the same Wi-Fi network.

The radio will appear as “AirMusic” when you try to search it on other devices. If you want to

change other name from AirMusic, go to Configuration and DLNA setup to make the change.

Media Center

UPnP (Universal Plug and Play)

You can stream music from the Networked device which supports UPnP function to the radio to

play.

For instance, most of the latest computer laptop supports UPnP, and you can stream music

from Windows Media Player application on the computer and listen on your radio.

iRadio

Internet Radio

Music

977

.977 The 80s Channel

Please make sure your computer laptop is on the same Wi-Fi network as the Radio

before you start using this function.

1. If your PC is running Microsoft Windows XP, then you can use Windows Media Player

11(WMP11) to act as your UPnP (Universal Plug and Play) media server. (For Windows 7 or

above, please download the correspond version of Windows Media Player). The latest

Windows Media Player may be downloaded from Microsoft's website and install by following

the instructions detailed in its installation wizard.

2. Once installed, Windows Media Player will create a library from all the media files available

to it on your PC.

2.1 Windows XP / Windows Media 11

2.1.1 To add new media files to the library, select' File > Add to Library…> Advanced

Options', Click 'Add' and choose the files you wish to add and click' OK'.

2.1.2 Now you need to connect your Internet radio to Windows Media Player 11 and

configure it to allow the radio to access your media library. In order to this, you will

need to do the following:

a. On the radio, go to the main menu and select <Media Centre> <UPnP>.

b. It will scan for all available UPnP servers. Note, this may take a few seconds for the radio

to complete its scan and before the scan has completed, the radio will display '[Empty]'.

The radio will continue to display '[Empty]' if no UPnP servers and found.

c. After a successful scan. Select your UPnP server, by rotating the dial if there is more than

one UPnP server, and then press SELECT.

2.1.3 Your PC will now prompt you that a device has attempted to connect to your UPnP

server. In order to allow the radio to have access to the media files, you will need to

click the 'Library' tab from Windows Media Player 11 and select the <Media Sharing>

item to open the 'Media Sharing' window.

Selecting 'Media Sharing…' for Windows Media Player11:

Tabla de contenidos

Otros manuales de Radio de Ocean Digital

Ocean Digital

Ocean Digital WR-230 Manual de usuario

Ocean Digital

Ocean Digital DB-828 Manual de usuario

Ocean Digital

Ocean Digital WR-336N Manual de usuario

Ocean Digital

Ocean Digital WR-210N Manual de usuario

Ocean Digital

Ocean Digital WR-238CD Manual de usuario

Ocean Digital

Ocean Digital WR-202 Manual de usuario

Ocean Digital

Ocean Digital WR-330 Manual de usuario

Ocean Digital

Ocean Digital WR-230 Manual de usuario

Ocean Digital

Ocean Digital DB-280C Manual de usuario

Ocean Digital

Ocean Digital DB-220B Manual de usuario

Ocean Digital

Ocean Digital WR-280S Manual de usuario

Ocean Digital

Ocean Digital WR-220 Manual de usuario

Ocean Digital

Ocean Digital WR-880N Manual de usuario

Ocean Digital

Ocean Digital WR-828F Manual de usuario

Ocean Digital

Ocean Digital WR-210CB Manual de usuario

Ocean Digital

Ocean Digital DK-821B Manual de usuario

Ocean Digital

Ocean Digital WR-330D Manual de usuario

Ocean Digital

Ocean Digital DBA-03R Manual de usuario

Ocean Digital

Ocean Digital WR-210CB Manual de usuario

Ocean Digital

Ocean Digital WR-300 Manual de usuario

Ocean Digital

Ocean Digital WR-03 Manual de usuario

Ocean Digital

Ocean Digital WR-210CB Manual de usuario

Ocean Digital

Ocean Digital DB-230B Manual de usuario

Ocean Digital

Ocean Digital WR-210N Manual de usuario

Manuales populares de Radio de otras marcas

EisSound

EisSound KBSound iSelect Manual de usuario

Midland

Midland 1001LWX Manual de usuario

Konig

Konig HAV-SR41 Manual de usuario

Roberts

Roberts exprssion Manual de usuario

VDigi

VDigi DD3.0 Manual de usuario

Radio Shack

Radio Shack 21-1863 Manual de usuario

Roberts

Roberts Stream 207 Manual de usuario

Sony

Sony Walkman SRF-M97 Manual de usuario

Stanley

Stanley FatMax FMC770 Manual de usuario

auna

auna DAB-Radio 10026947 Manual de usuario

SOUNDMASTER

SOUNDMASTER UR190 Manual de usuario

HYT

HYT TC-320 Manual de usuario

auna multimedia

auna multimedia Yellowstone 10026851 Manual de usuario

B-Tech

B-Tech GMRS-V2 Manual de usuario

Weierwei

Weierwei VEV-V8 Manual de usuario

SOUNDMASTER

SOUNDMASTER DAB750 Manual de usuario

Telefunken

Telefunken TF-1505 Manual de usuario

Makita

Makita LXRM03 Manual de usuario
