Oasis BV700 Series Manual de usuario

Oasis Engineering Ltd

129 Birch Avenue, Tauranga, New Zealand.

T: +64 7 928 3808

E: [email protected]m

W: www.OasisNGV.com

Servicing Video Instruction Manual

Failure to follow these instructions or to properly install and maintain this equipment could result in gas leak-

age, fire or explosion causing property damage and personal injury or death.

Oasis products must be installed, operated and maintained by trained and competent personnel in

accordance with all applicable local codes, rules and regulations in addition to the Oasis Instructions.

Oasis Engineering Ltd. will not be held liable in such circumstances where installation, operation and

maintenance procedures were performed by incompetent personnel resulting in improper assembly, unsafe

operation, equipment damage or personal injury.

Oasis recommends that all service technicians should watch the Product Servicing Video before attempting to

service this part.

BV700 Series

Ball Valve with Vent NPT

Instruction Manual

We reserve the right to modify product specifications without prior notice. BV700-INS-06 2822 © Oasis Engineering Limited

Tools Required

Ensure the system is clean of debris,

vented and isolated before any

installation or servicing work is carried

out.

Warning!

High pressure gas and gas equipment can cause serious harm to

both infrastructure and personnel if safety precautions are not

followed.

Oasis recommends considering the use of the following PPE when

working with high pressure along with any other site specific health

and safety requirements:

Spanner

(Wrenches)

Spray bottle

(Snoop or soapy water)

Yellow, Gas Rated, PTFE Thread Tape

- AW TITASEAL

- McMaster-Carr High-Density Thread Sealant Tape

- Blue-Monster gas-guard

- Or Similar

Anaerobic Thread Sealant

with PTFE (Optional)

- Loctite 567

- Swagelok SWAK

- Hernon Dripstop 940

- Gasoila FasSeal-ATS

- Or Similar

Safety

We reserve the right to modify product specifications without prior notice. BV700-INS-06 2822 © Oasis Engineering Limited

2. Tighten by hand.

4. Apply thread tape and thread sealant.

3. Tighten connection.

6. Complete, check the connections for

leakage on first use.

5. Join and tighten the connection

1. Apply thread tape and thread sealant.

3 to 4 turns

If galling is a concern or

unable to cover all threads,

apply a light coating over

thread tape and uncovered

threads.

Please ensure that the tape

covers all threads, but does not

overlap the end of the fitting

(Optional)

Apply two full turns

with wrench

Please ensure that the tape

covers all threads, but does not

overlap the end of the fitting

If galling is a concern or

unable to cover all threads,

apply a light coating over

thread tape and uncovered

threads.

(Optional)

Tighten connection

hand tight before apply

two full turns with

wrench

We reserve the right to modify product specifications without prior notice. BV700-INS-06 2822 © Oasis Engineering Limited

Installation

Instructions

We reserve the right to modify product specifications without prior notice. BV700-INS-06 2822 © Oasis Engineering Limited

2. Closed.

1. Opened.

3. Open vent and vent gas. 4. Close vent when all gas is vented.

Gas

Vents

Important: Actuate valve 4 times

before use to ensure initial sealing.

Operation

Instructions

We reserve the right to modify product specifications without prior notice. BV700-INS-06 2822 © Oasis Engineering Limited

Tools Required

The Complete Oasis Seal Kit must be used

Service Kit Parts

2 x Seats^ 1 x Stem 1 x Ball**

1 x Gland 1 x Cap O-ring

1 x Locking Tab*

1 x Silicone

1 x Cap Backup O-ring

* only used when servicing actuated ball valves.

**It is normal for the service kit to include a ball with a small hole in the bottom.

^ For low pressure service kits, seats will be supplied with an O-ring installed.

Cleaner (Warm Soapy

Water or Similar)

Spanner

(Wrenches)

Anti Seize Grease

(Loctite 771 or Similar)

For All Threads

Pliers

Oasis Plastic Tool

Part Number:

TOOL-BVASSY

(Sold separately )

or Similar

Sockets Torque Wrench

Pick Tool

Part Number:

TOOL-PICK

(Sold separately )

We reserve the right to modify product specifications without prior notice. BV700-INS-06 2822 © Oasis Engineering Limited

Servicing

We reserve the right to modify product specifications without prior notice. BV700-INS-06 2822 © Oasis Engineering Limited

3. Remove handle. 4. Discard gland.

2. Undo handle nut.1. Ensure system is completely vented and remove

the valve.

With the valve removed open and close

valve to ensure all trapped gas is released

Servicing

Disassembly

We reserve the right to modify product specifications without prior notice. BV700-INS-06 2822 © Oasis Engineering Limited

6. Discard seat.

5. Remove end cap.

8. Remove and discard stem.

7. Remove and discard ball.

Do not scratch body

with pick tool

We reserve the right to modify product specifications without prior notice. BV700-INS-06 2822 © Oasis Engineering Limited

Servicing

Disassembly

We reserve the right to modify product specifications without prior notice. BV700-INS-06 2822 © Oasis Engineering Limited

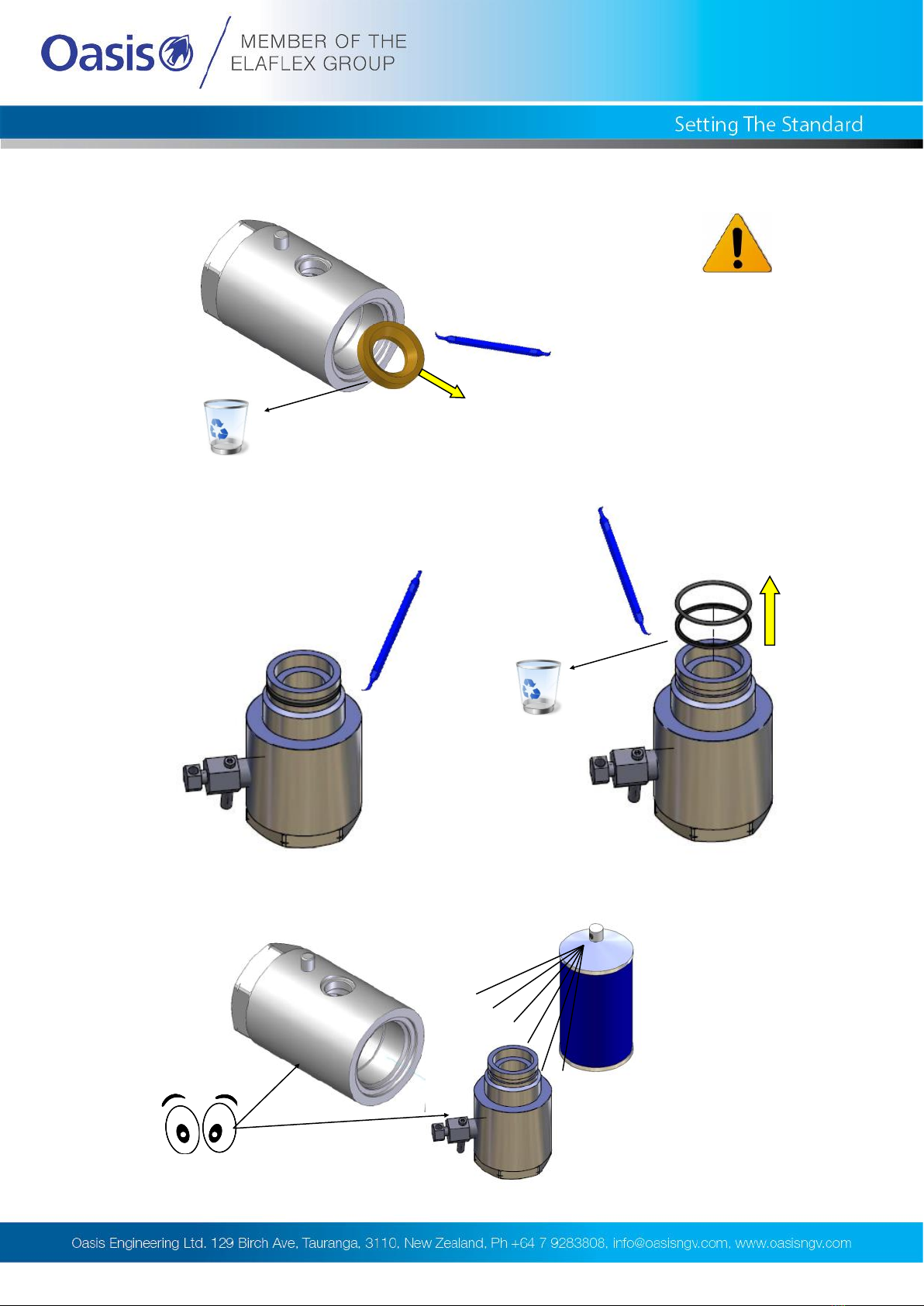

9. Remove and discard second seat.

11. Clean body and end cap. Visually check parts for damage.

10. Remove Cap O-ring/backup and discard.

Do not scratch body

with pick tool

Servicing

Disassembly

We reserve the right to modify product specifications without prior notice. BV700-INS-06 2822 © Oasis Engineering Limited

1. Fit new end cap O-rings. 2. Apply silicone grease to new seat and install.

Take care not to pinch O-ring when installing low

pressure seat.

Click

3. Insert the stem assembly. 4. Insert the ball.

We reserve the right to modify product specifications without prior notice. BV700-INS-06 2822 © Oasis Engineering Limited

Servicing

Assembly

We reserve the right to modify product specifications without prior notice. BV700-INS-06 2822 © Oasis Engineering Limited

5. Apply silicone grease to new seat and install

into end cap. Take care not to pinch O-ring when

installing low pressure seat.

6. Torque the end cap into the body.

Recommended

End Cap Torque:

BV706 = 120 Nm

BV708 = 120 Nm

7. Install gland. 8. Install handle, spring washer and nut.

Servicing

Assembly
