NZXT T120 Manual de usuario

T120 | T120RGB

CPU AIR COOLER | CPU AIR COOLER WITH RGB

ENGLISH

TABLE OF CONTENTS

1. COMPONENT LIST........................... 02 4. APPENDIX .......................................... A-1

2. INSTALLATION..................................04

3. DOWNLOADING NZXT CAM....... 10

VERSION 1.0

T120 & T120RGB

1. COMPONENT LIST

A. Heatsink

B. F Series - Static Pressure Fan

C. F Series - RGB Fan

D. Fan Clip x4

E. Intel Backplate - LGA 1700 x1

F. Intel Backplate - LGA 1200/115X x1

G. Intel Retention Brackets

(Pre-installed) x2

T120

T120RGB

T120 & T120RGB

H. AMD Retention Brackets x2

I. Countersunk Screws

(Pre-installed) x2

J. AMD Sleeves x4

K. #6-32 Screws for AMD x4

L. NZXT High-Performance

Thermal Paste 1g x1

M. 200mm 5V ARGB (Female) to

NZXT RGB (Male) Adapter x1

1. COMPONENT LIST

T120RGB

T120 & T120RGB

2. INSTALLATION

E F

OROR

INTEL SOCKET

1700 or 1200/115X

AMD SOCKET AM5,

AM4, STRX4* & TR4*

Install the Intel backplate (LGA 1700 or 1200/115X) on

the rear of the motherboard.

STEP 1. (INTEL)

Remove the stock AMD mounting bracket and keep the original

backplate on the rear of the motherboard.

STEP 1. (AMD)

T120 & T120RGB

2. INSTALLATION

Pre-Installed

STEP 2. (INTEL)

Install the retention brackets to the heatsink and secure it with

the countersunk screws.

STEP 2. (AMD)

SOCKET

1200/115X

SOCKET 1700

T120 & T120RGB

2. INSTALLATION

STEP 3. STEP 4.

Peel o the protector sticker from the CPU contact

surface.

Apply the thermal paste on the CPU.

T120 & T120RGB

Place the heatsink with the retention bracket onto the

CPU and ensure the bracket screws go into the backplate

holes. Secure the screws in the order as shown.

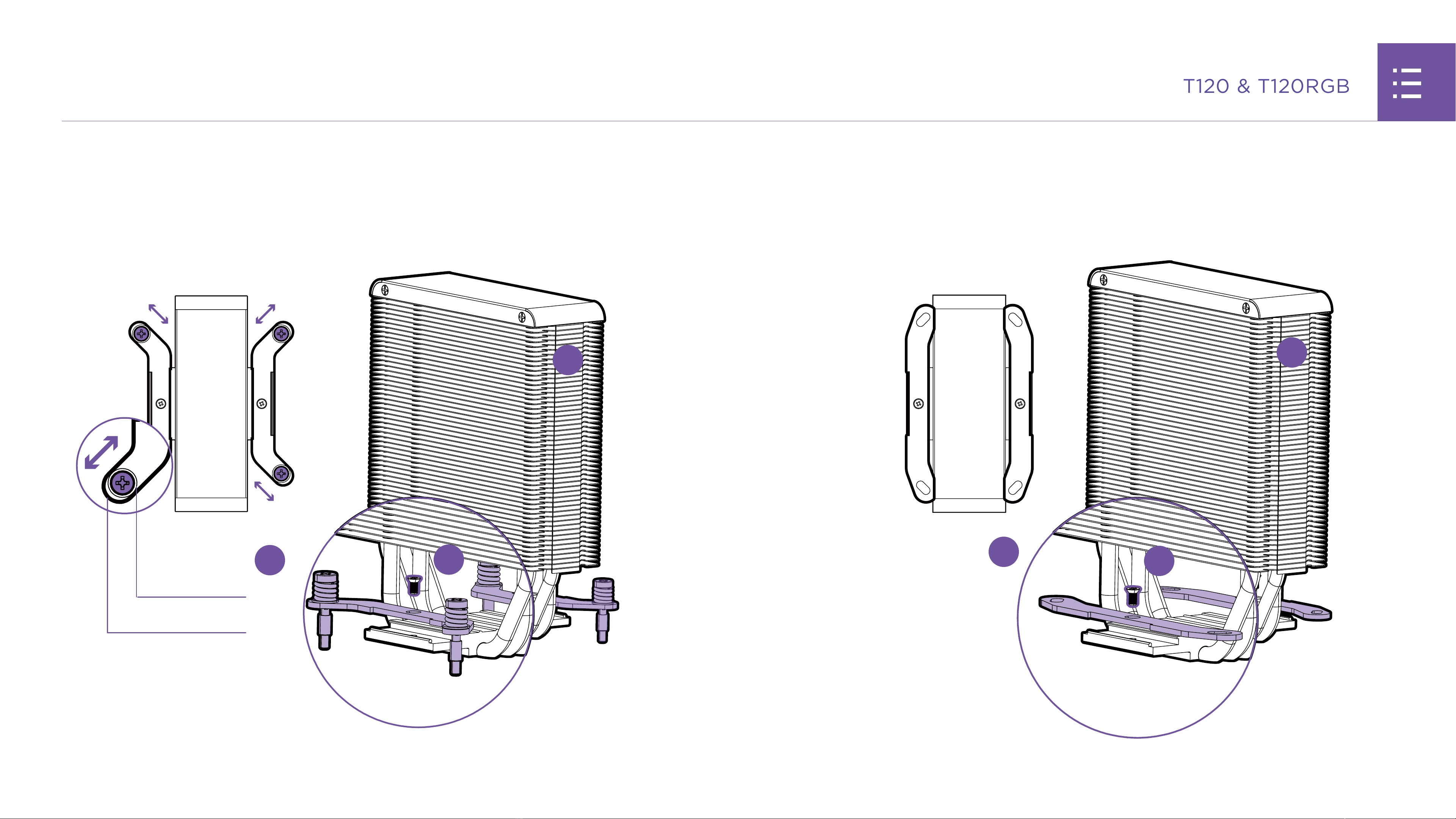

STEP 5. (INTEL)

Install the four AMD sleeves and then place the heatsink with

the retention bracket. Secure it with the #6-32 screws in the

order as shown.

STEP 5. (AMD)

2. INSTALLATION

T120 & T120RGB

2. INSTALLATION

Secure the fan to the cooler with the fan clips.

STEP 6.

Connect the 4-Pin PWM fan cable to an open header on your

motherboard or fan controller.

STEP 7.

DOR

T120 & T120RGB

2. INSTALLATION

ONLY FOR T120RGB OPTION

4-pin NZXT RGB Cable

NZXT RGB lighting channel on the motherboard.

NZXT RGB lighting channel on your lighting controller.

OPTION 1

OPTION 2

5V ARGB (Female) to NZXT RGB (Male) Adapter.

Do not connect to 12V RGB on motherboards

OPTION 3

5V ARGB

WARNING
