Nvidia TESLA K20 Manual de usuario
BD-06455-001_v05 | November 2012
Board Specification
TESLA K20 GPU ACCELERATOR
Tesla K20 GPU Accelerator BD-06455-001_v05 | ii
DOCUMENT CHANGE HISTORY
BD-06455-001_v05
Version Date Authors Description of Change
01 August 1, 2012 GG, SM Preliminary Information (Information contained
within this document is subject to change)
02 September 6, 2012 GG, SM •Updated “Key Features” section
•Updated Figure 1
•Updated Table 1
•Updated “Standard I/O Connector Placement”
section
03 September 7, 2012 GG, SM •
Updated Table 4
•General edits throughout this specification
04 October 9, 2012 GG, SM
•Changed Gen3 to Gen2
•Updated block diagram (Figure 1)
•Added memory bandwidth
•Changed idle power to 25 W
05 November 9, 2012 GG, SM
•Removed “Preliminary Information” from
document as this board specification is now final
•Removed “NVIDIA Confidential” from document
•Updated package size
•Updated block diagram (Figure 1)
Tesla K20 GPU Accelerator BD-06455-001_v05 | iii
TABLE OF CONTENTS
Overview ........................................................................................... 1
Key Features..................................................................................... 1
Tesla K20 Block Diagram....................................................................... 2
Configuration .................................................................................... 3
Mechanical Specifications....................................................................... 4
PCI Express System ............................................................................. 4
Tesla K20 Bracket............................................................................... 5
Power Connectors............................................................................... 6
Power Specifications............................................................................. 9
Support Information.............................................................................10
Certificates and Agencies.....................................................................10
Agencies......................................................................................10
Languages.......................................................................................11
Tesla K20 GPU Accelerator BD-06455-001_v05 | iv
LIST OF FIGURES
Figure 1. Tesla K20 Block Diagram ............................................................ 2
Figure 2. Tesla K20 GPU Accelerator.......................................................... 4
Figure 3. Tesla K20 Bracket .................................................................... 5
Figure 4. 6-Pin PCI Express Power Connector................................................ 6
Figure 5. 8-Pin PCI Express Power Connector................................................ 7
LIST OF TABLES
Table 1. Board Configuration.................................................................. 3
Table 2. 6-Pin PCI Express Power Connector Pinout ....................................... 8
Table 3. 8-Pin PCI Express Power Connector Pinout ....................................... 8
Table 4. Auxiliary Power Connectors......................................................... 9
Table 5. Languages Supported ...............................................................11
Tesla K20 GPU Accelerator BD-06455-001_v05 | 1
OVERVIEW
The NVIDIA®Tesla®K20 graphics processing unit (GPU) accelerator is a PCI Express,
dual-slot full height (4.376 inches by 10.5 inches by 1.52 inches) form factor computing
module comprising of a single GK110 GPU. The Tesla K20 is designed for servers and
offers a total of 5 GB of GDDR5 on-board memory and supports PCI Express Gen2.
The Tesla K20 can be configured by the OEM or by the end user to enable or disable
ECC or error correcting codes that can fix single-bit errors and detect double-bit errors.
Enabling ECC will cause some of the memory to be used for the ECC bits, so the user
available memory will decrease by 10%. On the Tesla K20, the register files, cache, and
DRAM are ECC protected.
KEY FEATURES
GPU
Number of processor cores: 2496
Processor core clock: 706 MHz
Package size: 45 mm × 45 mm 2397-pin ball grid array (S-FCBGA)
Board
PCI Express Gen2 ×16 system interface
Physical dimensions: 4.376 inches × 10.5 inches, dual-slot
Display Connectors
None
Overview
Tesla K20 GPU Accelerator BD-06455-001_v05 | 2
Power Connectors
One 6-pin PCI Express power connector
One 8-pin PCI Express power connector
Memory
Memory clock: 2.6 GHz
Memory bandwidth: 208 GB/sec
Interface: 320-bit
●Total board memory: 5 GB
●20 pieces of 64M × 16 GDDR5, SDRAM
BIOS
2Mbit Serial ROM
TESLA K20 BLOCK DIAGRAM
Figure 1 is the block diagram for the Tesla K20 GPU dual-slot computing processor
module.
Figure 1. Tesla K20 Block Diagram
Overview
Tesla K20 GPU Accelerator BD-06455-001_v05 | 3
CONFIGURATION
The Tesla K20 board is available in the following configuration (Table 1).
Table 1. Board Configuration
Specifications Tesla K20
Generic SKU reference 699-22081-0208-xxxx
Chip GK110
Package size GPU 45 mm × 45 mm 2397-pin S-FCBGA
Processor clock 706 MHz
Memory clock 2.6 GHz
Memory size 5 GB
Memory I/O 320-bit GDDR5
Memory configuration 20 pieces of 64M ×16 GDDR5 SDRAM
Display connectors None
Power connectors •
8-pin PCI Express power connector
•6-pin PCI Express power connector
Board power 225 W
Idle power 25 W
Thermal cooling solution Passive heat sink
Tesla K20 GPU Accelerator BD-06455-001_v05 | 4
MECHANICAL SPECIFICATIONS
PCI EXPRESS SYSTEM
The Tesla K20 board (Figure 2) conforms to the PCI Express full height (4.376 inches by
10.5 inches) form factor.
Figure 2. Tesla K20 GPU Accelerator
Note: The final product will ship with shroud.
10.5 inches
4.376 inches
Mechanical Specifications
Tesla K20 GPU Accelerator BD-06455-001_v05 | 5
TESLA K20 BRACKET

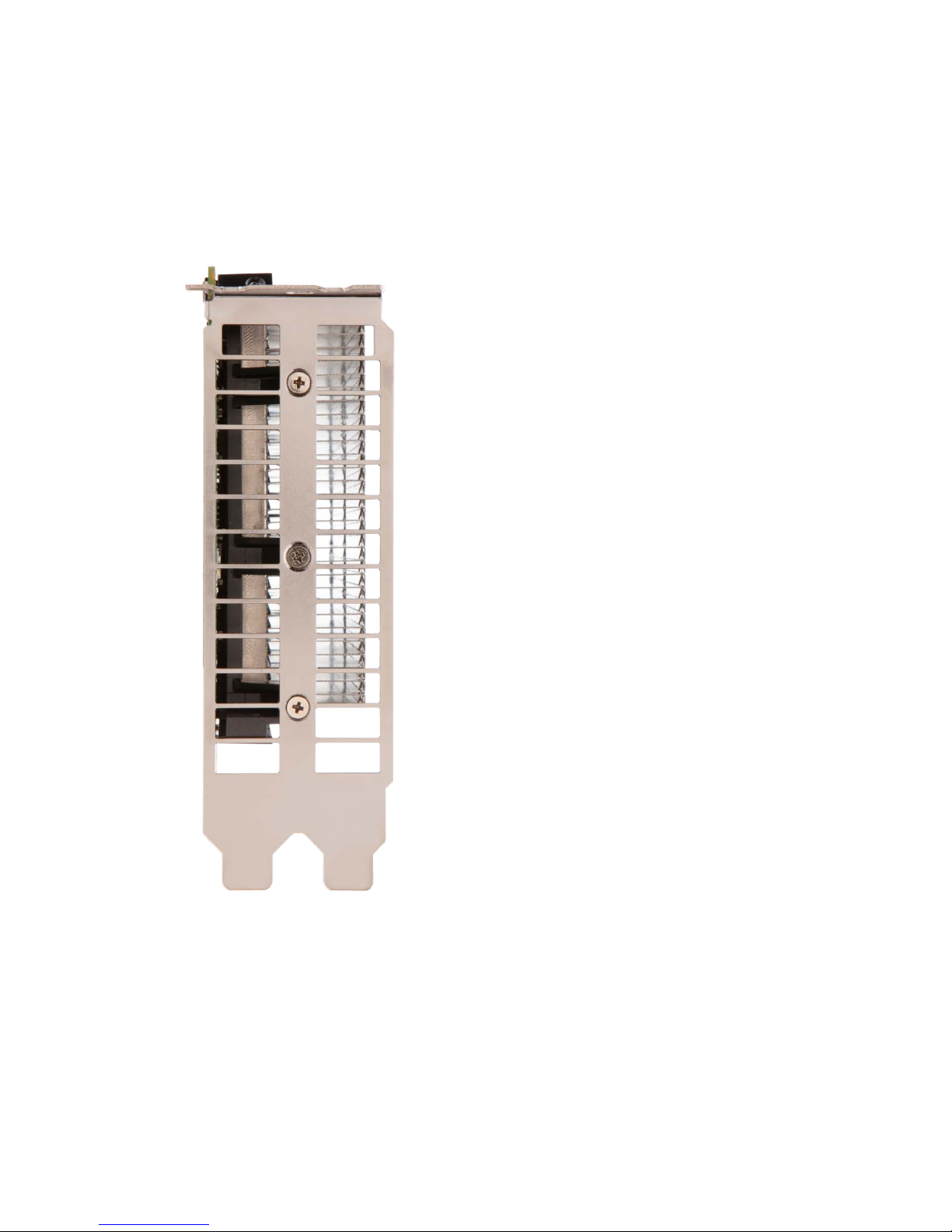

As shown in Figure 3, the Tesla K20 includes a vented bracket. If you are an OEM who
qualifies for bracket modifications, you have the option of receiving your module with
no bracket installed.
Figure 3. Tesla K20 Bracket
Mechanical Specifications
Tesla K20 GPU Accelerator BD-06455-001_v05 | 6
POWER CONNECTORS
The Tesla K20 GPU accelerator is a performance optimized, high-end product and uses
power from the PCI Express connector as well as external power connectors.
Figure 4 and Figure 5 show the specifications and Table 2 and Table 3 show the pinouts
for the 6-pin and 8-pin PCI Express power connectors.
Figure 4. 6-Pin PCI Express Power Connector
