Nuvoton NUTINY-SDK-M058SF Manual de usuario

NuTiny-SDK-M058S User Manual

ARM Cortex™-M0

32-bit Microcontroller

Oct. 31, 2013 1 of 16 Rev. 1.00

NuTiny-SDK-M058S User Manual

For NuMicro M058S Series

The information described in this document is the exclusive intellectual property of

Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton.

Nuvoton is providing this document only for reference purposes of NuMicro™microcontroller based system

design. Nuvoton assumes no responsibility for errors or omissions.

All data and specifications are subject to change without notice.

For additional information or questions, please contact: Nuvoton Technology Corporation.

NuTiny-SDK-M058S User Manual

Oct. 31, 2013 2 of 16 Rev. 1.00

Table of Contents

1Overview........................................................................................... 3

2Introduction to NuTiny-SDK- M058S ..................................................... 3

2.1 NuTiny-SDK- M058S Jumper Description .................................................. 4

2.2 Pin Assignment for Extended Connectors .................................................. 5

2.3 NuTiny-SDK-M058S PCB Placement ......................................................... 6

3Starting to Use NuTiny-SDK-M058S on the Keil μVision®IDE .................. 7

3.1 Downloading and Installing Keil μVision® IDE Software............................... 7

3.2 Downloading and Installing Nuvoton Nu-Link Driver.................................... 7

3.3 Hardware Setup ................................................................................... 7

3.4 Smpl_NuTiny-M051 Example Program...................................................... 8

4Starting to Use NuTiny-SDK-M058S on the IAR Embedded

Workbench ............................................................................................... 9

4.1 Downloading and Installing IAR Embedded Workbench Software .................. 9

4.2 Downloading and Installing Nuvoton Nu-Link Driver.................................... 9

4.3 Hardware Setup ................................................................................... 9

4.4 Smpl_NuTiny-M051 Example Program.................................................... 10

5NuTiny-EVB-M058S Schematics ......................................................... 11

6Downloading NuMicro™ Related Files from Nuvoton Website ................. 13

6.1 Downloading NuMicro™ Keil μVision® IDE Driver ..................................... 13

6.2 Downloading NuMicro™IAR EWARM Driver................................................. 14

6.3 Downloading NuMicro™M051 series BSP Software Library............................. 15

7Revision History ............................................................................... 16

NuTiny-SDK-M058S User Manual

Oct. 31, 2013 3 of 16 Rev. 1.00

1 Overview

The NuTiny-SDK-M058S is a specific development tool for NuMicro M058S

series by which users can develop and verify the application program easily.

The NuTiny-SDK-M058S includes two portions: NuTiny-EVB-M058S (an

evaluation board) and Nu-Link-Me (Debug Adaptor). With the NuTiny-SDK-

M058S, users do not need additional ICE or debug equipment.

2 Introduction to NuTiny-SDK- M058S

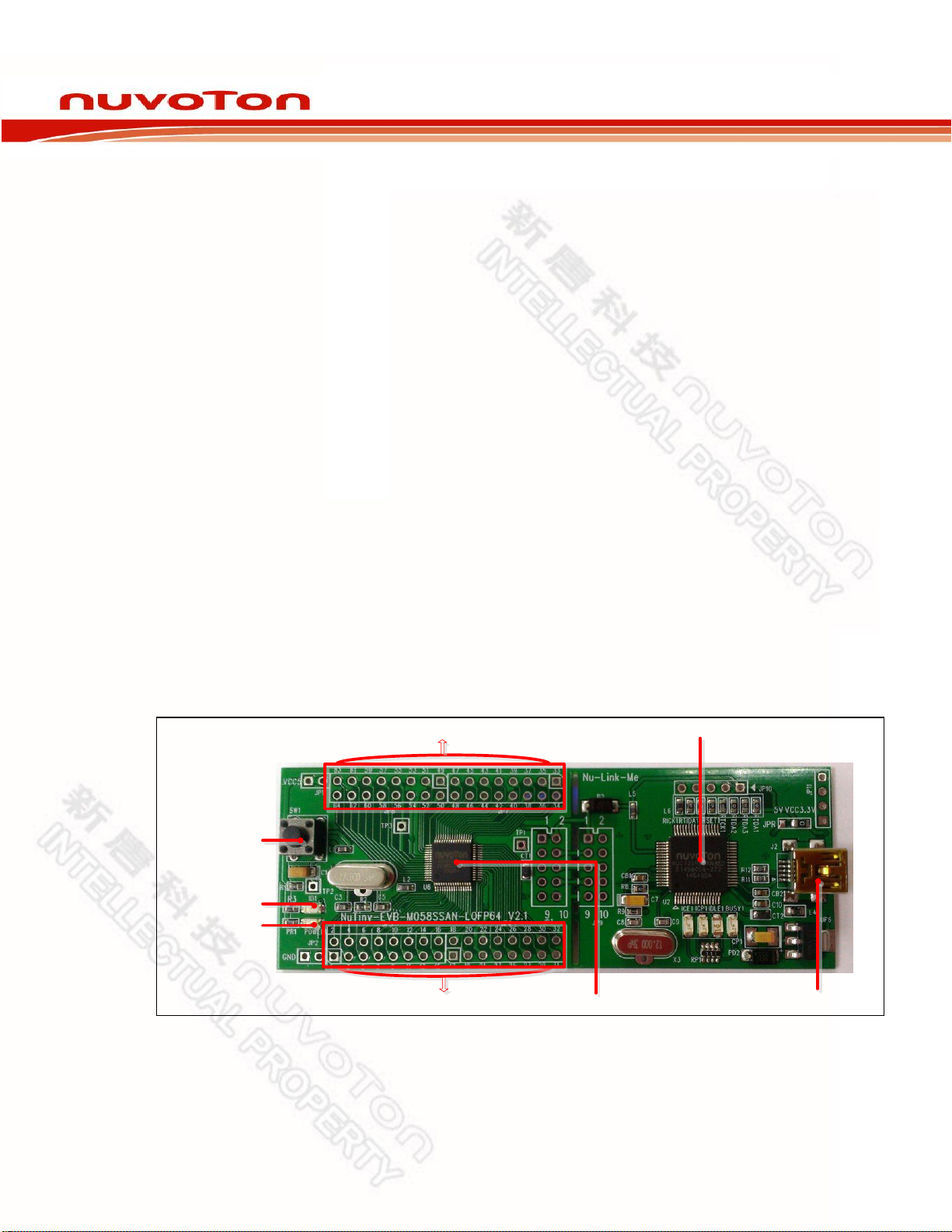

The following figure shows the NuTiny-SDK-M058S for M058S series, in

which the left portion is called NuTiny-EVB-M058S and the right portion is

Debug Adaptor called Nu-Link-Me.

The NuTiny-EVB-M058S is similar to other development board. Users can

use it to develop and verify applications to emulate the real behavior. In fact,

the real chip M058S is mounted on the board. The NuTiny-EVB-M058S can

be a real system controller to design user target system.

The Nu-Link-Me is a Debug Adaptor which connects the USB port of your PC

to your target system (via Serial Wired Debug Port) and allows you to

program and debug embedded programs on the target hardware. To use the

Nu-Link-Me Debug adaptor with Keil or IAR, please refer to “Nuvoton

NuMicro™ IAR ICE Driver User Manual”or Nuvoton NuMicro™ Keil ICE

Driver User Manual” for details.

LQFP-64 pin extended connector

Reset Key

ICE Chip

Target Chip ICE Chip UCB Connector

LQFP-64 pin extended connector

Power LED

IO LED

Figure 2-1 NuTiny-SDK-M058S (Green PCB Board)

NuTiny-SDK-M058S User Manual

Oct. 31, 2013 4 of 16 Rev. 1.00

2.1 NuTiny-SDK- M058S Jumper Description

2.1.1 Power Settings

JP1: VCC5 Voltage connecter in NuTiny-EVB-M058S

J2: USB port in Nu-Link-Me

Model

J1 USB Port

J2 USB Port

JP1 VCC5

MCU Voltage

Model 1

Connect to PC

DC 3.3V output

DC 3.3V

Model 2

DC 2.5 V ~ 5.5 V

Input

Voltage by VCC5

input

X: Unused.

2.1.2 Debug Connectors

JP3: Target ICE Connector in NuTiny-EVB-M058S

JP9: Nuvoton ICE Connector in Nu-Link-Me

2.1.3 USB Connectors

J2:Mini USB Connecter in Nu-Link-Me

2.1.4 Extended Connectors

JP5, JP6, JP7 and JP8: Show all of chip pins in NuTiny-EVB-M058S

2.1.5 Buttons

SW1: Reset button in NuTiny-EVB-M058S

2.1.6 Power Connectors

JP1: VCC connecter in NuTiny-EVB-M058S

JP2: GND connecter in NuTiny-EVB-M058S

NuTiny-SDK-M058S User Manual

Oct. 31, 2013 5 of 16 Rev. 1.00

2.2 Pin Assignment for Extended Connectors

The NuTiny-EVB-M058S provides the M058SSAN target chip on board and

the extended connectors (JP5, JP6, JP7 and JP8) for LQFP64-pin. The

following table is the pin assignment for M058SSAN.

Pin No

Pin Name

Pin No

Pin Name

P1.5, MOSI_0, AIN5

P2.5

P1.6, MISO_0, AIN6

P2.6

P1.7, SPICLK0, AIN7

P2.7

/RST

P4.4, SCL1

P3.0, RXD

P4.5, SDA1

P5.0, T0EX

P4.6, ICE_CLK

P5.1, T1EX

P4.7, ICE_DAT

P5.2, SDA0

P6.0

P5.3, SCL0

P6.1

P3.1, TXD

P6.2

P3.2, /INT0, STADC, T0EX

P6.3

P3.3, /INT1, T1EX

P0.7, SPICLK0

P3.4, T0, SDA0

P0.6, MISO_0

P3.5 T1 SCL0, CKO

P0.5, MOSI_0

P4.3, PWM3

P0.4, SPISS0

P3.6, CKO

P4.1, PWM1, T3EX

P3.7

P0.3, RTS, RXD

XTAL2

P0.2, CTS, TXD

XTAL1

P0.1

VSS

P0.0

VDD

VSS

LDO_CAP

VDD

P5.4

P6.4

P5.5

P6.5

P5.6

P6.6

P5.7

P6.7

P2.0, PWM0

P1.0, T2, AIN0

P2.1, PWM1

P1.1, T3, AIN1

P2.2, PWM2

P1.2, AIN2

P2.3, PWM3

P1.3, AIN3

P2.4

P1.4, SPISS0, AIN4

P4.0, PWM0

P4.2, PWM2

Table 2-1 Pin Assignment for M058SSAN

NuTiny-SDK-M058S User Manual

Oct. 31, 2013 6 of 16 Rev. 1.00

2.3 NuTiny-SDK-M058S PCB Placement

The following figure shows the NuTiny-SDK- M058S PCB placement.

Figure 2-2 NuTiny-SDK-M058S PCB Placement

NuTiny-SDK-M058S User Manual

Oct. 31, 2013 7 of 16 Rev. 1.00

3 Starting to Use NuTiny-SDK-M058S on the Keil μVision®IDE

3.1 Downloading and Installing Keil μVision® IDE Software

Please visit the Keil company website (http://www.keil.com) to download the

Keil μVision®IDE and install the RVMDK.

3.2 Downloading and Installing Nuvoton Nu-Link Driver

Please visit Nuvoton NuMicro™ website (http://www.nuvoton.com/NuMicro)

to download the “NuMicro™ Keil μVision®

IDE Driver” file. Please refer to

section 6.1 for the detailed download flow. After the Nu-Link driver is

downloaded, please unzip the file and execute the “Nu-

Link_Driver_for_keil_RVMDK_V1.23.6103.zip” to install the driver.

3.3 Hardware Setup

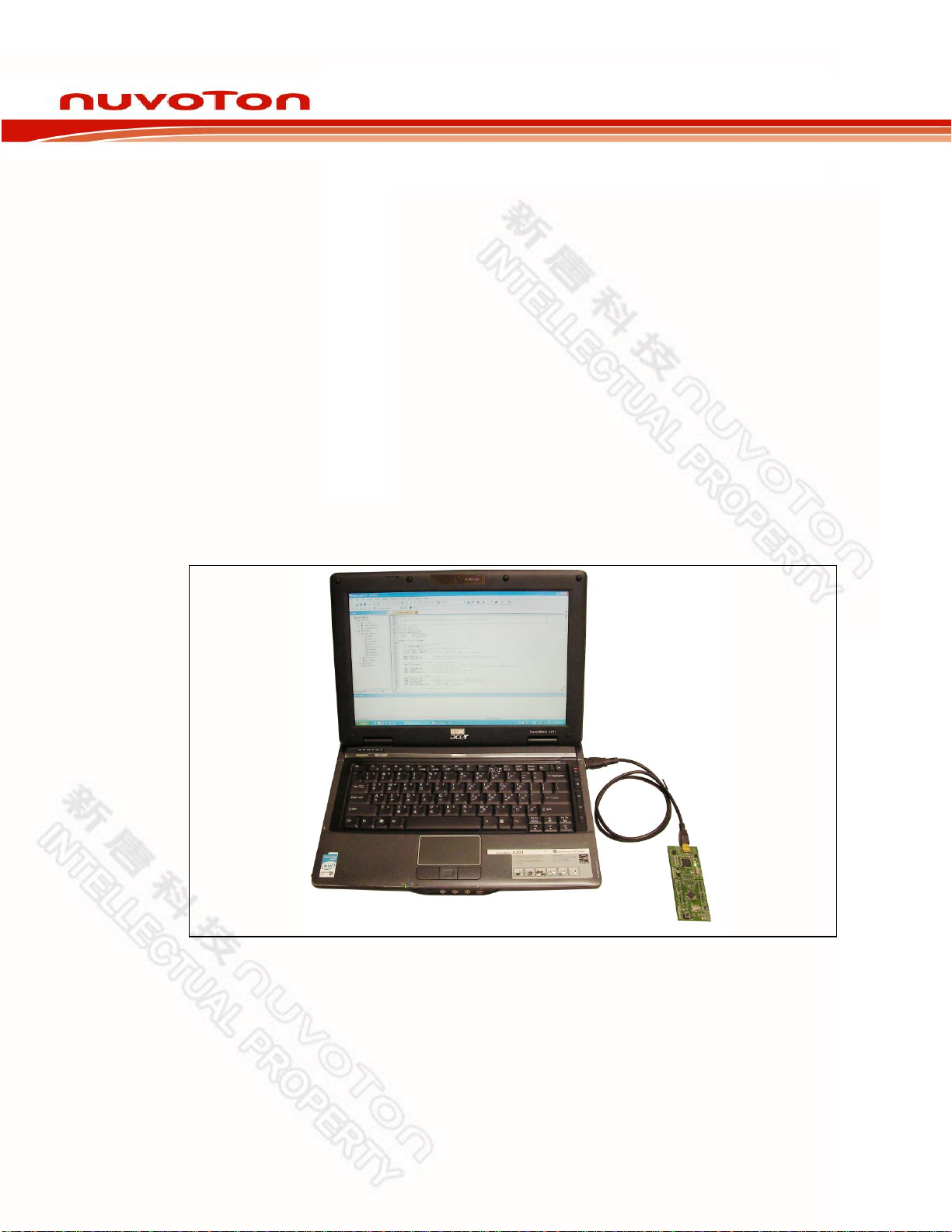

The hardware setup is shown in the following figure.

Figure 3-1 NuTiny-SDK-M058S Hardware Setup

NuTiny-SDK-M058S User Manual

Oct. 31, 2013 8 of 16 Rev. 1.00

3.4 Smpl_NuTiny-M051 Example Program

This example demonstrates how to download and debug an application on a

NuTiny-SDK-M058S board.

The example file can be found in the directory list shown in the following

figure.
