Numatic TEM 390A-11 Manual de usuario

TEM390A-11

620W (Kit AS10)

Original Instructions

numatic.com

CAUTION, Read instructions before using the machine.

This machine is suitable for DRY use

only.

Make sure that the ltration system

tted to the machine is suitable for the

material being collected.

PLEASE READ

BEFORE COMMENCING

OPERATION

M-Class

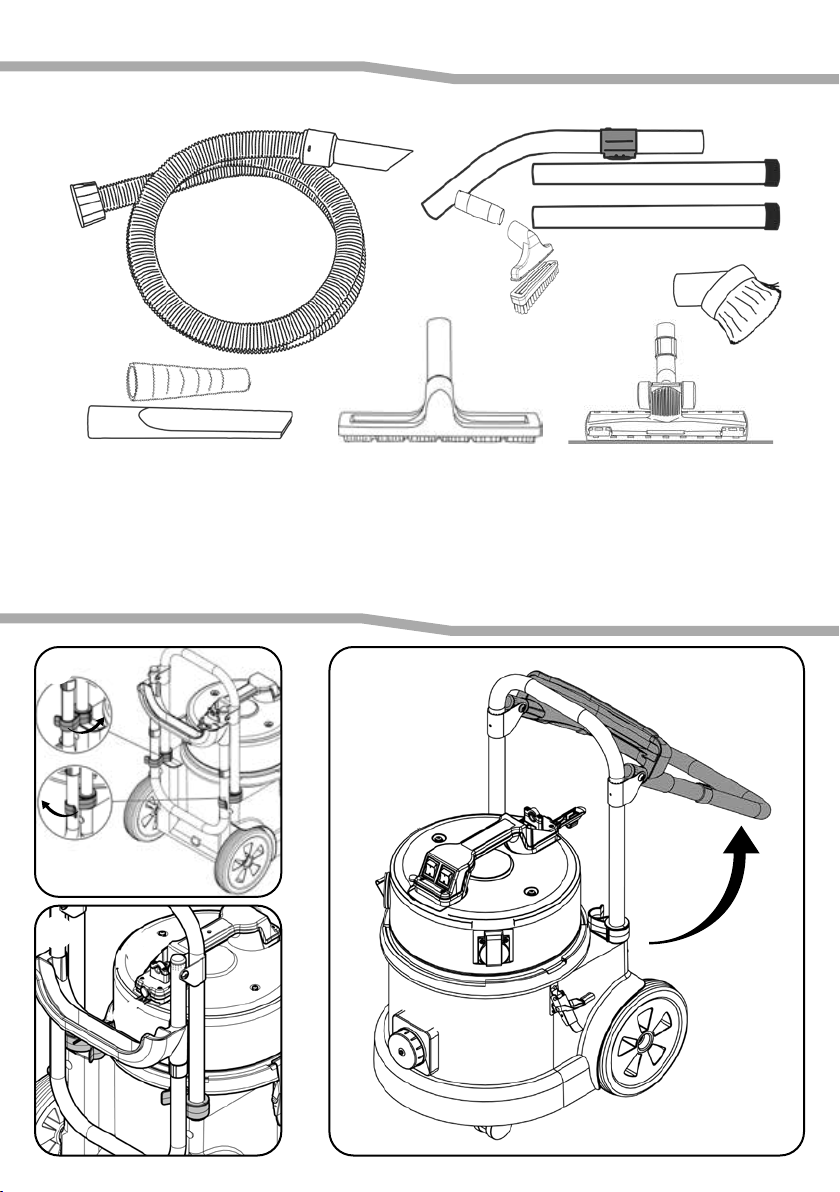

Kit AS10

601102 2.9m NuFlexFlex Hose 900918 MultiFlo 300 mm Dry Floor Tool

601008 Stainless Steel Extension Tube x2 601430 FreeFlo 290 Floor Tool

601052 Stainless Steel Bend Tube 601999 5 Piece Accessory Kit

601176 Multi Size Power Adaptor

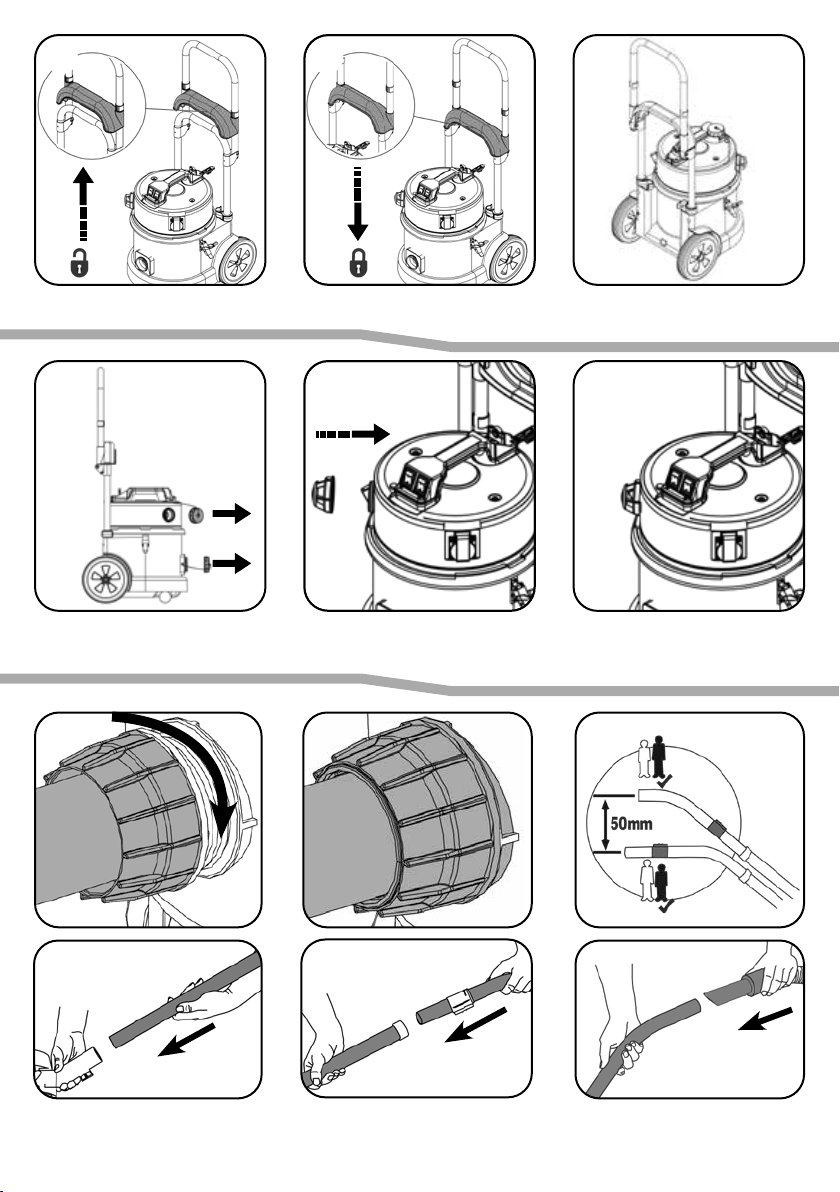

Handle Assembly

Air Di󰀨user

Hose and Wands

3 54

Machine Function

On / O󰀨

If your appliance fails to operate, ensure that the Auto/Manual

switch (2) is in the o󰀨 position prior to switching the On/O󰀨

switch (1) to the On position.

Auto / Manual Switch

Auto Mode - If an external appliance fails to operate when

connected to the vacuum auxiliary socket (3) please check

and ensure that switch (1) & (2) are in the On position prior to

operating the external appliance.

TEM 390-A 2200W Maximum Load (min. 100W).

If the auxiliary socket is overloaded, the machine will cut out.

To reset switch o󰀨 the machine, then wait for

5 seconds before switching on.

110 Volt industrial models

TEM 390-A 1100W Maximum Load (min. 100W).

Using your Machine

Low Flow Warning Light

Low ow monitoring

Slow Repeated Flash.

The vacuum cleaner is tted with a warning lamp

that will illuminate and ash when the air speed in

the suction hose falls below 20m/s.

If problem persists...

Causes Solution

Suction hose blocked

or kinked.

Remove blockage or

kink.

Dust collection bag

full.

Replace dust bag

Filter clogged or

blocked.

Replace lter

cartridge.

Cleaning your Machine

901649

H13 Filter Cartridge

Replacing the Cartridge Filter

987

10 11

Changing / Replacing Cable

In the event of a breakdown

contact your Numatic dealer

or the Numatic Technical help

line +44 (0)1460 269268

Moving your Machine

H05VV-F

10m x 3 x 1.5mm²

(110V) H05VV-F

10m x 3 x 1.5mm²

Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the

Numatic Technical helpline +44 (0)1460 269268

(GB) About your machine

PPE (personal protective equipment). That may be required for certain operations.

Ear Protection Safety Footwear Head Protection Safety Gloves

Eye Protection Protective Clothing Dust / Allergens

Protection Hi Viz Jacket Caution Floor Sign

NOTE: A risk assessment should be conducted to determine which PPE should be worn.

Maintenance

Daily

Keep the machine clean, including hoses and tubes.

Ensure the bag and  lter are  tted.

Regularly examine the power cord.

Check dust bag frequently.

Check  lters are clean.

Weekly - as daily and:-

Check for any worn or damaged parts and replace immediately.

WEEE (Waste, Electrical and Electronic Equipment)

Vacuum Cleaner Accessories and packaging should be sorted for environmentally-friendly recycling.

Only for UK/EU countries.

Do not dispose of Vacuum Cleaner into household waste.

According to the European Directive 2012/19/EU on waste electrical electronic equipment and its

incorporation into national law, vacuum cleaners that are no longer suitable for use must be separated,

collected and sent for recovery in an environmentally-friendly manner.

Rating Label

1 Company Name & Address

2 Machine Description

3 Voltage Frequency

4 Power rating

5 Machine yr/wk Serial number

6 Weight (ready to use)

7 WEEE Logo

8 Approvals Mark

9 Max Auxiliary load (if applicable)

10 Switch Identi cation

Safety Critical

Component:

Mains Lead
