Numatic TT 345 Manual de usuario

Numatic

INTERNATIONAL

TT 345/350/455 T & S

OPERATING

INSTRUCTIONS

SPARE

PARTS

MANUAL

MAINS OPERATED MACHINES

SUPPLIED BY:

Numatic International Limited,

Chard, Somerset TA20 2GB ENGLAND

http://www.numatic.co.uk

Tel: 01460 68600 Fax: 01460 68458

233018(006)3800

COPY

247

ENGLISH DEUTSCH NEDERLANDS PORTUGUÊS DANMARK NORGE

EC Declaration of Conformity

We declare that units

TT 345 / 350 / 455

S, SR, T

conform to:

3/23/EU,89/336/EU,89/392/EU

M.E.GAILES

Technical Manager

Numatic Int Ltd

Chard,Somerset TA20 2GB

United Kingdom.

EG Konformitätserklärung

Wir erklären hiermit, daß die

folgenden Elektrowerkzeuge:

TT 345 / 350 / 455

S, SR, T

der Richtlinie:

3/23/EU,89/336/EU,89/392/EU

entsprechen

M.E.GAILES

Technical Manager

Numatic Int Ltd

Chard,Somerset TA20 2GB

United Kingdom.

EC Verklaring van Conformiteit

Wij verklaren dat de types:

TT 345 / 350 / 455

S, SR, T

voldoen aan:

3/23/EU,89/336/EU,89/392/EU

M.E. GAILES

Technical Manager

Numatic Int Ltd

Chard,Somerset TA20 2GB

United Kingdom.

EC Declaração de Conformidade

Declaramos que os produtos:

TT 345 / 350 / 455

S, SR, T

estão de acordo com:

3/23/EU,89/336/EU,89/392/EU

M.E.GAILES

Technical Manager

Numatic Int Ltd

Chard,Somerset TA20 2GB

United Kingdom.

EU Konformitetserklæring

Vi erklærer hermed, at

el-værktøjet:

TT 345 / 350 / 455

S, SR, T

er i overensstemmelse med:

3/23/EU,89/336/EU,89/392/EU

M.E.GAILES

Technical Manager

Numatic Int Ltd

Chard,Somerset TA20 2GB

United Kingdom.

CE uftørelsesbekreftelse

Vi bekrefter at verktøyene:

TT 345 / 350 / 455

S, SR, T

er overens med:

3/23/EU,89/336/EU,89/392/EU

M.E.GAILES

Technical Manager

Numatic Int Ltd

Chard,Somerset TA20 2GB

United Kingdom.

ITALIANO FRANÇAIS ESPAÑOL  SUOMI SVERIGE

Dichiarazione di conformità EC

Si dichiara che i prodotti:

TT 345 / 350 / 455

S, SR, T

sono conformi a:

3/23/EU,89/336/EU,89/392/EU

M.E.GAILES

Technical Manager

Numatic Int Ltd

Chard,Somerset TA20 2GB

United Kingdom.

Attestation de conformité EC

Nous déclarons que les produits:

TT 345 / 350 / 455

S, SR, T

sont conformes aux:

3/23/EU,89/336/EU,89/392/EU

M.E.GAILES

Technical Manager

Numatic Int Ltd

Chard,Somerset TA20 2GB

United Kingdom.

Certificado de conformidad de la

Declaramos que estas unidades:

TT 345 / 350 / 455

S, SR, T

cumplen con la directiva:

3/23/EU,89/336/EU,89/392/EU

M.E GAILES

Technical Manager

Numatic Int Ltd

Chard,Somerset TA20 2GB

United Kingdom.

Þ½ÊÅç ¥õµµüÃÉÊÅçò Æçò 

§Âåý»õ¿á ¹ç½þ¿Áõµå üÆé Áé

ÅõÅ¼åõÝò:

TT 345 / 350 / 455

S, SR, T

ÅõµµÁÃÉÁý¿Æáé ÂÃÁò Âò

üéáÆÜÀåéò

3/23/EU,89/336/EU,89/392/EU

M.E.GAILES

Technical Manager

Numatic Int Ltd

Chard,Somerset TA20 2GB

United Kingdom.

CE Kelvollisuusvakuutus

Vakuutamme että työkalut:

TT 345 / 350 / 455

S, SR, T

ovat:

3/23/EU,89/336/EU,89/392/EU

M.E.GAILES

Technical Manager

Numatic Int Ltd

Chard,Somerset TA20 2GB

United Kingdom.

CE Duglighetsförklaring

Vi förklarar att verktygen:

TT 345 / 350 / 455

S, SR, T

överenstämmer med:

3/23/EU,89/336/EU,89/392/EU

M.E.GAILES

Technical Manager

Numatic Int Ltd

Chard,Somerset TA20 2GB

United Kingdom.

TUS

S ÓÇ

ÌÅ

BEMERKU

BEMÆRK N.B.

N.B. HUOMAUTUS N

S NOOT MERK OBS ÓÇÌ

ÅÉÙ

S ÓÇÌÅÉÙÓÇ NOTE BEMERKUN

NOTE BEMERKUNG NOTA BEMÆRK

NOTA BEMÆRK N.B. HUOMAUTUS N

MÆRK N.B. HUOMAUTUS NOOT MER

MAUTUS NOOT MERK OBS ÓÇÌÅÉÙÓ

RK OBS ÓÇÌÅÉÙÓÇ NOTE BEMERKU

ÅÉÙÓÇ NOTE BEMERKUNG NOTA BEM

RKUNG NOTA BEMÆRK N.B. HUOMA

TA BEMÆRK N.B. HUOMAUTUS NOO

.B. HUOMAUTUS NOOT MERK OBS ÓÇ

OT MERK OBS ÓÇÌÅÉÙÓÇ NOTE BEM

S ÓÇÌÅÉÙÓÇ NOTE BEMERKUNG NO

MERKUNG NOTA BEMÆRK N.B. H

NOT

A BEMÆRK N.B. HUOMAUTU

MAUTUS NOOT MERK O

BS ÓÇÌÅÉÙÓÇ NO

E BEMERKU

ABE

MÆRK

TT345/350

Numatic International Spare Parts

Model No:TT/TTB345/350/455 Mk2 Floor Tool Assembly

POS: PART NO: DESCRIPTION: COMMENTS:

1 329140 U-SECTION

2 229370 CENTRE MOULDING C/W INSERT

3 229297 END CAP MOULDING

4 229357 BOTTOM HALF COVER

5 217213 RUBBER BLADE

6 229320 HEIGHT ADJUSTMENT BRACKET

7 303247 100MM DIAMETER WHEEL

8 204023 24MM LONG FLO WHEEL INSERT

9 215006 50MM DIAMETER WHEEL

10 215008 ADJUSTMENT KNOB

11 219417 SCREW INSULATOR

12 229283 HEIGHT ADJUSTMENT SHAFT

13 219312 COMPRESSION SPRING

14 390401 60MM LONG X 6MM DIAMETER STAINLESS STEEL SPRING

15 229295 RETAINING SPRING

16 219402 6MM STARLOCK WASHER & CAP

17 219007 M6 FORM B WASHER

18 219642 M6 NYLOC NUT

19 219370 No8 X 5/8" LONG PLASTITE SCREW

20 219568 No8 X 3/4" LONG PLASTITE SCREW

21 220033 M5 X 35MM LONG POZI PAN MACHINE SCREW

22 219644 M5 FORM G WASHER

23 219645 M5 STAINLESS STEEL DOMENUT

24 219355 M5 FORM A STAINLESS STEEL WASHER

25 219064 M6 X 35MM LONG HEX HEAD BOLT

26 219547 M5 X 16MM LONG POZI PAN SCREW

TT455

Numatic International Spare Parts

Model No:TT/TTB345/350/455 Mk2 Floor Tool ssembly

231835

DR WING: EXP411 ISS: 03

19/10/99

Numatic International Spare Parts

Model No:TT/TTB455 TANK & SEPARATOR ASSY

POS: PART NO: DESCRIPTION: COMMENTS:

1 227294 BOTTOM TANK TT455

227295 BOTTOM TANK TTB455

2 229282 FILTER CAP

3 206265 BARREL FILTER

4 206274 FILTER CONNECTOR

5 219626 O-RING 23MM I/D

6 202067 SEALING GASKET

7 206275 TAP CONNECTOR FITTING

8 219382 3/8" BSP BALL FITTING

9 219381 3/8" BSP ELBOW

10 219389 3/8" BSP HOSETAIL

11 219688 M4 FORM A STAINLESS STEEL WASHER

12 219665 TOOL CLIP

13 219697 M4 X 8MM LONG POZI PAN STAINLESS STEEL SCREW

14 227297 TOP TANK

15 219452 100MM DIAMETER HOLE PLUG

16 213019 DUMP HOSE ASSEMBLY

17 206111 RUBBER HOSE CLOSURE

18 219674 STAINLESS STEEL JUBILEE CLIP

19 206439 TANK FILTER

20 229224 COVER MOULDING FRONT

21 202075 TOP SEALING GASKET

22 303381 SEPARATOR MOULDING

23 219562 O-RING 95MM I/D

24 229223 SEPARATOR LID MOULDING

25 219370 No8 X 5/8" LONG PLASTITE SCREW

26 206228 DRAIN HOSE CONNECTOR

27 219310 RUBBER WASHER

28 206116 BLACK NUT MOULDING

29 206315 TUBE END PLUG

742

Numatic International Spare Parts

Model No:TT/TTB455 TANK & SEPARATOR ASSY

234004

DRAWING: EXP435 ISS:A01

23/07/99

11 12 13 15

Numatic International Spare Parts

Model No:TT345S/TT350S/TTB345S Tank/Separator Assy

POS: PART NO: DESCRIPTION: COMMENTS:

1 227293 GREY BOTTOM TANK

2 229282 FILTER CAP

3 206265 BARREL FILTER

4 206274 FILTER CONNECTOR

5 219626 O-RING

6 202067 SEALING GASKET

7 206275 TAP CONNECTOR FITTING

8 219382 3/8" BSP MALE/FEMALE BALL VALVE

9 219381 3/8" BSP MALE/FEMALE ELBOW CONNECTOR

10 219389 3/8" BSP HOSE TAIL

11 219688 M4 WASHER

12 219665 TOOL CLIP

13 219697 M4 X 8MM LONG POZI PAN STAINLESS STEEL SCREW

14 219452 100MM DIAMETER HOLE PLUG

15 213019 DUMP HOSE ASSEMBLY

16 206111 HOSE CLOSURE

17 219674 STAINLESS STEEL JUBILEE HOSE CLIP

18 229224 COVER MOULDING FRONT

19 202075 TOP SEALING GASKET

20 303081 SEPARATOR MOULDING

21 219562 95MM I/D O-RING

22 229223 SEPARATOR LID MOULDING

23 219370 No8 X 5/8" LONG PLASTITE SCREW

24 206228 DRAIN HOSE CONNECTOR

25 219310 RUBBER WASHER

26 206116 BLACK NUT MOULDING

27 206315 TUBE END PLUG

28 227296 GREY TOP TANK

29 227292 GREY BOTTOM TANK

30 329065 1.0M LONG SUCTION HOSE ASSEMBLY 329065=MAINS & 329084=BATTERY

31 329084 1.1M LONG SUCTION HOSE ASSEMBLY MAINS & BATTERY MACHINES

32 206439 TANK FILTER

Numatic International Spare Parts

Model No:TT345S/TT350S/TTB345S Tank/Separator Assy

231733

DRAWING: EXP319 ISS:A05

26/08/99

2524 24 25 26

10 39

Numatic International Spare Parts

Model No:TT345T/TT350T/TTB345T Tank/Separator Assy

POS: PART NO: DESCRIPTION: COMMENTS:

1 227293 GREY BOTTOM TANK

2 229282 FILTER CAP

3 206265 BARREL FILTER

4 206274 FILTER CONNECTOR

5 219626 O-RING

6 202067 SEALING GASKET

7 206275 TAP CONNECTOR FITTING

8 219382 3/8" BSP MALE/FEMALE BALL VALVE

9 219381 3/8" BSP MALE/FEMALE ELBOW CONNECTOR

10 219389 3/8" BSP HOSE TAIL

11 219688 M4 WASHER

12 219665 TOOL CLIP

13 219697 M4 X 8MM LONG POZI PAN STAINLESS STEEL SCREW

14 219452 100MM DIAMETER HOLE PLUG

15 213019 DUMP HOSE ASSEMBLY

16 206111 HOSE CLOSURE

17 219674 STAINLESS STEEL JUBILEE HOSE CLIP

18 229224 COVER MOULDING FRONT

19 202075 TOP SEALING GASKET

20 303081 SEPARATOR MOULDING

21 219562 95MM I/D O-RING

22 229223 SEPARATOR LID MOULDING

23 219370 No8 X 5/8" LONG PLASTITE SCREW

24 206228 DRAIN HOSE CONNECTOR

25 219310 RUBBER WASHER

26 206116 BLACK NUT MOULDING

27 216201 BLACK EXTENSION TUBE

28 227298 GREY LEFT HAND TOP TANK

29 227299 GREY RIGHT HAND TOP TANK

30 206264 CARRYING HANDLE

31 227292 GREY BOTTOM TANK

32 329065 1.0M LONG SUCTION HOSE ASSEMBLY 329065=MAINS & 329084=BATTERY

33 329084 1.1M LONG SUCTION HOSE ASSEMBLY MAINS & BATTERY MACHINES

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Máquina de piso de Numatic

Numatic

Numatic TT4045G Manual de usuario

Numatic

Numatic TWINTEC CABLE ET4045 Manual de instalación y operación

Numatic

Numatic TTV 678-300 Manual de usuario

Numatic

Numatic FloorCare TGB 1840 Guía de referencia

Numatic

Numatic TTB-455 Manual de usuario

Numatic

Numatic TTV 4555 Manual de usuario

Numatic

Numatic NuSpeed NR-1500 Manual de usuario

Numatic

Numatic NPR 1515/S Manual de usuario

Numatic

Numatic TTB 4055/100 Manual de usuario

Numatic

Numatic LoLone NLL Series Instrucciones de montaje

Numatic

Numatic SQFM 4325 Manual de usuario

Numatic

Numatic LOLINE HLL 332 Manual de usuario

Numatic

Numatic TTB 1117/100 Manual de usuario

Numatic

Numatic Henry PET Manual de usuario

Numatic

Numatic LoLine NLL 415 Manual de usuario

Numatic

Numatic ET 4045 Manual de usuario

Numatic

Numatic TTB 2120/100T Manual de usuario

Numatic

Numatic NR 1500 Manual de usuario

Numatic

Numatic floorcare tt 1840 Manual de usuario

Numatic

Numatic TRO 650 Manual de usuario

Numatic

Numatic Nacecare TT 1117 / 100 Manual de usuario

Numatic

Numatic TTB-1620 Manual de usuario

Numatic

Numatic TT-3450S Manual de usuario

Numatic

Numatic TTB 6055 Manual de usuario

Manuales populares de Máquina de piso de otras marcas

Nilfisk-Advance

Nilfisk-Advance Advance SC370 17B Manual de usuario

HAWK ENTERPRISES

HAWK ENTERPRISES HP1513-180BRUTE Manual de usuario

Mytee

Mytee 8070 Mytee-Lite Manual de usuario

Kärcher

Kärcher B 140 R Manual de usuario

Triple S

Triple S Ace 26T1 Manual de usuario

Nilfisk-Advance

Nilfisk-Advance SW 750 Manual de usuario

Tornado

Tornado Marathon 2000 98190 Manual

Windsor

Windsor ADMIRAL Admiral 8 Manual de usuario

Tennant

Tennant 8210D Manual de usuario

Nobles

Nobles Frontier Manual del producto

lavina

lavina 21-X Manual de usuario

KENT

KENT Edge 28B Manual de usuario

Tennant

Tennant 215 Manual del producto

Windsor

Windsor BDP 51/2000C Manual de usuario

CleanFreak

CleanFreak DURA-18HD Manual de usuario

Nilfisk-Advance

Nilfisk-Advance Warrior 34RST Guía del administrador

BETCO

BETCO PB24 Manual de usuario

IPC

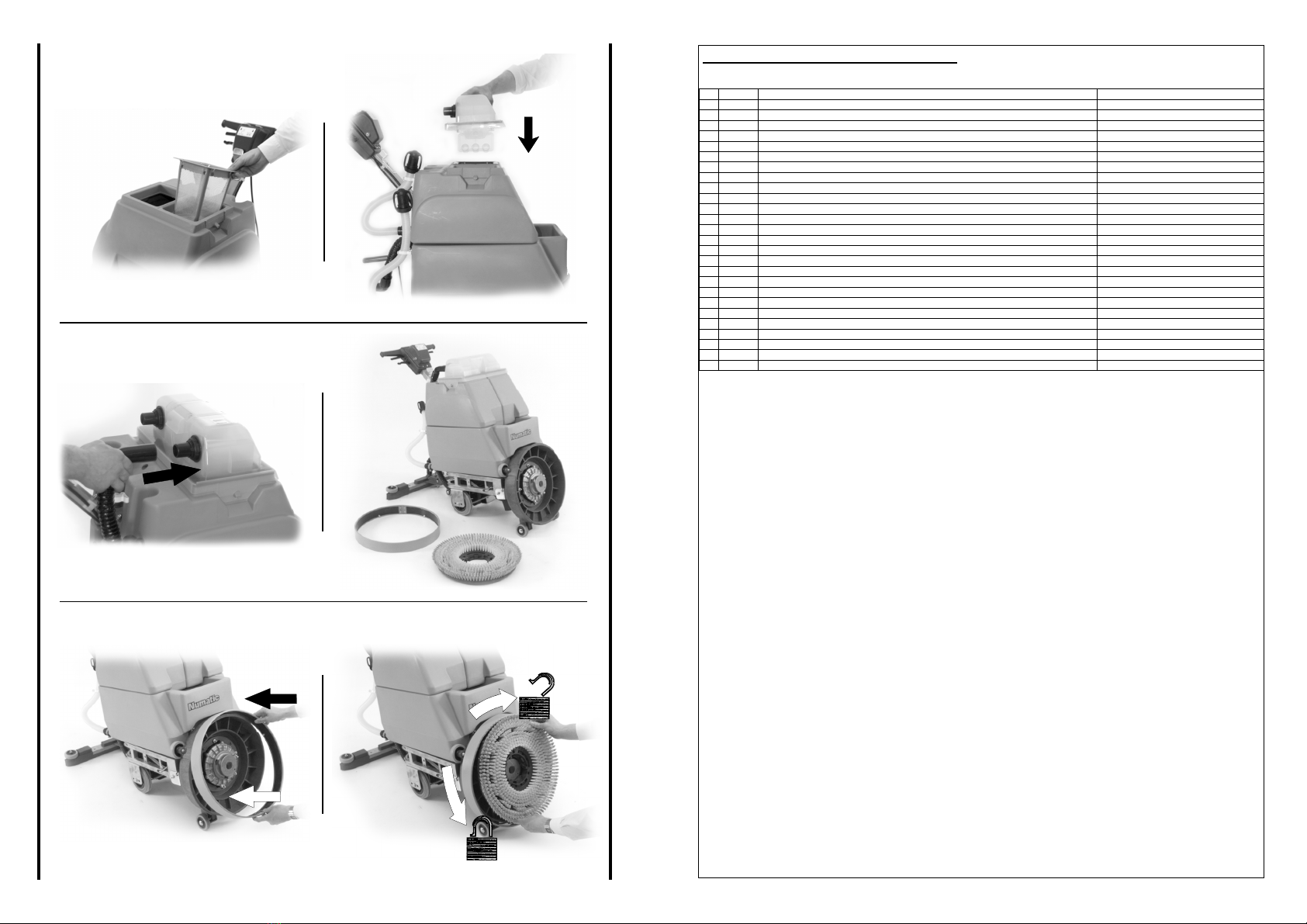

IPC CT51-71 BT Manual de usuario
