NTI Splitmux-C5HDR-4LC Manual de usuario

MAN233 REV 1/22/15

SPLITMUX-C5HDR-4LC

HDMI 4x1 Quad Multi-Viewer

With Seamless Switcher

Installation and Operation Manual



SPLITMUX®Series

1. Introduction

The SPLITMUX-C5HDR-4LC (SPLITMUX) is a high performance 4 by 1 Quad Multi-Viewer

with seamless switcher. It supports four High-definition input sources displaying on one

screen, and has three multi-view effect modes. As a switcher, it can also seamlessly switch

the four HD inputs freely. The SPLITMUX can be controlled by the front panel buttons,

IR control, or RS232 control. The SPLITMUX provides an S/PDIF link to output the HDMI

source audio at the same time.

The SPLITMUX can also extend the video and audio signals over a single CAT5e/6/6a/7

cable up to 250 foot (76m) with Bi-directional IR control (see table on page 8).

2. Features

¾Compliant with HDMI 1.3a,HDCP 1.2

¾Supports multiplexed HDMI 4-input and 1-output

¾Supports up to 1080p High Definition resolution

¾Supports 4by1 Quad Multi-viewer and seamless switch

¾Supports scale-up/scale-down function

¾Supports multi-output resolution

¾Supports digital audio format LPCM/AC3/DTS

¾Supports button, IR and RS232 control

¾IR system allowing for control of source at display end

¾Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6/6a/7

cable

3. Package Contents

¾1-SPLITMUX-C5HDR-4LC HDMI Quad Multi-Viewer

¾1-CAT5e/6RemoteUnit

¾1-12V/2.5A DC power adaptor

¾1-5V/1A DC power adaptor

¾1-RemoteControl

¾2-Wide-band IR Receiver

¾5-Wide-band IR Transmitter

¾1-RS232 Cable (4.6ft 9DB male to 9DB female)

¾2-Wall mount brackets with case-mounting screws

¾1-CD with Operation Manual and RS232 Control Application



4. Functions

4.1 Front panel

1. ON/OFF: Power ON/OFF switch.

2. SERVICE: For factory use only.

3. IR : Remote control receiver window.

4. POWER LED: This red LED illuminates when the device is connected with power supply.

5. IN1,2,3,4 LED: These red LEDs illuminate when the output is switched to the

corresponding input.

6. INPUT BUTTON: Press this button to select the input source.

7. MODE BUTTON: Press this button to select the multi-view display mode.

See the detail description in Chapter 5.2.

8. RESO BUTTON: Press this button to select the HDMI output resolution.

4.2 Rear panel

1. INPUT: Connect the HDMI source outputs from DVD, PS3, Set-top Box and Note Book.

2. OUTPUT: HDMI for connecting the HDTV or monitor with HDMI cable for

input source display.

UTP port for connecting to CATx Receiver by CATx cable for

signalextension.

Coax for connection to an amplifier with coaxial cable.

3. IR RX: Connect to the IR Receiver for IR signal reception. Ensure that remote control

being used is within the direct line-of-sight of the IR receiver.

4. IR TX: Connect the IR Blaster cable included in the package for IR signal transmission.

Place the IR blaster in direct line-of-sight of the equipment to be controlled.

5. RS232: Connect the RS232 port to the PC or notebook using RS232 Cable (provided).

6. DC 12V: Plug the 12V DC power supply into the unit and connect the adaptor to AC wall

outlet.



4.3 CATx Remote Unit

1. DC 5V: Connect from 5V DC power supply into the unit and connect the adaptor to an AC

outlet.

2. IR RX: Connect to the IR Receiver for IR signal reception. Ensure that remote control

being used is within the direct line-of-sight of the IR receiver.

3. IR TX: Connect the IR Blaster cable included in the package for IR signal transmission.

Place the IR blaster in direct line-of-sight of the equipment to be controlled.

4. CAT5E/6: Connect the CAT input of the Remote Unit to the CAT output of the transmitter

(SPLITMUX) using CAT5E/6/6a/7 cable.

5. HDMI OUT: Connect the HDMI input port of your display such as an HDTV.

6. LOCK LED: This LED will illuminate when the HDMI signal from the transmitter is stable.

7. Power LED: This LED will illuminate when the device is connected with power supply.

8. Coaxial OUT: Connect to the audio amplifier with coaxial cable.

9. ARC : Switch the ARC switcher to enable or disable the ARC function.

ARC function : In order to use ARC, your HDTV must support this function.

When you enable the ARC function (switch in “ON” position), the coaxial of the

receiver will output the audio signal of the current HDTV display. If you switch the

input at the display to view the signal from a source connected to a different input on

the display (different than the signal from your Remote Unit), the audio from that

source will play back through the amplifier connected to the Coaxial of the Remote

Unit.

When disabled (switch in “OFF” position), the coaxial will only output the HDMI source

(DVD, set-top-box, etc) audio signal from the SPLITMUX.

5. Connect and Operate

1. Connect the signal sources such as Blu-Ray Player, Play Station 3, audio/video receiver,

satellite receivers and computers equipped with HDMI output interfaces with a

high-speed HDMI cable to the SPLITMUX inputs.

2. Connect the HDMI output of the SPLITMUX to a high-definition display device such as

HD-LCD, HD-DLP or HD projector with an HDMI input connection. Use a high-speed

HDMI cable that is recommended for the distance required.

3. The SPLITMUX is powered by an external power supply (included). Connect power first

to the signal source(s), then to the SPLITMUX and then to the display device.

4. If the CATx receiver is used, connect a CATx cable (see resolution chart on Specifications

page) between the “UTP” port on the SPLITMUX and the Remote Unit. Then an

additional display device can be connected to the Remote Unit using an HDMI cable.

To control the input source via remote control from the extended display device, see “IR

RECEIVER” in section 5.1.

5. If an amplifier is used, connect a coax cable with RCA connector to the “COAX” port on

the SPLITMUX, and connect the other end to a stereo amplifier or self-powered

speakers.

5.1 Wideband IR (30KHz---60KHz)

IR BLASTER (TX)

To control the source:Plug IR Blaster into a numbered “IR TX” port of the transmitter unit

(SPLITMUX); place IR blaster in front of the IR eye of the associated input source. Repeat

for each connected source.

IR RECEIVER (RX)

To locally control the source from the SPLITMUX:Plug IR Receiver into the “IR RX” port

of the SPLITMUX; place IR receiver at or near display.

To remotely control the source from the extended Display: Plug IR Receiver into IR RX

port of Remote Unit; place IR receiver at or near the display.

IR Control of Connected Remote Display

Locally control the remote display using the display IR remote control through the IR receiver

plugged-into the SPLITMUX and an IR Blaster plugged-into the Remote Unit.



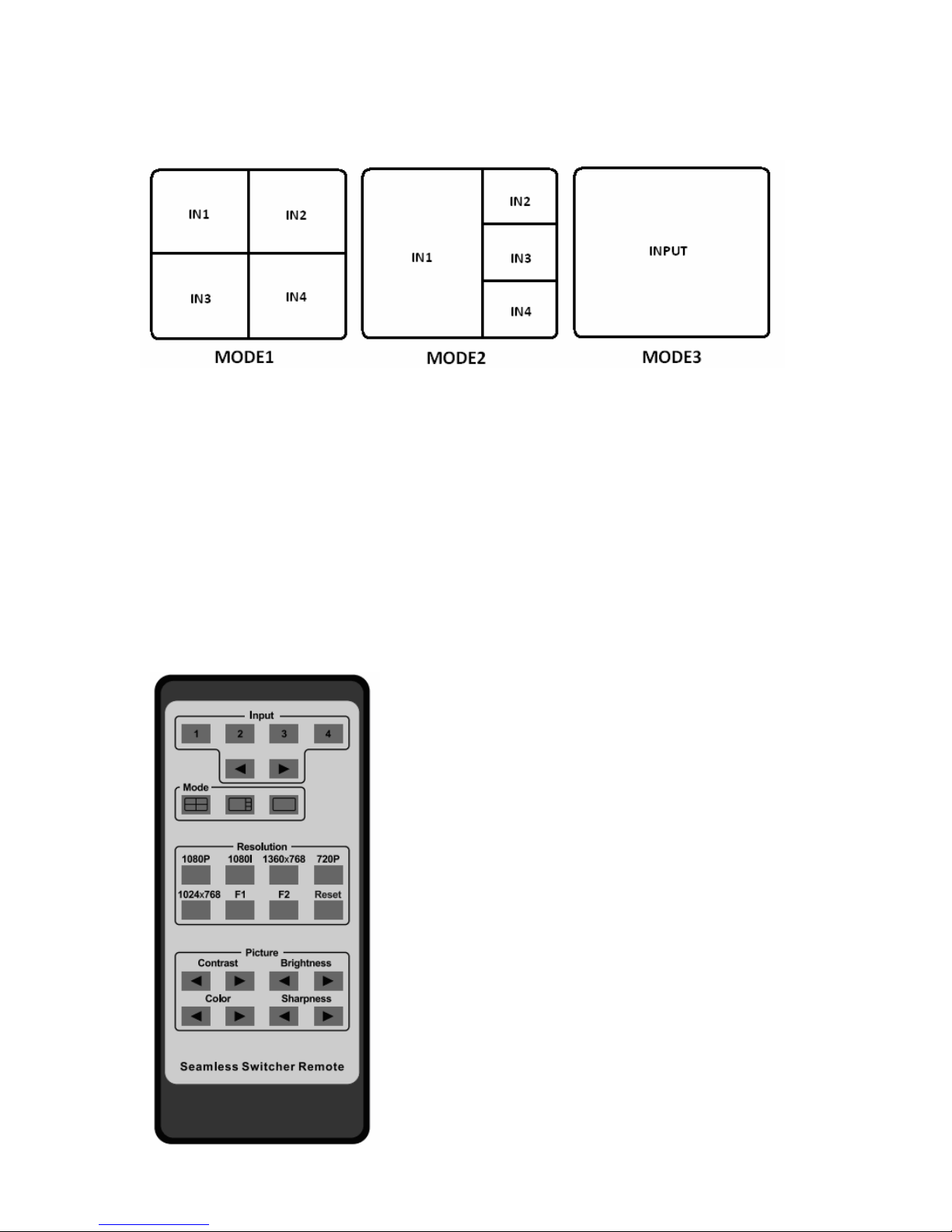

5.2 Detailed Description of Display Modes

The SPLITMUX has 3 display modes.

MODE1: The SPLITMUX divides the four HD inputs into images of the same size and

displays them on one screen. Press the input button on the front panel or IR remote and the

HDMI output audio for the corresponding source will be heard.

MODE2: The SPLITMUX divides the four HD inputs into one bigger and three smaller picture

displays on one screen. Press the input button on the front panel or IR remote to select

which source will be the larger picture and which audio will be heard.

MODE3: The SPLITMUX will separately display the four HD inputs, and now it is a seamless

switcher.

6. Remote Control

1. Input select button: press these buttons to select the

corresponding input source. The front panel LED will

indicate the selected input source status.

2. Mode select button: press these buttons to select the

corresponding mode, see the detailed description (chapter

5.2).

3. Resolution button: press these buttons to select the

HDMI output resolution:

1080p,1080i,720p,1024x768,1360x768.

The F1, F2 buttons are not used.

Press the Reset button and the SPLITMUX will reset to a

factory state.

4. Picture button: press these buttons to adjust the display

picture contrast, brightness, color and sharpness.



7. PC Controller User Guide

Installation

The PC controller is an application included on your CD. Just use a cable to connect the

PC via RS232 port and copy the “Quad multi-viewer.exe” from the CD to your PC to complete

the installation.

Preparation

1. Connect PC and SPLITMUX using the supplied RS232 cable

2. Power-up SPLITMUX

3. Double-click “Quad multi-viewer.exe” to run the application.

Operation

1. Select PC connection COM port. Click to connect or disconnect PC and SPLITMUX.

2. Select the HDMI output resolution.

3. Select the Input source.

4. Select the Output mode. See the detailed description (chapter 5.2).

5. Adjust the HDMI output picture quality.

6. Display or hide the OSD menu.

7. FW Upgrade: (no new firmware available as of this printing)

- Click to “Open” to open Firmware. Locate new firmware on your PC and select it.

- Click the Upgrade button. The new firmware will auto download to the SPLITMUX.

- The SPLITMUX will restart when the upgrade is complete.

8. Press the “Reset” button to reset the SPLITMUX to a factory state.

8. Specifications

Video Bandwidth 2.25Gbps

Input Ports 4 × HDMI (Female type), 1x RS232;

Output Ports 1 × HDMI (Female type), 1xRCA, 1xRJ45

Audio output PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1

Input Resolution 480i60Hz, 480p60Hz, 576i50Hz, 576p50Hz, 720p50/60Hz,

1080i50/60Hz, 1080p24/30/50/60Hz, 800x600@60,

1024x768@60, 1280x720@60, 1920x1080@60;

Output Resolution 1080p, 1080i, 720p, 1024x768, 1360x768

ESD Protection Human Body model: ±8 kV (air-gap discharge)

±4 kV (contact discharge)

Power Supply

-SPLITMUX 12 Vdc/2.5A (US/EU standards, CE/FCC/UL certified)

-Remote Unit 5 Vdc/1.0A (US/EU standards, CE/FCC/UL certified)

Dimensions WxDxH (in): 9.84x4.65x1.26 (250x118x32 mm)

Weight 750 g

Chassis Material Powder-coated Steel

Operating Temperature 0 °C~40 °C/ 32 °F~104 °F

Storage Temperature −20 °C ~ 60 °C/−4 °F ~140 °F

Relative Humidity 20~90 % RH (non-condensing)

Power Consumption 10 W

WARRANTY INFORMATION

The warranty period on this product (parts and labor) is two (2) years from the date of

purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH)

or (330) 562-7070 or visit our website at http://www.networktechinc.com for information

regarding repairs and/or returns. A return authorization number is required for all

repairs/returns.


