NTI USB-IP-4 Manual de usuario

USB-IP-4

Quad USB over Ethernet Extender

Operation Manual

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

VR0 25/03/11 Preliminary Release

VS1 06/07/12 Updated format/diagrams

CONTENTS

1. Introduction............................................1

2. Applications...........................................1

3. Package Contents ................................1

4. System Requirements............................1

5. Features..................................................2

6. Operation Controls and Functions.......3

6.1 Front Panel........................................3

6.2 Rear Panel.........................................4

6.3 Driver Installation..............................5

6.4 Driver Uninstallation..........................7

7. Connection Diagram ............................8

8. Specications ........................................9

9. Acronyms...............................................9

1. INTRODUCTION

The Quad USB over Ethernet Extender allows you to utilize your USB

devices over an existing network installation or connect directly to

your PC or laptop. For home, commercial or retail environments this

device allows hands-on control of USB devices for users within the

same network. Compatible with a wide range of USB devices, you

can control up to four different devices up to 100 meters away.

2. APPLICATIONS

• Share USB devices over a network

• Meeting room USB control of remote PCs

• Transfer of USB data over a network

• External USB hub

• USB display control (with USB to HDMI converter)

3. PACKAGE CONTENTS

• USB over Ethernet Extender

• Software CD-ROM (includes Drivers)

• 5 V/2.6 A Power Adaptor

• Operation Manual

4. SYSTEM REQUIREMENTS

• PC/laptop with USB or RJ45 cable (direct connection or through an

existing network) and USB devices such as printers, scanners, ash

drives, HDD and digital cameras.

• Computer System Requirements: 2.4GHz single core CPU with at

least 1GB RAM for optimal performance

• Operating Systems:

- Windows XP Home or Professional SP2 (32-bit)

- Windows Vista (32-bit)

- Window 7

5. FEATURES

• USB Hub - Control up to 4 four USB devices

• Capable of high-speed (480 Mbps), full-speed (12 Mbps) and low-

speed (1.5 Mbps) USB connection speeds (overall speed in LAN

Mode might be limited by the bandwidth of the network)

• Works up to 100 meters away (in Extender Mode)

• Connect to existing network or directly to PC with RJ45 cable

• Compliant with USB 2.0 (Hi-speed) specication

• Supports Ethernet protocols TCP/IP

• Supports 10/100/1000Mbps Ethernet speeds

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

1 2 3 4 5

DC 5V: Plug the 5V DC power supply included in the package into

the unit and connect the adaptor to AC wall outlet.

Power LED: LED will illuminate green when the device is connected

to a power supply.

LAN IN: Connect with a RJ45 terminated CAT5e/6 cable to your

existing network system or directly to a PC or laptop.

USB IN: Connect with a mini-USB to USB cable from your PC/laptop.

INPUT switch: Switches the input mode between LAN (network)

and direct USB Connection

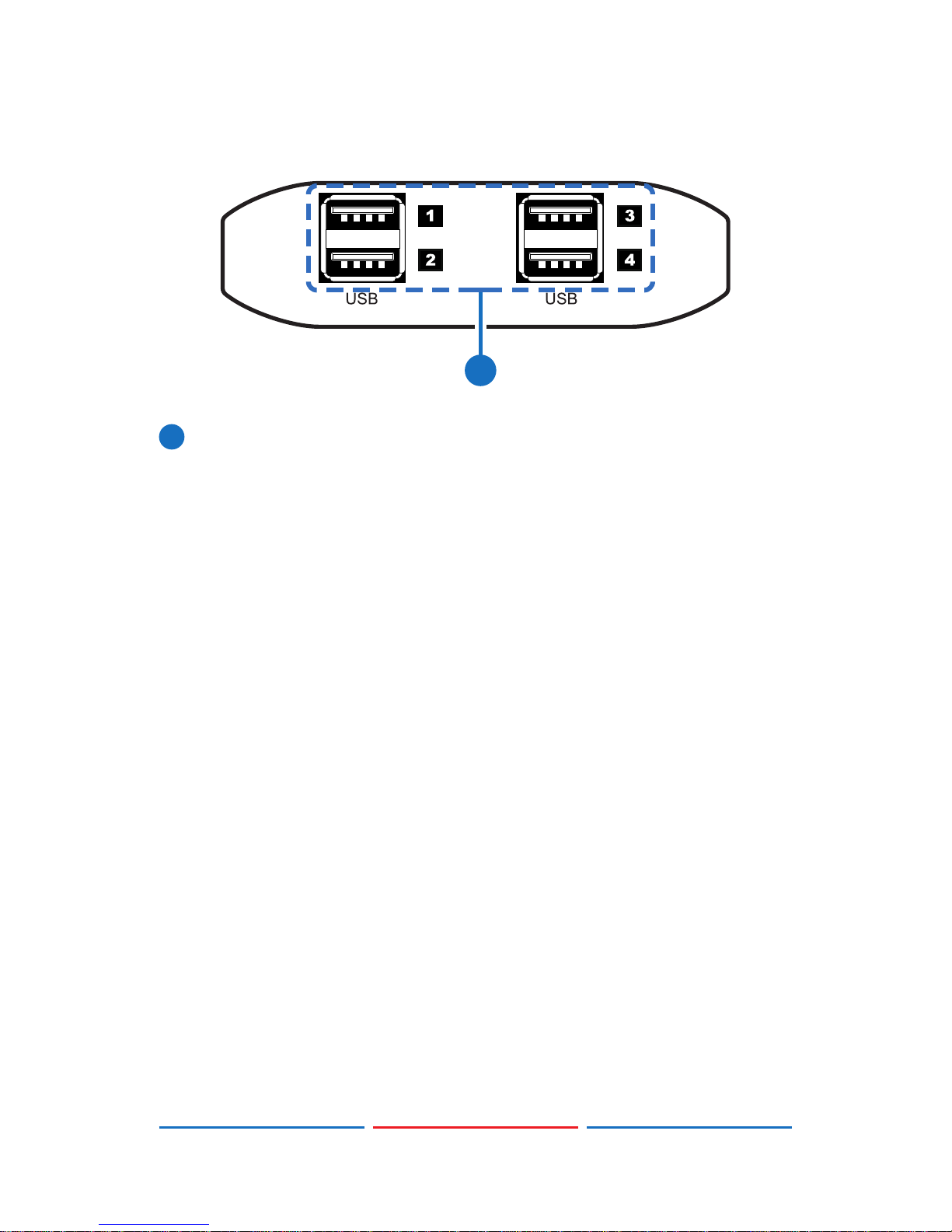

6.2 Rear Panel

USB 1~4: Use to connect to USB devices such as ash drives,

external HDDs, digital cameras, printers, and etc.

The USB over Ethernet Extender is a multi-function USB HUB which

allows you to:

A. LAN Mode: Allows PC/Laptops to access USB devices over

an existing Intranet network. The LAN Mode can be used in a

home or ofce environment that has its own congured network

infrastructure, as the device will allow users connected to the LAN

(Local Area Network) to access up to four USB devices.

B. Extender Mode: Extend the USB operating distance over a single

RJ45 terminated CAT5e/6 cable up to 100 meters this allows the

use of USB devices in remote locations in an installation.

C. HUB Mode: Use it as a regular 4 port USB Hub. Where no signal

extension is needed, the device can be used as a 4 port USB Hub

and can be directly connected to a PC/Laptop.

For the LAN mode or Extender Mode to function, the software

application and driver (provided on the supplied CD-ROM) are

required to be installed on any connected PCs/Laptops for them

to identify and hook up with the unit in the same network using

TCP/IP protocol.

In all 3 modes, USB 2.0 (data rates up to 480Mbps) and USB 1.1

protocols (data rates up to 12 Mbps) are both supported.

Role of USB devices in a setup with this unit:

- Host Devices (PC / Laptop): Can Control this unit and any USB

devices connected to it.

- Storage Devices (USB Flash Drive, USB Hard Drive, etc.): Provide bi-

directional data transfer between the Storage Device and the

Host Device.

- Peripheral Devices (USB Printer, USB Scanner, etc.): Provide bi-

directional data transfer between the Peripheral Device and the

Host Device.

- Input Devices (USB Keyboard, USB Mouse, etc.): Can be used to

control the Host Device remotely.

6.3 Driver Installation

The following sections list the procedures to follow when installing the

USB device drivers. Insert the supplied CD-ROM into your CD-ROM

drive, run the USB Install Disc and follow the below steps to install the

driver.

1. Installs the USB Server Software

Double click on the USB Server Setup icon to start the set up software

and click nish when the setup is complete.

When USB Server software has been installed completely, the icon for

the USB Server should appear on both the desktop and in the System

Tray area on the bottom right of the desktop.

2. Uses the USB Server Software

Double click on the Launch USB Server icon from the desktop or from

the System Tray, the USB Server window will appear. Connect both

PC/Laptop and the device directly with a RJ-45 terminated CAT5e/6

cable or to a LAN and click on Search. Ensure the INPUT switch on the

device is set to 'LAN'.

Once the connection is done click on 'Connect Device' next to the

Search for both Display and Media. When the connection is done

the Status will appear with “” mark. When disconnecting click on

“Disconnect Device”.

6.4 Driver Uninstallation

Follow the steps below to uninstall the USB server driver:

Step 1: Open the Start menu and navigate to: Start MenuControl

PanelAdd or Remove Programs.

Step 2: Select USB Server and click Remove.
