U s e r ’s m a n u a l

NVIP-TDN2401D/IR/MPX1.0

NVIP-TDN2401D/IR/MPX1.0, - user’s Manual ver.1.0.

IMPORTANT SAFEGUARDS AND WARNINGS

EMC (2004/108/EC) and LVD (2006/95/EC ) Directives

CE Marking

Our products are manufactured to comply with requirements of the following directives and national regulations

implementing the directives:

 Electromagnetic compatibility EMC 2004/108/EC.

 Low voltage LVD 2006/95/EC with further amendment. The Directive applies to electrical

equipment designed for use with a voltage rating of between 50VAC and 1000VAC as well as

75VDC and 1500VDC.

WEEE Directive 2002/96/EC

Information on Disposal for Users of Waste Electrical and Electronic Equipment

This appliance is marked according to the European 1000VAC Directive on Waste Electrical and Electronic

Equipment (2002/96/EC) and further amendments. By ensuring this product is disposed of correctly, you will

help to prevent potential negative consequences for the environment and human health, which could otherwise

be caused by inappropriate waste handling of this product.

The symbol on the product, or the documents accompanying the product, indicates that this appliance may not be

treated as household waste. It shall be handed over to the applicable collection point for used up electrical and

electronic equipment for recycling purpose. For more information about recycling of this product, please contact

your local authorities, your household waste disposal service or the shop where you purchased the product.

RoHS Directive 2002/95/EC

Out of concern for human health protection and friendly environment, we assure that our products

falling under RoHS Directive regulations, regarding the restriction of the use of hazardous

substances in electrical and electronic equipment, have been designed and manufactured in

compliance with the above mentioned regulations. Simultaneously, we claim that our products have

been tested and do not contain hazardous substances whose exceeding limits could have negative

impact on human health or natural environment

Information

The device, as a part of professional CCTV system used for surveillance and control, is not designed for self

installation in households by individuals without technical knowledge.

Excluding of responsibility in case of damaging data on a disk or other devices:

The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other devices

during device operation.

WARNING!

PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN PRODUCT IN

USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE PRODUCT, OR IF IT DOES

NOT ARISE FROM THE USUAL APPLICATION OF THE PRODUCT, MANUFACTURER MUST BE

CONTACTED UNDER THE RIGOR OF EXCLUDING THE MANUFACTURER’S RESPONSIBILITY FOR

THE RESULTS OF SUCH AN ACTION.

NVIP-TDN2401D/IR/MPX1.0 - user’s Manual ver.1.0

IMPORTANT SAFEGUARDS AND WARNINGS

WARNING!

THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER

DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH

THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.

WARNING!

USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER

-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL

MAY OPEN THE UNIT

INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE

PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS

1. Prior to undertaking any action please consult the following manual and read all the safety and operating

instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual is

necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct

influence on user’s safety and durability and reliability of the device;

4. All actions conducted by the servicemen and users must be accomplished in accordance with the user’s

manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer is

forbidden;

7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools, bath tubs,

damp basements);

8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.) is not

recommended since it may lead to heat build-up and damaging the device itself as a consequence;

9. Mounting the camera on unstable surface or using not recommended mounts is forbidden. Improperly

mounted camera may cause a fatal accident or may be seriously damaged itself. The camera must be mounted

by qualified personnel with proper authorization, in accordance with this user’s manual.

10. Device should be supplied only from a power sources whose parameters are in accordance with those

specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply the camera

from a power sources with unknown parameters, unstable or not meeting producer’s requirements;

NVIP-TDN2401D/IR/MPX1.0, - user’s Manual ver.1.0.

TABLE OF CONTENTS.....................................................................................................4

1. FOREWORD INFORMATION .....................................................................................6

1.1. General Characteristics........................................................................................6

1.2. NVIP-TDN2401D/IR/MPX1.0 specification ......................................................7

1.3. Package contents..................................................................................................8

2. START-UP AND INITIAL IP CAMERA CONFIGURATION .................................9

2.1. Description of most important electric connectors and adjustment elements .....9

2.2. NVIP-TDN2401D/IR/MPX1.0 camera mounting.............................................10

2.3. Starting up of IP camera ....................................................................................10

2.4. Parameters configuration by using web browser...............................................11

3. NETWORK CONNECTION UTILIZING WEB BROSWER ................................12

3.1. Recommended PC configuration for web browser connections ........................12

3.2. Camera network connection utilizing Internet Explorer ...................................12

3.3. Camera network connection utilizing Mozilla Firefox .....................................14

4. WWW INTERFACE- HOW TO WORK WITH IP CAMERA ...............................16

4.1. Video images displayed in live view..................................................................16

4.2. Camera configuration .........................................................................................17

4.2.1. System........................................................................................................18

a. System information...................................................................................18

b. Users management ...................................................................................19

c. System update...........................................................................................20

4.2.2. Network......................................................................................................21

a. IP setting ...................................................................................................21

b. HTTPS......................................................................................................22

c. SNMP .......................................................................................................23

d. Access list.................................................................................................24

e. QOS ..........................................................................................................25

f. IEE802.1x .................................................................................................25

g. PPPoE & DNS..........................................................................................26

h. Server (Mail, FTP…) ...............................................................................27

TABLE OF CONTENTS

NVIP-TDN2401D/IR/MPX1.0 - user’s Manual ver.1.0

4.2.3. A/V setting................................................................................................. 28

a. Image setting ............................................................................................ 28

b. Video setting ............................................................................................ 29

c. Audio setting ............................................................................................ 30

4.2.4. Event setting .............................................................................................. 31

a. Event setting............................................................................................. 31

b. Schedule setting ....................................................................................... 33

c. I/O setting................................................................................................. 34

d. Log list ..................................................................................................... 35

f. SD card ..................................................................................................... 35

5. ELECTRIC CONNECTORS AND CONNECTIONS.............................................. 36

5.1. Electric connectors and adjustment elements .................................................... 36

5.2. Alarm input and output electric connections ..................................................... 36

5.3. Micro SD card installation.. ............................................................................... 37

6. DEFAULT SETTINGS IP CAMERA ....................................................................... 38

6.1. Factory software default of IP camera .............................................................. 38

6.2. Factory hardware default of IP camera.............................................................. 38

TABLE OF CONTENTS

NVIP-TDN2401D/IR/MPX1.0, - user’s Manual ver.1.0.

1. FOREWORD INFORMATION

1.1. General Characteristics

 Pick-up element resolution: 1.0 Mpix

 Mechanical IR cut filter ,IR operation capability

 Min. Illumination 1.0 lx/F=1.2 (IR off) , 0 lx (IR on)

 Wide Dynamic Range (WDR) for enhanced image quality in diverse light conditions

 Digital Slow Shutter (DSS)

 Digital Noise Reduction (DNR)

 An aspheric lens f=2.8~10 mm with automatic DC-iris

 Built-in IR LED - 18 LEDs

 Alarm input and output

 Two way audio

 micro SD/SDHC card support

 H.264, MPEG-4, M-JPEG compression

 Video processing resolution: 1280x800

 RTP/RTSP protocol support for video and audio transmission

 Triple streaming: compression, resolution, speed and quality defined individually for two video

streams

 Supports cell phone/PDA - 3GPP additional stream

 Hardware motion detection

 Three independent privacy zones

 Network status and IP check functionality

 Video file (.avi) alarm recording with pre and post alarm

 Wide array of event notification methods: FTP server, Samba server, E-Mail, alarm output

activation, storage of video file (avi) or image file (jpeg) on microSD card

 Network protocol: HTTP, HTTPS, TCP/ IP, UDP, FTP, DHCP, DDNS, NTP, 3GPP, RTSP,

UPnP

 Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring,

playback and remote IP device administration

 Power supply: 12 VDC (power adapter 230 VAC / 12 VDC in package)

FOREWORD INFORMATION

NVIP-TDN2401D/IR/MPX1.0 - user’s Manual ver.1.0

FOREWORD INFORMATION

1.2. NVIP-TDN2401D/IR/MPX1.0 specification

Model NVIP-TDN2401D/IR/MPX1.0

Pick-up Element 1/4” CMOS imager

Imager Resolution 1.0 megapixel

Min. Illumination 1.0 lx/F=1.2 (IR off) , 0 lx (IR on)

Electronic Shutter Auto / manual (1/30-1/1000s)

Digital Slow Shutter (DSS) 0.03 s ~ 0.2 s

Wide Dynamic Range (WDR) 8 adjustable levels / off

White Balance Auto

Privacy Zones 3

Day/night swiching Automatic, manual, timer, external

Lens Type f=2.8 ~ 10 mm with automatic DC-iris

Angle of View (H) 80° ~ 23°

Image Functions Mirror and 180° rotation,DNR—Digital Noise Reduction

Image Settings Brightness, contrast, exposure time, sharpness

Video Compression H.264, MPEG-4, M-JPEG

Resolution 1280 x 800, 1280 x 720 (HD720), 640 x 480 (VGA), 320 x 240 (QVGA), 176 x 144 (QCIF)

Audio input/output 1/1

Alarm input/output 1/1

System Reaction to Alarm Events E-mail with attachment, saving file on: FTP server/Samba server, micro SD card,

output activation,

Pre- & Post-alarm Functions Max. 5 s pre-alarm and max. 5 s post-alarm recording with adjustment possibility

Frame Rate Up to 30 fps for all resolution

Full Screen View Yes

Image Saving Files AVI, JPEG sequence, JPEG

Event History Log Up to 250 events for each group (Motion detection, System logs)

Number of Simultaneous Network

Connections Max. 10

External Ports 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s, 1 x micro SD/SDHC

Motion Detection On/Off

Time Synchronization Automatic time synchronization with NTP server

Network Protocols Support HTTP, HTTPS, FTP, NTP, DDNS, DHCP, UDP, TCP/IP, RTP, RTSP, 3GPP, UPnP, Qos

Software NMS

User Authorization Password protected camera access and its configuration

IR LED 18 LEDs, 12 m range, 30° beam angle

Power Supply 12 VDC (230 VAC/12 VDC PSU in-set included)

Power Consumption Max. 4.1W (IR on) , 2.9 W (IR off)

Operating Temperature -10°C ~ 45°C

Dimensions (mm) 131.2 (Ø) x 94.3 (H)

Weight 330 g

NVIP-TDN2401D/IR/MPX1.0, - user’s Manual ver.1.0.

1.3. Package contents

After opening the package, please ensure that the following items are inside:

 IP camera

 Power supply adaptor 100-240 VAC / 12 VDC

 Screws and anchors, 3 pcs

 Guide pattern

 CD containing user’s manual and NMS software

 User’s manual (short form)

If any of the items above have been damaged during transport, please pack all the elements back into

the original box and contact your supplier for further assistance.

CAUTION!

If the device was brought from a location with lower temperature, please wait until it reaches the

temperature of location it is currently in. Turning the device on immediately after bringing it

from a location with lower ambient temperature is forbidden, as the condensing water vapour

may cause short-circuits and damage the device as a result.

Before starting the device, please familiarize yourself with the description and the role of

particular inputs, outputs and adjusting elements that the device is equipped with.

FOREWORD INFORMATION

NVIP-TDN2401D/IR/MPX1.0 - user’s Manual ver.1.0

2. START-UP AND INITIAL IP CAMERA CONFIGURATION

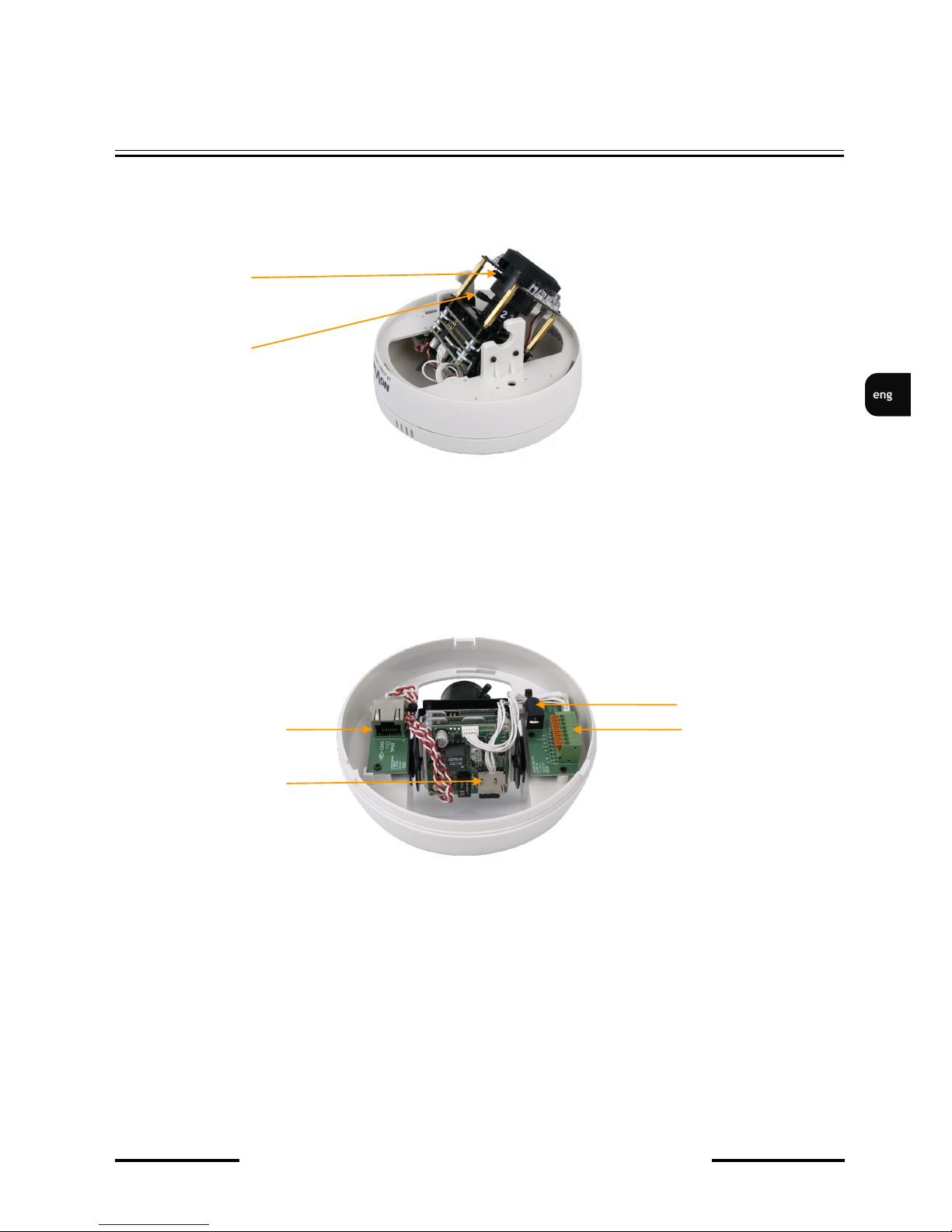

2.1. Description of most important electric connectors and adjustment elements

In NVIP-TDN2401D/IR/MPX1.0 camera lens is mounted by default and only the zoom and focus

require adjustment.

START-UP AND INITIAL CAMERA CONFIGURATION

1. Focus adjustment

2. Zoom adjustment

5. Ethernet 10/100 Mb/s

(RJ-45 socket)

6. SD card slot

3. Power socket

4. Terminal block

- audio out

- microphone in

- alarm in

- alarm out

NVIP-TDN2401D/IR/MPX1.0, - user’s Manual ver.1.0.

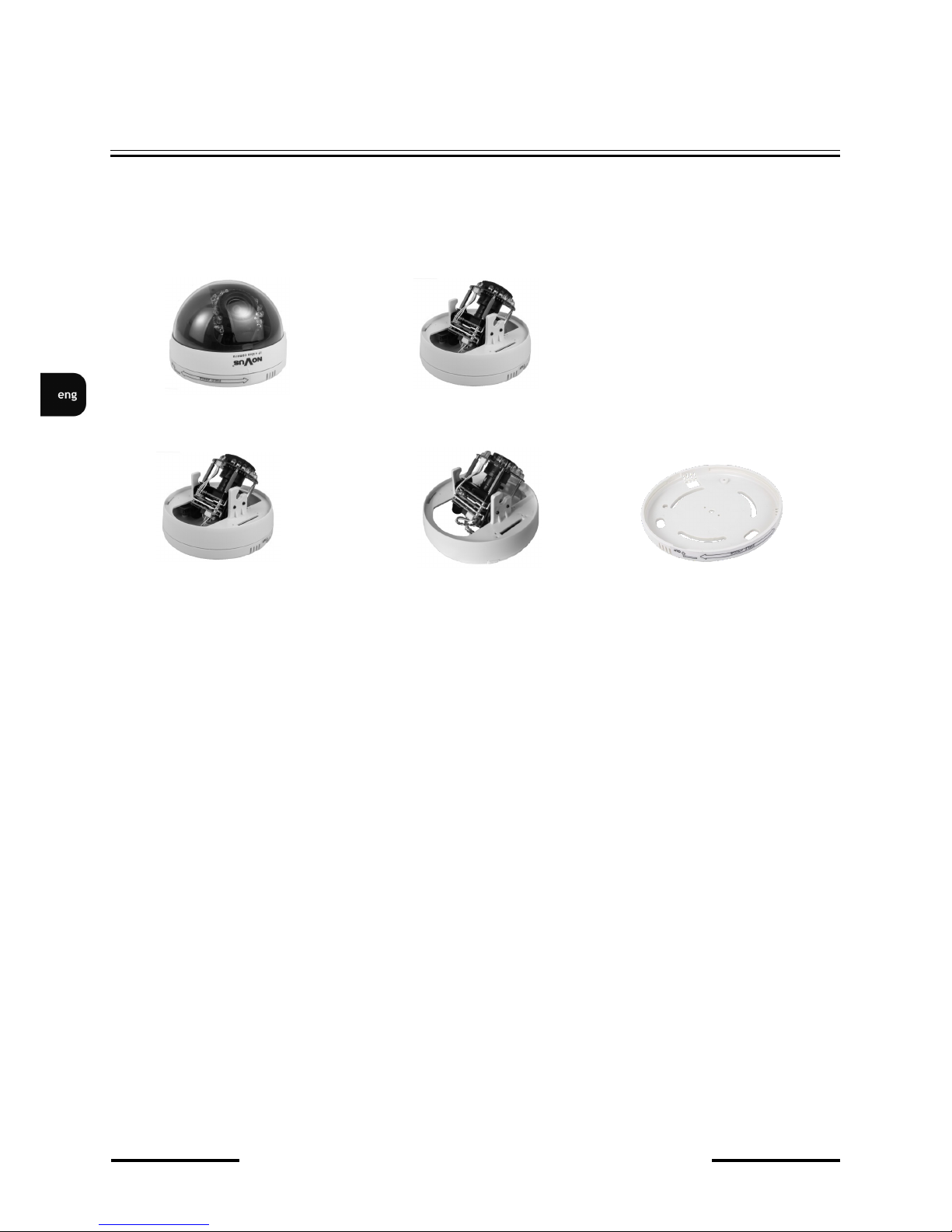

2.2. NVIP-TDN2401D/IR/MPX1.0 camera mounting

Prior to installation please familiarize yourself with the product, its parameters and installation process:

 Gently remove the camera dome counter-clockwise, twisting it until 3 latches placed every 120˚

around the edge are released (distinctive unlocking “click” can be heard).

 Please remove camera base in a similar manner.

 Place guide pattern in a desired place and use to drill holes for screws and cables.

 Screw the camera base onto desired surface using included screws.

 Connect the camera network switch using Ethernet cable

 Connect power supply cable to power socket.

 Mount the camera twisting it gently clockwise onto the base. Please ensure that 3 latches match

undercuts in the base (distinctive locking “click” can be heard meaning that camera is firmly

attached to the base).

 Adjust the position of the camera module.

 Unscrew the blocking knobs and adjust focal length and focus.

 Mount camera dome twisting it gently clockwise onto the camera in similar way as mounting the

camera to its base.

2.3. Starting the IP camera

To start NOVUS IP camera you have to connect the camera to a network switch using Ethernet cable

and power it directly from the power supply.

After connecting power supply green LED should light up. Initialization process lasting about 30

seconds takes place then. Next, you can proceed to establishing a connection with the camera via a web

browser.

If the connection is successfully established green LED blinks with a frequency proportional to the

quantity of data sent. Connecting via web browser is then possible. If connection isn’t established (the

network cable is disconnected) green LEDs isn't active, solid light means that network connection is ok

but camera doesn't receive or send any data, with possible PC network settings error.

START-UP AND INITIAL CAMERA CONFIGURATION

Tabla de contenidos

Idiomas:

Otros manuales de Cámara de seguridad de Novus

Novus

Novus NVIP-5DN2021D/IR-2P Manual de usuario

Novus

Novus NVIP-2V-6411 Manual de usuario

Novus

Novus NVIP-2DN5040V/IR-1P Manual de usuario

Novus

Novus NVIP-2VE-6501/F Manual de usuario

Novus

Novus NVIP-2DN3032AV/IR-1P Manual de usuario

Novus

Novus NVIP-4H-6502M/F-II Manual de usuario

Novus

Novus NVAHD-2DN5100C-3 Manual de usuario

Novus

Novus NVIP-2H-6231-II Manual de usuario

Novus

Novus NVAHD-2DN3202MH/IR-1-II Manual de usuario

Novus

Novus VSS MULTI HD 6000 Manual de usuario

Novus

Novus NVDN-861H/IRH-2 Manual de usuario

Novus

Novus NVIP-2VE-6601-II Manual de usuario

Novus

Novus NVC-HC4600V Manual de usuario

Novus

Novus NVIP-2VE-6201 Manual de usuario

Novus

Novus NVAHD-2DN3202MV/IR-1 Manual de usuario

Novus

Novus NVIP-5VE-4202M Manual de usuario

Novus

Novus NVC-FDN3309H/IR Manual de usuario

Novus

Novus NVIP-4DN5002H/IRH-1P Manual de usuario

Novus

Novus NVIP-2H-6202-II Manual de usuario

Novus

Novus NVIP-4SD-6550F Manual de usuario

Novus

Novus NVIP-12DN7021V/IR-1P Manual de usuario

Novus

Novus NVAHD-5DN5102MV/IR-1 Manual de usuario

Novus

Novus NVIP-2H-6632M Manual de usuario

Novus

Novus NVIP-6DN5021H/IRH-1P Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
