NVIP-2V-6502M/F

NVIP-2V-6502M/F Quick start guide version 1.1

THE PRODUCT MEETS THE REQUIREMENTS CONTAINED IN THE FOLLOWING DIRECTIVES:

Information

The device, as a part of professional CCTV system used for surveillance and control, is not designed

for self installation in households by individuals without technical knowledge.

Excluding of responsibility in case of damaging data on a disk or other devices:

The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other

devices during device operation.

WARNING!

PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN

PRODUCT IN USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE

PRODUCT, OR IF IT DOES NOT ARISE FROM THE USUAL APPLICATION OF THE

PRODUCT, MANUFACTURER MUST BE CONTACTED UNDER THE RIGOR OF EXCLUDING

THE MANUFACTURER’S RESPONSIBILITY FOR THE RESULTS OF SUCH AN ACTION.

DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 26 February 2014 on the harmonisation of the laws of the Member States

relating to electromagnetic compatibility (OJ L 96, 29.3.2014, p. 79–106, with changes)

DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE)

(OJ L 197, 24.7.2012, p. 38–71, with changes)

DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances in

electrical and electronic equipment (OJ L 174, 1.7.2011, p. 88–110, with changes)

IMPORTANT SAFEGUARDS AND WARNINGS

Pictures in this publication showing camera views can be simulations. Actual camera

images may vary depending on the type, model, settings, observation area, or

environmental conditions.

NVIP-2V-6502M/F Quick start guide version 1.1

WARNING!

THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER

DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH

THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.

WARNING!

USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER

-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL

MAY OPEN THE UNIT

INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE

PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS

1. Prior to undertaking any action please consult the following manual and read all the safety and

operating instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual

is necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct

influence on user’s safety and durability and reliability of the device;

4. All actions conducted by the servicemen and users must be accomplished in accordance with the

user’s manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer is

forbidden;

7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools,

bath tubs, damp basements);

8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.)

is not recommended since it may lead to heat build-up and damaging the device itself as a

consequence;

9. Mounting the camera on unstable surface or using not recommended mounts is forbidden.

Improperly mounted camera may cause a fatal accident or may be seriously damaged itself. The

camera must be mounted by qualified personnel with proper authorization, in accordance with this

user’s manual.

10. Device should be supplied only from a power sources whose parameters are in accordance with

those specified by the producer in the camera technical datasheet. Therefore, it is forbidden to

supply the camera from a power sources with unknown parameters, unstable or not meeting

producer’s requirements;

Due to the product being constantly enhanced and optimized, certain parameters and functions

described in the manual in question may change without further notice.

We strongly suggest visiting the www.novuscctv.com/en website in order to access the newest full

manual

IMPORTANT SAFEGUARDS AND WARNINGS

NVIP-2V-6502M/F Quick start guide version 1.1

TABLE OF CONTENTS

1. FOREWORD INFORMATION................................................................................... ..5

1.1. General characteristics......................................................................................... 5

1.2. Technical specification .................................................................................. .....6

1.3. Camera dimensions ......................................................................................... ...7

1.4. Package contents .............................................................................................. ...8

2. START-UP AND INITIAL CONFIGURATION ......................................................... 8

2.1. Description of connectors and adjustment buttons.............................................. 8

2.2. Connecting ethernet cable ................................................................................... 9

2.3. Connecting power supply cable .......................................................................... 9

2.4. Camera mounting .............................................................................................. 10

2.5. Starting the camera............................................................................................ 11

2.6. Initial configuration via the web browser.......................................................... 12

2.7. Security recommendations for network architecture and configuration ........... 13

3. NETWORK CONNECTION UTILIZING WEB BROSWER ................................ 14

3.1. Recommended PC specification for web browser ............................................. 14

3.2. Network connection to the camera using Internet Explorer .............................. 14

4. WWW INTERFACE - WORKING WITH IP CAMERA......................................... 17

4.1. The remote preview interface............................................................................. 17

5. ELECTRICAL CONNECTIONS AND ACCESORIES ........................................... 18

5.1. Connecting alarm input/output........................................................................... 18

5.2. Memory card installation ................................................................................... 19

5.3. Connecting audio to the camera......................................................................... 19

6. RESTORING FACTORY DEFAULTS ...................................................................... 20

6.1. Restoring factory settings using the www panel................................................ 20

6.2. Restoring factory settings using “NMS ip tool” application.............................. 20

6.3. Factory reset with button.................................................................................... 21

TABLE OF CONTENTS

NVIP-2V-6502M/F Quick start guide version 1.1

1. FOREWORD INFORMATION

1.1 General Characteristics

• Sensor resolution: 2 megapixels

• Mechanical IR cut filter, IR operation capability

• Min. Illumination from 0 lx with IR LED on

• Wide Dynamic Range (WDR) for enhanced image quality in diverse light conditions

• Digital Noise Reduction (DNR)

• Lens type: varifocal, f=2.8 - 12 mm/F=1.4

• Built-in LED illuminator

• Built-in webserver: camera configuration through the website

• Compression: H.264, H.264+, H.264 Smart, H.265, H.265+, H.265 Smart, MJPEG

• Max video processing resolution: 1920 x1080

• Multi streaming: compression, resolution, speed and quality defined individually for each video

stream

• ROI functions

• Motion detection

• Private Zones

• RTSP protocol support for video transmission

• Schedule

• Micro SD card up to 256GB

• Audio input and output

• Built-in microphone

• Alarm input (NO/NC)

• Alarm Output

• Wide range of responses to alarm events: e-mail with attachment, saving file on FTP server,

saving file on SD card, alarm output activation

• Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring,

playback and remote IP devices administration

• Video Content Analysis (VCA):

- Object removal

- Sabotage

- Line Crossing

- Region Entrance and Region Exiting

- Target Counting

- Intrusion

- Face Detection

• Power supply: 12VDC, PoE (Power over Ethernet compliant with IEEE802.3af )

FOREWORD INFORMATION

NVIP-2V-6502M/F Quick start guide version 1.1

1.2 Technical specification

FOREWORD INFORMATION


Image Sensor 2 MPX CMOS sensor 1/2.8” SONY STARVIS

Number of Eecve Pixels 1920 (H) x 1080 (V)

Min. Illuminaon 0.003 lx/F1.4 - color mode,0 lx (IR on) - B/W mode

Electronic Shuer auto/manual: 1/3 s ~ 1/100000 s

Digital Slow Shuer (DSS) up to 1/3 s

Wide Dynamic Range (WDR) yes (double scan sensor), 120dB

Digital Noise Reducon (DNR) 2D, 3D

Defog Funcon (F-DNR) yes

Highlight Compensaon (HLC) yes

Back Light Compensaon (BLC) yes

Reducon of image icker (Anicker) yes

LENS

Lens Type motorized, auto-iris funcon, f=2.8 ~ 12 mm/F1.4

Auto-focus zoom trigger, day/night mode trigger, manual trigger

DAY/NIGHT

Switching Type mechanical IR cut lter

Switching Mode auto, manual, me

Switching Level Adjustment yes

Switching Delay 2 ~ 120 s

Switching Schedule yes

Visible Light Sensor yes

NETWORK

Stream Resoluon 1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 480 (VGA), 480 x 240, 320 x

240 (QVGA)

Frame Rate 30 fps for 1920 x 1080 (Full HD) and lower resoluons

Mulstreaming Mode 3 streams

Video/Audio Compression H.264, H.264+, H.264 Smart, H.265, H.265+, H.265 Smart, MJPEG/G.711

Number of Simultaneous Connecons max. 10

Bandwidth 60 Mb/s in total

Network Protocols Support

HTTP, TCP/IP, IPv4, IPv4/v6, UDP, HTTPS, Mulcast, FTP, DHCP, DNS,

DDNS, NTP, RTSP, UPnP, SNMP, QoS/DSCP, IEEE 802.1X, PPPoE, SMTP,

ICMP, Unicast, SSL/TLS

ONVIF Protocol Support Prole S/G

Camera Conguraon from Internet Explorer browser

languages: Polish, English, Russian, and others

Compable Soware NMS, N Control 6000

Mobile applicaons SuperLive Plus (iPhone, Android)

OTHER FUNCTIONS

Privacy Zones 4 video mask type: single color or 1 video mask type: mosaic

Moon Detecon yes

Region of interest (ROI) 8

NVIP-2V-6502M/F Quick start guide version 1.1

FOREWORD INFORMATION

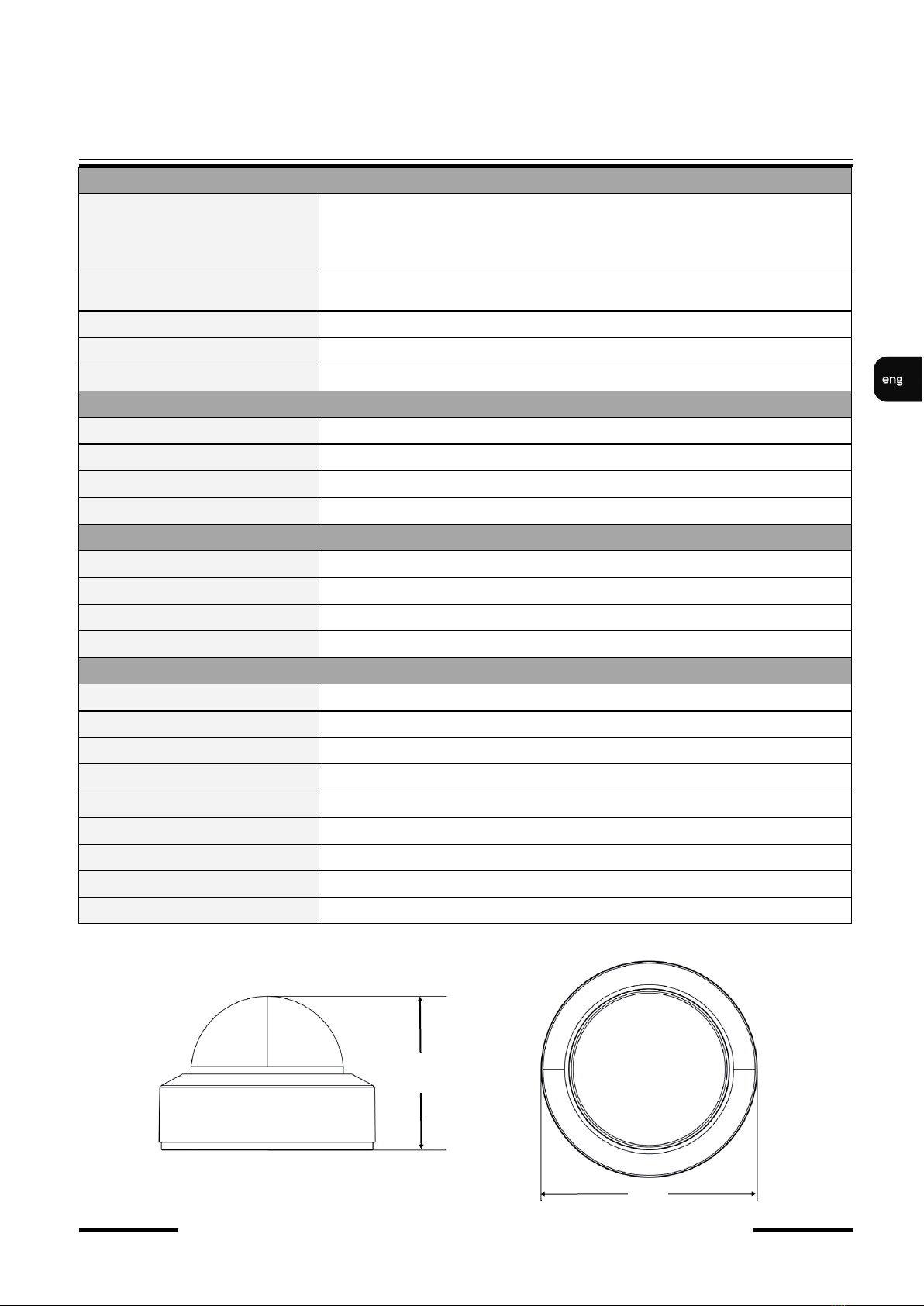

1.3 Camera dimensions

OTHER FUNCTIONS

Video Content Analysis (VCA)

tamper, abandoned object, object disappearance, line cross, zone entrance, zone

exit, object counng, face detecon, pedestrian detecon, cross counng, Scene

Change, Video Blurred, Video Color Cast, objects disnguishing, people counng,

vehicle detecon, vehicle counng

Image Processing 180˚ image rotaon, sharpening, mirror eect, corridor mode, vercal ip, horizon-

tal ip, lens distoron correcon

Prealarm/Postalarm up to 6 s/up to 120 s

System Reacon to Alarm Events e-mail, e-mail with aachment, saving le on FTP server, saving le on SD card

Restoring default sengs via web browser, using reset buon, via NMS IPTool soware

IR LED

LED Number 3

Range 50 m

Angle 90°

Smart IR yes (soware support)

INTERFACES

Audio Input/Output 1 x Jack (3.5 mm)/- built-in microphone

Alarm Input/Output 1 (NO/NC)/1 relay type

Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s

Memory Card Slot MicroSD - capacity up to 256GB

INSTALLATION PARAMETERS

Dimensions (mm) 141 (Ф) x 100.2 (H)

Weight 0.89 kg

Degree of Protecon IP 67 (details in the user’s manual)

Enclosure vandalproof IK10 impact rang aluminium, white

Power Supply PoE, 12 VDC

Surge protecon TVS 4000 V

Power Consumpon 7 W, 9 W (IR on)

Operang Temperature -30°C ~ 60°C

Humidity max. 95%, relave (non-condensing)

141

100

NVIP-2V-6502M/F Quick start guide version 1.1

START-UP AND INITIAL CONFIGURATION

1.4 Package contents

After you open the package make sure that the following elements are inside:

• IP camera.

• Accessories bag.

• Quick start guide.

If any of this elements has been damaged during transport, pack all the elements back into the original

box and contact your supplier.

CAUTION!

If the device was brought from a location with lower temperature, please wait until it reaches the

temperature of location it is currently in. Turning the device on immediately after bringing it

from a location with lower ambient temperature is forbidden, as the condensing water vapour

may cause short-circuits and damage the device as a result.

2.START-UP AND INITIAL CONFIGURATION

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

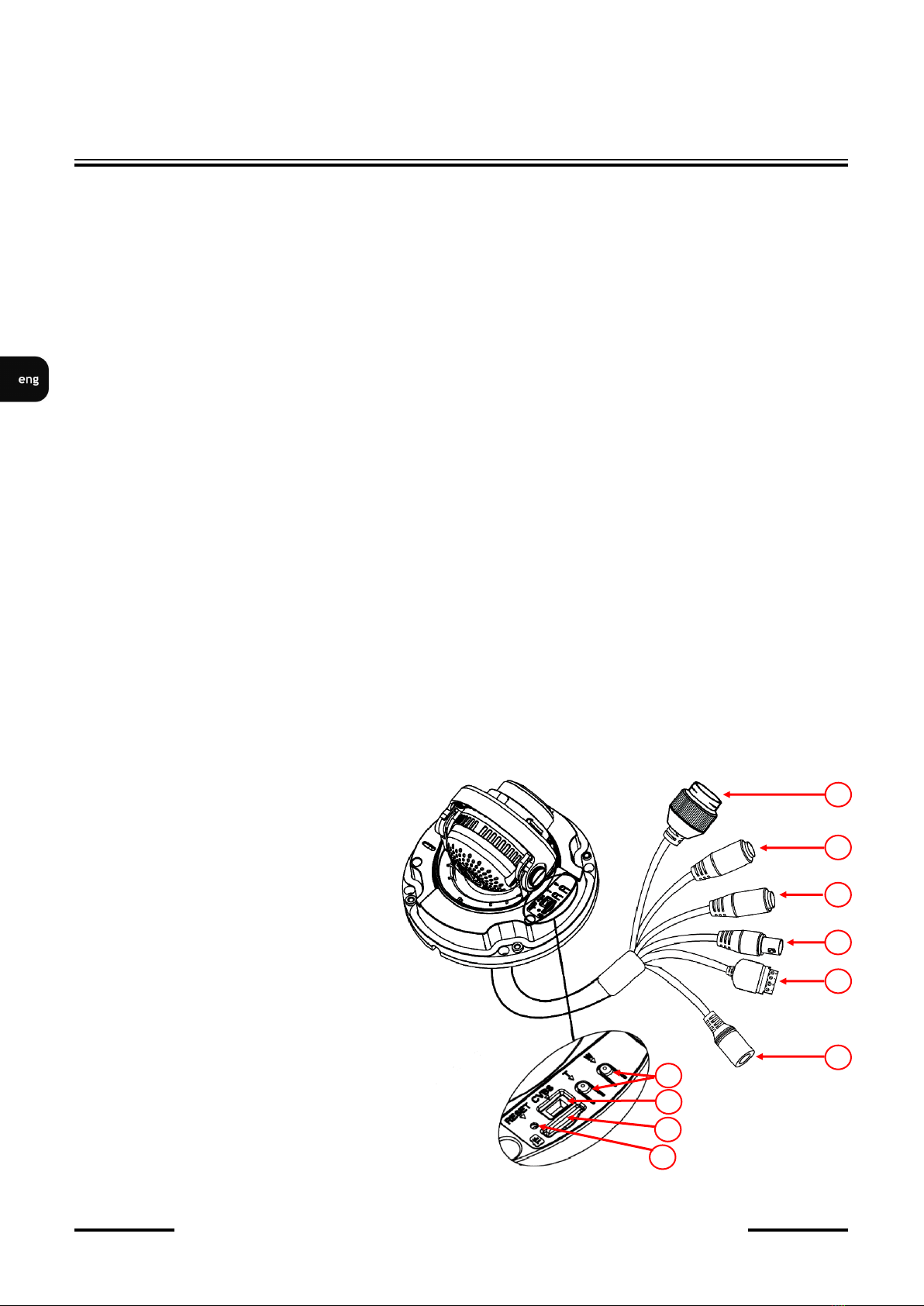

2.1 Description of connectors and adjustment buttons

1. 100 Mb/s Ethernet port (PoE RJ-45 connector)

2. Audio input MIC (Jack 3.5mm)

3. Audio output HP (Jack 3.5mm)

4. BNC CVBS video output

5. Alarm input/output terminal block

• Alarm output COM

• Alarm output OPEN

• Alarm input INA

• Alarm input GND

6. Power supply 12VDC

7. Zoom +/- buttons

8. CVBS video output

9. Micro SD card slot

10. Reset button

NVIP-2V-6502M/F Quick start guide version 1.1

2.2 Connecting ethernet cable

To maintain tightness of ethernet cable connection, please follow instruction below:

1. Loose the nut (a) from the main element (b).

2. Run power cable (without RJ-45 connector) through both elements.

3. Then crimp the cable with RJ-45 connector.

4. Connect the cable to the hermetic connector (c), screw main cover (b), then screw the nut (a).

The declared degree of protection of the camera relates to its housing and does not take into account

the possibility of moisture infiltration into the camera by connection cables. Connection cables

protection through i.e. sealing up is the camera installer duty.

The manufacturer is not liable for any camera damages caused as a result of failing in performing that

activity by installer, which also means that camera damaged in that way is not subject to warranty

repairs.

CAUTION!

Camera power supply connector is not hermetic. Installer should seal this connector by himself.

2.3 Connecting power supply cable

Camera can be supplied using external power supply unit corresponding with the camera parameters or

by using RJ45 network socket and PoE power supply unit. To power the camera via PoE, use a network

switch or PoE adapter compatible with the IEEE 802.3af standard. If you’re using external power

supply please connect wires according to polarisation shown on picture below. Power supply adapter is

not included.

START-UP AND INITIAL CONFIGURATION

12 VDC +

GND

NVIP-2V-6502M/F Quick start guide version 1.1

CAUTION!

Do not use power supplies and POE adapters not compatible with IEEE 802.3af standard!

Damage resulting from the use of improper power supply is not covered under warranty!

In order to provide protection against voltage surges/lightning strikes, usage of appropriate

surge protectors is advised. Any damages resulting from surges are not eligible for service

repairs.

2.4 Camera mounting

To mount a camera please follow the instructions below:

• Unscrew the camera cover (5) by turning counter-clockwise.

• Remove the camera housing (4).

• Put the bracket to the wall in a desired mounting place (with cable hole). Take the drill pattern

and mark future drilling holes for screws and wires.

• Drill holes in accordance with previously done markings and base hole placement.

• Mount the camera base (1) using the supplied plugs and screws.

• If necessary, mount microSD card in the socket (3), than connect the camera wires.

• Adjust camera position, if necessary, connect service monitor, adjust lens using Zoom +/-

buttons (2).

• Screw the camera housing (4) back on camera.

• Screw the camera cover (5) by turning it clockwise.

START-UP AND INITIAL CONFIGURATION

Tabla de contenidos

Idiomas:

Otros manuales de Cámara de seguridad de Novus

Novus

Novus NVIP-6DN5021H/IRH-1P Manual de usuario

Novus

Novus NVC-GDN4801V/H-2 Manual de usuario

Novus

Novus NVIP-5DN3614V/IR-1P/F Manual de usuario

Novus

Novus NVIP-5H-6711/TA/3 Manual de usuario

Novus

Novus NVAHD-1DN3101H/IR-1 Manual de usuario

Novus

Novus NVIP-2DN3033V/IR-1P Manual de usuario

Novus

Novus NVIP-2VE-6501/F Manual de usuario

Novus

Novus NVIP-8H-6402M/F Manual de usuario

Novus

Novus NVC-401D-black Manual de usuario

Novus

Novus 5000 VSS MULTI HD Manual de usuario

Novus

Novus NVIP-5VE-4511/FWLAD Manual de usuario

Novus

Novus NVIP-H-8501/T Manual de usuario

Novus

Novus NVH-300H/230 Manual de usuario

Novus

Novus NVIP-2VE-6232-II Manual de usuario

Novus

Novus NVIP-2DN2006V/IR-1P-II Manual de usuario

Novus

Novus 4000 series Hoja de instrucciones

Novus

Novus NVIP-2DN3131H/IR-1P Manual de usuario

Novus

Novus NVIP-2VE-6502M/F Manual de usuario

Novus

Novus NVC-6127SD-II Manual de usuario

Novus

Novus NVIP-7000 series Manual de usuario

Novus

Novus NVIP-2VE-6232/WL-II Manual de usuario

Novus

Novus NVIP-2DN3133V/IR-1P Manual de usuario

Novus

Novus NVAHD-2DN3202MH/IR-1-II Manual de usuario

Novus

Novus NVIP-4SD-6550F Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
