Novus NVIP-2DN5002V/IRH-1P Manual de usuario

U s e r ’s m a n u a l

( s h o rt f o r m)

NVIP-2DN5002V/IRH-1P

NVIP-2DN5002V/IRH-1P User’s manual ver.1.0

(short form)

IMPORTANT SAFEGUARDS AND WARNINGS

EMC (2004/108/EC) and LVD (2006/95/EC ) Directives

CE Marking

Our products are manufactured to comply with requirements of the following directives and national regulations

implementing the directives:

 Electromagnetic compatibility EMC 2004/108/EC.

 Low voltage LVD 2006/95/EC with further amendment. The Directive applies to electrical

equipment designed for use with a voltage rating of between 50VAC and 1000VAC as well as

75VDC and 1500VDC.

WEEE Directive 2012/19/EU

Information on Disposal for Users of Waste Electrical and Electronic Equipment

This appliance is marked according to the European Directive on Waste Electrical and Electronic

Equipment (2012/19/EU) and further amendments. By ensuring this product is disposed of correctly,

you will help to prevent potential negative consequences for the environment and human health, which

could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or the documents accompanying the product, indicates that this appliance may not be

treated as household waste. It shall be handed over to the applicable collection point for used up electrical and

electronic equipment for recycling purpose. For more information about recycling of this product, please contact

your local authorities, your household waste disposal service or the shop where you purchased the product.

RoHS Directive 2011/65/EU

Out of concern for human health protection and friendly environment, we assure that our products

falling under RoHS Directive regulations, regarding the restriction of the use of hazardous

substances in electrical and electronic equipment, have been designed and manufactured in

compliance with the above mentioned regulations. Simultaneously, we claim that our products have

been tested and do not contain hazardous substances whose exceeding limits could have negative

impact on human health or natural environment

Information

The device, as a part of professional CCTV system used for surveillance and control, is not designed for self

installation in households by individuals without technical knowledge.

Excluding of responsibility in case of damaging data on a disk or other devices:

The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other devices

during device operation.

WARNING!

PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN PRODUCT IN

USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE PRODUCT, OR IF IT DOES

NOT ARISE FROM THE USUAL APPLICATION OF THE PRODUCT, MANUFACTURER MUST BE

CONTACTED UNDER THE RIGOR OF EXCLUDING THE MANUFACTURER’S RESPONSIBILITY FOR

THE RESULTS OF SUCH AN ACTION.

NVIP-2DN5002V/IRH-1P User’s manual ver.1.0

(short form)

IMPORTANT SAFEGUARDS AND WARNINGS

WARNING!

THE KNOWLEDGE OF THIS MANUAL IS AN INDISPENSIBLE CONDITION OF A PROPER

DEVICE OPERATION. YOU ARE KINDLY REQEUSTED TO FAMILIARIZE YOURSELF WITH

THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.

WARNING!

USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER

-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL

MAY OPEN THE UNIT

INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE

PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS

1. Prior to undertaking any action please consult the following manual and read all the safety and operating

instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual is

necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct

influence on user’s safety and durability and reliability of the device;

4. All actions conducted by the servicemen and users must be accomplished in accordance with the user’s

manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer is

forbidden;

7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools, bath tubs,

damp basements);

8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.) is not

recommended since it may lead to heat build-up and damaging the device itself as a consequence;

9. Mounting the camera on unstable surface or using not recommended mounts is forbidden. Improperly

mounted camera may cause a fatal accident or may be seriously damaged itself. The camera must be mounted

by qualified personnel with proper authorization, in accordance with this user’s manual.

10. Device should be supplied only from a power sources whose parameters are in accordance with those

specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply the camera

from a power sources with unknown parameters, unstable or not meeting producer’s requirements;

Due to the product being constantly enhanced and optimized, certain parameters and functions described in the

manual in question may change without further notice. We strongly suggest visiting the www.novuscctv.com

website in order to access the newest manual

Data included in the following user’s manual is up to date at the time of printing. AAT Holding S.A. holds

exclusive rights to modify this manual. The producer reserves the rights for device specification modification

and change in the design without prior notice.

NVIP-2DN5002V/IRH-1P User’s manual ver.1.0

(short form)

TABLE OF CONTENTS.....................................................................................................4

1. FOREWORD INFORMATION .....................................................................................5

1.1. General Characteristics........................................................................................5

1.2. NVIP-2DN5002V/IRH-1P tech specification ....................................................6

1.3. Camera dimension ..............................................................................................7

1.4. Package contents..................................................................................................8

2. START-UP AND INITIAL IP CAMERA CONFIGURATION .................................9

2.1. Description of connectors and control tools ........................................................9

2.2. Cable connectors................................................................................................10

2.3. NVIP-2DN5002V/IRH-1P mounting ................................................................10

2.4. Starting the IP camera........................................................................................11

2.5. Initial configuration via the Web browser.........................................................12

3. NETWORK CONNECTION UTILIZING WEB BROSWER ................................15

3.1. Recommended PC specification for web browser .............................................15

3.2. Connection with IP camera via the Internet Explorer ........................................15

4. WWW INTERFACE - WORKING WITH IP CAMERA.........................................17

4.1. Displaying live pictures......................................................................................17

5. ELECTRIC CONNECTORS AND ACCESORIES .................................................19

5.1. Connecting power supply to the camera. ..........................................................19

5.2. Connecting alarm inputs and outpust .................................................................19

5.3. SD card installation ...........................................................................................19

6. RESTORING FACTORY DEFAULTS .....................................................................20

6.1. Restoring software factory defaults....................................................................20

6.2. Restoring hardware factory defaults in IP cameras............................................20

TABLE OF CONTENTS

NVIP-2DN5002V/IRH-1P User’s manual ver.1.0

(short form)

1. FOREWORD INFORMATION

1.1. General Characteristics

 Imager resolution: 2 megapixels

 Mechanical IR cut filter

 IR operation capability

 Min. Illumination from 0,04 lx/F=2.3 , 0 lx (IR on)

 Digital Slow Shutter (DSS)

 Digital Noise Reduction (DNR)

 Wide Dynamic Range (WDR)

 Lens f=2.8m/F=2.3

 Built-in IR LED - 1 pcs., up to 6 m

 Privacy zones: 5

 Compression: H.264, M-JPEG

 Max video processing resolution : 1920x1080

 Dual stream mode compression, resolution, speed and quality defined individually for two video

streams

 RTP/RTSP protocol support for video transmission

 Pre & post-alarm functions

 Hardware motion detection

 Built-in webserver: camera configuration through the website

 MicroSD/SDHC card support

 Wide range of responses to alarm events: e-mail with attachment, saving file on microSD card,

 Network protocol support : ONVIF(2.2) ,HTTP, TCP/IP, IPv4/v6, UDP/IP, RTSP, FTP, DHCP,

NTP, PPPoE, SMTP

 Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring,

playback and remote IP devices administration

 Power supply: VDC, PoE (Power over Ethernet)

FOREWORD INFORMATION

NVIP-2DN5002V/IRH-1P User’s manual ver.1.0

(short form)

1.2. NVIP-2DN5002V/IRH-1P specification

FOREWORD INFORMATION

NVIP-2DN5002V/IRH-1P


Image Sensor 2 MPX CMOS sensor 1/2.8” APTINA

Number of Effective Pixels 1920 (H) x 1080 (V)

Min. Illumination 0.8 lx/F2.3 - color mode,

0.04 lx/F2.3 - color mode (DSS),

0 lx (IR on) - B/W mode

Electronic Shutter auto/manual: 1/5 s ~ 1/20000 s

Digital Slow Shutter (DSS) up to 1/5 s

Wide Dynamic Range (WDR) yes

Digital Noise Reduction (DNR) 2D, 3D

LENS

Lens Type standard, f=2.8 mm/F2.3

Angle of View (H) 75°

DAY/NIGHT

Switching Type mechanical IR cut filter

Switching Mode auto, manual, time

Visible Light Sensor yes

NETWORK

Stream Resolution 1920 x 1080 (Full HD), 1280 x 720 (HD), 720 x 576 (D1), 640 x 480 (VGA),

640 x 360, 352 x 288 (CIF), 320 x 240 (QVGA), 176 x 144 (QCIF)

Frame Rate 30 fps for each resolution

Multistreaming Mode 2 streams

Video/Audio Compression H.264, MJPEG/G.711, RAW_PCM

Number of Simultaneous Connections max. 2

Bandwidth 5 Mb/s in total

Network Protocols Support HTTP, TCP/IP, IPv4, IPv4/v6, HTTPS, FTP, DHCP, DNS, 3GPP, SMTP

ONVIF Protocol Support Profile S (ONVIF2.2)

Camera Configuration from Internet Explorer, Firefox, Chrome, Opera browser languages: Polish,

English, Russian

Compatible Software NMS

OTHER FUNCTIONS

Privacy Zones 4

Motion Detection yes

Image Processing 90˚ image rotation, 180˚ image rotation, mirror effect

Prealarm/Postalarm up to 5 MB/up to 86400 s

System Reaction to Alarm Events e-mail with attachment, saving file on SD card

IR LED

LED Number 1

Range 6 m

Angle 90°

INTERFACES

Video Output BNC, 1.0 Vp-p, 75 Ohm - maintenance only

Audio Input/Output 1 x RCA/1 x RCA

Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s

Memory Card Slot microSD

INSTALLATION PARAMETERS

Dimensions (mm) 100 (Ф) x 53 (H)

Weight 0.32 kg

Enclosure vandal proof IK10 impact rating aluminium, white

Power Supply PoE, 12 VDC

Power Consumption 5 W, 7 W (IR on), 8.5 W (IR and heater on)

Operating Temperature -20°C ~ 55°C

Built-in Heater/Fan yes/no

Degree of Protection IP 65

NVIP-2DN5002V/IRH-1P User’s manual ver.1.0

(short form)

FOREWORD INFORMATION

1.3. Camera dimensions

100 mm

30.3 mm

53 mm

100 mm

49.2 mm

NVIP-2DN5002V/IRH-1P User’s manual ver.1.0

(short form)

1.4. Package contents

After you open the package make sure that the following elements are inside:

 IP camera

 230 VAC / 12 VDC power supply

 Accessories bag

 Short version of user’s manual

 CD containing manual and software

If any of this elements has been damaged during transport, pack all the elements back into the original

box and contact your supplier for further assistance.

CAUTION!

If the device was brought from a location with lower temperature, please wait until it reaches the

temperature of location it is currently in. Turning the device on immediately after bringing it

from a location with lower ambient temperature is forbidden, as the condensing water vapour

may cause short-circuits and damage the device as a result.

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

1.4. Package contents

After you open the package make sure that the following elements are inside:

 IP camera

 Accessories bag

 RJ45 Coupler

 BNC Test Cable

 Mounting Template

 Short version of user’s manual

If any of this elements has been damaged during transport, pack all the elements back into the original

box and contact your supplier for further assistance.

CAUTION!

If the device was brought from a location with lower temperature, please wait until it reaches the

temperature of location it is currently in. Turning the device on immediately after bringing it

from a location with lower ambient temperature is forbidden, as the condensing water vapour

may cause short-circuits and damage the device as a result.

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

FOREWORD INFORMATION

NVIP-2DN5002V/IRH-1P User’s manual ver.1.0

(short form)

2. START-UP AND INITIAL IP CAMERA CONFIGURATION

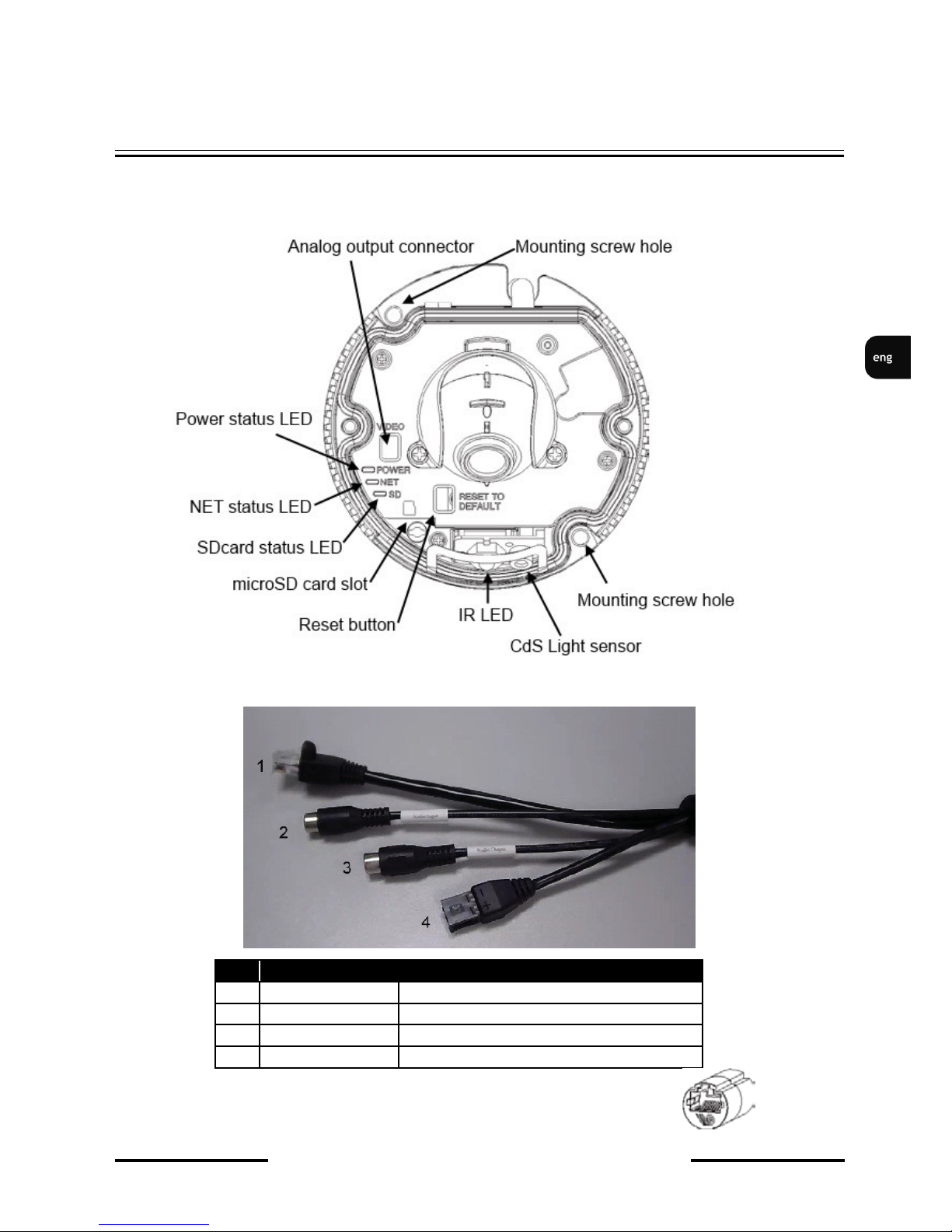

2.1. Camera interior overview

2.2. Cabel connectors

Note :

Use the included RJ45 coupler to connect to male end of RJ45 Ethernet cable.

START-UP AND INITIAL CAMERA CONFIGURATION

No. Color Description

1 - RJ-45 male network connector

2 White RCA Audio input

3 Red RCA Audio output

4 - 12V DC Power In

NVIP-2DN5002V/IRH-1P User’s manual ver.1.0

(short form)

2.3. NVIP-2DN5002V/IRH-1P mounting

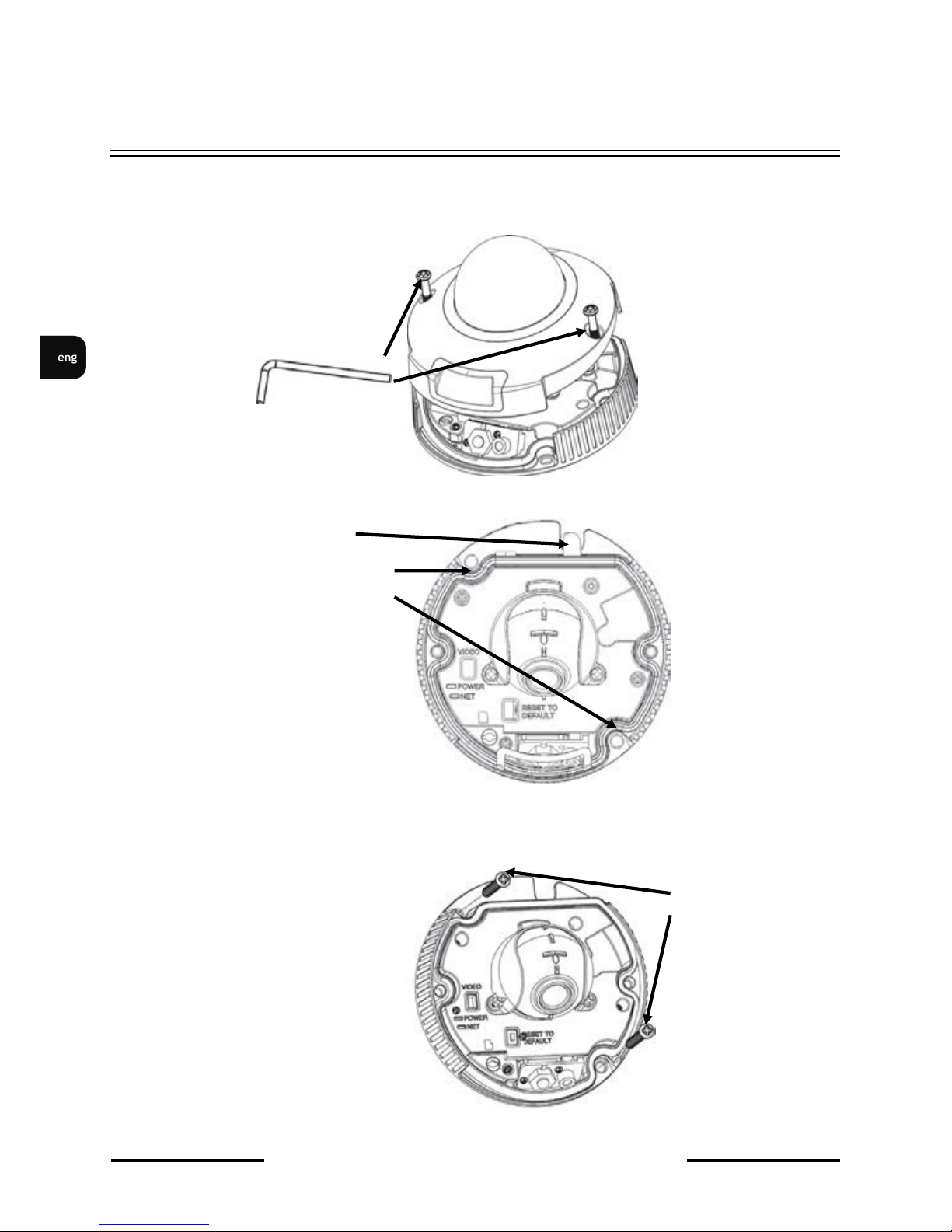

1.Use the included allen key to remove the camera cover screws (2x). Lift the cover away from the

camera

2. Use the included mounting template or the camera to mark holes for the mounting screws and cable.

3. Mount the camera to the surface using the included mounting screws (2x)

START-UP AND INITIAL CAMERA CONFIGURATION

Mounting Screw Hole

Termination cables

Mounting Screws

Tabla de contenidos

Idiomas:

Otros manuales de Cámara de seguridad de Novus

Novus

Novus NVDN-402V/IR Manual de usuario

Novus

Novus NVAHD-2DN5106MH/IR-1 Manual de usuario

Novus

Novus NVIP-4VE-6201/WL-II Manual de usuario

Novus

Novus NVAHD-2DN5202MH/IR-1 Manual de usuario

Novus

Novus NVIP-3DN7500V/IRH-2P Hoja de información del producto

Novus

Novus NVIP-2DN2101H/IR-1P Manual de usuario

Novus

Novus NVIP-2DN5040V/IR-1P Manual de usuario

Novus

Novus NVIP-2DN3030H/IR-1P Manual de usuario

Novus

Novus NVIP-5DN7560H/IRH-2P Manual de usuario

Novus

Novus NVIP-2H-6631 Manual de usuario

Novus

Novus 6000 Series Manual de usuario

Novus

Novus NVC-GDN4801V/H-2 Manual de usuario

Novus

Novus NVIP-5DN3614V/IR-1P Manual de usuario

Novus

Novus NVIP-2DN3038D/IR-1P Manual de usuario

Novus

Novus NVIP-5H-6201-II Manual de usuario

Novus

Novus VSS MULTI HD 6000 Manual de usuario

Novus

Novus NVDN-601V/IR-white Manual de usuario

Novus

Novus NVDN 801V/IR Manual de usuario

Novus

Novus NVIP-5H-6422M/F Manual de usuario

Novus

Novus NVIP-2DN3037V/IR-1P Manual de usuario

Novus

Novus NVC-11BD Manual de usuario

Novus

Novus NVIP-2DN5000D/IR-1P Manual de usuario

Novus

Novus NVIP-5VE-4501 Manual de usuario

Novus

Novus NVIP-2H-6231-II Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
