U s e r ’s m a n u a l

NVIP-2DN5001C-1P

NVIP-2DN5001C-1P User’s manual(short form) ver.1.0

IMPORTANT SAFEGUARDS AND WARNINGS

EMC (2004/108/EC) and LVD (2006/ 5/EC ) Directives

CE Marking

Our products are manufactured to comply with requirements of the following directives and national regulations

implementing the directives:

• Electromagnetic compatibility EMC 2004 108 EC.

• Low voltage LVD 2006 95 EC with further amendment. The Directive applies to electrical

equipment designed for use with a voltage rating of between 50VAC and 1000VAC as well as

75VDC and 1500VDC.

WEEE Directive 2002/ 6/EC

Information on Disposal for Users of Waste Electrical and Electronic Equipment

This appliance is marked according to the European 1000VAC Directive on Waste Electrical and Electronic

Equipment (2002 96 EC) and further amendments. By ensuring this product is disposed of correctly, you will

help to prevent potential negative consequences for the environment and human health, which could otherwise

be caused by inappropriate waste handling of this product.

The symbol on the product, or the documents accompanying the product, indicates that this appliance may not be

treated as household waste. It shall be handed over to the applicable collection point for used up electrical and

electronic equipment for recycling purpose. For more information about recycling of this product, please contact

your local authorities, your household waste disposal service or the shop where you purchased the product.

RoHS Directive 2002/95/EC

Out of concern for human health protection and friendly environment, we assure that our products

falling under RoHS Directive regulations, regarding the restriction of the use of hazardous

substances in electrical and electronic equipment, have been designed and manufactured in

compliance with the above mentioned regulations. Simultaneously, we claim that our products have

been tested and do not contain hazardous substances whose exceeding limits could have negative

impact on human health or natural environment

Information

The device, as a part of professional CCTV system used for surveillance and control, is not designed for self

installation in households by individuals without technical knowledge.

Excluding of responsibility in case of damaging data on a disk or other devices:

The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other devices

during device operation.

WARNING!

PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN PRODUCT IN

USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE PRODUCT, OR IF IT DOES

NOT ARISE FROM THE USUAL APPLICATION OF THE PRODUCT, MANUFACTURER MUST BE

CONTACTED UNDER THE RIGOR OF EXCLUDING THE MANUFACTURER’S RESPONSIBILITY FOR

THE RESULTS OF SUCH AN ACTION.

NVIP-2DN5001C-1P User’s manual(short form) ver.1.0

IMPORTANT SAFEGUARDS AND WARNINGS

WARNING!

THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER

DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH

THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.

WARNING!

USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER

-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL

MAY OPEN THE UNIT

INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE

PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS

1. Prior to undertaking any action please consult the following manual and read all the safety and operating

instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual is

necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct

influence on user’s safety and durability and reliability of the device;

4. All actions conducted by the servicemen and users must be accomplished in accordance with the user’s

manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer is

forbidden;

7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools, bath tubs,

damp basements);

8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.) is not

recommended since it may lead to heat build-up and damaging the device itself as a consequence;

9. Mounting the camera on unstable surface or using not recommended mounts is forbidden. Improperly

mounted camera may cause a fatal accident or may be seriously damaged itself. The camera must be mounted

by qualified personnel with proper authorization, in accordance with this user’s manual.

10. Device should be supplied only from a power sources whose parameters are in accordance with those

specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply the camera

from a power sources with unknown parameters, unstable or not meeting producer’s requirements;

NVIP-2DN5001C-1P User’s manual(short form) ver.1.0

TABLE OF CONTENTS ..................................................................................................... 4

1. FOREWORD INFORMATION ................................................................................... ..6

1.1. General Characteristics ........................................................................................ 6

1.2. NVIP-2DN5001C-1P tech specification ......................................................... ...7

1.3. Camera dimension ........................................................................................... ...8

1.4. Package contents ............................................................................................... ...9

2. START-UP AND INITIAL IP CAMERA CONFIGURATION ............................... 10

2.1. Description of connectors and control tools ...................................................... 10

2.2. NVIP-2DN5001C-1P lens mount ..................................................................... 11

2.3. Starting the IP camera ........................................................................................ 12

2.4. Initial configuration via the Web browser ......................................................... 13

3. NETWORK CONNECTION UTILIZING WEB BROSWER ................................ 14

3.1. Recommended PC specification for web browser ............................................. 14

3.2. Connection with IP camera via the Internet Explorer ........................................ 14

3.3. Connection with IP camera via the other browser ............................................. 16

4. WWW INTERFACE - WORKING WITH IP CAMERA ......................................... 18

4.1. Displaying live pictures. ..................................................................................... 18

5. ELECTRIC CONNECTORS AND ACCESORIES ................................................. 20

5.1. Connecting power supply to the camera. .......................................................... 20

5.1. Connecting alarm input and output .................................................................... 20

5.2. SD card installation ........................................................................................... 21

6. RESTORING FACTORY DEFAULTS ..................................................................... 22

6.1. Restoring software factory defaults .................................................................... 22

6.2. Restoring hardware factory defaults in IP cameras ........................................... 22

TABLE OF CONTENTS

NVIP-2DN5001C-1P User’s manual(short form) ver.1.0

TABLE OF CONTENTS

NVIP-2DN5001C-1P User’s manual(short form) ver.1.0

1. FOREWORD INFORMATION

1.1. General Characteristics

• Imager resolution: 2.0 megapixels 16:9 ratio (FullHD)

• Mechanical IR cut filter

• IR operation capability

• Min. Illumination from 0,02 lx F=1.2

• Wide Dynamic Range (WDR) for enhanced image quality in diverse light conditions

• Digital Slow Shutter (DSS)

• Digital Noise Reduction (DNR)

• Privacy zones: 5

• Alarm input and outputs

• Compression: H.264, M-JPEG

• Max video processing resolution: 1920x1080

• Dual streaming: compression, resolution, speed and quality defined individually for each video

stream

• RTP RTSP protocol support for video transmission

• Pre- & post-alarm functions

• Hardware motion detection

• Built-in webserver: camera configuration through the website

• MicroSD SDHC card support

• Wide range of responses to alarm events: e-mail with attachment, saving file on FTP server,

triggering alarm output, saving file on SD SDHC card, HTTP notification

• Network protocol support : HTTP, TCP IP, IPv4 v6, UDP, HTTPS, Multicast, FTP, DHCP,

DDNS, NTP, RTSP, RTP, UPnP, SNMP, QoS,

• Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring,

playback and remote IP devices administration

• Power supply: 12VDC, PoE (Power over Ethernet)

FOREWORD INFORMATION

NVIP-2DN5001C-1P User’s manual(short form) ver.1.0

1.2. NVIP-2DN5001C-1P specification

Frame rate available for a specific camera configuration (details in the user’s manual)

Model NVIP-2DN5001C-1P

Pick-up Element 1/2.7" (16:9) Progressive can CMO

Imager Resolution 2 megapixels

Min. Illumination Color: 0.2 lx / F 1.2

B/W: 0.02 lx / F 1.2

/N Ratio > 50 dB (AGC Off)

Electronic hutter Auto / Manual (1/1.5 ~ 1/10 000 s)

Digital low hutter (D ) 1/25 s ~ 1 s

Wide Dynamic Range (WDR) Lo /Mid /Hi / Off

White Balance Auto / ATW / Manual (RGB)

Back Light Compensation (BLC) On /Off

ynchronization Internal

Day/Night witching Auto

Lens type D

Iris Mode C

Image function DNR – digital noise reduction,

Resolution 1920 x 1080, 1280 x 1024, 1280 x 720,1024 x 768,

800 x 600,720x576,640 x 480, 352x288

Frame Rate Up to 25 fps for a single video stream*

Multi treaming 2 streams

Video Compression H.264/M-JPEG

Audio Compression G.711 / G.726

Motion Detection Hardware

ystem reaction to alarm event E-mail with attachment, saving file on FTP, saving file to D

card, alarm output activation, HTTP notification

Pre/Post Alarm Pre-alarm: up to 20 frame of picture or 3sec

Post-alarm: up to 20 frame of picture or 9999sec

Video aving Files AVI( D card), JPEG(FTP)

imultaneous connection 10

Time ynchronization Automatic time synchronization with NTP server

Network Protocols upport HTTP, TCP/IP, IPv4/v6, UDP, HTTP , Multicast, FTP, DHCP,

DDN , NTP, RT P, RTP, UPnP, NMP, Qo ,

oftware NM

User Authorization Password protected camera access and its configuration,

HTTP , IP filtering, IEEE 802.1X

Privacy Zones 5

Audio Input 1 x Jack (3,5mm)

Audio Output 1 x Jack (3,5mm)

Alarm Input 1, (NO/NC)

Alarm Output 1, electronic relay galvanically isolated, 0.1A, 30V AC/DC

External Ports 1x Ethernet RJ-45 connector 10/100 Mbit/s, 1x micro D/ DHC

Power upply 12V DC/ PoE(IEEE 802.3af)

Power Consumption 4W

Operating Temperature -10°C ~ 50°C

Dimensions (mm) 75 (w) x 52 (h) x 125 (l)

Weight 0,35 kg

Video output BNC, 1.0 Vp-p, 75 Ohm

FOREWORD INFORMATION

NVIP-2DN5001C-1P User’s manual(short form) ver.1.0

FOREWORD INFORMATION

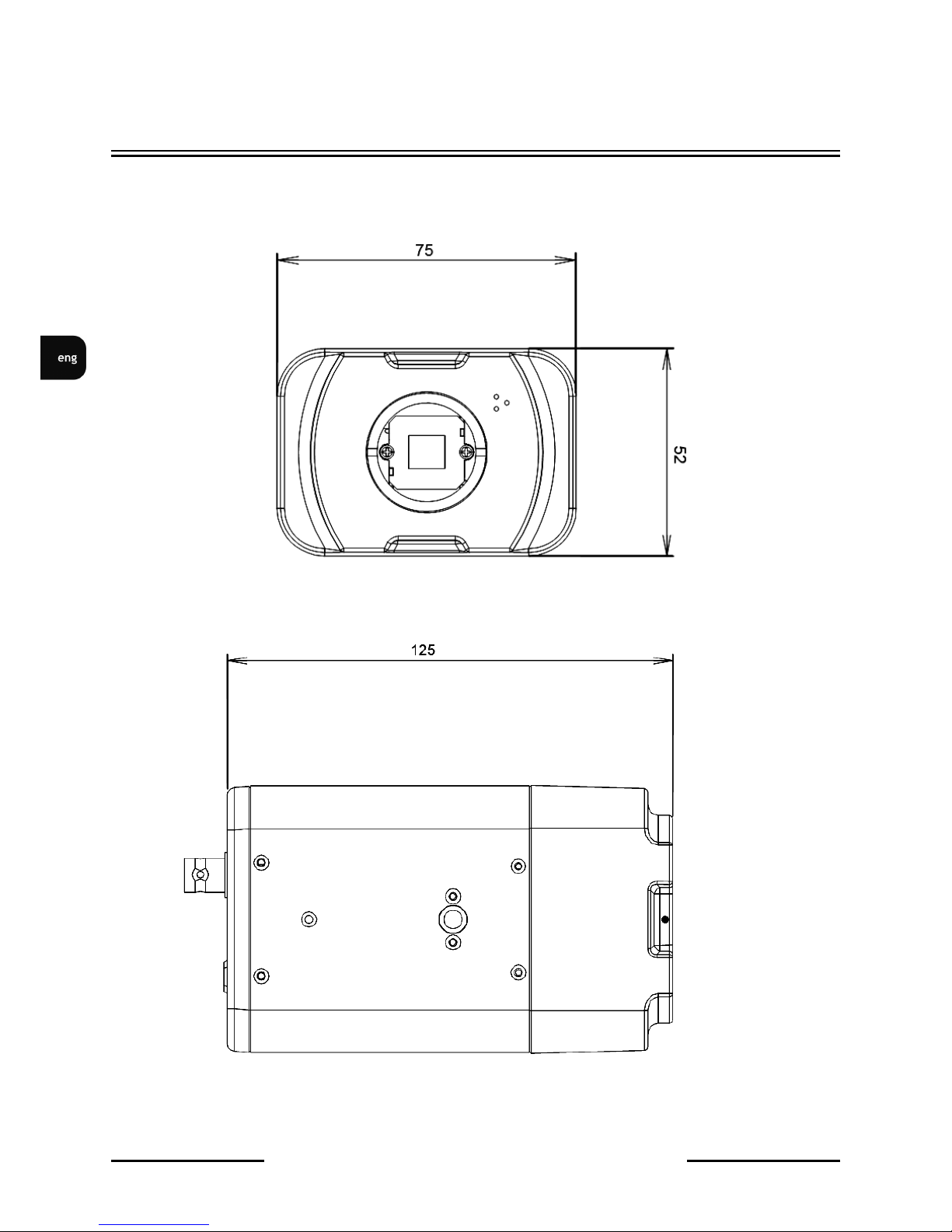

1.3. Camera dimensions

NVIP-2DN5001C-1P User’s manual(short form) ver.1.0

1.4. Package contents

After you open the package make sure that the following elements are inside:

• IP camera

• 230 VAC 12 VDC power supply

• Accessories bag

• Short version of user’s manual

• CD containing manual and software

If any of this elements has been damaged during transport, pack all the elements back into the original

box and contact your supplier for further assistance.

CAUTION!

If the device was brought from a location with lower temperature, please wait until it reaches the

temperature of location it is currently in. Turning the device on immediately after bringing it

from a location with lower ambient temperature is forbidden, as the condensing water vapour

may cause short-circuits and damage the device as a result.

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

1.4. Package contents

After you open the package make sure that the following elements are inside:

• IP camera

• Accessories bag

• Short version of user’s manual

• CD containing manual and software

If any of this elements has been damaged during transport, pack all the elements back into the original

box and contact your supplier for further assistance.

CAUTION!

If the device was brought from a location with lower temperature, please wait until it reaches the

temperature of location it is currently in. Turning the device on immediately after bringing it

from a location with lower ambient temperature is forbidden, as the condensing water vapour

may cause short-circuits and damage the device as a result.

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

FOREWORD INFORMATION

NVIP-2DN5001C-1P User’s manual(short form) ver.1.0

2. START-UP AND INITIAL IP CAMERA CONFIGURATION

2.1. Description of connectors and control tools

NVIP-2DN5001C-1P

1. Alarm input output

2. ’Reset’ button (reverts to factory defaults)

3. Power socket

4. Power indicator

5. Port Ethernet 100 Mb s (RJ-45 connector)

6. Audio output

7. MicroSD card slot

8. BNC analogue video output

9. Auto Iris control terminal

10. Audio input

START-UP AND INITIAL CAMERA CONFIGURATION

Tabla de contenidos

Idiomas:

Otros manuales de Cámara IP de Novus

Novus

Novus NVAHD-2DN3102SD/IR-1 Manual de usuario

Novus

Novus NVIP-3000 Series Manual de usuario

Novus

Novus NVIP-TDN3401H/IR/MPX2.0 Manual de usuario

Novus

Novus NVIP-2DN5020SD/IRH-2 Manual de usuario

Novus

Novus NVIP-2DN7020SD-2P Manual de usuario

Novus

Novus NVIP-1DN3000H/IR-1P-II Manual de usuario

Novus

Novus NVIP-4DN3060H/IR-1P Manual de usuario

Novus

Novus 4000 series Instrucciones de montaje

Novus

Novus NVIP-5VE-4231 Manual de usuario

Novus

Novus NVIP-2D-6502/F Manual de usuario

Novus

Novus NVIP-5VE-6402M/F Manual de usuario

Novus

Novus NVIP-2C2011D-P Manual de usuario

Novus

Novus NVIP-6DN7000C-1P Manual de usuario

Novus

Novus NVIP-3000 Series Manual de usuario

Novus

Novus NVIP-4DN7000C-1P Manual de usuario

Novus

Novus NVIP-12DN7560V/IRH-2P Manual de usuario

Novus

Novus NVIP-5DN3600C-2P/F Manual de usuario

Novus

Novus NVIP-12DN5060V/IRH-2P Manual de usuario

Novus

Novus NVIP-5H-6511/F Manual de usuario

Novus

Novus NVIP-6F-6301 Manual de usuario

Novus

Novus NVIP-5000 series Manual de usuario

Novus

Novus NVIP-3DN3520SD/IRH-2 Manual de usuario

Novus

Novus NVIP-7000 series Manual de usuario

Novus

Novus NVIP-ATM200 Manual de usuario

Manuales populares de Cámara IP de otras marcas

FLIR

FLIR Exx series Manual de usuario

Avigilon

Avigilon H4A-BO1-IR Manual de usuario

Digital Watchdog

Digital Watchdog DWCA-C128-64 Manual de usuario

ShareTech

ShareTech AV1 Manual de usuario

Ezviz

Ezviz C6C Manual de usuario

Melchioni

Melchioni UCAM 2015 Manual de usuario

Geutebruck

Geutebruck G-Cam/ESD-4630 Manual de usuario

Arecont Vision

Arecont Vision MegaBall AV3146DN-3310-D-LG Manual de usuario

Mitel

Mitel 6800i Series Manual de servicio

Vitek

Vitek VTC-IR403-212NP Manual de usuario

THOMSON

THOMSON DSC - 323W Manual de usuario

AVer

AVer FB2027 Manual de usuario

ENFORCER

ENFORCER EV-T5105-N2SQ Manual de usuario

Wansview

Wansview NC543 Manual de usuario

Eneo

Eneo MCB-64A0003M0A Manual de usuario

deView electronics

deView electronics CBDNI36F Manual de usuario

Swann

Swann SwannEye Manual de usuario

LevelOne

LevelOne IP CamSecure Manual de usuario
