Novexx Solutions AP 3.4 Manual de usuario

07/02 Rev. 2.16-00 USER MANUAL Seite / Page 1

AP 3.4

Setup

Loading the Ribbon ....................................... 2

Loading the Media ........................................ 4

Standard Mode .......................................... 4

Peel Off Mode ........................................... 6

Cutter Mode .............................................. 7

Performing Calibration .............................. 8

Index ............................................................. 9

07/02 Rev. 2.16-00 USER MANUAL Setup, page 2

AP 3.4

Loading the Ribbon

àThis section is not applicable to the direct

thermal printing.

àR-series ribbons are wound face (inside

coating).

àOptional ribbon core adapter is available

once ribbon width is less than 4’’ width.

1. Press the push-buttons (1) on both sides

to swing the top cover toward the rear

(Fig. 1).

2. Unlatch the print head module by

pushing the two green release levers (2)

on the sides toward the rear (Fig. 2).

3. This allows print head module to rotate

upward automatically and expose the

ribbon supply holder (3) (Fig. 3).

4. Unwrap the ribbon roll pack and sepa-

rate the ribbon roll and the bare core.

5. Attach the edge of the ribbon on the bare

core (4) and wind it a little bit onto the

core.

6. Insert the ribbon roll (5) into the supply

holder. To do so, first snap in the right

side and then the left side (Fig. 4).

4Ä

07/02 Rev. 2.16-00 USER MANUAL Setup, page 3

AP 3.4

7. Turn back the print head module and

then insert the bare core into the pick-up

holder. To do so, first snap in the right

side, then the left side (Fig. 1).

8. Turn the wheel (1) of the print head

module to ensure the ribbon is tightly

wound (Fig. 2).

9. Press down the print head module firmly

on two sides till you hear a snap.

2À

07/02 Rev. 2.16-00 USER MANUAL Setup, page 4

AP 3.4

Loading the Media

AP 3.4 printers can be operated in three diffe-

rent options: standard, peel-off, or with a cutter.

•Standard mode allows you to collect each

label freely.

mSee paragraph Standard Mode on

page 4.

•In peel-off mode, the backing material is

being peeled away from the label as it is

printed. After the former label is removed,

the next one will be printed.

mSee paragraph Peel Off Mode on page 6.

•In cutter mode, the printer automatically

cuts the label after it is printed.

mSee paragraph Cutter Mode on page 7.

Standard Mode

1. Press the push-buttons (1) on both sides

to swing the top cover toward the rear

and expose the media compartment

(Fig. 1).

2. Push media holder (2) to adjust the

space allowed a media roll (3) to fit in

(Fig. 2).

3. Load the media roll onto the media hol-

der.

4. Unlatch the print head module.

5. Hold the print head module upright with

one hand to allow the media pass under

it. Lead the media through the media gui-

des (4) with the other hand. The media

guides can be adjusted centrality to well

fit with different label width (Fig. 3).

07/02 Rev. 2.16-00 USER MANUAL Setup, page 5

AP 3.4

6. Lead the media over the platen roller

(Fig. 1).

7. Turn back the print head module and

then press it down firmly on both sides till

you hear a snap (Fig. 2).

8. Close the top cover and turn on the prin-

ter or press FEED button if the printer is

already on (Fig. 3).

07/02 Rev. 2.16-00 USER MANUAL Setup, page 6

AP 3.4

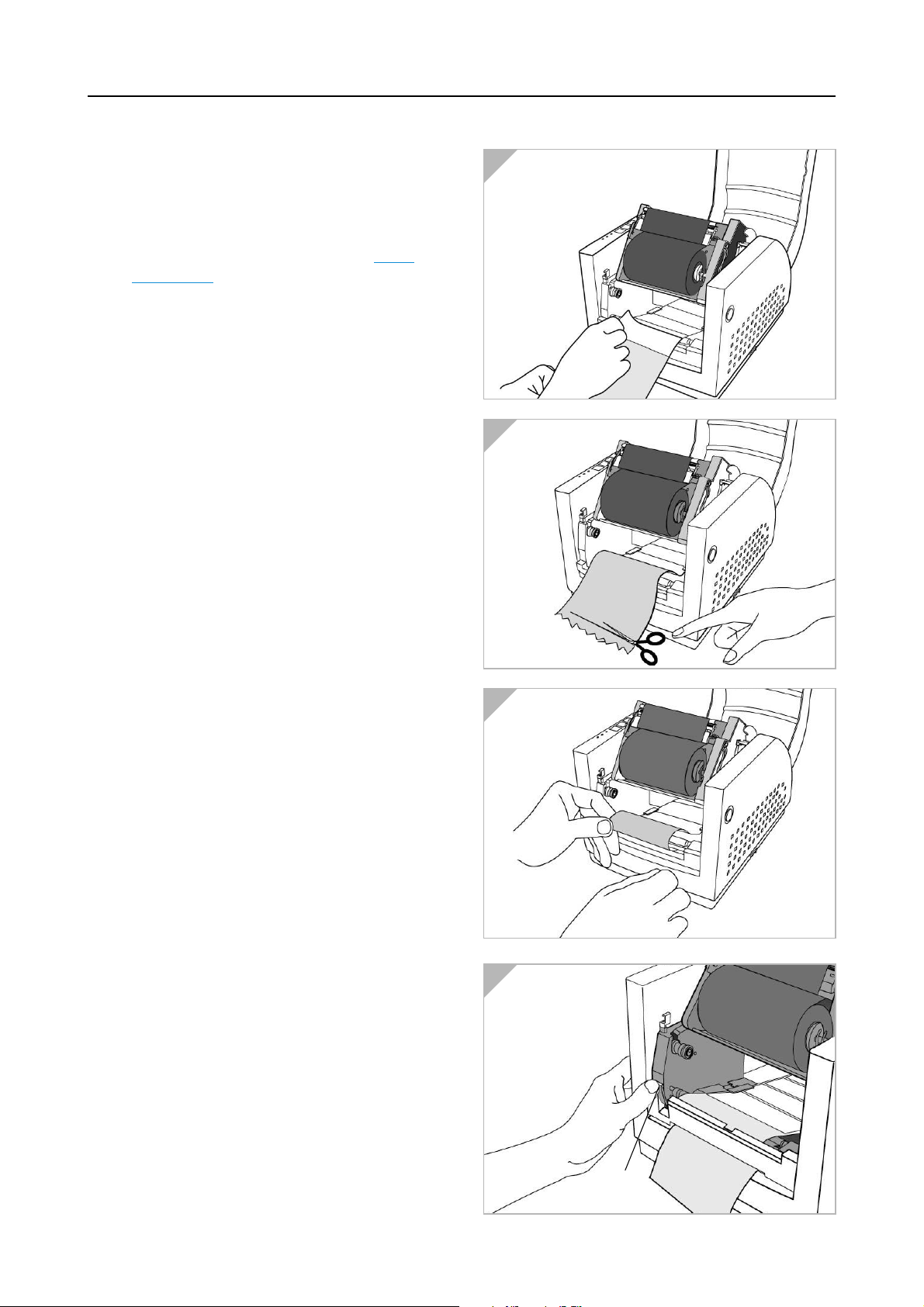

Peel Off Mode

mFor installing the dispenser kit, please re-

fer to the Service Manual.

1. Follow the common procedure of "Loa-

ding the Media" as described in Stan-

dard Mode.

2. Remove approximate 6" long labels from

the backing paper (Fig. 1).

3. Trim the edge of label backing paper with

scissors or knife (Fig. 2).

4. Push down peeler-switch (1) to ease the

access packing paper.

5. Lead the backing paper over the plate,

then thread it back into the slot, ensuring

that it is inserted between white plastic

roller and plate (Fig. 3).

6. Pull back the peeler-switch to secure

backing paper (Fig. 4).

7. Latch print head module.

07/02 Rev. 2.16-00 USER MANUAL Setup, page 7

AP 3.4

8. Turn on the printer and press FEED but-

ton.

9. Labels will be separated from backing

paper and fed out on H cover, while

backing paper will come out from the slot

under the H cover, and label will be fed

out.

10.Close the top cover.

àThe "FEED" button will not drive the prin-

ter to peel. The peeling work can be exe-

cuted only when the software setting is

ready.

Cutter Mode

mFor installing the cutter, please refer to

the Service Manual, topic section „Ser-

vice“.

1. Follow the common procedure of "Loa-

ding the Media" as described in Stan-

dard Mode.

2. Mount cutter on print head module by

fastening with two screws (Fig. 2).

3. Thread the media over the platen roller,

and then route the media through the

slot of the cutter module (Fig. 3).

4. Press down the print head module firmly.

àThe "FEED" button will not drive the prin-

ter to cut. The cutting work can be exe-

cuted only when the software setting is

ready.

à3’’ holder paper is available for 3’’ ID me-

dia roll.

07/02 Rev. 2.16-00 USER MANUAL Setup, page 8

AP 3.4

Performing Calibration

After the media loaded, it is necessary to do the calibration for the label size

detection.

1. Press and hold the PAUSE button.

2. Turn on the power.

3. MEDIA indicators will blink, at this point release Pause button.

4. The printer will feed the labels for 12 inches.

5. MEDIA indicators stop blinking and remain illuminated.

This procedure is very important and must always be carried out after instal-

lation and every time the media type is changed. Failure to do so will result

in the gap and label-empty detection being incorrect.

07/02 Rev. 2.16-00 USER MANUAL Setup, page 9

AP 3.4

Index

Backing paper 6

Calibration 8

Cutter Mode 7

Media loading 4

Peel Off Mode 6

Ribbon core adapter 2

Ribbon loading 2

Standard Mode 4
