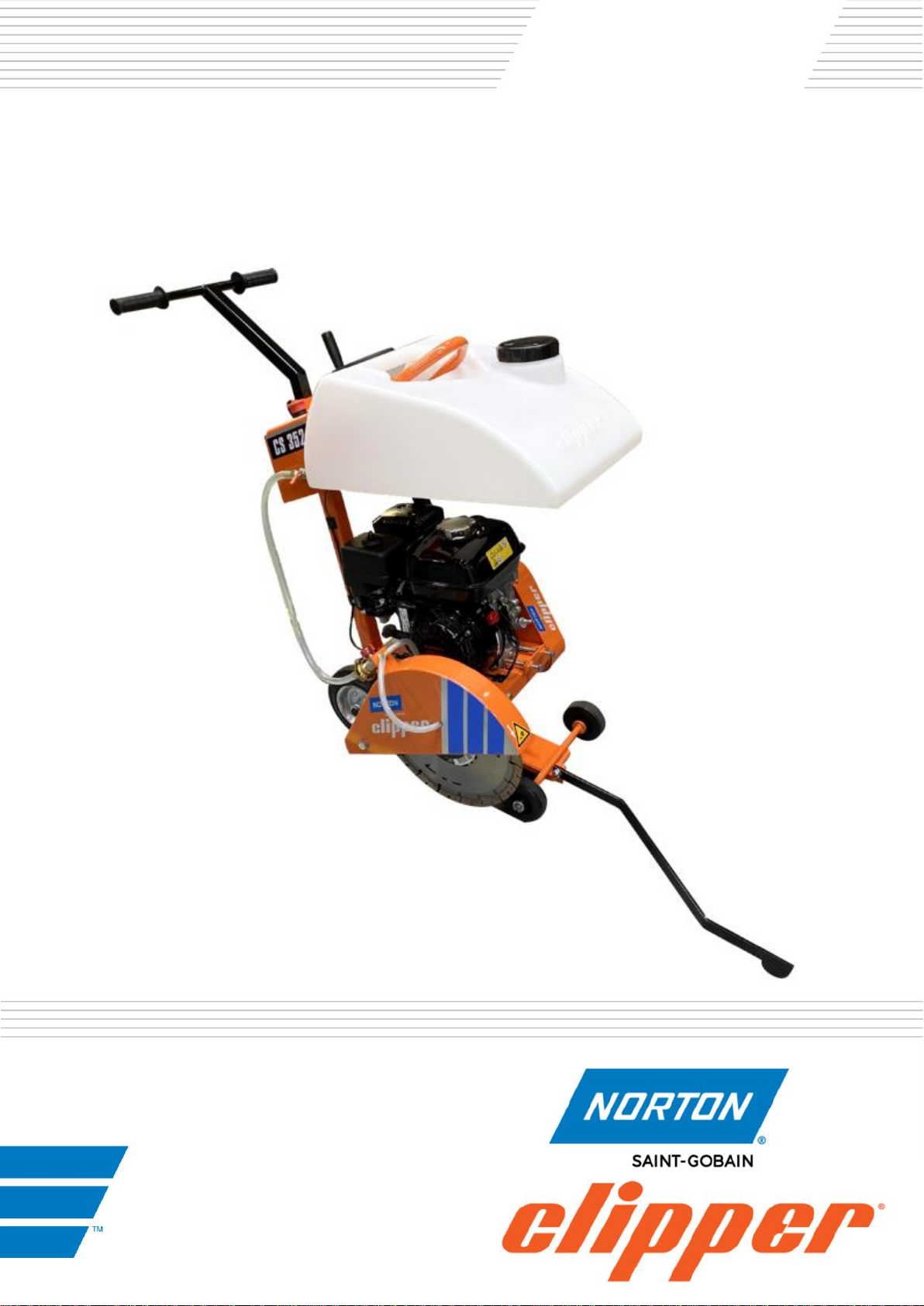

Norton Clipper CS 352 Manual de usuario

CS 352

OPERATING INSTRUCTIONS

Translation of the original instructions

VERS.2022.10.20 CS352_MAN_EN

The undersigned manufacturer:

SAINT - GOBAIN ABRASIVES S.A.

190, BD. J. F. KENNEDY

L-4930 BASCHARAGE

Declares that this product:

« Floor saw »: CS 352 P6.5 Code : 70184632007

is in conformity with the following Standards:

"MACHINES" 2006/42/CE

"ELECTROMAGNETIC COMPATIBILITY" 2014/30/UE

"NOISE" 2000/14/CE

And the European standard:

EN 13862 –Floor cutting-off machines –Safety

Valid for machines as of serial number: 4503163707

Storage site for the technical documents:

Saint-Gobain Abrasives 190, Bd. J. F. Kennedy 4930 BASCHARAGE, LUXEMBOURG

This declaration of conformity loses its validity when the product is converted or modified without

agreement.

Bascharage, Luxembourg, 20/10/2022.

François Chianese, executive officer.

Declaration of conformity

VERS.2022.10.20 CS352_MAN_EN

The undersigned manufacturer:

SAINT - GOBAIN ABRASIVES S.A.

190, BD J.F. KENNEDY

L- 4930 BASCHARAGE

Declares that this product:

« Floor saw »: CS 352 P6.5 Code : 70184632007

is in conformity with the following standard:

Supply of Machinery (Safety) Regulations 2008

Electromagnetic Compatibility Regulations 2016

Noise Emission in the Environment by Equipment

for use Outdoors Regulations 2001

and European standard:

EN 13862 –Floor cutting-off machines –Safety

Valid for machines with a serial number greater than: 4503163707

Authorised Representative:

SAINT-GOBAIN ABRASIVES

Unicorn House • Unit 1, Amison Close

Redhill Business Park • Stafford • England • ST16 1WB

This declaration of conformity loses its validity when the product is converted or modified without

agreement.

Bascharage, Luxembourg, 20/10/2022.

François Chianese, executive office.

Declaration of conformity

VERS.2022.10.20 CS352_MAN_EN

CS 352

OPERATING INSTRUCTIONS

1BASIC SAFETY INSTRUCTIONS 6

1.1 Symbols 6

1.2 Machine plate 7

1.3 Safety instructions for particular operating phases 8

2GENERAL DESCRIPTION OF THE CS 352 9

2.1 Short description 9

2.2 Layout 10

2.3 Technical data 12

2.4 Statement regarding the vibration emission 13

2.5 Statement regarding noise emission 14

3ASSEMBLY AND COMMISSIONING 15

3.1 Assembly 15

3.2 Tool assembly 15

3.3 Water cooling system 15

3.4 Starting the machine 16

4OPERATING THE CS 352 17

4.1 Site of work 17

4.2 Cutting method 17

5TRANSPORT AND STORING 18

5.1 Securing for transport 18

5.2 Transport procedure 18

5.3 Long period of inactivity 18

6MAINTENANCE AND SERVICE 19

6.1 Maintenance of the machine 19

6.2 Maintenance of the engine 20

7FAULTS: CAUSES AND CURES 23

7.1 Fault-finding procedures 23

7.2 Trouble-shooting guide 23

7.3 Customer service 24

7.4 Spare parts 25

VERS.2022.10.20 CS352_MAN_EN

1 BASIC SAFETY INSTRUCTIONS

The CS 352 is exclusively designed for the cutting of floors made of asphalt, green and cured

concrete (reinforced or not) as well as of industrial cement.

Uses other than the manufacturer's instructions shall be considered as contravening the

regulations. The manufacturer shall not be held responsible for any resulting damage. Any risk

shall be borne entirely by the user. Observing the operating instructions and compliance with

inspection and servicing requirements shall also be considered as included under use in

accordance with the regulations.

1.1 Symbols

Important warnings and pieces of advice are indicated on the machine using symbols. The

following symbols are used on the machine:

Read operator’s instructions

Ear protection must be worn

Hand protection must be worn

Eye protection shall be worn

Cutting depth indicator

Danger: risk of cut

VERS.2022.10.20 CS352_MAN_EN

Rotation of the wheel in the indicated

direction lowers the blade

Rotation of the wheel in the indicated

direction raises the blade

Never move the machine with the blade

running idle.

Rotation direction of the blade

Emergency Stop

1.2 Machine plate

Important data can be found on the following plate located on the machine:

Ø Bore

Machine type

Serial number

Power

Safety standard

Machine Model

Machine Code

Blade speed

Weight

Year of

production

ØMaximum

blade

VERS.2022.10.20 CS352_MAN_EN

1.3 Safety instructions for particular operating phases

Before commencing work

Before commencing work, make yourself familiar with the working environment at the place

of use. The working environment includes: obstacles in the area of work and manoeuvre, the

firmness of the floor, necessary protection at the site relating to public thoroughfares and the

availability of help in the event of accidents.

Check for correct mounting of the blade regularly.

Immediately remove damaged or badly worn blades, as they endanger the operator whilst

rotating.

Only fit NORTON diamond blades to the machine! The use of other tools can damage the

machine!

Attention is drawn to the use of BS2092 safety goggles in conformity with specified Processes

No.8 of the Protection of Eyes Regulation 1974, Regulation 2(2) Part 1.

For security reasons, never leave the machine unattended, untied or unlocked.

While the engine is running

Do not move the machine whilst the blade is running idle.

Always cut with the blade guard in position.

Apply cooling water continuously whilst cutting and in good time!

Petrol powered machines:

Always use the fuel advised.

In confined areas, exhaust gases should be evacuated and the job site properly aerated.

Petrol and diesel machines, which by their nature emit toxic exhaust gases, must not be used

in places prohibited by the Health at Work etc. Act 1974 or which are prohibited by Factory

Inspectors or Safety Officers.

Fuel is flammable. Before filling the tank, shut down the engine, extinguish all open flames

and do not smoke. Take carethat no petrol isspilled on anymotor part. Always wipe up spilled

fuel.

VERS.2022.10.20 CS352_MAN_EN

2 GENERAL DESCRIPTION OF THE CS 352

Any modification, which could lead to a change in the original characteristics of the machine, may

be done only by Saint-Gobain Abrasives S.A. who shall confirm that the machine is still in

conformity with the safety regulations. Saint-Gobain Abrasives S.A. keeps the right of making

technical or design modification without prior notification.

2.1 Short description

The Floor Saw CS 352 you have chosen,is used for small repair works in concrete and asphalt,

for cutting induction loops and installing cables as well as for cutting expansion joints. It can be

used for either wet or dry cutting operations.

Being of small construction, it can be transported in a car or van, the handle can be removed,

reversed or retracted. The water container is also removable.

All component parts on the CS 352 are assembled to a high quality standard, ensuring long life,

reliability and a minimum of maintenance.

Special types of blades are available for asphalt, green concrete, cured concrete (reinforced or

not) as well as for industrial cement flooring.

VERS.2022.10.20 CS352_MAN_EN

2.2 Layout

Made of jig welded open profile steel, the CS 352 is stable but at the same time, easily

transportable.

The one-piece blade guard (1) fully protects the operator and his working environment. It is firmly

fixed to the main frame but can be opened by rotation to change blades.

A manually operated hand wheel mechanism (2) enables graduated depth setting. Turning the

hand wheel clock- or anti-clockwise will raise or lower the cutting blade.

The handle (3) is detachable or can be reversed for easy transportation. The height is adjustable.

The motor frame (4), supporting the blade shaft, the motor, the blade guard and the belt guard, is

articulated on the rear axle.
