BCM50 System Overview

Business Communications Manager 50 (BCM50) is a complete, converged voice, data and

feature-rich business telephony applications solution for small business and small enterprise

branch offices. BCM50 gives you the features and applications of traditional small office PBX and

key systems, plus the new converged value of IP.

This system overview gives you a summary of the features and functionality of the BCM50. This

overview is for installers, network administrators, and anyone interested in a summary of BCM50.

BCM50 Hardware

Additional BCM50 Hardware

• BCM50 Expansion: a compact unit that accommodates the Media Bay Modules used by other

BCM platforms. The BCM50 main unit can support a maximum of two expansion units.

• Small System Wallmount Bracket: an inexpensive bracket designed for mounting the BCM50

or expansion unit to a wall. An optional wiring card is also available for use with the

wallmount bracket, which provides RJ-45 connectors for all main unit trunk and station

interfaces.

• Small System Rackmount Shelf: an inexpensive shelf designed for mounting a maximum of

4 BCM50s into a standard 19 inch rack. An optional patch field is also available that provides

RJ-45 connectors for all main unit trunk and station interfaces.

BCM50 is available in three configurations:

• BCM50: The compact main unit, suitable

for networks where integrated data routing

capability is not required, or networks that

already have an IP network

• BCM50e: includes an integrated Ethernet

router

• BCM50a: includes an ADSL router

For more information about the integrated

routers, see “BCM50e and BCM50a: BCMs

with Integrated Routers” on page 6.

For more information about BCM50 hardware,

see the BCM50 Installation and Maintenance

Guide.

BCM50 supports the complete range of IP telephony capability offered by existing BCM products.

These features are enabled through the use of keycodes and require no additional hardware:

• VoIP Gateway (H.323): up to 12 VoIP trunks

• VoIP Telephony Clients: up to 32 VoIP Telephony clients, supporting the complete range of

Nortel IP phones

BCM50 Physical Dimensions

BCM50 has a compact plastic enclosure that is designed so that you do not need to add additional

hardware to enable features and applications. The compact size and flexible installation options

support fast installs, and accommodate the diverse environmental and physical conditions of small

businesses.

Physical dimensions of the BCM50 main unit and expansion unit:

The BCM50 main unit and expansion unit design features:

• external power supply

• stackable units

• rubber feet and can be installed on desktop or shelf

• optional wallmount bracket

• optional rackmount shelf

BCM50 Physical Interfaces

The BCM50 interfaces are designed so that you do not have to add additional hardware.

Your BCM50 comes with these interfaces:

• Twelve digital station ports that support the complete line of Business Series Telephones.

These ports are accessible through the front pane RJ-21 connector and are enabled through

keycodes.

• Four Analog Loop Supervised Trunks in versions using North American networking

standards. These ports are accessible through the front panel RJ-21 connector and are enabled

through keycodes.

• Four Analog Station interfaces with message waiting and CLID support in versions using

North American networking standards. These ports are accessible through the front panel

RJ-21 connector are enabled through keycodes.

• Page and auxiliary relay output on the front panel RJ-21 connector.

BCM50 main unit BCM50 expansion unit

Height 2” (5.1 cm) 2” (5.1 cm)

Width 8.5” (21.6 cm) 8.5” (21.6 cm)

Depth 12.5” (31.8 cm) 12.5” (31.8 cm)

• Three port 10/100 Ethernet switch with auto sensing and auto polarity. Two of these ports also

support connecting optional expansion units.

• One 10/100 Ethernet port reserved for direct access management of the system

• Music on hold input supported either through front panel jack or RJ-21 connector

• USB port to enhance BCM50 management

You can extend the capacity of your system by using the optional “BCM50 Expansion Unit” on

page 9.

BCM50 Front Panel and Interfaces

Telephony Features

BCM50 comes with a full set of telephony features that can respond to the varied requirements of

your business. BCM50 supports:

• the base telephony features currently provided in BCM 3.6

• Business Series Telephones (except for Doorphone)

• analog station terminals, including phones and fax machines

IP Telephony Features

The cornerstone of convergence is IP telephony. BCM50 offers the complete range of IP

telephony features currently provided in the Business Communications Manager product line:

• G.711 and G.729 codecs

• echo cancellation

• H.323 IP trunking and MCDN over H.323

•T.38Fax

19 V DC

Power

Status

Power LED

OA&M

LAN

Port 1

Expansion Ports /

LAN 2 / LAN 3

Admin Button

(Reset)

Music In USB Analog Trunks, Digital Stations,

Analog Stations, Music on hold,

Page out, Aux Relay

• Support for desktop clients: Nortel IP telephone portfolio including i2001, i2002, and i2004

desktop sets, and i2050 Software Phones for extending voice services to mobile and

home-based employees over the Internet

BCM50e and BCM50a: BCMs with Integrated Routers

BCM50 is available with an optional integrated ADSL or Ethernet router. These units suit the

needs of small businesses and small enterprise branch offices requiring external data networking

such as Internet access or VPN based networking to other offices.

Two variations of the BCM50 have an integrated router, depending on the WAN interface you

require: BCM50e (Ethernet WAN) and BCM50a (ADSL WAN). Both routers have these data

features:

• secure Internet access

• multi-site VoIP trunking using secure VPN tunnels

• wide-area VoIP applications with remote user support

• remote management and support

Common Features and Capabilities

BCM50a and BCM50e share the same rich set of functionality focused on secure Internet access

and VoIP.

BCM50e and BCM50a have three additional ports of Ethernet LAN switch for a total of six LAN

ports for local premises use. All Ethernet ports are 10/100 Mbps auto sensing, and support auto

polarity so no crossover cable is required to connect data hardware to the unit. An additional port

is provided for WAN access, either Ethernet or ADSL, depending on the model.

The following features make BCM50a and BCM50e attractive for small sites who want to become

Internet-capable and multi-site enterprises with many small sites. Until now, however, they could

not be part of the corporate WAN because of the high cost of traditional WAN connectivity and

managed service:

BCM50e

The BCM50e provides call processing and data routing features, and is suitable for networks

where data routing capability using an integrated Ethernet router is required. The WAN interface

port provides 10/100 Ethernet with auto sensing and autopolarity. If you have existing or

alternative WAN access technology, you can still benefit from the VoIP features of the BCM50.

VPN

• up to five IPSec Branch Office Tunnels

(peer-to-peer)

• support for Dynamically addressed peers – ABOT

• support for Client Tunnel origination (not

termination) to simplify the connection to a larger

VPN Router network

• IKEv1 Main Mode

• IKEv1 Quick Mode

• Diffie-Hellman Group 1,2

• IPSec Tunnel Mode

• ESP

•NATTraversal

Security Services

• cryptographic services

• DES and 3DES

• data authentication SHA-1

• data authentication MD-5

• authentication services

• pre-shared secrets

• security services

• stateful firewall

• intrusion detection

NAT

• many to one, static, many to many

• port forwarding

• IPSec Pass through

• NAT support for tunnel mode IPSec tunnels

Router

• Clear text routing

• Static – through tunnel

• RIP v1 – through tunnel and clear

text

• RIP v2 – through tunnel and clear

text

IP Services

• DHCP client

• DHCP server with support for Nortel Internet

Telephones

• DNS Proxy

• DNS w / VPN client

•PPoE

• Configurable MAC address

• 5 Mbps clear text routing w/ 1500 byte packets

• 1.5 Mbps 3DES throughput w/ 1500 byte packets

BCM50a

The BCM50a provides call processing, data routing features, and an integrated ADSL modem.

The BCM50a is a standalone “office in a box” of applications. With the BCM50a, you have

complete voice and Internet service with resulting efficiency and convenience. These features

provide a complete, integrated Communications Server/ADSL access package for ease of

interconnecting with service provider ADSL networks:

• ITU G.992.1 (G.DMT)

• G.992.1 Annex A

• ITU G.992.2 (G.Lite)

• ANSI T1.413 Issue 2

• DSL Forum document TR-042 ATM Transport over ADSL

• G.hs 994.1

• G.ploam G.997.1

• Auto negotiation rate adaptation

• RFC 2364 PPP over AAL5

• RFC 2684 Multiprotocol Encapsulation over ATM, both Bridged and Routed encapsulation

• Support for British Telecom SIN 329; BT Broadband IP Products requirements for End User

NTE equipment, where the router and ADSL modem functions are integrated into one device

• RFC 1483 “Multi-protocol over AAL5”

• RFC 2365 “PPP over AAL5”

• RFC 2516 PPoE

• Traffic shaping UBR, CBR

• ATM forum UNI 3.1 / 4.0 PVC (minimum 5 PVCs)

BCM50 Expansion Unit

You can expand BCM50 trunk and station capacity by connecting up to two external BCM50

expansion units. Expansion ports on the BCM50 are enabled through keycodes.

The expansion unit fits easily with the BCM50, and is easy to integrate and install using the

wallmount and rackmount accessories. The expansion unit is connected to the BCM50 using an

RJ-45 CAT5 cable and uses its own external power supply, both of which are provided with the

expansion unit.

Each expansion unit is capable of supporting one Media Bay Module, the same products that are

used in the rest of the BCM product portfolio. BCM50 supports these Media Bay Modules:

• 4x16 Combo (4 analog trunks, 16 digital stations) - North America Only

• ASM8+ (8 port analog station interface) - North America Only

• CTM4 (4 port CLID trunk module) - North America Only

• CTM8 (8 port CLID trunk module) - North America Only

• DTM (digital trunk module)

• BRI (ISDN Basic Rate trunk module)

• DSM16+ (16 port digital station module)

• DSM32+ (32 port digital station module)

• GATM4 (4 port global analog trunk module)

• GATM8 (8 port global analog trunk module)

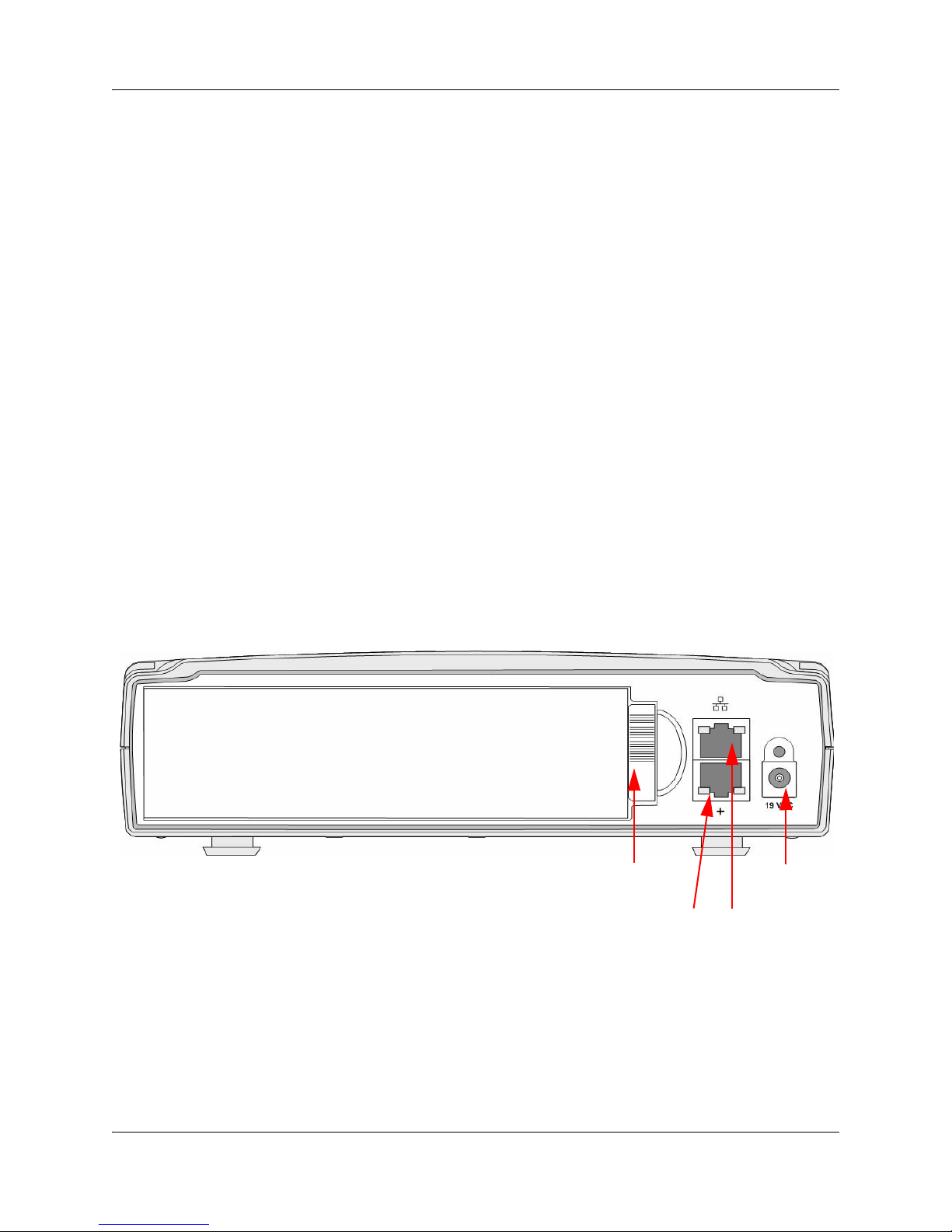

BCM50 Expansion Unit

MBM

Ejector

Expansion Port

to main unit

LAN Port

19 V

DC Power

Mounting Kits

Businesses can have a range of physical environments in which the system must be installed.

BCM50 has optional accessories you can use to tailor the installation to the needs of the location.

Small System Wallmount Bracket

You can use this optional bracket to mount the

BCM50 and expansion unit to a vertical surface. You

attach the bracket to the surface, and hang the BCM50

from the bracket. The details on the bracket ensure

that the BCM50 securely locks into place.

The lower part of the bracket includes a covered cable

tray, allowing for organized and visually neat

management of cables. An optional add-in card is

available that mounts into the cable tray, providing

RJ-45 connections for the main unit trunk and station

interfaces.

Small System Rackmount Shelf

You can install this optional shelf in a standard 19

inch rack, and mount the BCM50 and expansion unit

on it. The details on the shelf firmly lock the BCM50

in place. The bracket also provides space to store

power supplies for the BCM50. An optional patch

panel is available to provide RJ-45 connections for

the main unit trunk and station interfaces.

Otros manuales para BCM50

Tabla de contenidos

Otros manuales de Sistema telefónico de Nortel

Nortel

Nortel Meridian Meridian 1 Manual de usuario

Nortel

Nortel Compact ICS 7.1 Manual de usuario

Nortel

Nortel Companion MICS-XC Manual de usuario

Nortel

Nortel BCM1000 Manual del producto

Nortel

Nortel MER-1002-003 Manual de usuario

Nortel

Nortel Meridian Meridian 1 Manual de instrucciones

Nortel

Nortel Meridian 1 Option 11C Manual de usuario

Nortel

Nortel FastRad Manual de usuario

Nortel

Nortel BCM50 Manual de usuario

Nortel

Nortel BCM50 Manual del producto

Nortel

Nortel BCM1000 Manual de usuario

Nortel

Nortel Meridian 1 Option 11C Manual de usuario

Nortel

Nortel BCM200 Manual de usuario

Nortel

Nortel ICS 7.1 Manual de usuario

Nortel

Nortel DMS-100 Series Manual de usuario

Nortel

Nortel North American DMS-100 Manual de usuario

Nortel

Nortel Norstar Modular ICS Manual de lista de piezas

Nortel

Nortel Business Communications Manager 2.5 Instrucciones de funcionamiento

Nortel

Nortel BCM50 Manual del operador

Nortel

Nortel Meridian Meridian 1 Instrucciones de funcionamiento e instalación

Nortel

Nortel M420 Manual de usuario

Nortel

Nortel DMS-10 Manual de usuario

Nortel

Nortel BCM50 Manual del operador

Nortel

Nortel DCT1900 Manual de usuario

Manuales populares de Sistema telefónico de otras marcas

Teleco

Teleco Perfect Voice Tis 16 Manual de usuario

AT&T

AT&T Network Adapter 25 Manual de usuario

AVE

AVE AF902R-CE Manual de usuario

Tynetec

Tynetec Advent xt Manual de usuario

Ericsson

Ericsson DCT1800-S Manual de usuario

NEC

NEC Electra Elite 192 Manual de usuario

Alcatel

Alcatel EASY REFLEXES 4200 Manual de usuario

Panasonic

Panasonic KX-TDA50 Manual de usuario

Bticino

Bticino PABX 28D Manual de usuario

NEC

NEC SL 2100 Manual de usuario

Sonifex

Sonifex Phone In 6 Manual de instrucciones

TransTel Communications

TransTel Communications TD-824i Instrucciones de montaje

Panasonic

Panasonic KX-TS25B Manual de usuario

ASCOM

ASCOM TD 92375GB Manual del propietario

Karel

Karel MS26S Hoja de información del producto

EnGenius

EnGenius DuraFon PRO Manual de usuario

Teledat

Teledat X130 DSL Manual de usuario

SpectraLink

SpectraLink MOG400 Manual de usuario
