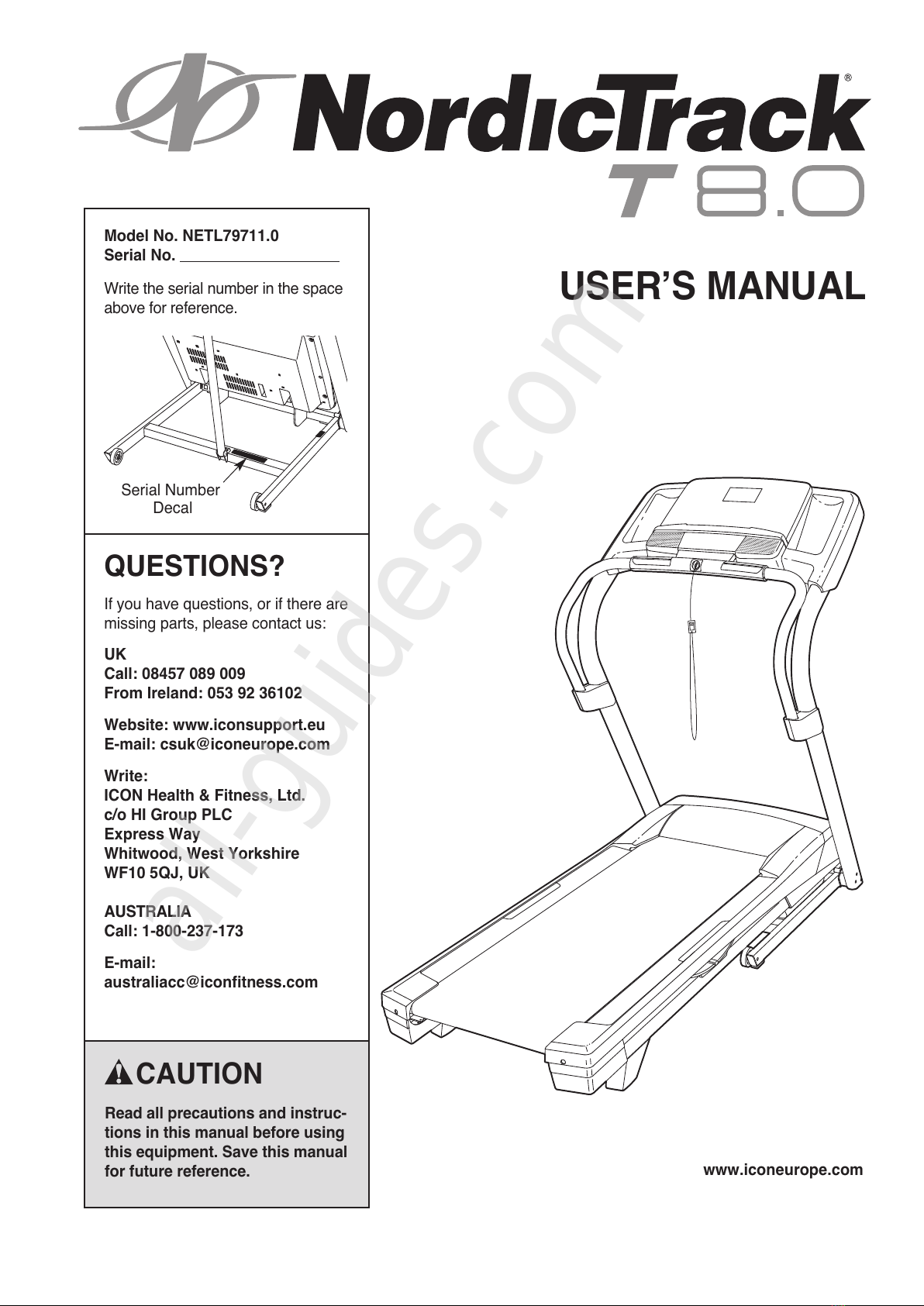

NordicTrack NETL79711.0 Manual de usuario

USERʼS MANUAL

Model No. NETL79711.0

Serial No.

Write the serial number in the space

above for reference.

QUEST ONS?

If you have questions, or if there are

missing parts, please contact us:

Call: 08457 089 009

From reland: 053 92 36102

Website: www.iconsupport.eu

E-mail: csuk@iconeurope.com

Write:

CON Health & Fitness, Ltd.

c/o H Group PLC

Express Way

Whitwood, West Yorkshire

WF10 5QJ, UK

AUSTRAL A

Call: 1-800-237-173

E-mail:

australiacc@iconfitness.com

CAUT ON

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial Number

Decal

www.iconeurope.com

All manuals and user guides at all-guides.com

all-guides.com

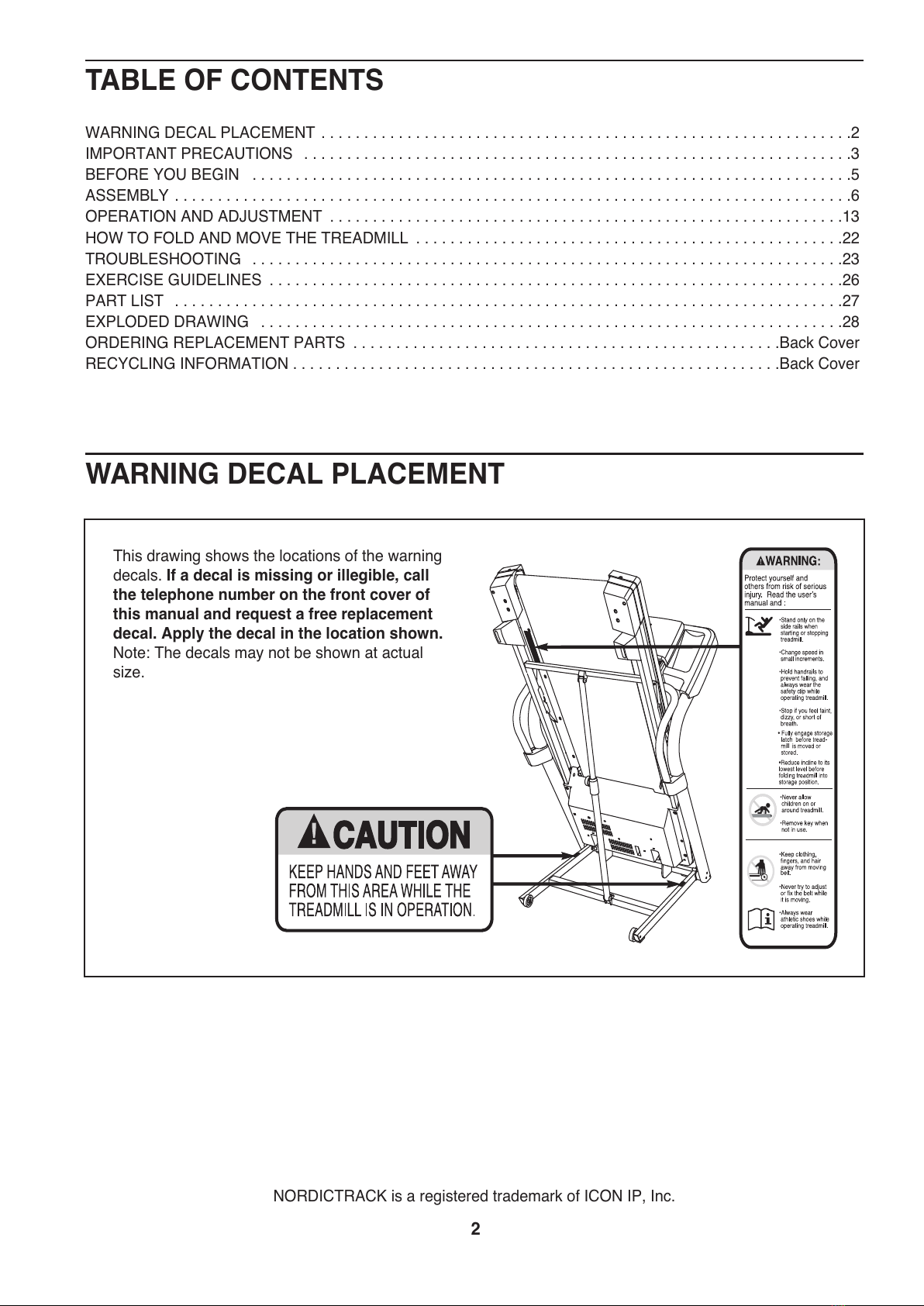

TABLE OF CONTENTS

WARNINGDECALPLACEMENT..............................................................2

IMPORTANTPRECAUTIONS ................................................................3

BEFOREYOUBEGIN ......................................................................5

ASSEMBLY...............................................................................6

OPERATIONANDAD USTMENT ............................................................13

HOWTOFOLDANDMOVETHETREADMILL ..................................................22

TROUBLESHOOTING .....................................................................23

EXERCISEGUIDELINES ...................................................................26

PARTLIST ..............................................................................27

EXPLODEDDRAWING ....................................................................28

ORDERINGREPLACEMENTPARTS ..................................................BackCover

RECYCLINGINFORMATION.........................................................BackCover

This drawing shows the locations of the warning

decals. f a decal is missing or illegible, call

the telephone number on the front cover of

this manual and request a free replacement

decal. Apply the decal in the location shown.

Note: The decals may not be shown at actual

size.

WARN NG DECAL PLACEMENT

NORDICTRACK is a registered trademark of ICON IP, Inc.

All manuals and user guides at all-guides.com

1. Before beginning any exercise program, con-

sult your physician. This is especially impor-

tant for persons over age 35 or persons with

pre-existing health problems.

2. t is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

3. Use the treadmill only as described.

4. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

5. Place the treadmill on a level surface, with at

least 8 ft. (2.4 m) of clearance behind it and 2

ft. (0.6 m) on each side. Do not place the

treadmill on any surface that blocks air open-

ings. To protect the floor or carpet from dam-

age, place a mat under the treadmill.

6. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

7. Keep children under age 12 and pets away

from the treadmill at all times.

8. The treadmill should be used only by persons

weighing 300 lbs. (136 kg) or less.

9. Never allow more than one person on the

treadmill at a time.

10. Wear appropriate exercise clothes when

using the treadmill. Do not wear loose clothes

that could become caught in the treadmill.

Athletic support clothes are recommended

for both men and women. Always wear ath-

letic shoes. Never use the treadmill with bare

feet, wearing only stockings, or in sandals.

11. When connecting the power cord (see page

13), plug the power cord into an earthed cir-

cuit. No other appliance should be on the

same circuit. When replacing the fuse in the

power cord adapter, insert an ASTA-approved

BS1362, 13-amp fuse into the fuse carrier.

12. f an extension cord is needed, use only a 3-

conductor, 14-gauge (1 mm2) cord that is no

longer than 5 ft. (1.5 m).

13. Keep the power cord away from heated

surfaces.

14. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See TROU-

BLESHOOT NG on page 23 if the treadmill is

not working properly.)

15. Read, understand, and test the emergency

stop procedure before using the treadmill (see

HOW TO TURN ON THE POWER on page 15).

16. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

17. The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid

sudden jumps in speed.

18. The heart rate monitor is not a medical de-

vice. Various factors, including the user's

movement, may affect the accuracy of heart

rate readings. The heart rate monitor is in-

tended only as an exercise aid in determining

heart rate trends in general.

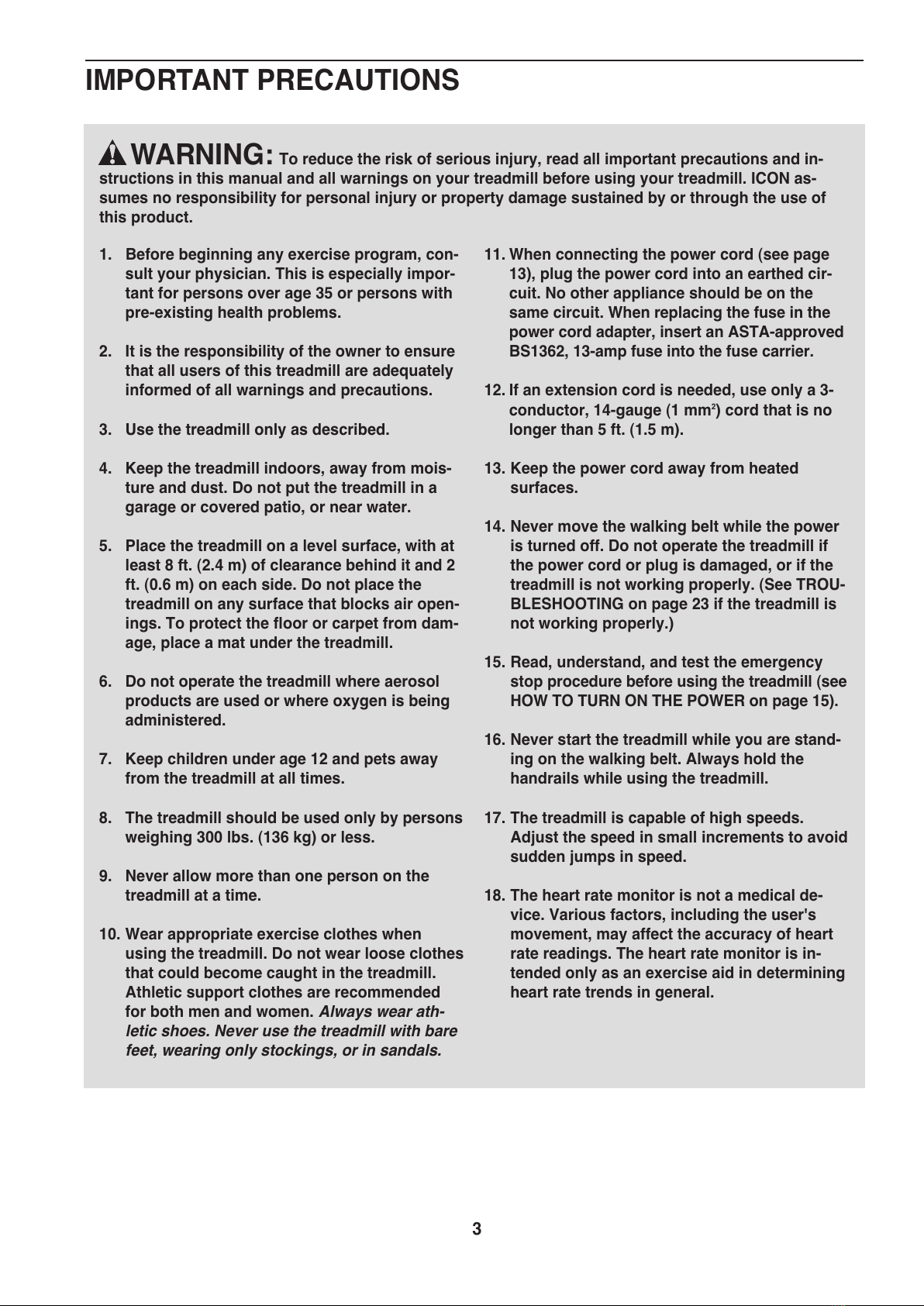

WARN NG: To reduce the risk of serious injury, read all important precautions and in-

structions in this manual and all warnings on your treadmill before using your treadmill. CON as-

sumes no responsibility for personal injury or property damage sustained by or through the use of

this product.

MPORTANT PRECAUT ONS

All manuals and user guides at all-guides.com

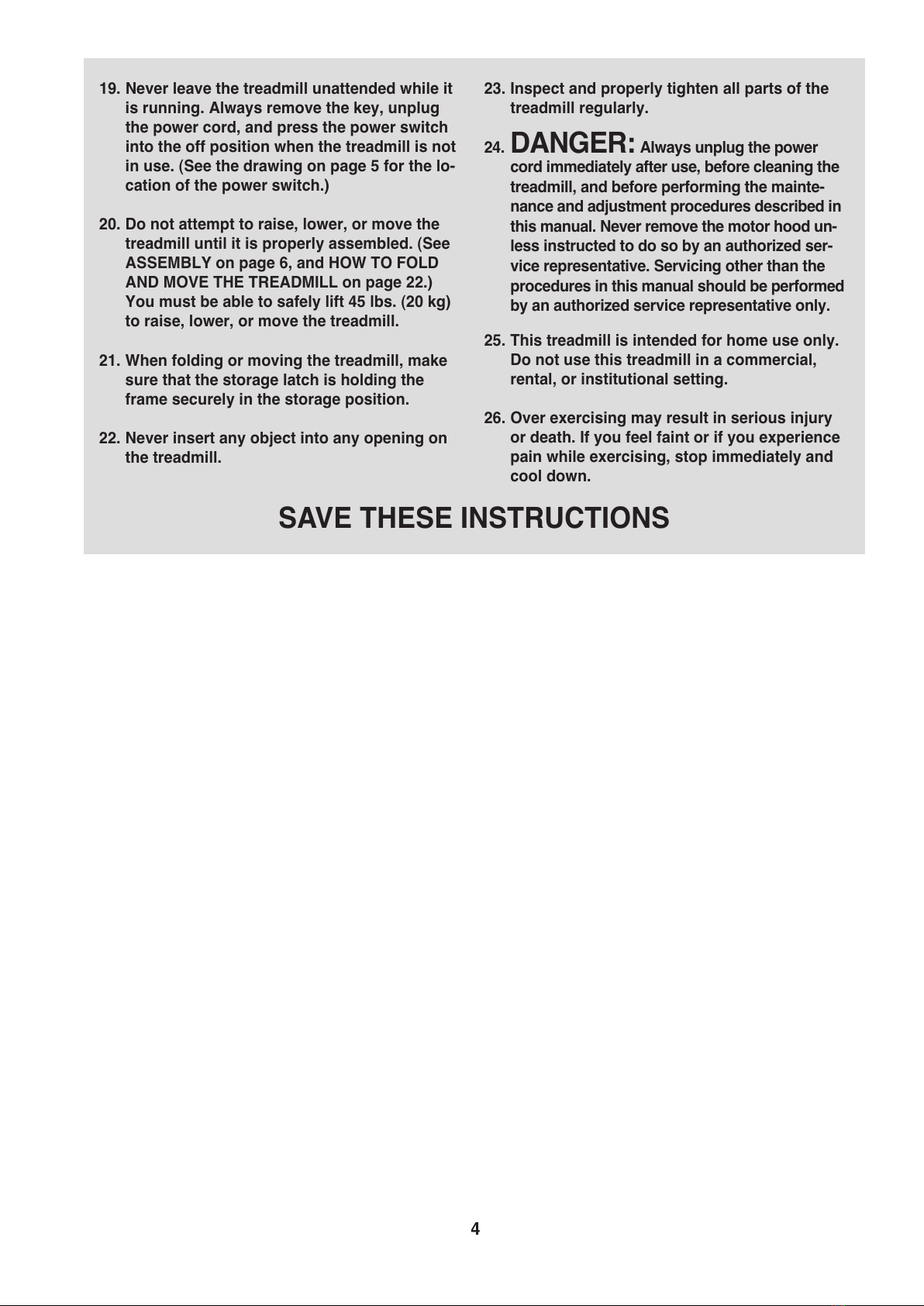

19. Never leave the treadmill unattended while it

is running. Always remove the key, unplug

the power cord, and press the power switch

into the off position when the treadmill is not

in use. (See the drawing on page 5 for the lo-

cation of the power switch.)

20. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE TREADM LL on page 22.)

You must be able to safely lift 45 lbs. (20 kg)

to raise, lower, or move the treadmill.

21. When folding or moving the treadmill, make

sure that the storage latch is holding the

frame securely in the storage position.

22. Never insert any object into any opening on

the treadmill.

23. nspect and properly tighten all parts of the

treadmill regularly.

24. DANGER: Always unplug the power

cord immediately after use, before cleaning the

treadmill, and before performing the mainte-

nance and adjustment procedures described in

this manual. Never remove the motor hood un-

less instructed to do so by an authorized ser-

vice representative. Servicing other than the

procedures in this manual should be performed

by an authorized service representative only.

25. This treadmill is intended for home use only.

Do not use this treadmill in a commercial,

rental, or institutional setting.

26. Over exercising may result in serious injury

or death. f you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

SAVE THESE NSTRUCT ONS

All manuals and user guides at all-guides.com

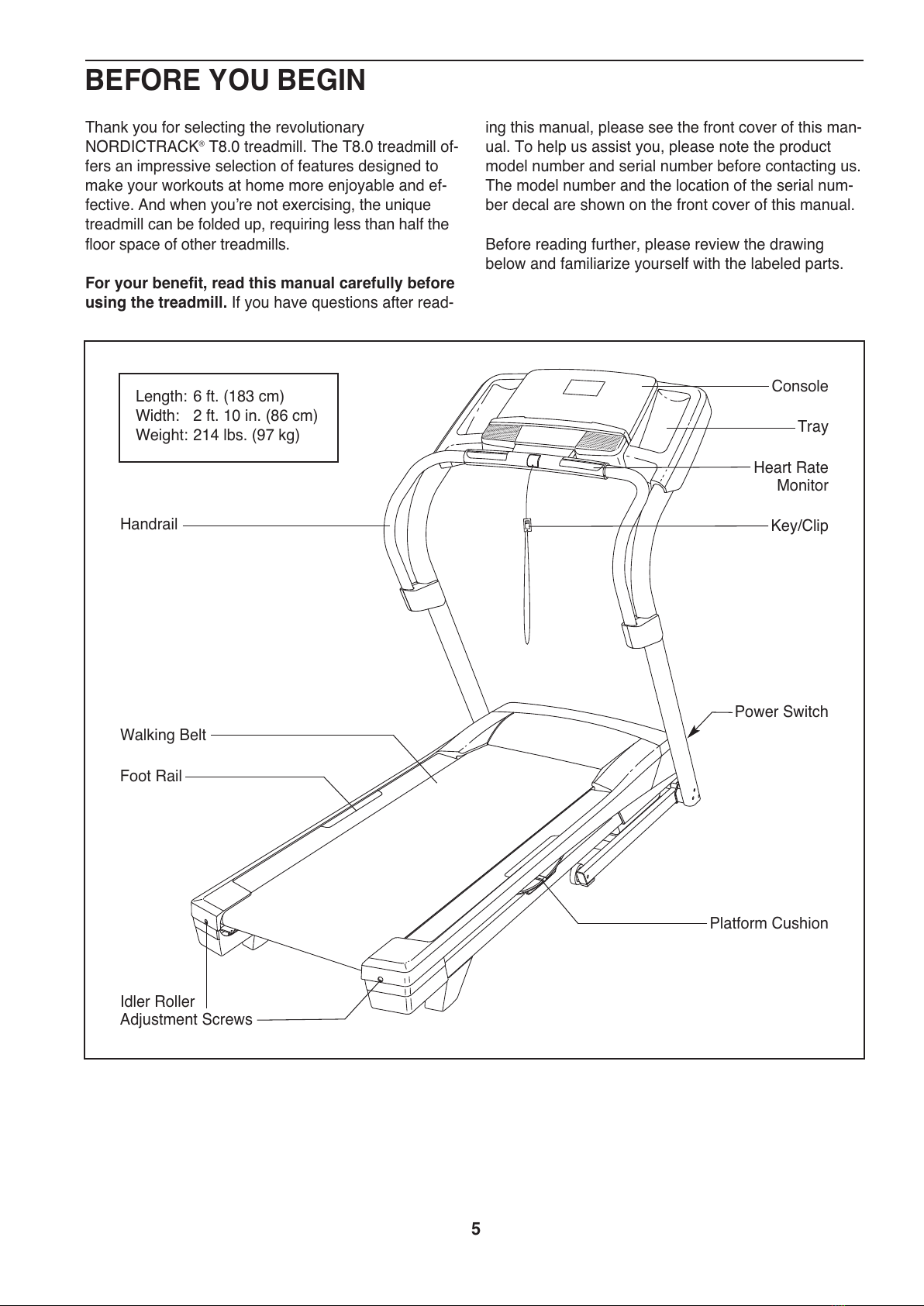

Thank you for selecting the revolutionary

NORDICTRACK®T8.0 treadmill. The T8.0 treadmill of-

fers an impressive selection of features designed to

make your workouts at home more enjoyable and ef-

fective. And when youʼre not exercising, the unique

treadmill can be folded up, requiring less than half the

floor space of other treadmills.

For your benefit, read this manual carefully before

using the treadmill. If you have questions after read-

ing this manual, please see the front cover of this man-

ual. To help us assist you, please note the product

model number and serial number before contacting us.

The model number and the location of the serial num-

ber decal are shown on the front cover of this manual.

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

BEFORE YOU BEG N

Handrail

Tray

Key/Clip

Power Switch

Walking Belt

Platform Cushion

Foot Rail

Idler Roller

Adjustment Screws

Console

Heart Rate

Monitor

Length: 6 ft. (183 cm)

Width: 2 ft. 10 in. (86 cm)

Weight: 214 lbs. (97 kg)

All manuals and user guides at all-guides.com

ASSEMBLY

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking

belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of

the walking belt or the shipping carton. This is normal and does not affect treadmill performance. If there is lubri-

cant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

Assembly requires the included hex key and your own Phillips screwdriver , adjustable

wrench , scissors , and needlenose pliers .

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is

the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses

is the quantity needed for assembly. Note: Some small parts may have been preassembled. To avoid dam-

aging parts, do not use power tools. Extra hardware may be included.

#8 x 1/2" Ground

Screw (1)–1

3/8" Star

Washer (5)–6

3/8" Nut (3)–4

#8 x 3/4" Screw

(6)–18

5/16" Star

Washer (8)–2

1/4" x 5/8"

Screw (9)–4

1/4" Star

Washer (11)–4

3/8" x 2" Bolt (13)–1 3/8" x 2 1/2" Bolt (2)–2

3/8" x 4" Screw (4)–6

3/8" x 1 3/4" Bolt (12)–1

1/4" x 1 3/4"

Screw (10)–4

5/16" x 3 1/4" Screw (7)–2

All manuals and user guides at all-guides.com

all-guides.com

3. Identify the Left Upright (75), which is either

marked “Left” or “L.” Have a second person hold

the Left Upright near the Base (80).

See the inset drawing. Tie the wire tie in the

Left Upright (75) securely around the end of the

Upright Wire (70). Then, pull the other end of the

wire tie until the Upright Wire is routed through

the Left Upright.

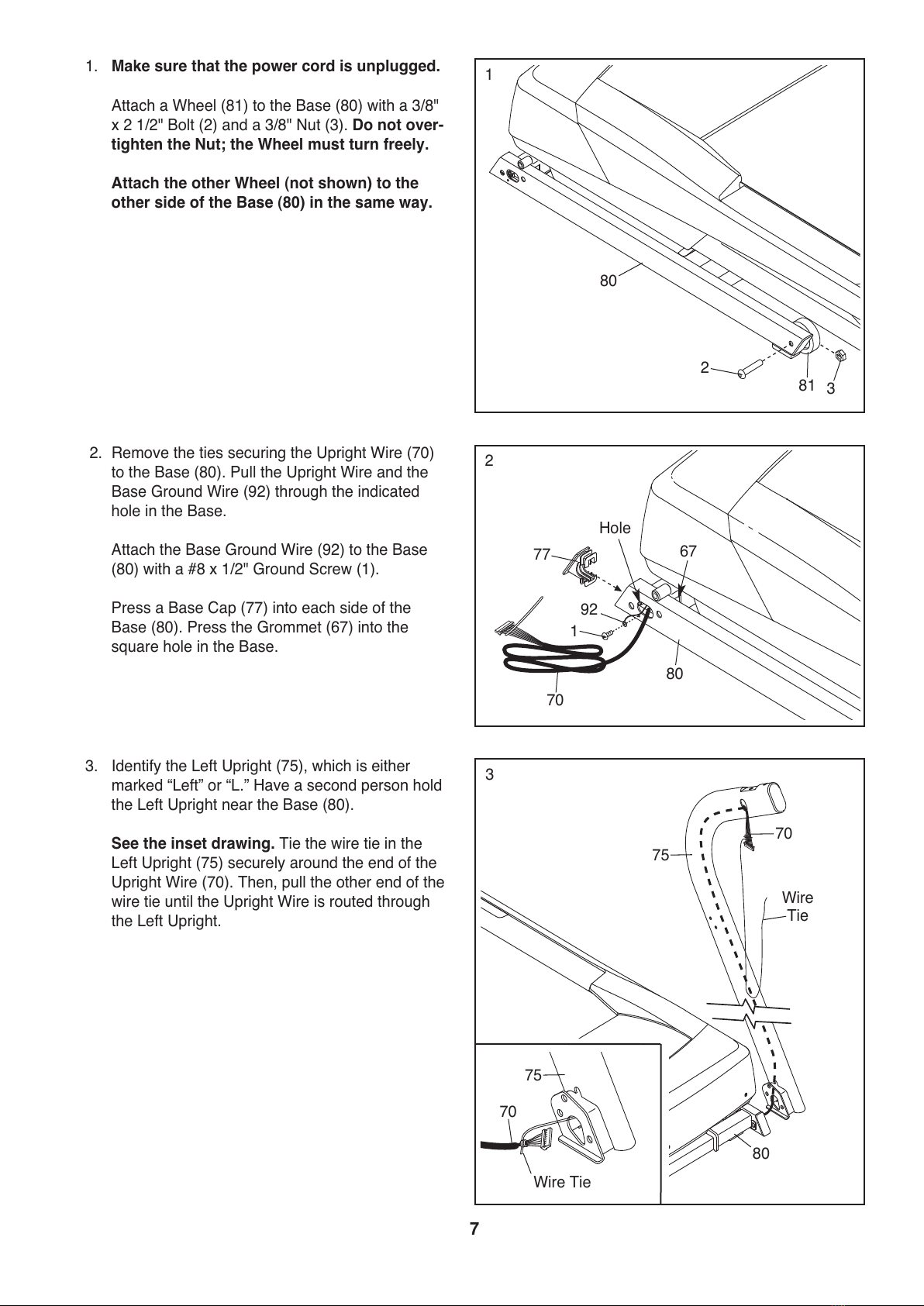

1.Make sure that the power cord is unplugged.

Attach a Wheel (81) to the Base (80) with a 3/8"

x 2 1/2" Bolt (2) and a 3/8" Nut (3). Do not over-

tighten the Nut; the Wheel must turn freely.

Attach the other Wheel (not shown) to the

other side of the Base (80) in the same way.

Wire

Tie

Wire Tie

2. Remove the ties securing the Upright Wire (70)

to the Base (80). Pull the Upright Wire and the

Base Ground Wire (92) through the indicated

hole in the Base.

Attach the Base Ground Wire (92) to the Base

(80) with a #8 x 1/2" Ground Screw (1).

Press a Base Cap (77) into each side of the

Base (80). Press the Grommet (67) into the

square hole in the Base.

Hole

All manuals and user guides at all-guides.com

5. Set the Console Base (83) face down on a soft

surface to avoid scratching the Console Base.

Remove the two Screws (A) from the Console

Frame (87). Remove the Console Frame.

Discard the Screws.

4. Hold the Left Upright (75) against the Base

(80). Be careful not to pinch the wires. Insert

a 3/8" x 4" Screw (4) with a 3/8" Star Washer

(5) into the top hole in the Left Upright.

Insert the 3/8" x 4" Screw (4) partially through

the Left Upright (75). Next, slide a Screw

Spacer (93) onto the end of the Screw. Then,

tighten the Screw partially into the Base (80).

Partially tighten two more 3/8" x 4" Screws (4)

with two 3/8" Star Washers (5) into the Left

Upright (75); do not fully tighten the Screws

yet.

Attach the Right Upright (not shown) in the

same way. Note: There are no wires on the

right side.

Wires

All manuals and user guides at all-guides.com

7. Insert the upper end of the Left Handrail (71)

into the tube on the Console Frame (87). Hold

the lower end against the Left Upright (75).

Attach the Left Handrail (71) with two 1/4" x

1 3/4" Screws (10), two 1/4" Star Washers (11),

and two 1/4" x 5/8" Screws (9) as shown; do

not tighten the Screws yet.

Attach the Right Handrail (not shown) as de-

scribed above. 9

6. Attach the Console Frame (87) to the Left and

Right Uprights (75, 76) with two 5/16" x 3 1/4"

Screws (7) and two 5/16" Star Washers (8); do

not fully tighten the Screws yet.

All manuals and user guides at all-guides.com

9. Insert the ground wires into the console assem-

bly as you set the console assembly on the Left

Upright (75) and the Right Upright (not shown).

Make sure that no wires are pinched.

Attach the console assembly with eight #8 x 3/4"

Screws (6) (four are shown); start all eight

Screws, and then tighten them. Do not over-

tighten the Screws.

Insert the wires into the Left Upright (75).

Fully tighten the ten Screws (7, 9, and 10) (only

one side is shown).

See step 4. Fully tighten the six 3/8" x 4"

Screws (4).

Console

Assembly

Wires

Console

Assembly

Wire

Tie

Console

Wire

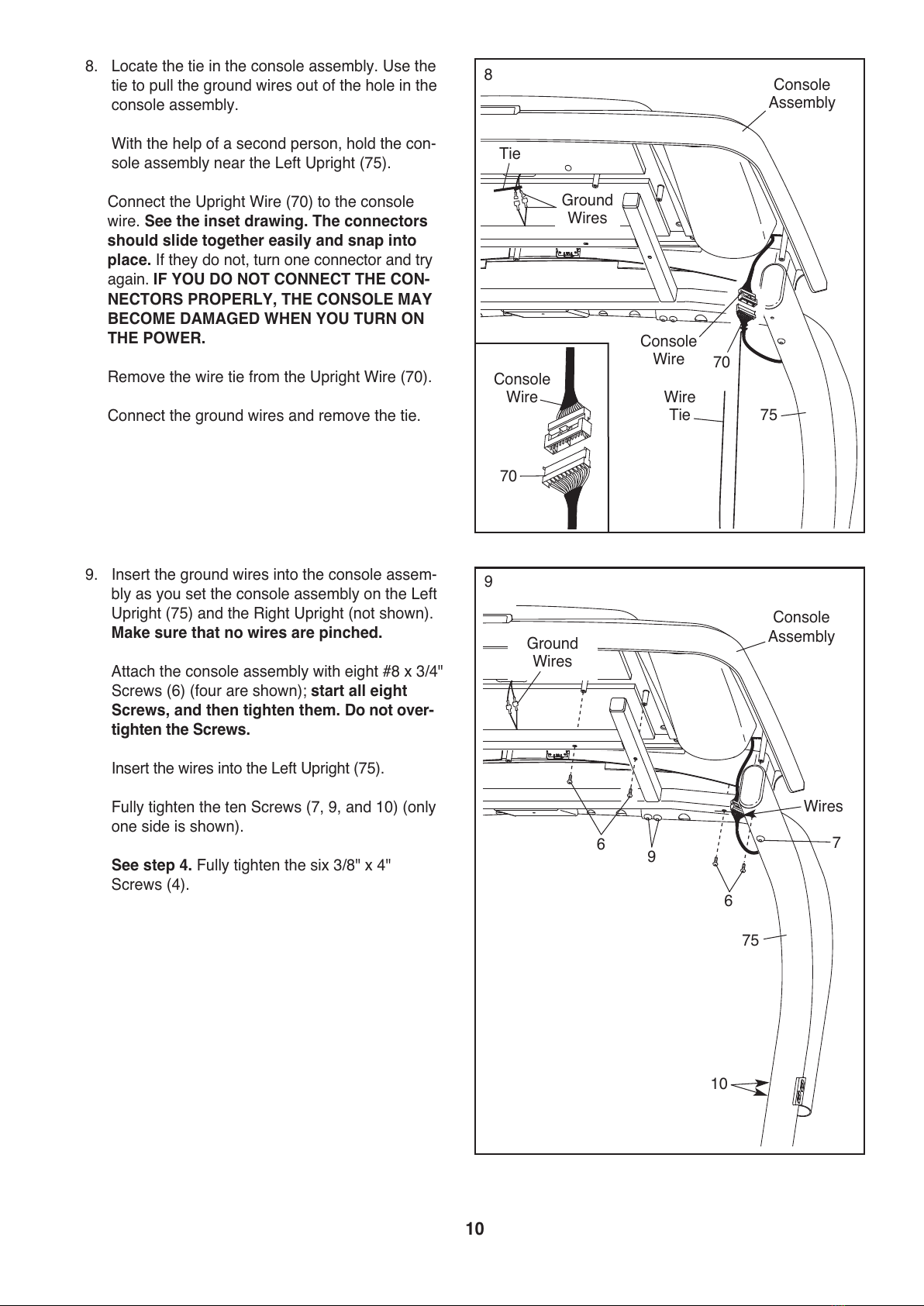

8. Locate the tie in the console assembly. Use the

tie to pull the ground wires out of the hole in the

console assembly.

With the help of a second person, hold the con-

sole assembly near the Left Upright (75).

Connect the Upright Wire (70) to the console

wire. See the inset drawing. The connectors

should slide together easily and snap into

place. If they do not, turn one connector and try

again. F YOU DO NOT CONNECT THE CON-

NECTORS PROPERLY, THE CONSOLE MAY

BECOME DAMAGED WHEN YOU TURN ON

THE POWER.

Remove the wire tie from the Upright Wire (70).

Connect the ground wires and remove the tie.

Console

Wire

Ground

Wires

Tie

Ground

Wires

All manuals and user guides at all-guides.com

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Rueda de andar de NordicTrack

NordicTrack

NordicTrack Pro 3000 Treadmill Guía de inicio rápido

NordicTrack

NordicTrack NTL79011.0 Manual de usuario

NordicTrack

NordicTrack T5 Zi Treadmill Manual de usuario

NordicTrack

NordicTrack 24988C.0 Manual de usuario

NordicTrack

NordicTrack T 12.2 Treadmill Guía de inicio rápido

NordicTrack

NordicTrack T9ci Treadmill Manual de usuario

NordicTrack

NordicTrack Incline Trainer X 5 Treadmill Manual de usuario

NordicTrack

NordicTrack T9.5 S Manual de usuario

NordicTrack

NordicTrack C2000 NTL10842 Manual de usuario

NordicTrack

NordicTrack COMMERCIAL 1500 Manual de usuario

NordicTrack

NordicTrack ELITE 2900 0603.0 Manual de usuario

NordicTrack

NordicTrack A2155 Treadmill Manual de usuario

NordicTrack

NordicTrack C 900 Manual de usuario

NordicTrack

NordicTrack NTL17941 Manual de usuario

NordicTrack

NordicTrack NTL14122.3 Manual de usuario

NordicTrack

NordicTrack Ex 3300 Treadmill Manual del sistema

NordicTrack

NordicTrack Elite 7500 Treadmill Manual de usuario

NordicTrack

NordicTrack T18.0 Treadmill Manual de usuario

NordicTrack

NordicTrack NTL19010.0 Incline Trainer X9i Manual de usuario

NordicTrack

NordicTrack 2450 Treadmill Manual de usuario

NordicTrack

NordicTrack E 3100 Manual de usuario

NordicTrack

NordicTrack T 13.5 Manual de usuario

NordicTrack

NordicTrack X7i Incline Trainer Manual de usuario

NordicTrack

NordicTrack NTTL09611 Manual de usuario

Manuales populares de Rueda de andar de otras marcas

Treadly

Treadly TREADLY 2 Manual de usuario

HEALTH ONE

HEALTH ONE Walk Ro Manual de usuario

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manual de usuario

Merax

Merax MS282992 Manual de usuario

FYTTER

FYTTER RU-2SX Manual de usuario

Precor

Precor 903 Manual de usuario

FitLogic

FitLogic freewill d225 Manual de usuario

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manual de usuario

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manual de usuario

Stamia

Stamia InMotion II Manual de usuario

Smooth Fitness

Smooth Fitness EVO 3i Manual de usuario

Schwinn

Schwinn 830/Journey 8.0 Manual de usuario

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manual de usuario

Spirit

Spirit XT8 Manual de usuario

Master

Master F22 Manual de usuario

Precor

Precor PRECISION SERIES Manual técnico

Horizon Fitness

Horizon Fitness DT680 Manual de usuario

Matrix

Matrix T130 XI Manual de usuario
