Table of Contents

Important Precautions ....................................................................... 3

Before You Begin ........................................................................... 5

Assembly ................................................................................. 6

How to Use the CardioTrack TM Heart Rate Monitor ................................................. 8

Treadmill Operation ........................................................................ 10

How to Use the Manual Mode .............................................................. 12

How to Use the Heart Rate Programs ........................................................ 15

How to Use the Incline Programs ........................................................... 17

How to Create Custom Programs ........................................................... 19

How to Use Custom Programs ............................................................. 20

How to Fold and Move the Treadmill ........................................................... 22

Maintenance and Trouble-shooting ............. _.............................................. 24

Conditioning Guidelines .................................................................... 26

Part List ....... _ ........................... ............ .................................. 30

Ordering Replacement Parts ................................................................. 31

Limited Warranty ................................................................... Back Cover

Note: An Exploded Drawing is attached in the center of this user's manual.

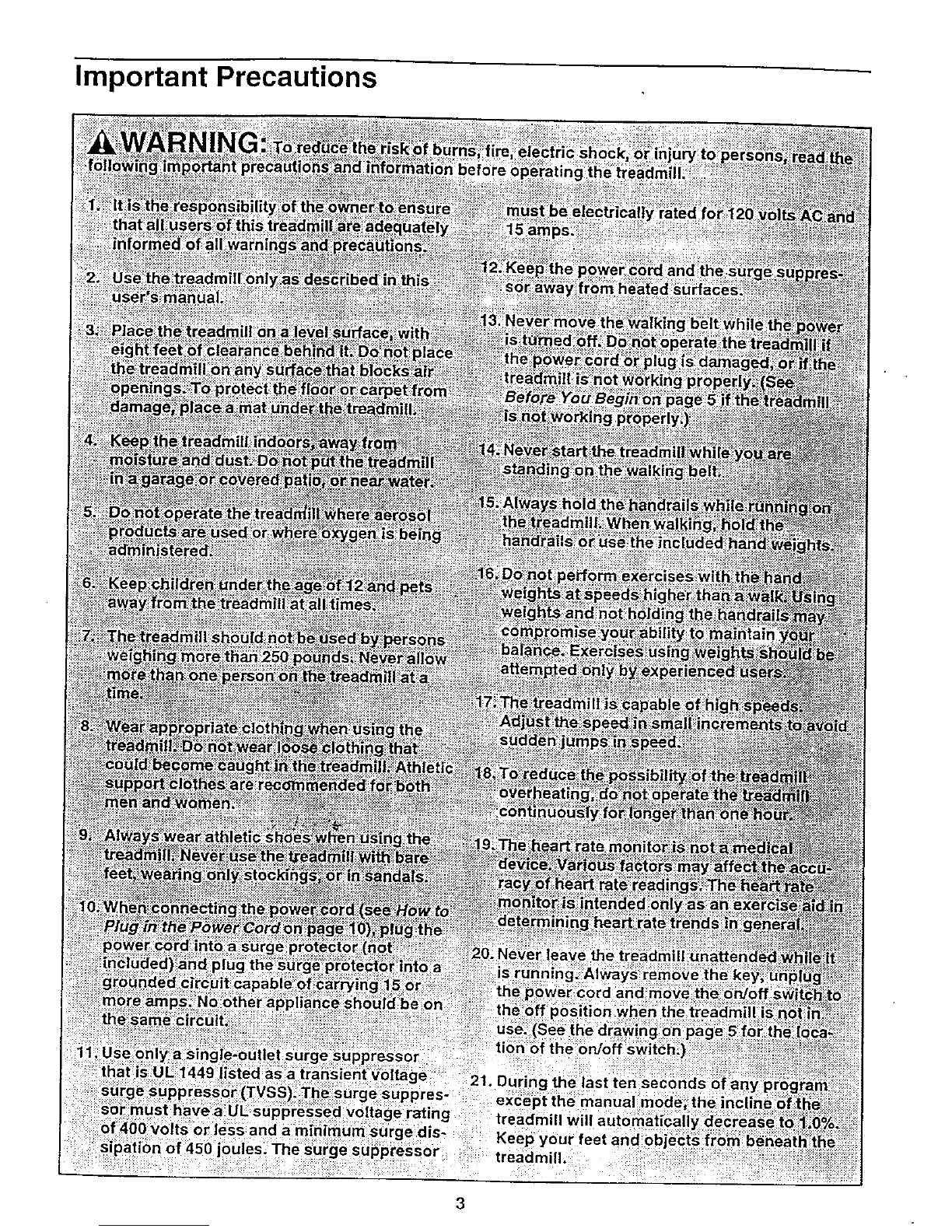

Important Precautions

_res o

_ressed voltage rating

Durir

exce F

treadmill

Keep your feet and Ob

treadmill.

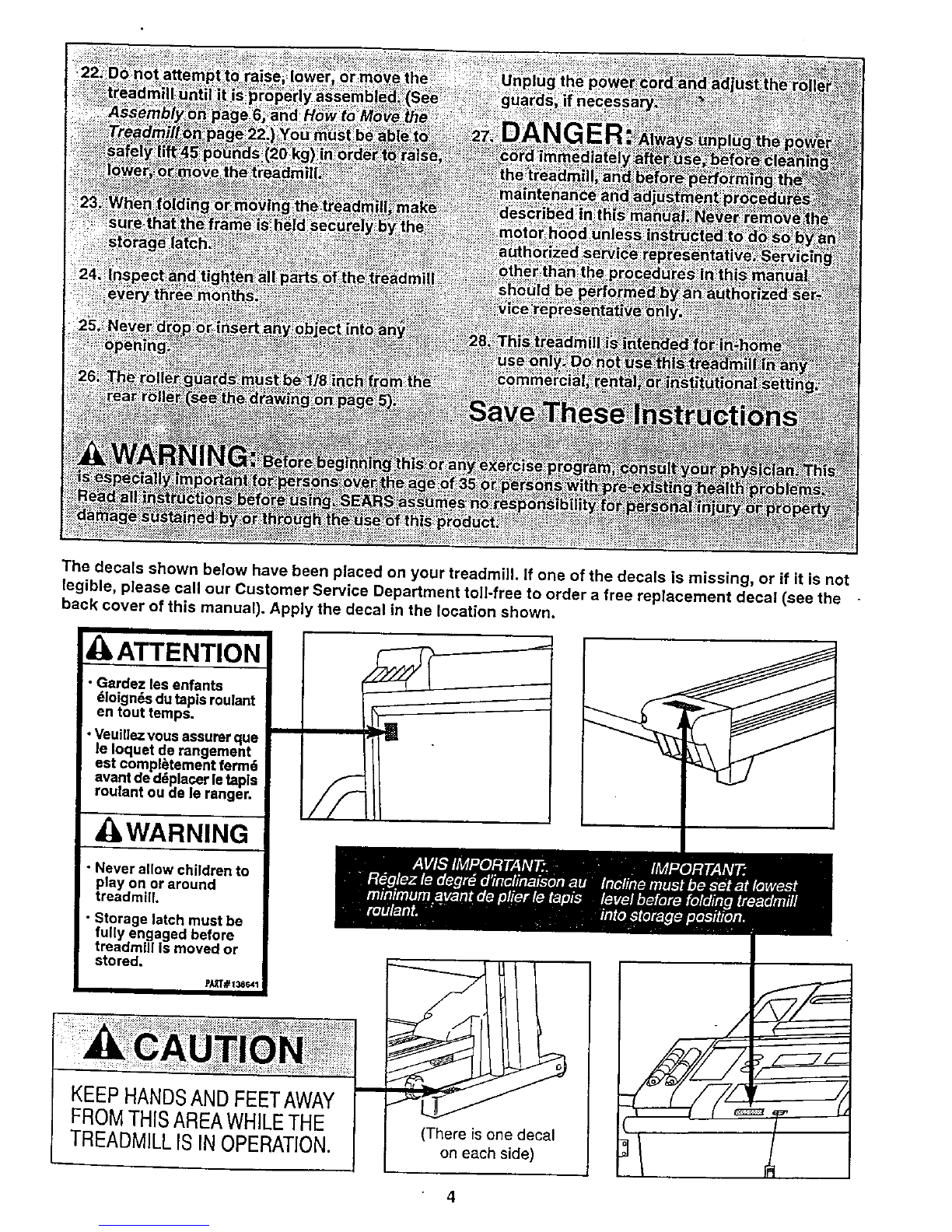

The decals shown below have been placed on your treadmill, if one of the decals is missing, or if it is not

legible, please call our Customer Service Department toll-free to order a free replacement decal (see the

back cover of this manual). Apply the decal in the location shown.

ATTENTION

• Gardez les enfants

dloignds dutapisroulant

en tout temps.

•Veuillezvousassurerque

le Ioquet de rangement

est compl_tement ferm6

avantded_placerletapls

roulant ou de le ranger.

WARNING

•Never allow children to

play on or around

treadmill,

• Storage latch must be

fully engaged before

treadmill Is moved or

stored.

KEEPHANDSAND FEETAWAY

FROMTHISAREAWHILETHE

TREADMILLIS INOPERATION. (There is one decal

on each side)

Before You Begin

Thank you for selecting the new NordicTrack

PowerTread TM 2000 treadmill. The PowerTread 2000

treadmill combines advanced technology with innova-

tive design to let you enjoy an excellent form of cardio-

vascular exercise in the convenience and privacy of

your home. And when you're not exercising, the unique

PowerTread 2000 can be folded up, requiring less than

half the floor space of other treadmills.

For your benefit, read this manual carefully before

using the treadmill. If you have additional questions,

please call our Customer Service Department toll-free

at 1-888-825-2588, Monday through Friday, 6 a.m.

until 6 p.m. Mountain Time (excluding holidays). To

help us assist you, please note the product model

number and serial number before calling. The model

number of the treadmill is831.298820. The serial num-

ber can be found on a decal attached to the treadmill

(see the front cover of this manual for the location).

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

Reading Rack Water Bottle Holder

(Bottle not included)

AccessoP

Weights

Storage Latch

Handrails

]hts

Walking Belt Adjustment

Roller Guards Circuit

Breaker

On/off

Switch

Power Cord

Rear Roller

Adjustment Bolts Foot Rails Cushioned Walking Platform

*IMPORTANT: Always wear the clip while operating the treadmill. If the key is pulled from the

console, the walking belt will stop.

Assembly

Assembly requires two people. Set the treadmill in acleared area and remove all packing materials. Assembly

requires the included allen wrench_ and your own phillipsscrewdriver (]_W_====== and adjustable

wrench _.

1. With the help of asecond person, carefully raise the

Uprights (70) until the Wheels (30) are resting flat on the

floor.

2. Remove the four Handrail Screws (103) from the posts on

the left and right Uprights (70). Slide the upper end of a

Handrail (101) onto the right Upright (70) as shown. Note:

It will be necessary to pivot the Handrail to the side

and back repeatedly (see arrow A) while pushing on

the Handrail (see arrow B) to slide It fully onto the

Upright. Next, pivot the lower and of the Handrail down,

push it toward the right Upright, and then align itwith

the indicated hole.

Tighten two Handrail Screws (103) into the upper end of

the Handrail (101) and the right Upright (70),

Attach the other Handrail (101) to the left Upright (70) as

described above.

3. With the help of a second person, carefully tip the Uprights

(70) down as shown.

Tighten a Handrail Bolt (95) with a Handrail Washer (102)

into the right Upright (70) and the lower end of the right

Handrail (101) as shown. Note: It may be necessary to

press down on the Handrail to align the holes in the

Upright and Handrail.

Next, tighten a Handrail Bolt (95) with a Handrail Washer

(102) into the left Upright (70) and the lower end of the left

" Handrail (101) (not shown).

With the help of a second person, carefully tip the Uprights

(70) back to the upright position.

_95

Hole

4. Locate the two tabs on the Reading Rack (12). Slide the

tabs up into the two slots in the front of the Console (78).

Attach the Reading Rack to the Console with the six

Screws (43).

5. Attach a Weight Rack (112) to each Upright (70) with two

Screws (43) as shown.

Refer to the inset drawing. Insert a 2-lb. Handle (115) and

two l-lb. Weights (114) into each Weight Rack (112).

6. Remove the two indicated Screws (43) from the left Upright

(70).

Attach the Storage Latch (5) _nd the two Latch Spacers

(93) to the left Upright (70) with the two Screws (43). Be

careful not to overtighten the Screws.

Note: If it is difficult to fold or lower the treadmill,

remove one or both of the L_tch Spacers (93).

7. Remove the backing from the Wrench Clip (88). Press the

Wrench Clip onto the Upright (70) in the indicated location.

Press the Allen Wrench (87) into the Wrench Clip

8. Make sure that all parts of the treadmill are properly

tightened. Place a mat beneath the treadmill to

protectthe floor or carpet.

12 Tabs

78 =i

L_/12 43 115_,_11142 ,

__° .._i' .': "

5 43

How to Use the CardioTrack TM Heart Rate Monitor

The unique CardioTrack heart rate monitor is specially

designed for accuracy, comfort, and durability. To get

the best performance from the heart rate monitor,

please read the instructions below.

HOW TO PUT ON THE HEART RATE MONITOR

The heart rate monitor consists of two components:

the chest strap and the transmitter. Follow the steps

below to put on the heart rate monitor.

_ Chest Strap

1. Refer to the inset drawing above, insert the tab on

one end of the chest strap through the hole in one

end of the transmitter. Press the end of the trans-

mitter under the buckle on the chest strap, The tab

should be flush with the front of the transmitter.

2. Wrap the

heart rate

monitor

around your

chest and

attach the

other end of

the chest

strap to the

transmitter.

Adjust the

length of the

" chest strap, if necessary. The heart rate monitor

should be under your clothing, against your skin,

and as high under the pectoral muscles or breasts

as is comfortable. Make sure that the NordicTrack

logo is facing forward and is right-side-up.

3. Pull the transmitter away lrom your body a few

inches and locate the two electrode areas on the

inner side. The electrode areas are the two long,

grooved rectangles. Using saline solution such as

saliva or contact lens solution, wet both electrode

areas. Return the transmitter to a position against

your chest.

HEART RATE MONITOR TROUBLE-SHOOTING

The instructions on pages 11 to 17 of this user's

manual explain how the heart rate monitor is used

with the console. If the letters "PLS" appear in the

PULSE display, or if the displayed heart rate is

excessively high or low when the heart rate moni-

tor is used, try the trouble-shooting steps below.

1. Make sure that the heart rate monitor is under your

clothing, against your skin, and as high under the

pectoral muscles or breasts as is comfortable.

Note: If the heart rate monitor does not function

when positioned as described, try moving it slightly

lower or higher on your chest.

2. Make sure that the NordlcTrack logo on the trans-

mitter is facing forwards and is right-side-up.

3. Use saline solution such as saliva or contact lens

solution to wet the two electrode areas on the

transmitter. If heart rate readings do not appear

until you begin perspiring, re-wet the electrode areas.

4, As you walk or run on the treadmill, position your-

serf near the center of the walking belt. For the

console to display heart rate readings, the user

must be within arm's length of the console.

5. The heart rate monitor is designed to work with

people who have normal heart rhythms. Heart rate

reading problems may be caused by medical

conditions such as premature ventricular contrac-

tions (pvcs), tachycardia bursts, and arrhythmia.

6. The operation of the heart rate monitor can be

affected by magnetic interference caused by high

power lines or other sources. If [tis suspected that

magnetic interference may be causing a problem,

try relocating the treadmill.

7. If the heart rate monitor still does not function

properly, test it by having another person try it.

8. The CR2032 battery may need to be replaced (see

page 9).

HEART RATE MONITOR CARE AND MAINTENANCE

•Thoroughly dry the heart rate monitor after each

use. The heart rate monitor is activated when the

electrode areas are wetted and the heart rate moni-

tor is put on; the heart rate monitor shuts off when it

is removed and the electrode areas are dried. If the

heart rate monitor is not dried after each use, it may

remain activated longer than necessary.

•Store the heart rate monitor in a warm, dry place.

Do not store the heart rate monitor in a plastic bag

or other container that may trap moisture.

• Do not expose the heart rate monitor to direct

sunlight for extended periods of time. Do not expose

the heart rate monitor to temperatures above 122°

Fahrenheit (50° Celsius) or below 14° Fahrenheit

(-10 ° Celsius).

• Do not excessively bend or stretch the transmitter

when using or storing the heart rate monitor.

• Clean the transmitter using water and mild soap--

never use alcohol, abrasives, or chemicals. The

chest strap may be hand washed and air dried.

If the heart rate monitor

does not function prop-

erly, the CR 2032 bat-

tary may need to be

replaced. To replace the

battery, locate the bat-

tery cover on the back of

the transmitter. Insert a

coin into the slot in the

cover and turn the cover counterclockwise to the

"open" position. Remove the cover.

Remove the old battery

and insert a new CR

2032 battery, making

sure that the battery is

turned so the writing is

on top. In addition, make

sure that therubber gas-

ket is in place in the

transmitter. Replace the

battery cover and turn it

to the closed position.

Operation and Adjustment

THE PERFORMANT LUBE TM WALKING BELT

Your treadmill features a walking belt coated with

PERFORMANT LUBE TM, a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other

substances to the walking belt or the walking plat-

form. Such substances will deteriorate the walking

belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

Your treadmill, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your home's power.

Voltage surges, spikes, and noise interference can

result from weather conditions or from other appliances

being turned on or off. To decrease the possibility of

your treadmill being damaged, always use a surge

suppressor with your treadmill (see drawing 1 at

the right).

Surge suppressors are sold at most hardware stores

and department stores. Use only a single-outlet surge

suppressor that is UL 1449 listed as a transient voltage

surge suppressor (TVSS). The surge suppressor must

have a UL suppressed voltage rating of 400 volts or

less and aminimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated for

120 volts AC and 15 amps.

This product must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock• This product is equipped with a cord having

an equipment-grounding conductor and a grounding

plug. Plug the power cord into asurge suppressor,

and plug the surge suppressor into an appropriate

outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

This product isfor use on a nominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. A temporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge suppressor to a 2-pole

receptacle as shown in drawing 2 if a properly

grounded outlet is not available.

_Grounded Outlet 13ox

_. ! _Surge Suppressor

II I ii .. Ground,ngP,n

Ground,ngP, /

Grounded Outlet (_rounding Plug"'_

Grounded Outlet Box

Adapter

I °J _%_1 Surge _uppressor

Metal Screw

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Rueda de andar de NordicTrack

NordicTrack

NordicTrack Incline Trainer X11i Interact Treadmill Guía del usuario

NordicTrack

NordicTrack Powertread 5.5 Manual de usuario

NordicTrack

NordicTrack ELITE NTL19007.1 Manual de usuario

NordicTrack

NordicTrack CLUB REFLEX Manual de usuario

NordicTrack

NordicTrack T9ci Treadmill Manual de usuario

NordicTrack

NordicTrack NTL11806.2 Manual de usuario

NordicTrack

NordicTrack T 7.2 Treadmill Guía de inicio rápido

NordicTrack

NordicTrack C 970 Pro Treadmill Manual de usuario

NordicTrack

NordicTrack NTL17215.1 Manual de usuario

NordicTrack

NordicTrack E 3200 Manual de usuario

NordicTrack

NordicTrack NTL12905.0 Manual de usuario

NordicTrack

NordicTrack 17.0 Treadmill Guía del usuario

NordicTrack

NordicTrack NTL22019.2 Manual de usuario

NordicTrack

NordicTrack T5.7 NTL61011.0 Manual de usuario

NordicTrack

NordicTrack 5100 R NTTL18513 Manual de usuario

NordicTrack

NordicTrack C4000 Treadmill Manual

NordicTrack

NordicTrack T 9.2 Treadmill Manual de operación y mantenimiento

NordicTrack

NordicTrack NTL15940 Manual de usuario

NordicTrack

NordicTrack G7.0 Treadmill Manual de usuario

NordicTrack

NordicTrack NTL19010.6 Manual de usuario

NordicTrack

NordicTrack NTTL16900 Manual de usuario

NordicTrack

NordicTrack NTTL18991 Manual de usuario

NordicTrack

NordicTrack E 3800 Manual de operación y mantenimiento

NordicTrack

NordicTrack C4000 Treadmill Guía de configuración

Manuales populares de Rueda de andar de otras marcas

Treadly

Treadly TREADLY 2 Manual de usuario

HEALTH ONE

HEALTH ONE Walk Ro Manual de usuario

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manual de usuario

Merax

Merax MS282992 Manual de usuario

FYTTER

FYTTER RU-2SX Manual de usuario

Precor

Precor 903 Manual de usuario

FitLogic

FitLogic freewill d225 Manual de usuario

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manual de usuario

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manual de usuario

Stamia

Stamia InMotion II Manual de usuario

Smooth Fitness

Smooth Fitness EVO 3i Manual de usuario

Schwinn

Schwinn 830/Journey 8.0 Manual de usuario

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manual de usuario

Spirit

Spirit XT8 Manual de usuario

Master

Master F22 Manual de usuario

Precor

Precor PRECISION SERIES Manual técnico

Horizon Fitness

Horizon Fitness DT680 Manual de usuario

Matrix

Matrix T130 XI Manual de usuario
