NordicTrack R35 Manual de usuario
USER’S MANUAL
Serial
Number
Decal
Model No. NTEX14921.0
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
nordictrack.com
To register your product and
activate your warranty today,
go to my.nordictrack.com.
For service at any time, go to
support.nordictrack.com.
Or call 1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE
2
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO USE THE CONSOLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
MAINTENANCE AND TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
TABLE OF CONTENTS
NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. The Bluetooth®word mark
and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. Google Maps is a trade-
mark of Google LLC. Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi
Alliance.

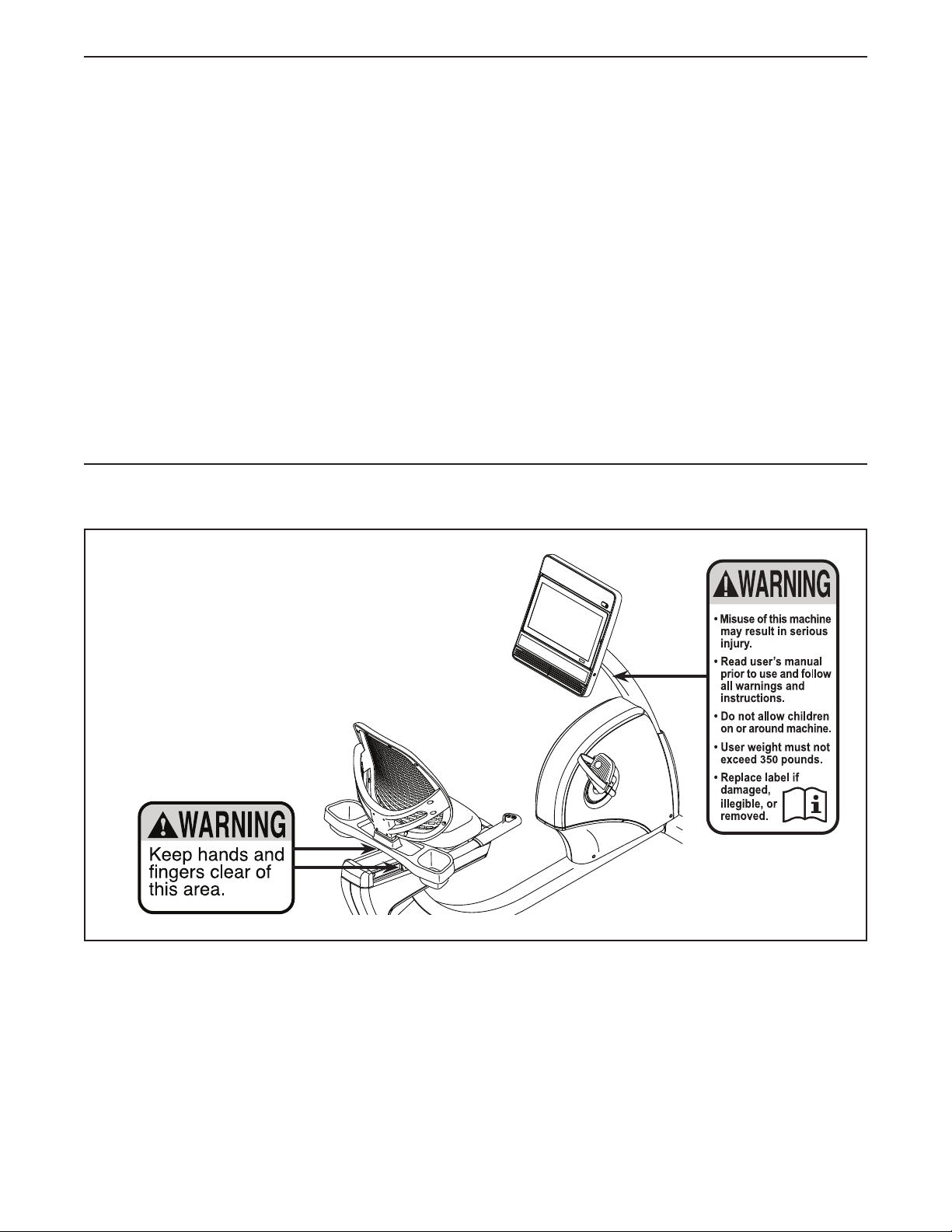

This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. The exercise bike is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the exercise
bike by someone responsible for their safety.
4. Use the exercise bike only as described in
this manual.
5. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
6. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
7. Place the exercise bike on a level surface
with at least 2 ft. (0.6 m) of clearance around
the exercise bike. To protect the floor or
carpet from damage, place a mat under the
exercise bike.
8. Inspect and properly tighten all parts each
time the exercise bike is used. Replace any
worn parts immediately.
9. Keep children under age 16 and pets away
from the exercise bike at all times.
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
11. The exercise bike should not be used
by persons weighing more than 350 lbs.
(159 kg).
12. Be careful when mounting and dismounting
the exercise bike.
13. Always keep your back straight while using
the exercise bike; do not arch your back.
14. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
4
all

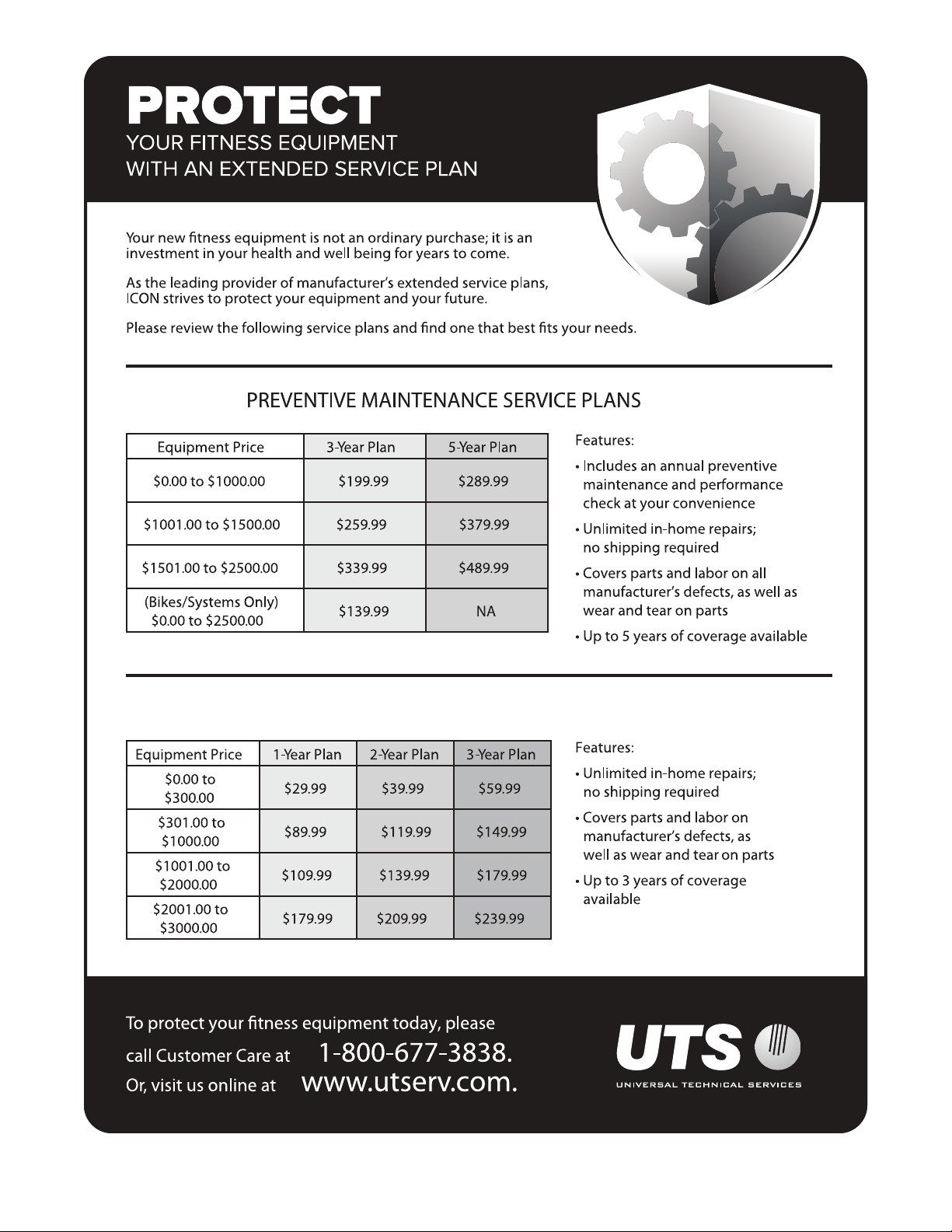

STANDARD SERVICE PLANS
5
Console
Seat
Adjustment Handle
Volume
Control
Fan
Resistance Control
Pedal/Strap
Wheel
Leveling Foot
Backrest
Accessory Tray
BEFORE YOU BEGIN
Thank you for selecting the revolutionary
NORDICTRACK®R 35 exercise bike. Cycling is an
effective exercise for increasing cardiovascular fitness,
building endurance, and toning the body. The R 35
exercise bike provides an impressive selection of fea-
tures designed to make your workouts at home more
effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Length: 5 ft. 8 in. (173 cm)
Width: 1 ft. 10 in. (56 cm)
6
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M10 x 122mm Screw (65)–4
M10 x 62mm Screw (70)–4
M4 x 16mm
Screw (77)–10
M6 x 30mm
Screw (75)–4
M6 Washer
(88)–8
M8 x 22mm
Screw (69)–2
M8 x 38mm
Screw (67)–4
M6 x 18mm
Screw (25)–4
7
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.

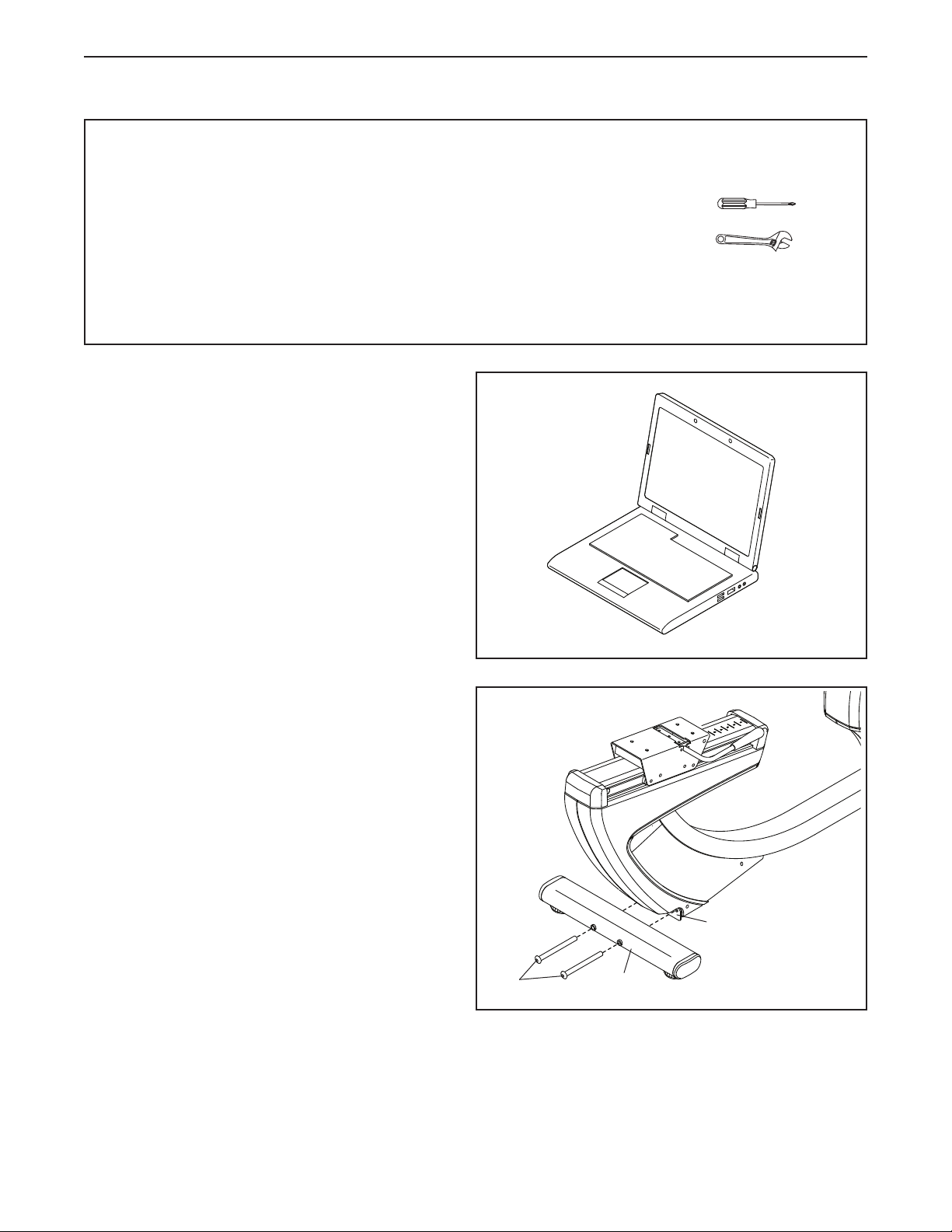

In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
2. Set a sturdy piece of packing material under the
rear of the Frame (1). Have a second person
hold the Frame to prevent it from tipping
while you complete this step.
Orient the Rear Stabilizer (16) as indicated by
the sticker. Attach the Rear Stabilizer to the
Frame (1) with two M10 x 122mm Screws (65).
Then, remove the packing material.
16
2
65
1
1. Go to my.nordictrack.com on your computer
and register your product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.
8
3. Set a sturdy piece of packing material under the
front of the Frame (1). Have a second person
hold the Frame to prevent it from tipping
while you complete this step.
Orient the Front Stabilizer (15) as shown. Attach
the Front Stabilizer to the Frame (1) with two
M10 x 122mm Screws (65).
Then, remove the packing material.
1
3
65
15
4
2
42
43
1
A
A
4. Orient the Upright (2) as shown. Have a second
person hold the Upright near the front of the
Frame (1).
Tie the lower end of the wire tie (A) in the
Upright (2) to the Main Wire (43) and to the
Control Wire (42) in the Frame (1).
Then, pull the upper end of the wire tie (A)
until the Wires (42, 43) are routed through the
Upright (2).
9
70
2
Avoid pinching
the wires
5. Tip: Avoid pinching the wires. Slide the
Upright (2) onto the Frame (1).
Attach the Upright (2) with four M10 x 62mm
Screws (70); start all the Screws, and then
tighten them.
1
58
13
14
6. Press the mount on the Front Shield (58) into the
Frame (1). Then, press the Front Shield onto the
Left and Right Front Shields (13, 14).
6
1
5
10
7
2
57
8
69
7
B
B
A
A
7. Orient the Upright Cover (57) as shown. Hold the
Upright Cover near the Upright (2), and insert
the wire tie (A) and the wires (B) upward through
the Upright Cover.
Then, slide the Upright Cover (57) onto the
Upright (2).
8. Orient the Console Plate (7) as shown. Hold the
Console Plate near the Upright (2), insert the
wire tie (A) and the wires (B) upward through the
Console Plate.
Tip: Avoid pinching the wires. Attach the
Console Plate (7) to the Upright (2) with two
M8 x 22mm Screws (69).
2
Avoid pinching
the wires
94
7
42
43

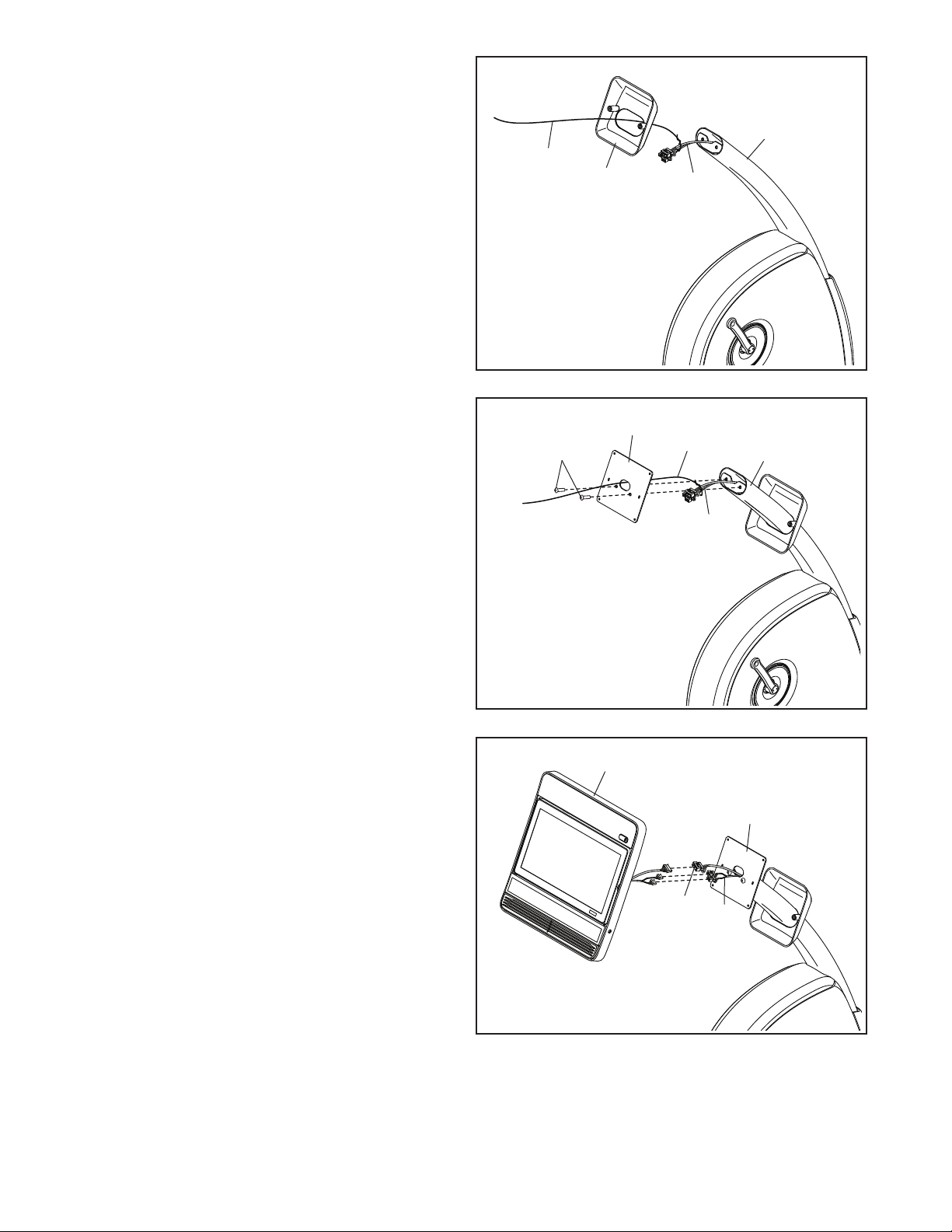

9. Untie and discard the wire tie on the Main Wire
(43) and the Control Wires (42).
While a second person holds the Console (4)
near the Console Plate (7), connect the wires
on the Console to the Main Wire (43) and the
Control Wires (42).
Insert the excess wire into the Console Plate (7).
Tip: It may be helpful to insert the connectors
on the wires one at a time through the hole in
the Console Plate.
Otros manuales para R35
1
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Entrenador elíptico de NordicTrack
NordicTrack
NordicTrack E 7.2 Elliptical Manual de instrucciones
NordicTrack
NordicTrack E 8.5 Elliptical Manual de usuario
NordicTrack
NordicTrack Freestride Trainer FS7i Manual de usuario
NordicTrack
NordicTrack NEL07940 Manual de usuario
NordicTrack
NordicTrack SpaceSaver Plus Manual de usuario
NordicTrack
NordicTrack 1300 Elliptical Manual de usuario
NordicTrack
NordicTrack NTEL01712.2 Manual de usuario
NordicTrack
NordicTrack E7.0 Elliptical Guía de configuración
NordicTrack
NordicTrack CROSSWALK 8.0 Manual de usuario
NordicTrack
NordicTrack E11.0 Elliptical Guía de inicio rápido
NordicTrack
NordicTrack E 12.2 Elliptical Guía de configuración
NordicTrack
NordicTrack NTEL59010 Manual de usuario
NordicTrack
NordicTrack E 5.5 Elliptical Manual de usuario
NordicTrack
NordicTrack 831.283530 Manual de usuario
NordicTrack
NordicTrack NTEL08991 Manual de usuario
NordicTrack
NordicTrack Vgr 900 Manual de usuario
NordicTrack
NordicTrack Ellipse E9 Manual de usuario
NordicTrack
NordicTrack 831.23665.0 Manual de usuario
NordicTrack
NordicTrack A.C.T. NTCW90907.1 Manual de usuario
NordicTrack
NordicTrack E 8.2 Elliptical Manual de usuario
Manuales populares de Entrenador elíptico de otras marcas
Weslo
Weslo Momentum 4.0 Elliptical Manual de operación y mantenimiento
Progear Fitness
Progear Fitness Air elliptical pro 1307 Manual de usuario
Torque Fitness
Torque Fitness XPLLP Manual de usuario
Octane Fitness
Octane Fitness PRO3700C Manual de usuario
Xterra
Xterra FS5.8e Manual de usuario
Bodyguard
Bodyguard E-40 Manual de usuario
Bonn Germany
Bonn Germany Concept 2.2 Manual de usuario
Precor
Precor Resolute RSL 620 Manual de usuario
Vision Fitness
Vision Fitness X6600iNetTV Manual de usuario
Matrix
Matrix MX-A5x Manual de usuario
SportsArt Fitness
SportsArt Fitness ECO-NATURAL Elite E874 Manual de usuario
Sears
Sears FREE SPIRIT C249 30737 0 Manual de usuario
