Nordic ID FR22 Manual de usuario

2022-04-04

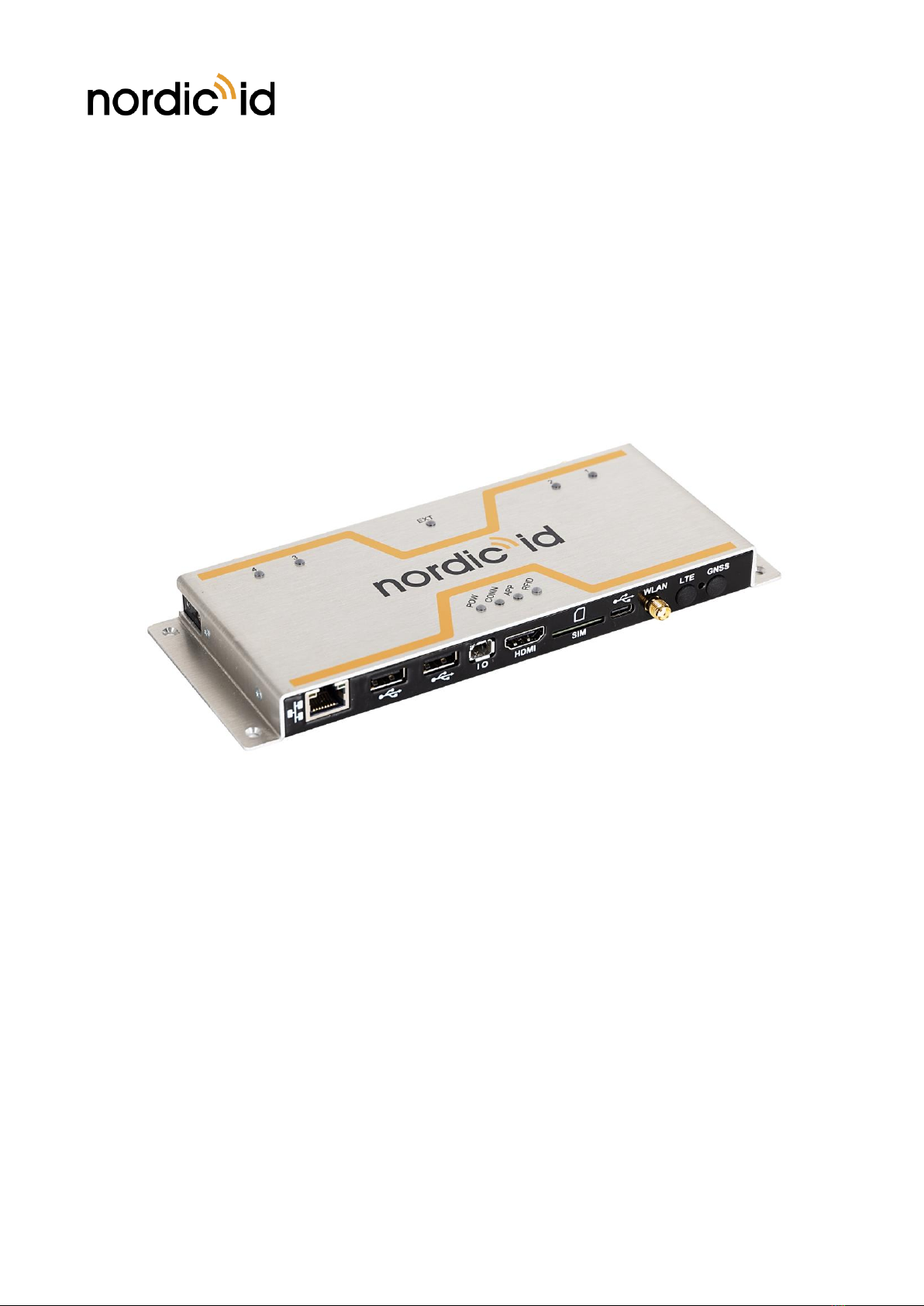

Nordic ID FR22 User Guide

Version 1.0

NORDIC ID FR22

RFID IOT EDGE GATEWAY

USER GUIDE



Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office +358 2 727 7700 | Fax + 358 2 727 7720 | [email protected]
 2 / 40

2022-04-04
Nordic ID FR22 User Guide
Version 1.0
TABLE OF CONTENTS
 GETTING STARTED.......................................................................................................................................................................4
1.1. GENERAL .......................................................................................................................................................................4
1.2. VARIANTS......................................................................................................................................................................4
1.3. ANTENNAS AND ACCESSORIES ..........................................................................................................................4
1.4. AVAILABLE KITS .........................................................................................................................................................6
1.5. PACKAGE CONTENT ................................................................................................................................................7
 USING THE DEVICE......................................................................................................................................................................8
2.1. FEATURES AND CONNECTORS OVERVIEW...................................................................................................8
2.2. PHYSICAL CONNECTORS.......................................................................................................................................9
 ETHERNET / POWER ................................................................................................................................9
 USB 2.0 HOST WITH TYPE A CONNECTOR ....................................................................................9
 USB 2.0 DEVICE WITH TYPE C CONNECTOR.................................................................................9
 GPIO CONNECTOR.................................................................................................................................10
 HDMI ............................................................................................................................................................10
 SLOT FOR MINI SIM CARD (OPTIONAL) ........................................................................................ 10
 DUAL BAND WLAN AND BLUETOOTH .........................................................................................11
 WWAN CELLULAR CONNECTIVITY (OPTIONAL).......................................................................11
 GNSS (OPTIONAL)...................................................................................................................................11
 RFID ANTENNA PORTS...................................................................................................................... 11
 NORDIC ID EXTENSION PORT ........................................................................................................12
2.3. MOUNTING ............................................................................................................................................................... 13
2.4. POWERING THE READER ....................................................................................................................................14
2.5. LED INDICATORS .................................................................................................................................................... 14
 POWER LED............................................................................................................................................... 15
 CONNECTION LED .................................................................................................................................15
 APPLICATION LED ..................................................................................................................................15
 RFID LED.....................................................................................................................................................16
 ANTENNA LEDS .......................................................................................................................................16
 EXTENSION LED ......................................................................................................................................16
2.6. RESET BUTTON........................................................................................................................................................ 17
 RF PROFILES.................................................................................................................................................................................17
 THERMAL MANAGEMENT..................................................................................................................................................... 18
 SOFTWARE................................................................................................................................................................................... 18
5.1. NORDIC ID RFID APPLICATIONS FOR NORDIC ID FR22........................................................................ 18
 NORDIC ID RFID DEMO .......................................................................................................................18
 NORDIC ID RFID CONFIGURATOR..................................................................................................20



Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland
Office +358 2 727 7700 | Fax + 358 2 727 7720 | [email protected]
 3 / 40

2022-04-04
Nordic ID FR22 User Guide
Version 1.0
 NORDIC ID FR APPLICATION SIGNING TOOL.............................................................................20
 NORDIC ID KEYBOARD WEDGE....................................................................................................... 21
 WEB MANAGEMENT INTERFACE....................................................................................................................................... 22
6.1. LOG IN ......................................................................................................................................................................... 22
6.2. MAIN MENU..............................................................................................................................................................24
6.3. DASHBOARD ............................................................................................................................................................ 25
6.4. SYSTEM MENU.........................................................................................................................................................25
 FACTORY RESET......................................................................................................................................26
 WEB USER INTERFACE .........................................................................................................................27
 WEB BROWSER........................................................................................................................................ 28
6.5. HARDWARE SETTINGS.........................................................................................................................................29
6.6. NETWORK SETTINGS............................................................................................................................................30
6.7. DISPLAY ...................................................................................................................................................................... 31
6.8. RFID ..............................................................................................................................................................................32
6.9. SOFTWARE................................................................................................................................................................ 33
 PLUGINS...................................................................................................................................................... 33
 APPS.............................................................................................................................................................. 33
 NORDIC ID APP CENTER......................................................................................................................34
 APPS/PLUGINS CREDENTIALS...........................................................................................................35
6.10. REMOTE TOOLS ......................................................................................................................................................36
 REGIONAL SETTINGS ...............................................................................................................................................................37
 COMPLIANCE STATEMENTS................................................................................................................................................. 37
8.1. CE...................................................................................................................................................................................37
8.2. FCC/IC .........................................................................................................................................................................37
8.3. RF EXPOSURE...........................................................................................................................................................38
8.4. HEAT EXPOSURE..................................................................................................................................................... 38
 SERVICE AND SUPPORT .........................................................................................................................................................38
WARRANTY.................................................................................................................................................................................. 39
RELATED DOCUMENTS AND CONTENT......................................................................................................................... 39
ABOUT NORDIC ID ................................................................................................................................................................... 39
VERSION HISTORY....................................................................................................................................................................40



Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland

Office +358 2 727 7700 | Fax + 358 2 727 7720 | [email protected]

4 / 40

2022-04-04

Nordic ID FR22 User Guide

Version 1.0

GETTING STARTED

1.1. GENERAL

The Nordic ID FR22 is the core device of a new approach for RFID fixed systems with a modular design.

It can enable different use cases for different segments depending which modules or accessories are

attached to it.

The Nordic ID FR22 is an IoT Edge Gateway providing USB, Ethernet, WLAN, 4G, GPS, BLE and RFID

connectivity.

It also has an embedded computer with Linux OS and connection to HDMI display, what enables

installation and operation of 3rd party applications and makes the system much more scalable and

manageable than conventional RFID readers.

•Fast and reliable edge computing with support for custom embedded applications

•Wide communication options that enable flexibility in system designing and no need for external

connectivity hardware

•New UHF RFID engine based on the very latest technology, Nordic ID NUR3-1W

•Develop embedded web apps with user interface. Eliminating the need for external PC/tablet

•Nordic ID extension connector for plug and play accessories like 16 port RF multiplexer

•Connect external devices, sensors, triggers, lights and buzzers

•Full set of API’s available for controlling the reader

1.2. VARIANTS

Nordic ID FR22 is available in 2 different variants, depending on the required communication interfaces

(with or without LTE):

CODE

DESCRIPTION

NPI00001

Nordic ID FR22 IoT Edge Gateway (USB / LAN / WLAN / BLE)

NPI00002

Nordic ID FR22 IoT Edge Gateway LTE (USB / LAN / WLAN / BLE / LTE)

1.3. ANTENNAS AND ACCESSORIES

The Nordic ID FR22 needs external RFID antennas to operate. It can work with any standard UHF RFID

antenna, but we suggest using Nordic ID RAIN RFID antennas.

Nordic ID antenna portfolio includes two exclusive antennas for Nordic ID FR22:

•Nordic ID GA30, a general-purpose antenna with high gain and IP rating, that allows the Nordic

ID FR22 to be mounted behind it to create an integrated RFID reader+antenna solution.

•Nordic ID BFA, a beam-forming antenna for special applications that require reading tags in large

areas or detection of movement and direction. This antenna is connected to the Nordic ID

Extension Port in Nordic ID FR22 instead of SMA ports.

Model and quantity (up to 4 without multiplexer or up to 16 with multiplexer) of antennas depend on the

use case.

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland

Office +358 2 727 7700 | Fax + 358 2 727 7720 | [email protected]

5 / 40

2022-04-04

Nordic ID FR22 User Guide

Version 1.0

CODE

DESCRIPTION

ACN00208*

Nordic ID FR22 16 port multiplexer

ACN00214

Power supply for Nordic ID FR22, POE 30W with power cord EU

ACN00215

Power supply for Nordic ID FR22, POE 30W with power cord UK

ACN00216

Power supply for Nordic ID FR22, POE 30W with power cord US

EMA00017

Active GPS antenna

ANG00001

Nordic ID GA30 antenna

ACN00224*

Nordic ID BFA antenna, 868

ACN00225*

Nordic ID BFA antenna, 915

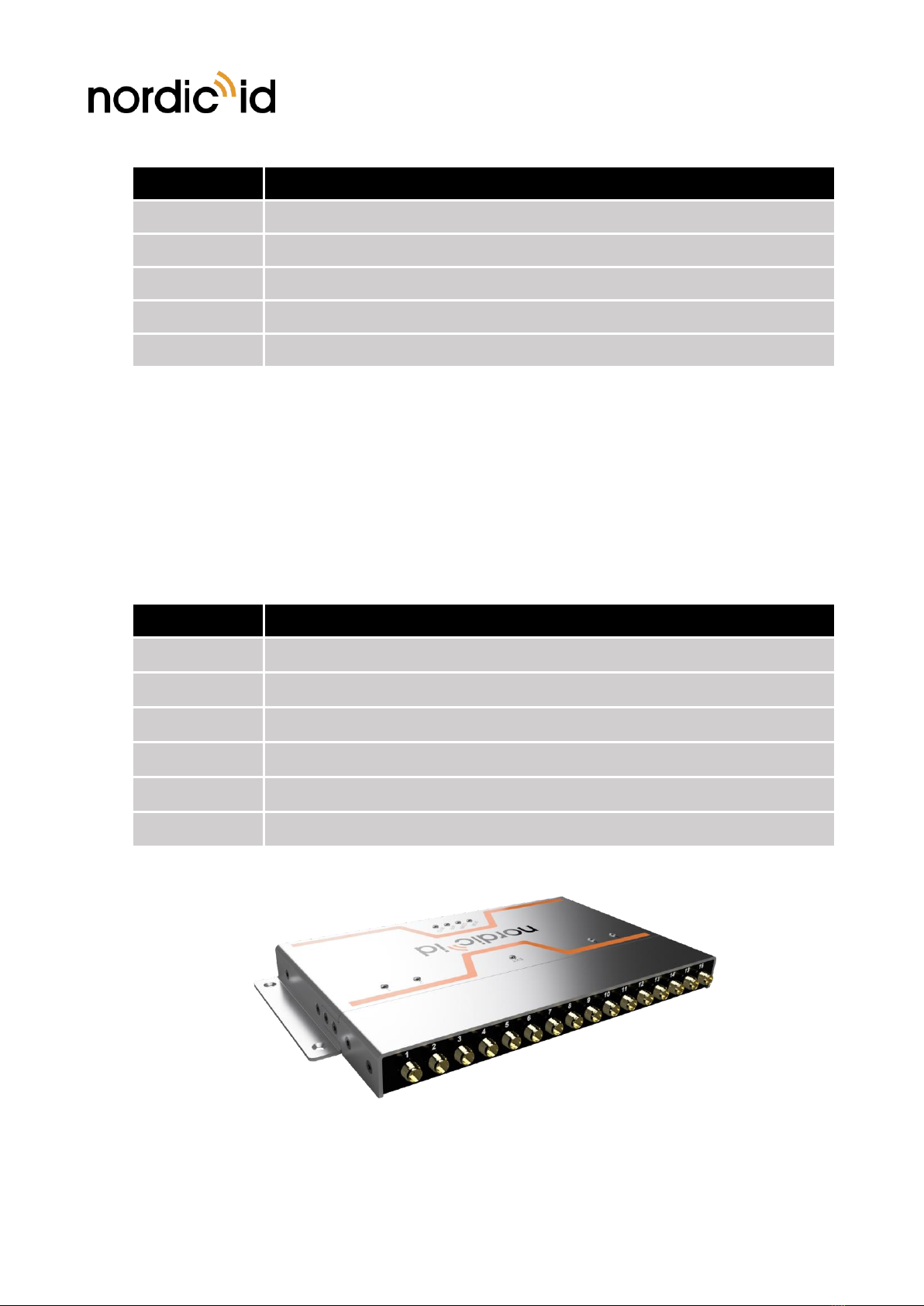

Picture 1 Nordic ID 16-port multiplexer

Picture 2 Nordic ID BFA antenna

* These modules (16-port multiplexer and BFA antenna) can be purchased as accessories (product code

ACN....) or preassembled together with the Nordic ID FR22 (product code NPK....).

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland

Office +358 2 727 7700 | Fax + 358 2 727 7720 | [email protected]

6 / 40

2022-04-04

Nordic ID FR22 User Guide

Version 1.0

CODE

DESCRIPTION

CWH00098

Nordic ID FR22 external antenna cable (length 1m, SMA-male 90º to RP-SMA)

CWH00099

Nordic ID FR22 external antenna cable (length 3m, SMA-male 90º to RP-SMA)

CWH00100

Nordic ID FR22 external antenna cable (length 5m, SMA-male 90º to RP-SMA)

CWH00101

Nordic ID FR22 external antenna cable (length 10m, SMA-male 90º to RP-SMA)

CWH00102

Nordic ID antenna cable for FR22 mounted on GA30 (length 8cm)

1.4. AVAILABLE KITS

The Nordic ID FR22 can be delivered with preassembled extension modules, as a fully enhanced device

for specific use cases, such as applications.

For example, if you need a 16-ports RFID reader (as our old Nordic ID AR82 was), you can order the

NPK00007 kit, which includes a Nordic ID FR22 reader with assembled 16-port multiplexer.

Or if you need a wide area RFID reader (as our old Nordic ID AR85 was), you can order the NPK00004

kit, which includes a Nordic ID FR22 reader assembled on the back plate of a BFA antenna.

CODE

DESCRIPTION

NPK00003

Nordic ID FR22 IoT Edge Gateway + BFA 915

NPK00004

Nordic ID FR22 IoT Edge Gateway + BFA 868

NPK00005

Nordic ID FR22 IoT Edge Gateway LTE + BFA 915

NPK00006

Nordic ID FR22 IoT Edge Gateway LTE + BFA 868

NPK00007

Nordic ID FR22 IoT Edge Gateway 16 ports

NPK00008

Nordic ID FR22 IoT Edge Gateway LTE 16 ports

Picture 3 Nordic ID FR22 with preassembled 16-port multiplexer (NPK00007/8)

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland

Office +358 2 727 7700 | Fax + 358 2 727 7720 | [email protected]

7 / 40

2022-04-04

Nordic ID FR22 User Guide

Version 1.0

Picture 4 Nordic ID FR22 assembled on Nordic ID BFA antenna (NPK00003-6)

1.5. PACKAGE CONTENT

Nordic ID FR22 package contains following items

•Nordic ID FR22

•WLAN/Bluetooth antenna

•LTE antenna (only in LTE variant)

•Safety and regulations card

•Additional product label with product information (keep this safe)

NOTE! Power supply and GPS antenna not included

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland

Office +358 2 727 7700 | Fax + 358 2 727 7720 | [email protected]

8 / 40

2022-04-04

Nordic ID FR22 User Guide

Version 1.0

USING THE DEVICE

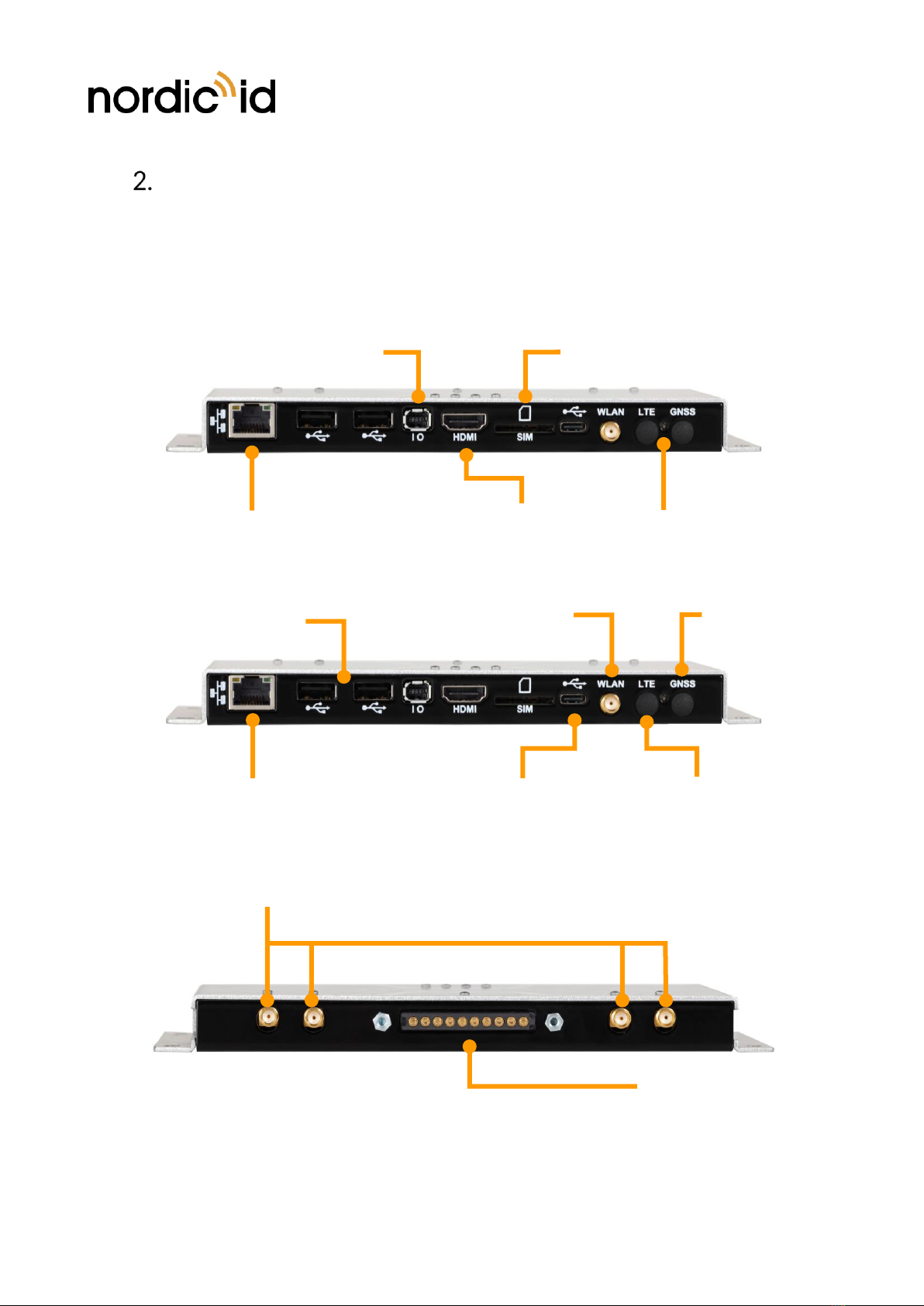

2.1. FEATURES AND CONNECTORS OVERVIEW

The Nordic ID FR22 includes external WLAN and WWAN (only the LTE variant) antennas that need to

be fastened to the device before it’s taken into use.

Picture 5 Rear panel of Nordic ID FR22 (operation)

Picture 6 Rear panel of Nordic ID FR22 (communications)

Picture 7 Front panel of Nordic ID FR22

4x RFID ANTENNA PORTS

NORDIC ID

EXTENSION PORT

ETHERNET / POWER

2x USB Host

MINI-IO

HDMI port

GPS antenna

LTE/4G antenna

WLAN/BLE

antenna

SIM-card

USB-C Device

ETHERNET / POWER

Reset

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland

Office +358 2 727 7700 | Fax + 358 2 727 7720 | [email protected]

9 / 40

2022-04-04

Nordic ID FR22 User Guide

Version 1.0

2.2. PHYSICAL CONNECTORS

Nordic ID FR22 includes the following physical connectors:

•Ethernet 10/100Mbps with PoE 802.3at support.

•2 pcs USB 2.0 host Type A connectors

•USB 2.0 device Type C connector (USB HID profile supported)

•Mini-IO connector (4pcs of IO’s)

•HDMI connector (video only)

•Slot for mini-SIM card (only in LTE variant)

•SMA antenna connector for dual band WLAN and Bluetooth connectivity

•SMA antenna connector for WWAN cellular connectivity (only in LTE variant)

•SMA antenna connector for GNSS (only in LTE variant)

•4 pcs RP-SMA antenna connectors for connecting external RFID antennas to the reader

•Nordic ID Extension Port

ETHERNET / POWER

The Nordic ID FR22 includes standard RJ-45 ethernet connector. The reader supports 10/100Mbps

speed class and 802.3at PoE.

There is no DC connector for an external power supply. The Nordic ID FR22 is powered via Ethernet,

regardless of whether Ethernet is the communication interface in use or not.

A shielded Ethernet cable is suggested.

USB 2.0 HOST WITH TYPE A CONNECTOR

Nordic ID FR22 includes two USB 2.0 host Type A connectors for connecting peripheral USB devices to

the device to expand its functionalities, such as barcode scanners, memory sticks, keyboards, sensors, etc.

Maximum current out from the USB 2.0 host Type A connectors is 500mA.

USB 2.0 DEVICE WITH TYPE C CONNECTOR

Nordic ID FR22 includes one USB 2.0 device Type C connector for connecting it to a host device.

NOTE! Web management interface can’t be access using USB connector. Web management

interface can be accessed only using ethernet, WLAN and WWAN connections.

Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland

Office +358 2 727 7700 | Fax + 358 2 727 7720 | [email protected]

10 / 40

2022-04-04

Nordic ID FR22 User Guide

Version 1.0

GPIO CONNECTOR

The Nordic ID FR22 includes a standard mini-IO connector that contains the following functionalities:

•I2C bus

•4 x inputs / outputs (TTL 1.8VDC)

•3.3VDC supply (output)

•GND level

HDMI

The Nordic ID FR22 includes a standard HDMI video output, to connect a display.

The supported resolutions are 1280x720 and 640x480.

By default, the HDMI port will not show anything (other than the Nordic ID logo) at the connected display.

However, after installing the available web browser plugin via the administrator web UI, it will

automatically show the web browser in HDMI output. This plugin also includes settings like kiosk mode

(locked to full screen) and the default page that the web browser should show out-of-the box.

SLOT FOR MINI SIM CARD (OPTIONAL)

The LTE variant of Nordic ID FR22 includes a slot for mini-SIM card. Mini SIM card is to be inserted in

the slot in a right orientation to be functional. The correct insertion orientation of mini-SIM card can be

seen from the Error! Reference source not found..

Picture 8 Insertion orientation of mini-SIM card

SIM orientation

Tabla de contenidos

Otros manuales de Sistema RFID de Nordic ID

Nordic ID

Nordic ID AR85 Manual de usuario

Nordic ID

Nordic ID SAMPO S2 Manual de usuario

Nordic ID

Nordic ID AR62 Manual de usuario

Nordic ID

Nordic ID RFM5110 Manual de usuario

Nordic ID

Nordic ID Morphic Manual de usuario

Manuales populares de Sistema RFID de otras marcas

Chainway

Chainway R1 Manual de usuario

IFM

IFM DTC600 Manual de usuario

Elatec

Elatec TWN4 MULTITECH NANO LEGIC 63 M Manual de usuario

RHOMBUS

RHOMBUS DR20 Manual de usuario

Sirit

Sirit IDentity 6204 Manual de usuario

SOREX

SOREX FLEX Manual de usuario

Omron

Omron V780-HMD68-EIP-KR Manual de usuario

IDENTEC SOLUTIONS

IDENTEC SOLUTIONS iPOINT Si Instrucciones de uso

Shuttle

Shuttle BR06 Instrucciones de uso

Digilock

Digilock Curve Keypad Basic Manual de usuario

Atid

Atid AT870 Manual de usuario

Chacon

Chacon 34958 Manual de usuario

Paxton

Paxton PROXIMITY architectural reader Manual de usuario

CipherLab

CipherLab 1800 series Manual de usuario

Brady

Brady FR22 Manual de usuario

Kronotech

Kronotech BLUEBOX GEN2 M30 UHF Manual de usuario

Unitech

Unitech RH767 Manual de usuario

Honeywell

Honeywell 026366.00 Manual de usuario
