Norcold M1095BKV - Manual de usuario
PART NO. 624870
NORCOLD 10/15/2010
PARTS LIST
N1095 SERIES
WRAPPED DOOR MODELS
N1095BK
M1095BKV
N1095IMBK
N1095SS
N1095IMSS
N1095WH *
PANEL DOOR MODELS
N1095
N1095IM
N1095IMV
N1095V
* WHITE WRAPPED MODELS NO LONGER PRODUCED
N1095 SERIES PARTS LIST - PAGE 2
UPPER DOOR (FREEZER) - MODEL SERIES N1095 - PANEL TYPE
N1095 PANEL DOOR MODELS
NO. PART # DESCRIPTION N1095 N1095IM N1095V
N1095IMV
1 619558 PANEL RETAINER-UPPER DOOR/BLACK/WDL X X
623943 PANEL RETAINER-UPPER DOOR/PANEL/BLACK/SDL X X X
2 618511 HINGE-DOOR SIDE/TOP RH/BTM LH/BLACK/WDL X X
3 619671 HINGE BUSHING-DOOR/WARM GRAY/WDL/SDL X X X
4 619627 DOOR LINER ASSY-UPPER/PANEL/BLACK FRAME/WDL X X
623945 DOOR LINER ASSY-UPPER/PANEL/BLACK FRAME/SDL X X X
5 618160 CAP-HINGE PLUG/BLACK X X X
6 621465 DOOR HANDLE ASSY-LOWER DOOR/RH SWING/PLASTIC/BLACK X X X
7 622313 LATCH-STORAGE/DOOR/PLASTIC HANDLE/WARM GRAY X X X
8 618510 HINGE-DOOR SIDE/TOP LH/BTM RH/BLACK/WDL X X
9 619006 BIN-DOOR SHELF/SMALL/CLEAR/WDL X X
624864 BIN-DOOR SHELF/CLEAR/SDL X X X
10 619008 DIVIDER-DOOR BIN/CLEAR/WDL/SDL X X X
NS 619569 BOLT-CAP SHOULDER/TORX HEAD X X X
WDL = WAFFLE DOOR LINER SDL = SMOOTH DOOR LINER
N1095 SERIES PARTS LIST - PAGE 3
LOWER DOOR (FRESH FOOD) - MODEL SERIES N1095 - PANEL TYPE
N1095 PANEL DOOR MODELS
NO. PART # DESCRIPTION N1095 N1095IM N1095V
N1095IMV
1 619560 PANEL RETAINER-LOWER DOOR/8’/BLACK/WDL X X
623760 PANEL RETAINER-LOWER DOOR/8’/BLACK/SDL X X X
2 618511 HINGE-DOOR SIDE/TOP RH/BTM LH/BLACK/WDL X X
3 619671 HINGE BUSHING-DOOR/WARM GRAY (2 PER DOOR) X X X
4 619631 DOOR LINER ASSY-LOWER/8’/PANEL/BLACK FRAME/WDL X X
623942 DOOR LINER ASSY-LOWER/8’/PANEL/BLACK FRAME/SDL X X X
5 621469 DOOR HANDLE ASSY-UPPER DOOR/RH SWING/PLASTIC/BLACK X X X
6 622313 LATCH-STORAGE/DOOR/PLASTIC HANDLE/WARM GRAY X X X
7 618510 HINGE-DOOR SIDE/TOP LH/BTM RH/BLACK/WDL X X
8 619006 BIN-DOOR SHELF/SMALL/CLEAR/WDL (3 PER DOOR) X X
619005 BIN-DOOR SHELF/LARGE/CLEAR/WDL (1 PER DOOR) X X
8 619006 BIN-DOOR SHELF/SMALL/CLEAR/WDL (3 PER DOOR) X X
9 624864 BIN-DOOR SHELF/CLEAR/SDL X X X
NS 619569 BOLT-CAP SHOULDER/TORX HEAD (NOT SHOWN) X X X
NS 632458 WIRE-BIN/SDL X X X
WDL = WAFFLE DOOR LINER SDL = SMOOTH DOOR LINER
N1095 SERIES PARTS LIST - PAGE 4

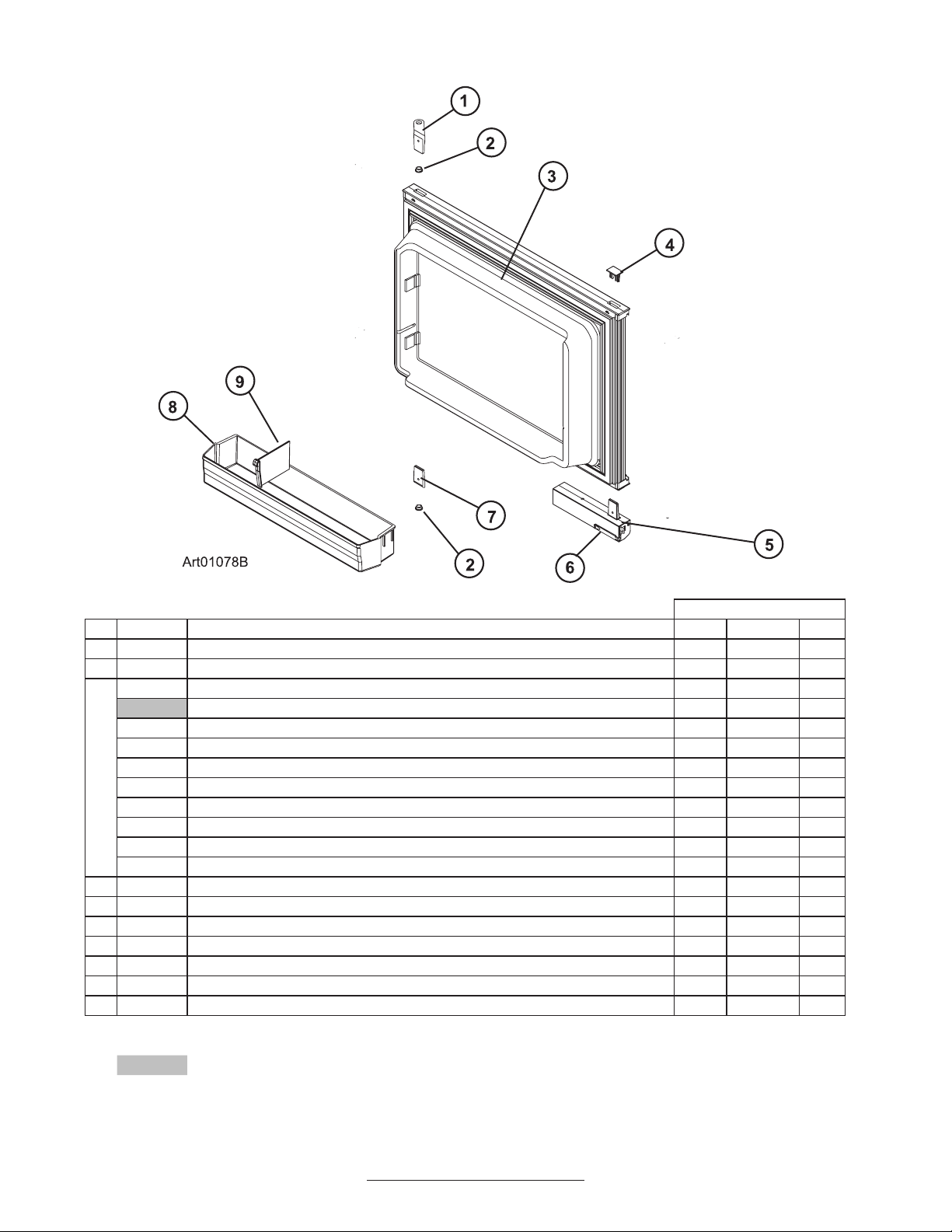

UPPER DOOR (FREEZER) - MODEL SERIES N1095 - WRAP TYPE
N1095 WRAPPED DOORS
NO. PART # DESCRIPTION BLACK STAINLESS WHITE
1 618511 HINGE-DOOR SIDE/TOP RH/BTM LH/BLACK/WDL X X X
2 619671 HINGE BUSHING-DOOR/WARM GRAY/WDL/SDL X X X
3
625874 DOOR ASSY-UPPER/WRAP/BLACK/WDL X
627121 DOOR ASSY-UPPER/WRAP/BLACK/SDL (USE 632732) X
632732 DOOR ASSY-UPPER/AT/WRAP/BLACK/SDL (FROM 07/10/08 TO S/N 12965198) X
634065 DOOR ASSY-UPPER/ANCO/WRAP/BLACK/SDL (SERIAL # 12965199 & ABOVE)
623272 DOOR ASSY-UPPER/WRAP/STAINLESS STEEL/WDL X
630091 DOOR ASSY-UPPER/WRAP/STAINLESS STEEL/SDL X
632731 DOOR ASSY-UPPER/AT/WRAP/SS/SDL (FROM 06/25/08 TO S/N 12985380) X
634062 DOOR ASSY-UPPER/ANCO/WRAP/SS/SDL (SERIAL # 12985381 & ABOVE) X
624143 DOOR ASSY-UPPER/WRAP/WHITE/WDL X
627120 DOOR ASSY-UPPER/WRAP/WHITE/SDL X
4 618160 CAP-HINGE PLUG/BLACK X X X
5 621465 DOOR HANDLE ASSY-LOWER DOOR/RH SWING/PLASTIC/BLACK X X X
6 622313 LATCH-STORAGE/DOOR/PLASTIC HANDLE/WARM GRAY X X X
7 618510 HINGE-DOOR SIDE/TOP LH/BTM RH/BLACK/WDL X X X
8 619006 BIN-DOOR SHELF/SMALL/CLEAR/WDL X X X
9 619008 DIVIDER-DOOR BIN/CLEAR/WDL/SDL X X X
NS 619569 BOLT-CAP SHOULDER/TORX HEAD (NOT SHOWN) X X X
WDL = WAFFLE DOOR LINER SDL = SMOOTH DOOR LINER
BK - BLACK SS = STAINLESS STEEL WH = WHITE (NO LONGER PRODUCED)
PART IS NO LONGER AVAILABLE
N1095 SERIES PARTS LIST - PAGE 5
LOWER DOOR (FRESH FOOD) - MODEL SERIES N1095 - WRAP TYPE
N1095 WRAPPED DOORS
NO. PART # DESCRIPTION BLACK STAINLESS WHITE
1 618511 HINGE-DOOR SIDE/TOP RH/BTM LH/BLACK/WDL X X X
2 619671 HINGE BUSHING-DOOR/WARM GRAY/WDL/SDL X X X
3 625875 DOOR ASSY-LOWER/8’/WRAP/BLACK/WDL/POWDER COAT X
627129 DOOR ASSY-LOWER/8’/WRAP/BLACK/SDL (USE 634067) X
632738 DOOR ASSY-LOWER/8’/WRAP/AT/BLACK/SDL (FROM 07/10/08 TO S/N 12965198) (USE 634067) X
634067 DOOR ASSY-LOWER/8’/WRAP/ANCO/BLACK/SDL (SERIAL # 12965199 & ABOVE) X
623273 DOOR ASSY-LOWER/8’/WRAP/STAINLESS STEEL/WDL X
630093 DOOR ASSY-LOWER/8’/WRAP/STAINLESS STEEL/SDL (USE 632737) X
632737 DOOR ASSY-LOWER/8’/WRAP/AT/SS/SDL (FROM 06/25/08 TO S/N 12985380) X
634064 DOOR ASSY-LOWER/8’/WRAP/ANCO/SS/SDL (SERIAL # 12985380 & ABOVE) X
624145 DOOR ASSY-LOWER/8’/WRAP/WHITE/WDL X
627128 DOOR ASSY-LOWER/8’/WRAP/WHITE/SDL X
4 621469 DOOR HANDLE ASSY-UPPER DOOR/RH SWING/PLASTIC/BLACK X X X
5 622313 LATCH-STORAGE/DOOR/PLASTIC HANDLE/WARM GRAY X X X
6 618510 HINGE-DOOR SIDE/TOP LH/BTM RH/BLACK/WDL X X X
7 619006 BIN-DOOR SHELF/SMALL/CLEAR/WDL (3 PER DOOR) X X
619005 BIN-DOOR SHELF/LARGE/CLEAR/WDL (1 PER DOOR) X X X
624864 BIN-DOOR SHELF/CLEAR/SDL X X X
8 619008 DIVIDER-DOOR BIN/CLEAR (1 PER DOOR SHELF BIN) X X X
NS 632458 WIRE-BIN/SDL X X X
NS 619569 BOLT-CAP SHOULDER/TORX HEAD (NOT SHOWN) X X X
WDL = WAFFLE DOOR LINER SDL = SMOOTH DOOR LINER
BK - BLACK SS = STAINLESS STEEL WH = WHITE (NO LONGER PRODUCED)
PART IS NO LONGER AVAILABLE
N1095 SERIES PARTS LIST - PAGE 6

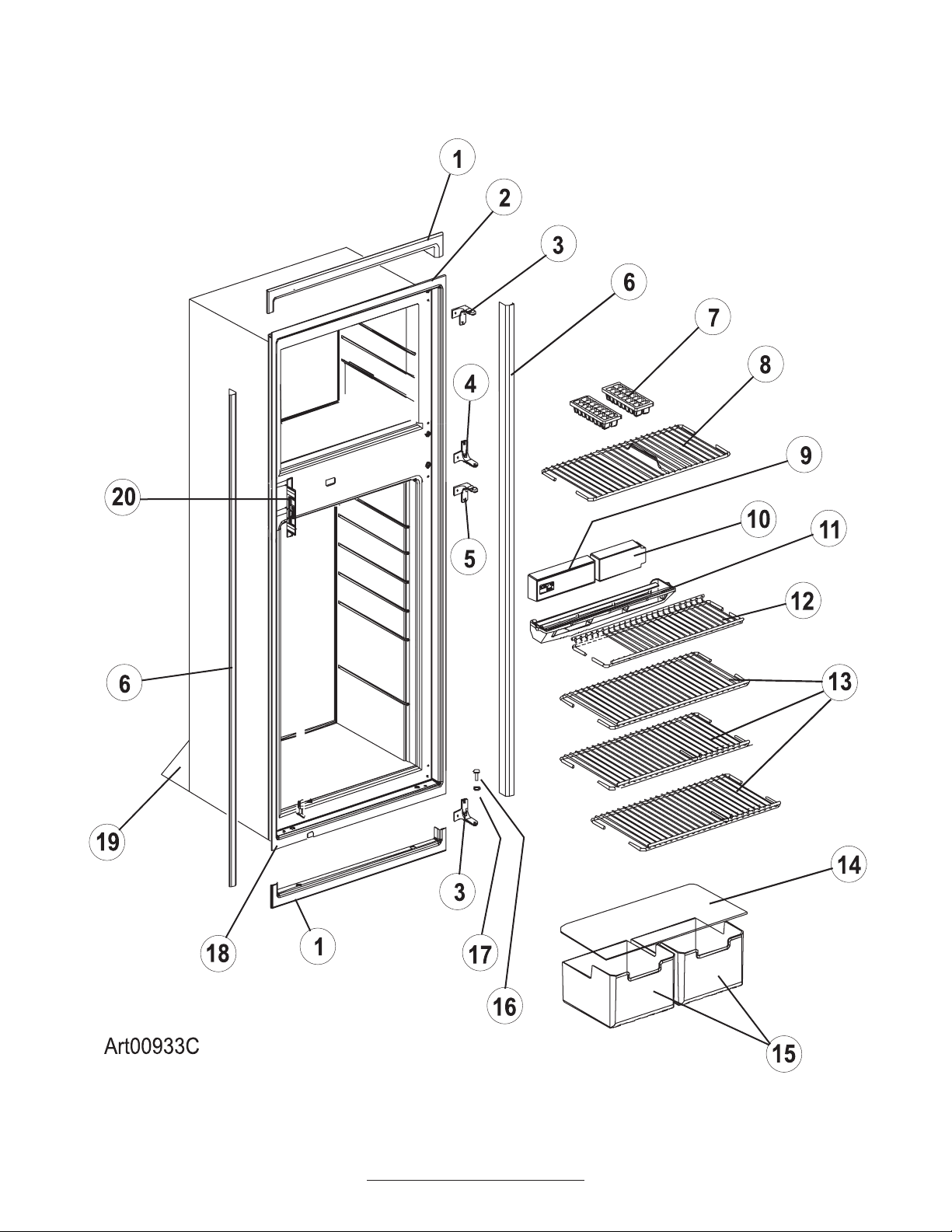

CABINET AREA (FRONT VIEW) - MODEL SERIES N1095
N1095 SERIES PARTS LIST - PAGE 7
CABINET AREA (FRONT VIEW) - MODEL SERIES N1095
NO. PART # DESCRIPTION N1095 N1095IM
1 620915 KIT-INSTALLATION/BLACK (TRIM PIECES/SCREWS) X X
2 625184 BRACKET FOAM TAPE ASSY-TOP/MOUNTING X X
3 623550 HINGE-CABINET/TOP/BOTTOM/(PANEL/WDL)(WRAP/SDL) X X
626659 HINGE-CABINET/TOP/BOTTOM/PANEL/SDL X X
619335 HINGE-CABINET/3 POINT/TOP RH/BTM LH/BLACK/WDL X X
623771 HINGE-CABINET/3 POINT/TOP RH/BTM LH/PANEL/BLACK/SDL X X
624785 HINGE-CABINET/3 POINT/TOP RH/BTM LH/WRAP/BLACK/SDL X X
4 619336 HINGE-CABINET/3 POINT/TOP LH/BTM RH/BLACK/WDL X X
623772 HINGE-CABINET/3 POINT/TOP LH/BTM RH/PANEL/BLACK/SDL X X
624786 HINGE-CABINET/3 POINT/TOP LH/BTM RH/WRAP/BLACK/SDL X X
5 619335 HINGE-CABINET/3 POINT/TOP RH/BTM LH/BLACK/WDL X X
623771 HINGE-CABINET/3 POINT/TOP RH/BTM LH/PANEL/BLACK/SDL X X
624785 HINGE-CABINET/3 POINT/TOP RH/BTM LH/WRAP/BLACK/SDL X X
6 625185 TRIM PIECE FOAM TAPE ASSY-CABINET/SIDE/10’/BLACK X X
7 61630422 ICE CUBE TRAY-PLASTIC (NON ICE MAKER MODELS ONLY)(2 PER CABINET) X
8 620982 SHELF-WIRE/FREEZER X X
9 628976 CONTROL ASSY-OPTICAL/BLACK (SERIAL# 9045738 & ABOVE) X X
619665 CONTROL ASSY-OPTICAL/BLACK (SERIAL# 9045737 & BELOW)(LIMITED QUANTITIES) X X
633287 KIT-CONTROL ADAPTER (SERIAL# 9045737 & BELOW) X X
10 619282 FRONT BOX-BLACK X X
11 623250 DRIP TRAY-INSIDE (ONE PIECE) X X
12 623713 SHELF-WIRE/CUTOUT X X
13 623712 SHELF-WIRE/FULL X X
NS 623121 CLAMP-SHELF RETAINING LOOP 3/8” X X
14 620985 CRISPER COVER-GLASS SHELF X X
15 621070 BIN-CRISPER X X
16 618145 HINGE PIN (PANEL/WDL)(WRAP/SDL) X X
61550722 HINGE PIN-BOTTOM/SDL X X
623899 HINGE PIN-UPPER/LOWER/BLACK (PANEL/SDL) X X
17 619671 HINGE BUSHING-DOOR/WARM GRAY X X
18 625183 BRACKET FOAM TAPE ASSY-BOTTOM/MOUNTING X X
19 61586722 BRACE-CABINET/BACK X X
20 618167 STRIKE PLATE-BLACK X X
WDL = WAFFLE DOOR LINER SDL = SMOOTH DOOR LINER
N1095 SERIES PARTS LIST - PAGE 8
CABINET AREA (REAR VIEW/COOLING UNIT) - MODEL SERIES N1095
NO. PART # DESCRIPTION N1095 N1095IM
1 632316 NSC SYSTEM PACK-COOLING UNIT/N1095/ (BACKER HEATER) X X
2M0802 KIT-THERMAL SWITCH/BRACKET ASSY (SEE NOTE) X X
NS 618111 BAFFLE DIFFUSER/WIRE ASSY-COOLING UNIT (NOT SHOWN) X X
2 622391 DRAIN HOSE ASSY X X
3 622546 DRIP CUP-REAR/PLASTIC X X
4 61712637 COVER ASSY-BURNER BOX X X
5 61695322 BASE-BURNER BOX X X
6 621702 HEATER-AC (COOLING UNIT SERIAL# 11232007 & BELOW) X X
630811 HEATER-AC/BACKER (COOLING UNIT SERIAL# 11232008 & ABOVE) X X
7 61695022 CAP-HEAT DEFLECTOR X X
8 61586722 BRACE-CABINET/BACK X X
9 61686823 FINS X X
NS 625005 BAFFLE ASSY-REAR HEAT (NOT SHOWN) X X
NOTE: FOR COOLING UNITS WITH A THERMAL SWITCH.
N1095 SERIES PARTS LIST - PAGE 9
CONTROLS (REAR VIEW) - MODEL SERIES N1095
NO. PART # DESCRIPTION N1095 N1095IM
1 618186 BASE-POWER BOARD (9045737 & BELOW) X X
628674 BASE-POWER BOARD (9045738 & ABOVE) X X
2 621269001 KIT-POWER BOARD (9045737 & BELOW) X X
628661 POWER BOARD (9045738 & ABOVE) X X
3 618185 COVER-POWER BOARD (9045737 & BELOW) X X
628677 COVER-POWER BOARD (9045738 & ABOVE) X X
4 621448 WIRE-WHITE/9”/GAS VALVE X X
5 624681 BRACKET-MOUNTING/GAS VALVE (9185698 & BELOW) X X
628993 BRACKET-MOUNTING/GAS VALVE (9185699 & ABOVE) X X
6 621334 KIT-GAS VALVE/BRACKET/WIRES (9185698 & BELOW) X X
633726 GAS VALVE-SOLENOID (9185699 & ABOVE) X X
7 624682 BURNER TUBE X X
8 621957 KIT-BURNER/ORIFICE ADAPTER ASSY X X
9 61554422 CORD-AC POWER/BLACK X X
NS 621755 CORD-POWER/ICE MAKER/WHITE (NOT SHOWN) X
10 61712637 COVER ASSY-BURNER BOX X X
11 61695322 BASE-BURNER BOX X X
12 61692222 ELECTRODE-SPARK/SENSE/SINGLE ELECTRODE/0.25” X X
13 632316 NSC SYSTEM PACK-COOLING UNIT/N1095 (BACKER HEATER) X X
14 61586722 BRACE-CABINET/BACK X X
NS = NOT SHOWN
NOTE: IF THE CONTROL ASSY-OPTICAL HAS BEEN REPLACED WITH A KIT-CONTROL ADAPTOR, THE POWER BOARD MUST
BE REPLACED WITH A NEW KIT-CONTROL ADAPTER.
N1095 SERIES PARTS LIST - PAGE 10
INTERIOR LIGHT AND THERMISTER ASSY - MODEL SERIES N1095
NO. PART # DESCRIPTION N1095 N1095IM
1 61629722 LAMP BRACKET ASSY X X
2 632545 LAMP-DC LIGHT BULB X X
3 621827 COVER-LAMP BRACKET X X
4 620875 CLIP-THERMISTER MOUNTING/ADHESIVE BACK X X
5 620871 LAMP THERMISTER WIRE ASSY X X
