Norcold DC-4100 Manual de usuario

PARTS LIST

PART # 624213

NORCOLD 07/16/2007

DC68 SERIES

DC6843

DC6844

DC6845

DC6846

DC85 SERIES

DC8511

DC8512

DC41 SERIES

DC4100

DC4101

DC4102

DC4103

DC68/DC85/DC41 SERIES (L4)

DC851 SERIES PARTS LIST - PAGE 2

FRONT VIEW - DOOR AND CABINET PARTS - DC68/DC85/DC41 SERIES

NO PART # DESCRIPTION MODELS

1 323011200 FRAME-CABINET/COVER/UPPER/LOWER ALL

2 505503600 HINGEPIN ALL

3 304112800 PLATE-HINGE/UPPER ALL

4 160119120 DOOR ASSY-WARM GRAY/GRAY INSERT DC6843

160119130 DOORASSY-WARM GRAY/BURL WOOD INSERT DC6844

160119140 DOOR ASSY-CHARCOAL/BRUSHED SILVER INSERT DC6845

160119150 DOOR ASSY-CHARCOAL/GALLOWAY BURL INSERT DC6846

160119100 DOORASSY-GRAY/PALLADIUM INSERT (SILVER) DC8511

160119110 DOOR ASSY-GRAY/WOODINSERT DC8512

160120300 DOORASSY-GRAY/PALLADIUM INSERT (SILVER) DC4100

160120310 DOOR ASSY-GRAY/WOODINSERT DC4101

160120330 DOOR ASSY-TAN/PALADIUM INSERT DC4102

160120320 DOOR ASSY-TAN/WOOD INSERT DC4103

160120340 DOOR ASSY-TAN/BRICK (RED) DC4104

5 414803600 DOOR GASKET ALL

6 422512010 PUSH BUTTON-DOOR LATCH/GRAY(REDDISH) DC6843, DC6844

422512020 PUSHBUTTON-DOOR LATCH/DARKCHARCOAL DC6845, DC6846

422512000 PUSHBUTTON-DOOR LATCH/GRAY DC8511, DC8512, DC4100, DC4101

422512030 PUSHBUTTON-DOOR LATCH/TAN DC4102, DC4103, DC4104,

7 52000450020 SPRING-DOOR LATCH ALL

NS 858005200 CLIP-SPRING RETAINING/DOOR LATCH (NOT SHOWN) ALL

8 422512110 RECEPTACLE-PUSH BUTTON/DOOR LATCH/WARM GRAY DC6843, DC6844

422512120 RECEPTACLE-PUSHBUTTON/DOOR LATCH/DARKCHARCOAL DC6845, DC6846

422512100 RECEPTACLE-PUSHBUTTON/DOOR LATCH/GRANITE DC851,1 DC8512

422512130 RECEPTACLE-PUSHBUTTON/DOOR LATCH/GRANITE DC4100, DC4101

422512140 RECEPTACLE-PUSHBUTTON/DOOR LATCH/TAN DC4102, DC4103, DC4104

9 422511600 DOOR POCKET-DOOR SHELF BIN ALL

10 304112900 PLATE-HINGE/LOWER ALL

11 160227500 LATCHASSY ALL

12 422511900 EVAPORATOR DOOR ALL

DC851 SERIES PARTS LIST - PAGE 3

FRONT VIEW - INNER CABINET PARTS - DC68/DC85/DC41 SERIES

NO PART # DESCRIPTION MODELS

1 160203000 ICECUBE TRAY ALL

2 433004400 DRAINAGE PAN ALL

3 422511900 EVAPORATORDOOR ALL

4 160119200 THERMOSTAT ALL

5 160206700 KNOB-THERMOSTAT/61729422 ALL

6 523004200 SHELF ALL

7 160946200 PLATEASSEMBLY-TRIM ALL

8 160227500 LATCHASSY ALL

9 322398200 PLATE-TRIM ALL

DC851 SERIES PARTS LIST - PAGE 4

REAR VIEW - DC68/DC85/DC41 SERIES

PART # DESCRIPTION MODELS

161013200 COOLINGUNIT ALL

422305000 HOLDER-THERMISTER/AT EVAPORATOR ALL

605505450 THERMISTER-EVAPORATOR ALL

439014900 HEAT INSULATOR ALL

163011000 POWERSUPPLY-DC/NO COUPLERASSY ALL

160928900 FANONLY-50 CYCLE/40 WATT (2 PERREFRIGERATOR) ALL

190279800 COUPLERASSY-DCINPUT ALL

322397410 SUPPORT-RAIL/BOTTOM ALL

360907110 SPACER-BOTTOM SUPPORT RAIL ALL

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Norcold

Norcold

Norcold DE-251E Manual de usuario

Norcold

Norcold DE-400D Manual de usuario

Norcold

Norcold 323 Series Manual de usuario

Norcold

Norcold N61X Series Manual de usuario

Norcold

Norcold N41 Series Manual de usuario

Norcold

Norcold N180.3X Manual de usuario

Norcold

Norcold DC-254A Manual de usuario

Norcold

Norcold 8682 Instrucciones de montaje

Norcold

Norcold DC-0751 Manual de usuario

Norcold

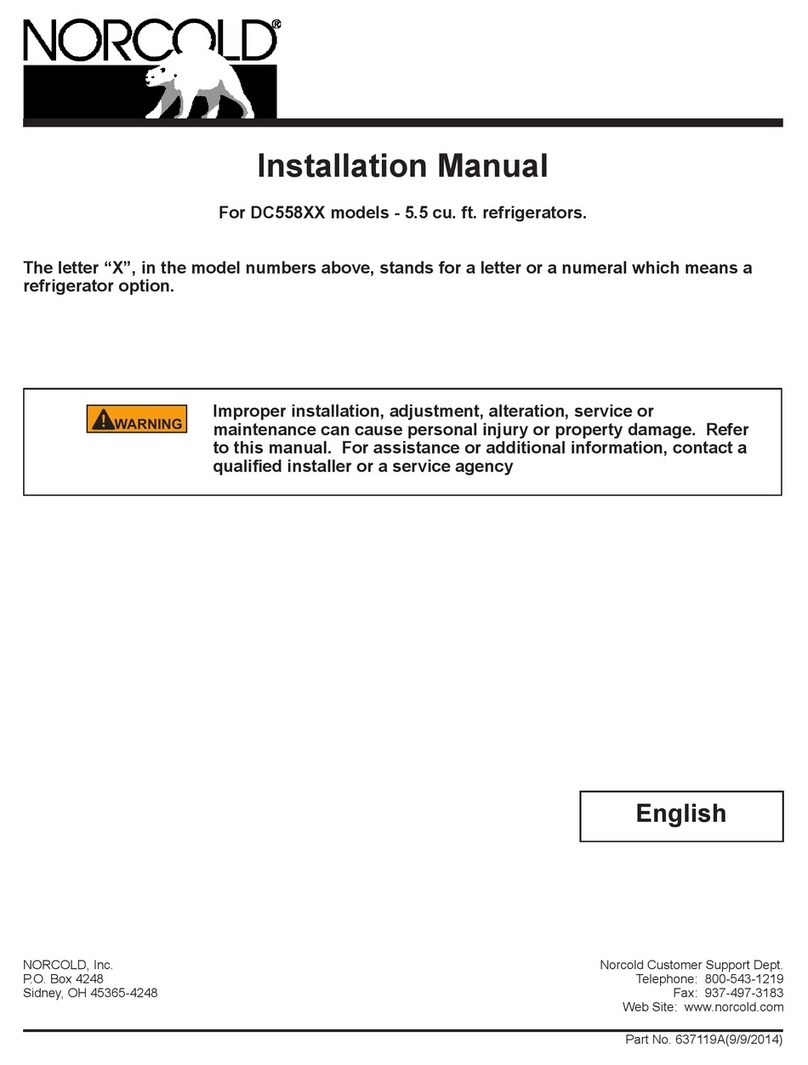

Norcold DC558 Series Manual de usuario
