Nokia RH-21 Series Guía
CCS Technical Documentation
RH-21 Series Transceivers
Issue 1 05/2003 Confidential Nokia Corporation
Service Tools
RH-21
Service Tools CCS Technical Documentation
Page 2 Nokia Corporation Confidential Issue 1 05/2003
CCS Technical Documentation Service Tools
RH-21
Issue 1 05/2003 Confidential Nokia Corporation Page 3
Contents Page No
Service Tools.................................................................................................................. 5
3520 .............................................................................................................................5
Flashing and Testing Setups ........................................................................................ 11
FPS-8 Flash Prommer for Heavy Flash .....................................................................11
FPS-8C Flash Prommer for Heavy Parallel Flash .....................................................11
User Instructions .......................................................................................................... 12
FLA-39 ......................................................................................................................12
MJF-23 .......................................................................................................................14
RH-21
Service Tools CCS Technical Documentation
Page 4 Nokia Corporation Confidential Issue 1 05/2003
CCS Technical Documentation Service Tools
RH-21
Issue 1 05/2003 Confidential Nokia Corporation Page 5
Service Tools
3520
Photo Code Service Tool Code Description
MJ-8 Module Jig 0770522 This jig allows phone
PWB-level service and
troubleshooting. Elec-
tric currents should be
protected against
over-voltage and
over-current.
FLS-4S POS Flash Adapter 0080543 The Point of Sale
(POS) flash is a low-
cost software upgrade
tool. This requires the
XCS-1 cable and
ACP-8U for operation.
FPS-8 Flash Prommer 0080321 The Flash Prommer
FPS-8 is used for
flash.
FPS-8C Heavy Flash Prommer 0080396 The Heavy Flash
Prommer FPS-8C is
used for heavy paral-
lel flashing.
RH-21
Service Tools CCS Technical Documentation
Page 6 Nokia Corporation Confidential Issue 1 05/2003
JBV-1 Docking Station 0770298 The Docking Station
and the Docking Sta-
tion Adapter (MJF-23)
are needed for Mbus,
Fbus, RF, and audio
connections.
This setup allows con-
nection between flash
prommers. When the
audio box is con-
nected, it has to be
connected to the
phone’s audio con-
nector.
MJF-23 Docking Station
Adapter
0770489 The Docking Station
can be powered by
FPS-8 or external
power supply.
NOTE: SEE USER
INSTRUCTIONS FOR
MJF-23 ON PAGE 14.
CPL-1 Coupler 0770287 The coupler has been
developed for antenna
go/no go testing.
JBA-8 Audio Box 0770320 The Audio Box is
needed for audio con-
nections. The box
must support DCT4
Janette audios. JBA-8
provides an intercon-
nection between the
phone’s system con-
nector (XEAR, XMIC)
through a fixed audio
cable and audio tester
with a BNC-BNC
coax. Connection to a
PC can be made with
the service battery,
through a DAU-9
cable.
Photo Code Service Tool Code Description
CCS Technical Documentation Service Tools
RH-21
Issue 1 05/2003 Confidential Nokia Corporation Page 7
FLA-39 Flash Adapter 0770490 FLA-39 allows a con-
tinuous maximum
power supply for the
phone from an exter-
nal power supply, the
ACP-8.
NOTE: SEE USER
INSTRUCTIONS FOR
FLA-39 ON PAGE 12.
Note: FLA-39 is not to
be used for handset
testing; it is only
designed for flashing.
RJ-15 Soldering Jig 0770611 RJ-15 is used to hold
the PWB during repair
and troubleshooting.
AXP-8 Printer Cable 073F000 The Parallel Printer
Cable connects the
parallel connector of
the PC and the paral-
lel input of the FPS-8.
AXS-4 D9-D9 Cable 0730090 The AXS-4 D9-D9
service cable is used
to connect two 9-pin
connectors (e.g.,
between PC and
FPS-8). AXS-4 length
is 2 meters
ADS-3 Audio Cable 0730197 The audio cable con-
nects to the audio box
JBA-6.
Photo Code Service Tool Code Description
RH-21
Service Tools CCS Technical Documentation
Page 8 Nokia Corporation Confidential Issue 1 05/2003
ADS-4 Audio Cable 0730222 ADS-4 is the service
cable between the
phone and the service
audio box.
SCB-3 DC Cable 0730114 The DC Cable SCB-3 is
used to connect the
docking station to the
charger connection
(Vin) of the phone to
conduct the charger
calibration service
procedure.
DAU-9S Mbus Cable 0730108 The Mbus Cable has a
modular connector
and is used with the
service audio box
JBA-4 or a modular
T-adapter.
PCS-1 Power Cable 0730012 The Power Cable
PCS-1 is used to con-
nect the service tools
(JBV-1, MJF-23) to
an external power
supply.
XRF-1 RF Cable 0730085 The XRF-1 cable con-
nects a service tool
and RF measurement
equipment.
Photo Code Service Tool Code Description
CCS Technical Documentation Service Tools
RH-21
Issue 1 05/2003 Confidential Nokia Corporation Page 9
XCS-4 Mbus/Fbus Cable 0730178 The XCS-4 Service
Cable is a modular
cable for flashing
DCT4 products.
PKD-1 SW Security Device 0750018 SW security device
PKD-1 is hardware
device that, when
connected to the par-
allel (LPT) port of the
PC, enables the use of
the service software.
Without the dongle
present, it is not pos-
sible to use the serv-
ice software. Printers
or other peripheral
devices can be con-
nected to the PC
through the dongle, if
needed.
Caution: Make sure
that you have
switched off the PC
and the printer before
making connections!
Caution: Do not con-
nect the PKD-1 to the
serial port. You may
damage your PKD-1!
SA-12
XRS-11
RF Probe Support
RF Probe
0770623
0770562
The RF Cable is used
for connection to the
RF output of the PWB.
The XRS-11 Cable is
used together with
the SA-12 to ensure a
good connection.
Photo Code Service Tool Code Description
RH-21
Service Tools CCS Technical Documentation
Page 10 Nokia Corporation Confidential Issue 1 05/2003

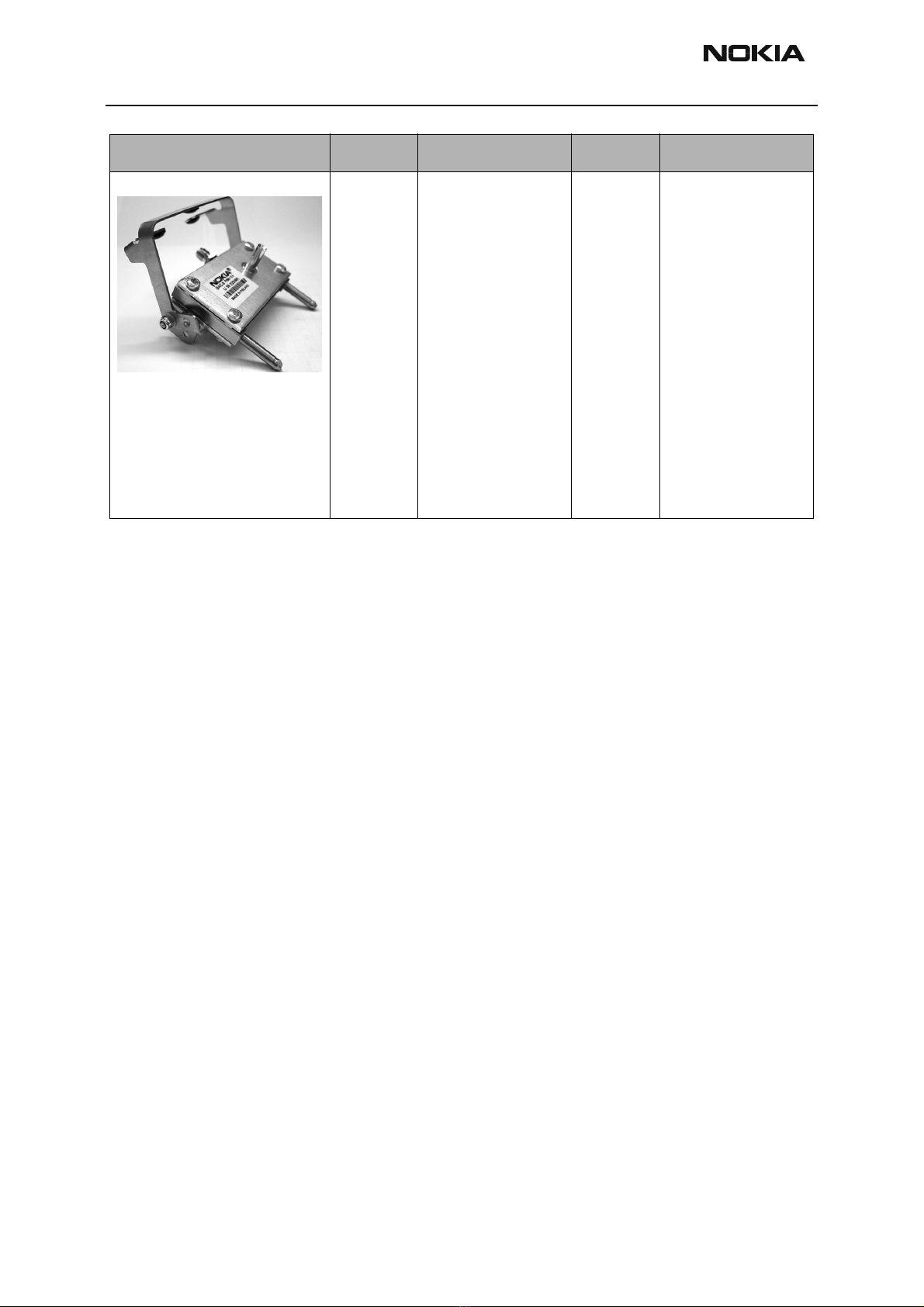

GAC-8/
GAC-9K
Adapter 0080834 The GAC-8/GAC-9K
adapter is needed for
proper RF connection.
The adapter allows
galvanic connections
to assembled handset
RF switches. The
adapter permits the
handset to be con-
nected to RF measur-
ing and test
equipment during test
and repair and can be
used with covers on or
off.
NOTE: GAC-8 must be
used with GAC-9k.
Photo Code Service Tool Code Description
