Nokia Wireless Headset (HS-26W)

User Guide

9241016

Issue 1

HS-26W_KP_9241016.fm Page 1 Tuesday, August 2, 2005 11:19 AM

DECLARATION OF CONFORMITY

We, NOKIA CORPORATION declare under our sole responsibility that the product HS-26W is in

conformity with the provisions of the following Council Directive:1999/5/EC.

A copy of the Declaration of Conformity can be found at http://www.nokia.com/phones/

declaration_of_conformity/.

Part No. 9241016, Issue No. 1

Printed in the United States of America, July 2005.

Reproduction, transfer, distribution or storage of part or all of the contents in this document in

any form without the prior written permission of Nokia is prohibited.

Nokia, Nokia Connecting People, Nokia HS-26W, and the Nokia Original Enhancements logo

are trademarks or registered trademarks of Nokia Corporation. Other company and product

names mentioned herein may be trademarks or trade names of their respective owners.

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

The information contained in this user guide was written for the Nokia HS-26W product. Nokia

operates a policy of ongoing development. Nokia reserves the right to make changes to any of

the products described in this document without prior notice.

UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR

INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES

HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS." EXCEPT AS

REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND

RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS

DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.

HS-26W_KP_9241016.fm Page 2 Tuesday, August 2, 2005 11:19 AM

EXPORT CONTROLS

This device may contain commodities, technology, or software subject to export laws and

regulations from the U.S. and other countries. Diversion contrary to law is prohibited.

FCC/INDUSTRY CANADA NOTICE

Your device may cause TV or radio interference (for example, when using a telephone in close

proximity to receiving equipment). The FCC or Industry Canada can require you to stop using

your telephone if such interference cannot be eliminated. If you require assistance, contact

your local service facility. This device complies with part 15 of the FCC rules. Operation is

subject to the condition that this device does not cause harmful interference.

HS-26W_KP_9241016.fm Page 3 Tuesday, August 2, 2005 11:19 AM

Contents

For your safety...................................................................................... 5

1. Introduction ..................................................................................... 7

Bluetooth wireless technology.......................................................................................... 7

2. Get started ....................................................................................... 8

Overview.................................................................................................................................. 8

Chargers and batteries ........................................................................................................ 9

Charge the battery ............................................................................................................. 10

Switch the headset on or off........................................................................................... 10

Pair the headset with a compatible phone ................................................................. 11

Troubleshooting................................................................................................................... 12

3. Basic use......................................................................................... 13

Place the headset on the ear........................................................................................... 13

Call handling ........................................................................................................................ 13

Adjust the earphone volume ........................................................................................... 14

Mute or unmute the microphone................................................................................... 14

Switch the call between phone and headset.............................................................. 14

Pair with several phones................................................................................................... 14

Clear the settings................................................................................................................ 15

4. Battery information ...................................................................... 16

Care and maintenance....................................................................... 18

HS-26W_KP_9241016.fm Page 4 Tuesday, August 2, 2005 11:19 AM

For your safety

Read these simple guidelines. Not following them may be dangerous or illegal.

Read the complete user guide for further information.

SWITCH ON SAFELY

Do not switch the device on when wireless phone use is prohibited or

when it may cause interference or danger.

ROAD SAFETY COMES FIRST

Obey all local laws. Always keep your hands free to operate the vehicle

while driving. Your first consideration while driving should be road

safety.

INTERFERENCE

All wireless devices may be susceptible to interference, which could

affect performance.

SWITCH OFF IN HOSPITALS

Follow any rerestrictions. Switch the device off near medical

equipment.

SWITCH OFF IN AIRCRAFT

Follow any restrictions. Wireless devices can cause interference in

aircraft.

SWITCH OFF WHEN REFUELING

Do not use the phone at a refueling point. Do not use near fuel or

chemicals.

HS-26W_KP_9241016.fm Page 5 Tuesday, August 2, 2005 11:19 AM

For your safety

SWITCH OFF NEAR BLASTING

Follow any restrictions. Do not use the device where blasting is in

progress.

USE SENSIBLY

Use only in the normal position as explained in the product

documentation. Do not touch the antenna unnecessarily.

QUALIFIED SERVICE

Only qualified personnel may repair this product.

CONNECTING TO OTHER DEVICES

When connecting to any other device, read its user guide for detailed

safety instructions. Do not connect incompatible products.

HS-26W_KP_9241016.fm Page 6 Tuesday, August 2, 2005 11:19 AM

Introduction

1. Introduction

You can connect the Nokia Wireless Headset (HS-26W) to a compatible phone that

supports Bluetooth wireless technology. This allows you freedom to make and

receive calls while on the move or in the office.

Read this user guide carefully before using the headset. Read also the user guide

for your phone, which provides important safety and maintenance information.

Keep the headset out of reach of small children.

■Bluetooth wireless technology

Bluetooth wireless technology makes it possible to connect compatible

communication devices without using cables. A Bluetooth connection does not

require that the phone and the headset be in line of sight, but both devices should

be within 10 meters (33 feet) of each other. Connections can be subject to

interference from obstructions, such as walls, or other electronic devices.

The headset is compliant with Bluetooth Specification 2.0 supporting the following

profiles: Headset Profile 1.1 and Handsfree Profile 1.0. Check with the

manufacturers of other devices to determine their compatibility with this device.

There may be restrictions on using Bluetooth technology in some locations. Check

with your local authorities or service provider.

HS-26W_KP_9241016.fm Page 7 Tuesday, August 2, 2005 11:19 AM

Get started

2. Get started

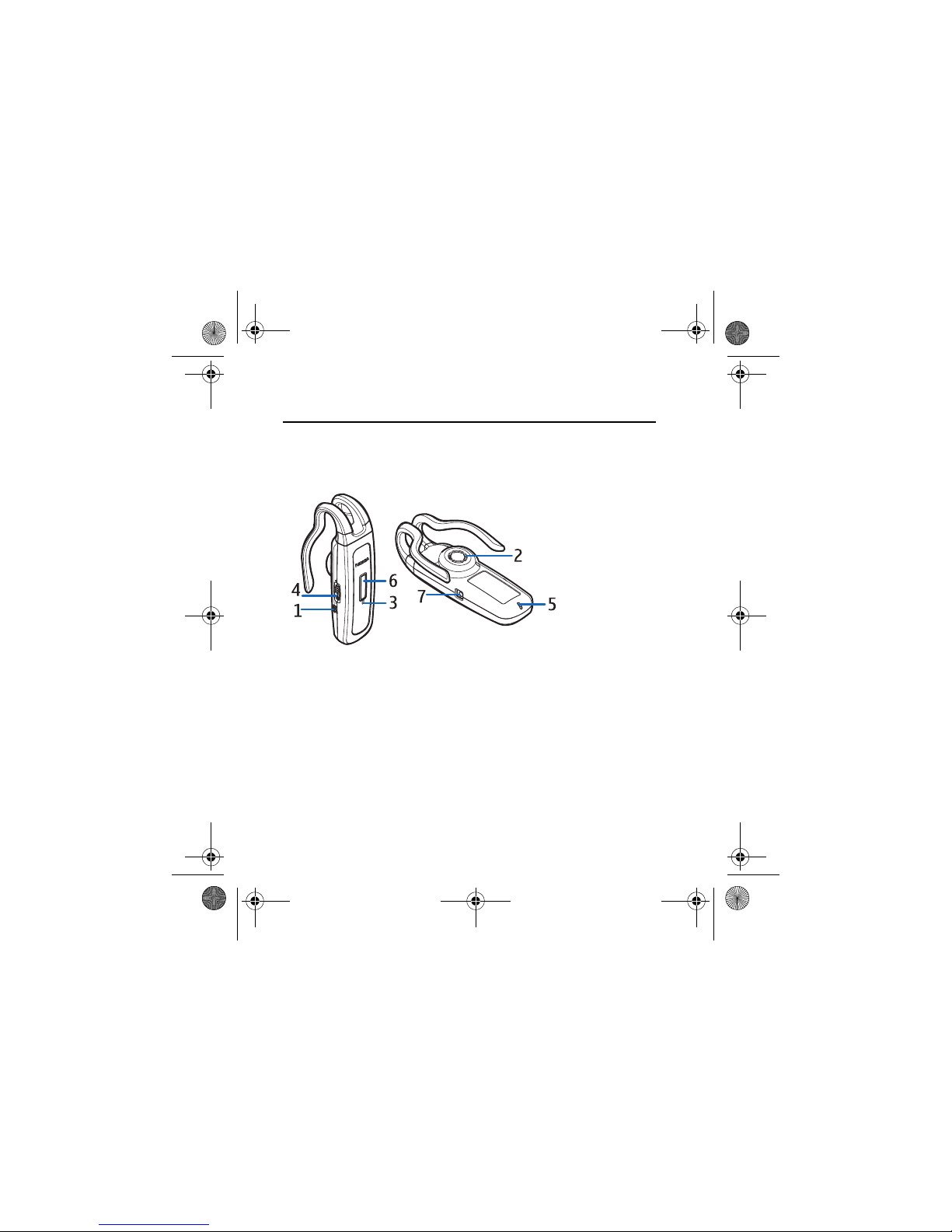

■Overview

The headset contains the following parts:

Power key to switch the headset on and off (1)

Earphone relays the caller’s voice (2)

Indicator light displays the current status of the headset (3)

Volume key to increase or decrease the earphone volume during a call (4)

To mute or unmute the ongoing call, press the middle part of the volume key

briefly.

Microphone picks up your voice (5)

Answer/end key to answer or end a call (6)

HS-26W_KP_9241016.fm Page 8 Tuesday, August 2, 2005 11:19 AM

Get started

This key can also be used for voice dialing, redialing, and switching an active call

between the headset and the compatible phone.

Charger connector (7)

Before you can use the headset, you must charge the battery and pair the headset

with a compatible phone.

Keep all accessories and enhancements out of the reach of small children.

Parts of the headset are magnetic. Metallic materials may be attracted to the

headset. Do not place credit cards or other magnetic storage media near the

headset, because information stored on them may be erased.

■Chargers and batteries

Check the model number of any charger before using it with this device. The

HS-26W headset is intended for use with the following chargers: AC-3, AC-4, and

DC-4.

Warning: Use only batteries and chargers approved by Nokia for use

with this particular enhancement. The use of any other types may

invalidate any approval or warranty, and may be dangerous.

For availability of approved enhancements, please check with your dealer.

When you disconnect the power cord of any enhancement, grasp and pull the plug,

not the cord.

■Charge the battery

This device has an internal, nonremovable, rechargeable battery. Do not attempt to

remove the battery from the device as you may damage the device. Take it to the

nearest authorized service facility for replacement of the battery.

HS-26W_KP_9241016.fm Page 9 Tuesday, August 2, 2005 11:19 AM

Get started

1. Connect the charger to a wall outlet.

2. Connect the charger cable to the headset as shown

in the picture. The red indicator light is displayed

during charging. Charging the battery fully may take

up to 2 hours.

3. When the battery is fully charged, the green indicator light is displayed.

Disconnect the charger from the headset and the wall outlet.

The fully charged battery has power for up to 5 hours of talk time or up to 150

hours of standby time. However, the talk and standby times may vary when used

with different mobile phones, other products with Bluetooth capabilities, usage

settings, usage style, and environments.

When the battery is running out of power, the headset beeps and the red indicator

light starts to flash.

■Switch the headset on or off

To switch on, press and hold the power key for 3 seconds. The headset beeps and

the green indicator light starts flashing rapidly. The flashing continues more slowly

after the headset is connected to your phone.

To switch off, press and hold the power key for 2 seconds. The headset beeps and

the red indicator light is displayed briefly.

■Pair the headset with a compatible phone

1. Switch on your phone and the headset.

2. Activate the Bluetooth feature on the phone, and set the phone to search for

Bluetooth devices. See the user guide of your phone for instructions.

HS-26W_KP_9241016.fm Page 10 Tuesday, August 2, 2005 11:19 AM
