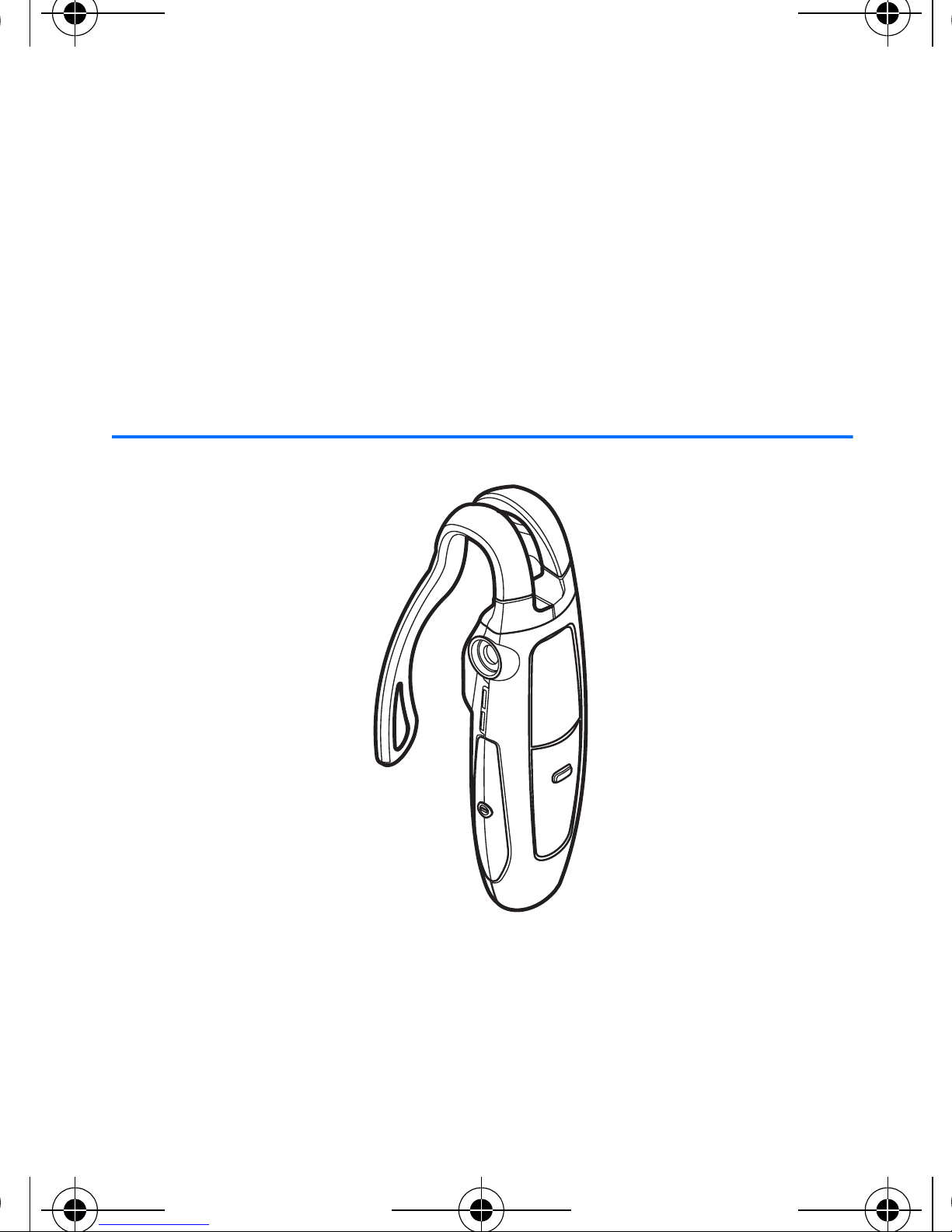

Nokia HS 11W Manual de usuario
User Guide for the Wireless
Headset (HS-11W)
9235752
Issue 1
9235752_HS-11W_1_en.fm Page 1 Monday, September 20, 2004 3:06 PM
DECLARATION OF CONFORMITY
We, NOKIA CORPORATION declare under our sole responsibility that the
product HS-11W is in conformity with the provisions of the following
Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can
be found at http://www.nokia.com/phones/declaration_of_conformity/.
Copyright © 2004 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the
contents in this document in any form without the prior written
permission of Nokia is prohibited.
Nokia and Nokia Connecting People are registered trademarks of Nokia
Corporation. Other product and company names mentioned herein may
be trademarks or tradenames of their respective owners.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Nokia operates a policy of continuous development. Nokia reserves the
right to make changes and improvements to any of the products described
in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or
income or any special, incidental, consequential or indirect damages
howsoever caused.
9235752_HS-11W_1_en.fm Page 2 Monday, September 20, 2004 3:06 PM
The contents of this document are provided "as is". Except as required by
applicable law, no warranties of any kind, either express or implied,
including, but not limited to, the implied warranties of merchantability
and fitness for a particular purpose, are made in relation to the accuracy,
reliability or contents of this document. Nokia reserves the right to revise
this document or withdraw it at any time without prior notice.
The availability of particular products may vary by region. Please check
with the Nokia dealer nearest to you.
In some countries there may be restrictions in using Bluetooth devices.
Check with your local authorities.
9235752 / Issue 1
English
9235752_HS-11W_1_en.fm Page 3 Monday, September 20, 2004 3:06 PM
Contents
4
Contents
1. Introduction............................................................ 6
Bluetooth wireless technology........................................................ 6
2. Getting started ....................................................... 8
Overview................................................................................................ 9
Chargers and batteries .................................................................... 11
Charging the battery........................................................................ 11
When the battery charge falls low........................................... 13
Switching the headset on or off................................................... 13
Pairing the headset with a compatible phone ......................... 14
Disconnecting the headset from the phone .......................... 15
Connecting the paired headset to your phone ..................... 16
Troubleshooting................................................................................. 17
3. Using the headset................................................. 18
Placing the headset on the ear..................................................... 19
Making a call...................................................................................... 19
Redialling the last dialled number............................................... 20
Voice dialling...................................................................................... 20
9235752_HS-11W_1_en.fm Page 4 Monday, September 20, 2004 3:06 PM
Contents
5
English
Answering and ending a call ......................................................... 20
Rejecting a call.................................................................................. 21
Automatic answer............................................................................. 21
Adjusting the earphone volume.................................................... 21
Muting an ongoing call................................................................... 21
Switching the call between phone and headset...................... 22
Using the headset with several phones...................................... 22
Resetting the headset...................................................................... 23
4. Battery information ............................................. 25
Charging and Discharging .............................................................. 25
Care and maintenance ............................................... 27
9235752_HS-11W_1_en.fm Page 5 Monday, September 20, 2004 3:06 PM
Introduction
6
1. Introduction
The Wireless Headset HS-11W can be connected to a
compatible phone that supports Bluetooth technology.
This allows you freedom to make and receive calls while
on the move or in the office.
Read this user guide carefully before using the headset.
In addition to this user guide, read also the user guide for
your phone, which provides important safety and
maintenance information. Keep the headset out of reach
of small children.
■Bluetooth wireless technology
The Bluetooth technology makes it possible to connect
compatible communication devices without using cables.
A Bluetooth connection does not require that the phone
and the headset be in line of sight, but both devices
9235752_HS-11W_1_en.fm Page 6 Monday, September 20, 2004 3:06 PM
Introduction
7
English
should be within 10 metres of each other. Connections
can be subject to interference from obstructions, such as
walls, or other electronic devices.
The Wireless Headset HS-11W is specially designed for
compatible Nokia phones that support Bluetooth
technology. The headset can, however, be used with any
compatible Bluetooth devices that support the
compatible Handsfree or Headset profiles. (A profile is a
set of Bluetooth commands that the phone uses to
control the headset).
The Wireless Headset HS-11W is compliant with the
Bluetooth Specification 1.1 supporting the following
profiles: Headset Profile 1.1, Handsfree Profile 1.0.
However, interoperability between the Wireless Headset
HS-11W and other Bluetooth-enabled products is not
guaranteed because it depends on compatibility. Check
with the manufacturers of other devices to determine
their compatibility with this device.
9235752_HS-11W_1_en.fm Page 7 Monday, September 20, 2004 3:06 PM
Getting started
8
2. Getting started
Note: The use of wireless devices may be
restricted in some situations. Observe any
restrictions and obey all signs and instructions
concerning use of wireless devices.
9235752_HS-11W_1_en.fm Page 8 Monday, September 20, 2004 3:06 PM
Getting started
9
English
■Overview
The headset contains the following parts, as shown in
Figure 1.
Power key (1): Switches the headset on and off. You can
also mute or unmute the ongoing call by pressing the
power key briefly.
Earphone (2): Relays the caller’s voice.
Figure 1
9235752_HS-11W_1_en.fm Page 9 Monday, September 20, 2004 3:06 PM
Getting started
10
Indicator light (3): Displays the current status of the
headset.
Volume key (4): Increases or decreases the earphone
volume during a call.
Microphone (5): Picks up your voice.
Answer/end key (6): Answers or ends the call. This key
can also be used for voice dialling, redialling and
switching an active call between the headset and the
compatible phone.
Charger connector (7)
Before you can start using the headset, you must:
• Charge the battery
• Pair a compatible phone with the headset
9235752_HS-11W_1_en.fm Page 10 Monday, September 20, 2004 3:06 PM
