Nokia 6255 Instrucciones de instalación
Nokia Customer Care
6255/6255i/6256/6256i (RM-19)
Mobile Terminal
Issue 2 05/2005 Company Confidential ©2005 Nokia Corporation
Reassembly
6255/6255i/6256/6256i (RM-19)
Reassembly Nokia Customer Care
Page 2 ©2005 Nokia Corporation Company Confidential Issue 2 05/2005
This page intentionally left blank.
Nokia Customer Care Reassembly
6255/6255i/6256/6256i (RM-19)
Issue 2 05/2005 ©2005 Nokia Corporation Company Confidential Page 3
Before You Begin
You need the following equipment to reassemble the 6255/6255i/6256/6256i:
• ESD protection = Always follow ESD protection guidelines when disassembling
and assembling the mobile terminals. To avoid potential ESD damage, the
recommendation is to treat all assemblies and components as if they are
sensitive to ESD.
• SRT-6 opening tool
• Screwdriver
• Tweezers
Reassembly Instructions
1. Attach the Rubber Grommet
Insert the rubber grommet in the D-cover using the slot for the small end of the
grommet.
2. Insert the D-cover Card Trap
a. Insert the guide pin into the slot of the D-cover.
6255/6255i/6256/6256i (RM-19)
Reassembly Nokia Customer Care
Page 4 ©2005 Nokia Corporation Company Confidential Issue 2 05/2005
b. After inserting the bottom pin, snap the upper guide pin into the D-cover
slot.
3. Attach the Whip Antenna
a. Insert the whip antenna into the D-cover using the notch that is circled
below.
b. Twist the antenna stub clockwise to snap it into the D-cover. Be sure not to
grip or damage the connectors on the whip antenna.
Nokia Customer Care Reassembly
6255/6255i/6256/6256i (RM-19)
Issue 2 05/2005 ©2005 Nokia Corporation Company Confidential Page 5
4. Insert the IR Window
Use your fingers to insert the IR window into the notch in the D-cover.
5. Insert the DC Jack, Vibra Motor, and Microphone
Use tweezers to insert the DC jack, vibra motor, and microphone into the D-cover. Ensure
that you do not touch the electrical connectors on the top of each part.
6. Insert the Hinge
Use a screwdriver to push the hinge into the hinge assembly of the D-cover.
Removal point
Vibra
Microphone
6255/6255i/6256/6256i (RM-19)
Reassembly Nokia Customer Care
Page 6 ©2005 Nokia Corporation Company Confidential Issue 2 05/2005
7. Insert the Speaker
Insert the speaker (with rubber gasket) by using the guide slots in the B-cover.
8. Place the Secondary LCD Display into the B-cover
9. Attach the Camera Lid
Attach the camera lid to the PWB assembly by connecting the inside edge of the cover.
Press down on the outside edge to click the locking point into place.
Insert the speaker
using the slots in
the B-cover
Locking point Insert this side first
Nokia Customer Care Reassembly
6255/6255i/6256/6256i (RM-19)
Issue 2 05/2005 ©2005 Nokia Corporation Company Confidential Page 7
10. Attach the UI PWB to the B-cover
a. Attach the UI PWB to the B-cover using the guide pins. Carefully slip the flex
cable through the opening in the PWB, and attach both LCD flex cables. Be
careful not to scrape the PWB with the tweezers.
11. Attach the Secondary LCD Display
Place the secondary LCD display on the PWB, and carefully attach the LCD connector flex
pad.
Carefully slip the flex cable
through the opening in the PWB.
Guide pin
6255/6255i/6256/6256i (RM-19)
Reassembly Nokia Customer Care
Page 8 ©2005 Nokia Corporation Company Confidential Issue 2 05/2005
12. Attach the Inner Housing to the B-cover
Use the guide pins and screw holes to attach the inner housing to the PWB.
13. Add the Four Screws to the A-cover
Guide pin
Nokia Customer Care Reassembly
6255/6255i/6256/6256i (RM-19)
Issue 2 05/2005 ©2005 Nokia Corporation Company Confidential Page 9
14. Connect the B-cover and C-cover
With the mobile terminal in the open position:
a. Insert the flex cable into the hinge assembly slot of the C-cover.
b. Connect the assembly side without the hinge first.
c. While applying pressure on the hinge with the screwdriver, apply opposing
pressure to the middle of the B/C-cover assembly to snap the hinge into
place.
6255/6255i/6256/6256i (RM-19)
Reassembly Nokia Customer Care
Page 10 ©2005 Nokia Corporation Company Confidential Issue 2 05/2005

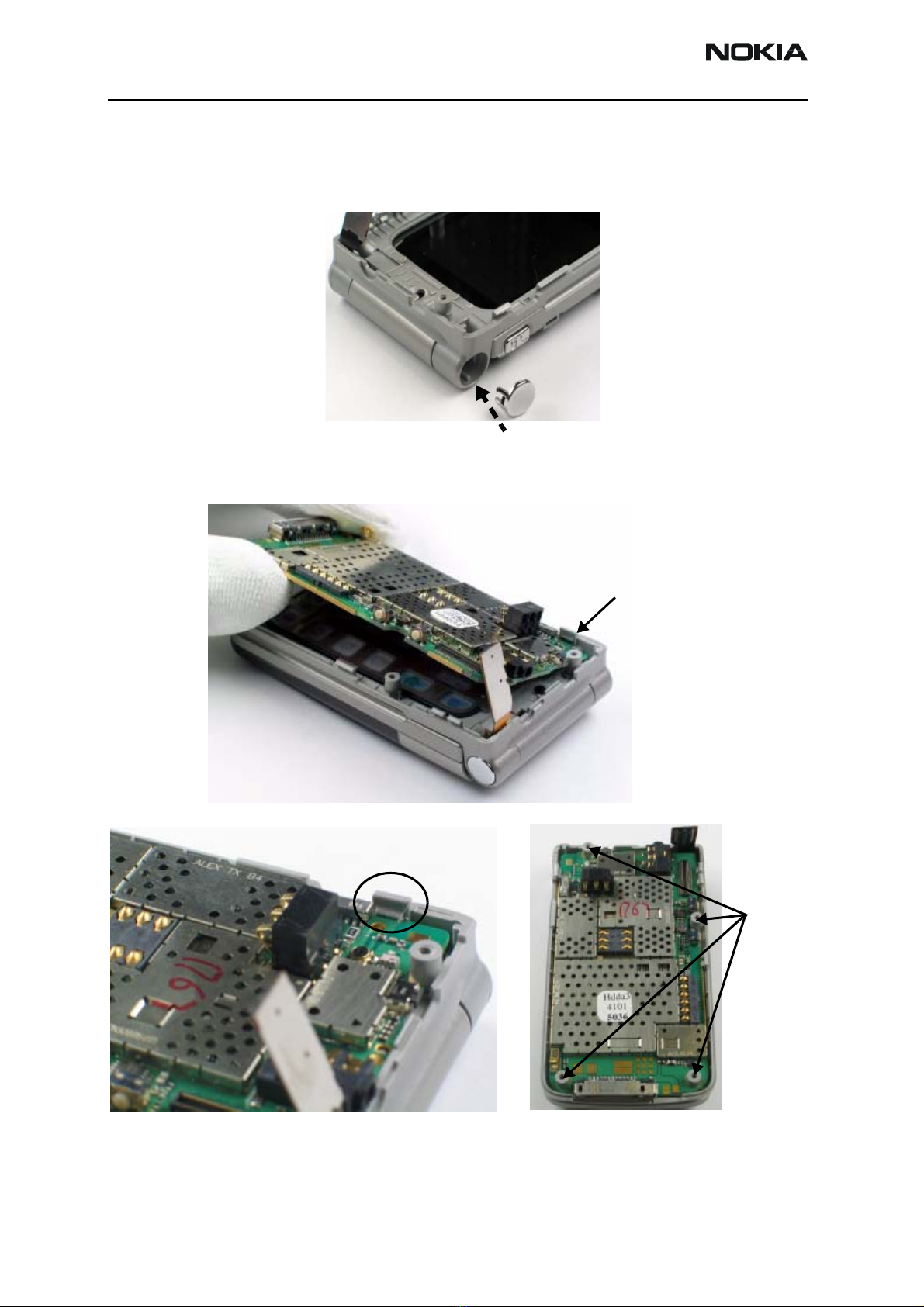

15. Attach the Hinge Cap
Align the hinge cap with the rivets on the inside of the hinge assembly, and press the
hinge cap into place.
16. Assemble the PWB Engine and the C-cover
Insert the PWB by aligning it using the screw holes and C-cover clasp.
Insert the PWB in
this corner under
the clasp.
Screw holes
