Service Manual for L1 and L2

Nokia Lumia 630 (RM-976, RM-977)

Nokia Lumia 630 Dual SIM (RM-

978, RM-979)

Key features

• Windows Phone 8.1

• Smart Dual SIM (RM-978 & RM-979 only)

• 4.5" LCD display

• 1.2 GHz Quad Core processor

Version 1.0

Note: Check the repair policy before performing

any mechanical repair on Service Level 1&2!

Exploded view Disassembly steps Assembly steps

Solder components Service devices Product controls and interfaces

Service concept Phone reset Proximity sensor

troubleshooting

More More More

Service Manual Level 1 and 2

Nokia Lumia 630 (RM-976, RM-977)

Nokia Lumia 630 Dual SIM (RM-978, RM-979)

Version 1.0

Version history

Version Date Description

1.0 29.04.2014 First published version

Service Manual Level 1 and 2

Nokia Lumia 630 (RM-976, RM-977)

Nokia Lumia 630 Dual SIM (RM-978, RM-979)

Version 1.0

Exploded view

WINDOW FRAME

I0001

CAMERA FLEX

I0016

CAMERA

I0017

TOP FLEX

I0015

VIBRA BOOT

I0007

DUAL SIM BARRIER

I0023

*NOTE: Only in single

SIM variants

*NOTE:

*NOTE: Ordering code

differ between

the variants

CWS ANTENNA

I0005

BACK COVER

I0022

CAMERA GASKET

I0008

TYPE LABEL

I0012

EARPIECE PLATE

I0003

DISPLAY

I0002

EARPIECE

I0004

LIGHT SWAP PACKAGE

I0011

USB BOOT

I0013

IHF SPEAKER

I0014

IHF SPEAKER GASKET

I0009

ANTENNA 3G/

ANTENNA LTE

I0006

IHF MESH

I0010

MAIN ANTENNA

HOLE ADHESIVE

I0021

SCREW TORX+

SIZE 4 RF1.4 X 3.0

I0018

SCREW TORX+

SIZE 4 M1.4 x 2.5

I0020

SCREW TORX+

SIZE 4 M1.4 x 3.4

I0019

LIGHT SWAP PACKAGE

(I0011, I0012)

DISPLAY ASSEMBLY

(I0001, I0002)

CHASSIS ASSEMBLY

(I0005 - I0010) 2

Only available

as assembly

Not reuseable

after removal

Repair/swap

only in level 3

Service Manual Level 1 and 2

Nokia Lumia 630 (RM-976, RM-977)

Nokia Lumia 630 Dual SIM (RM-978, RM-979)

Version 1.0

Disassembly steps

1) For disassembling you need the Nokia Standard toolkit version 2. You will also need the camera removal

tool SS-305.

2) Protect the DISPLAY with protective film.

3) Release the BACK COVER by pulling from the both top end corners as shown.

4) Lift up and remove the BACK COVER.

5) If there is battery inserted, remove it by using the shown finger notch.

6) Lift up one corner of the MAIN ANTENNA HOLE ADHESIVE with the dental tool. Peel off and discard the

MAIN ANTENNA HOLE ADHESIVE.

Be careful not to injure yourself or the device with the sharp end of the dental tool.

7) Unscrew the two TORX+ size 4 screws in the order shown. Do not use them again. Discard them.

8) Unscrew the seven TORX+ size 4 screws in the order shown. Do not use them again. Discard them.

9) Use the SS-93 to carefully release the CHASSIS ASSEMBLY from the DISPLAY ASSEMBLY.

Be careful not to damage the shown flex.

10) Use the SS-93 to release the shown clip on the other side of the device.

11) Turn the CHASSIS ASSEMBLY as shown and open the DISPLAY connector. The DISPLAY ASSEMBLY can

be separated once the connector is opened.

Be careful not to bend the flex or damage the connector.

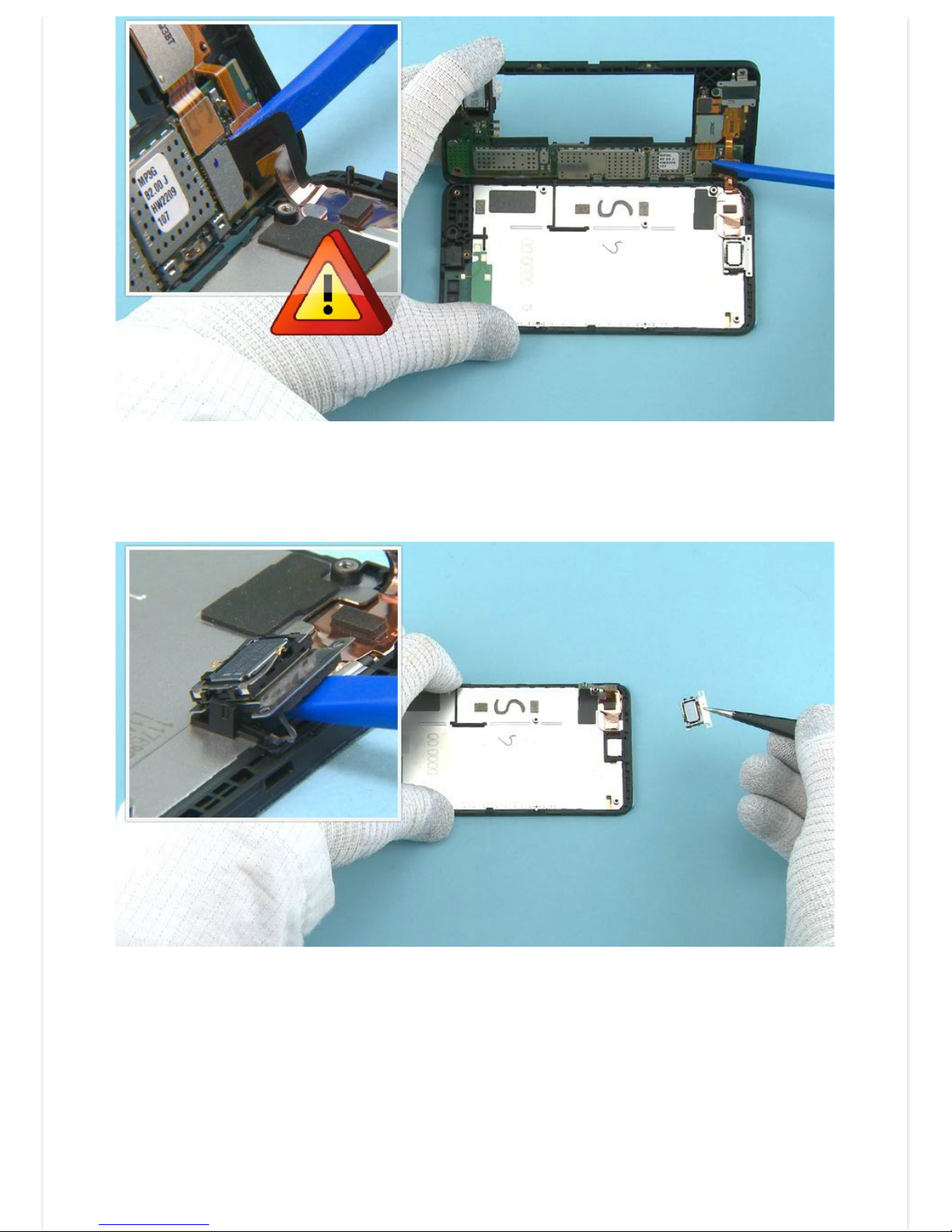

12) Push the SS-93 under the EARPIECE PLATE to release it. Make sure to remove all EARPIECE PLATE

adhesive remains from the DISPLAY ASSEMBLY.

13) Use the dental tool to separate the EARPIECE from the EARPIECE PLATE. Do not use the EARPIECE

PLATE again. Discard it.

14) Push the sharp end of the SS-93 under the IHF SPEAKER to release it. Remove it with tweezers.
