Nokia NSE-6 SERIES Manual de usuario

Technical Documentation

Programs After Market Services (PAMS)

SERVICE

MANUAL

[NMP Part No.0275385]

NSE–6 SERIES

CELLULAR

PHONES

NSE–6 last update: 08/98

PAMS

Technical Documentation

NSE–6

Foreword

Original 08/98

Page 2

AMENDMENT RECORD SHEET

Amendment

Number Date Inserted By Comments

PAMS

Technical Documentation

NSE–6

Foreword

Original 08/98 Page 3

NSE–6 SERIES CELLULAR PHONES

SERVICE MANUAL – OVERALL CONTENTS

Service Manual comprising

NSE–6 Series Transceiver booklet comprising

Chapter 1: Foreword

Chapter 2: General Information

Chapter 3: System Module US8

Appendices to Transceiver booklet covering a specific variant

Appendix 1: Transceiver NSE–6NX

Booklets comprising

Service Software Instructions

Tuning Instructions

Service Tools

Disassembly/Troubleshooting Instructions

Non–serviceable Accessories

PAMS

Technical Documentation

NSE–6

Foreword

Original 08/98

Page 4

IMPORTANT

This document is intended for use by qualified service personnel only.

Company Policy

Ourpolicyisofcontinuousdevelopment;detailsofalltechnicalmodificationswill

be included with service bulletins.

Whileeveryendeavourhasbeenmadetoensuretheaccuracyofthisdocument,

some errors may exist. If any errors are found by the reader, NOKIA MOBILE

PHONES Ltd should be notified in writing.

Please state:

Title of the Document + Issue Number/Date of publication

Latest Amendment Number (if applicable)

Page(s) and/or Figure(s) in error

Please send to: Nokia Mobile Phones Ltd

PAMS Technical Documentation

PO Box 86

24101 SALO

Finland

PAMS

Technical Documentation

NSE–6

Foreword

Original 08/98 Page 5

Warnings and Cautions

Please refer to the phone’s user guide for instructions relating to operation,

care and maintenance including important safety information. Note also the

following:

Warnings:

1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES

FITTED WITH ELECTRONIC ENGINE MANAGEMENT

SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER

CERTAIN FAULT CONDITIONS, EMITTED RF ENERGY CAN

AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE

VEHICLE DEALER/MANUFACTURER TO DETERMINE THE

IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF

ENERGY.

2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED

IN AREAS LIKELY TO CONTAIN POTENTIALLY EXPLOSIVE

ATMOSPHERES EG PETROL STATIONS (SERVICE STATIONS),

BLASTING AREAS ETC.

3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT,

INCLUDING CELLULAR TELEPHONES, MAY INTERFERE WITH

THE FUNCTIONALITY OF INADEQUATELY PROTECTED

MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE

MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE

ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY

ALSO BE SUBJECT TO INTERFERENCE.

Cautions:

1. Servicing and alignment must be undertaken by qualified

personnel only.

2. Ensure all work is carried out at an anti–static workstation and that

an anti–static wrist strap is worn.

3. Ensure solder, wire, or foreign matter does not enter the telephone

as damage may result.

4. Use only approved components as specified in the parts list.

5. Ensure all components, modules screws and insulators are

correctly re–fitted after servicing and alignment. Ensure all cables

and wires are repositioned correctly.

6. All PC’s used with NMP Service Software for this produce must be

bios and operating system ”Year 2000 Compliant”.

PAMS

Technical Documentation

NSE–6

Foreword

Original 08/98

Page 6

This page intentionally left blank.

PAMS Technical Documentation

NSE–6 Series Transceivers

Original 08/98

Chapter 2

General Information

PAMS

Technical Documentation

NSE–6

General Information

Page 2 – 2 Original 08/98

CONTENTS

Product Selection 2 – 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Handportables 2 – 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Desktop Option 2 – 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Product and Module List 2 – 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Technical Specifications 2 – 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Specifications of Transceiver NSE–6 2 – 6. . . . . . . . . . . .

PAMS

Technical Documentation

NSE–6

General Information

Page 2 – 3

Original 08/98

Product Selection

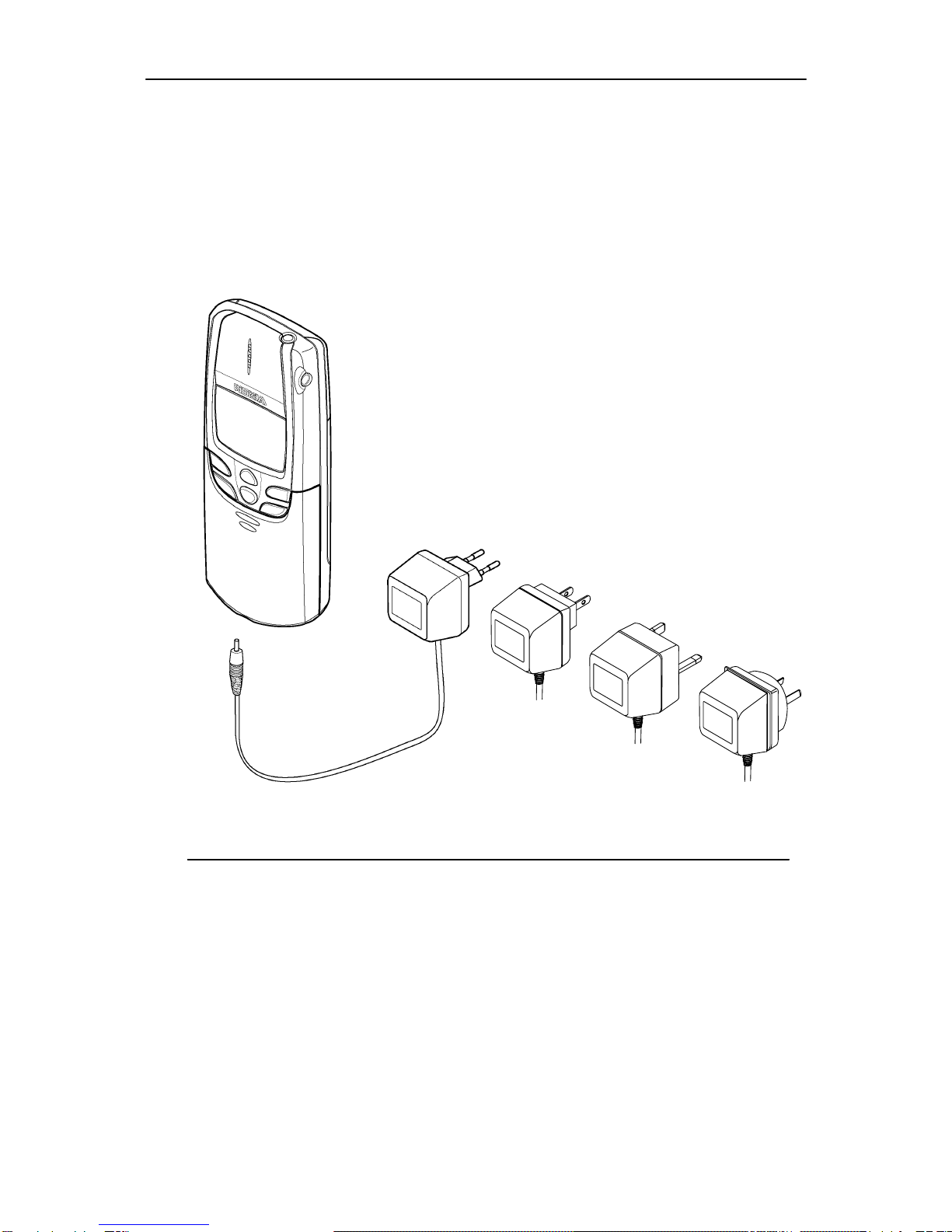

Handportables

The NSE–6 is a handportable mobile telephone for the GSM network.

3. 4.

ACP–7E ACP–7U

ACP–7C ACP–7X

ACP–7H

ACP–7A

Item Name: Type code: Material code:

1. Transceiver See variant Appendices

2. Standard battery (NiMH 600 mAh) BMP–1D 0670240

3. AC Travel Charger (Euro plug) 207–253 Vac ACP–7E 0675144

4. AC Travel Charger (US plug) 108–132 Vac ACP–7U 0675143

AC Travel Charger (US plug) 198–242 Vac ACP–7C 0675158

5. AC Travel Charger (UK plug) 207–253 Vac ACP–7X 0675145

AC Travel Charger (UK plug) 180–220 Vac ACP–7H 0675146

6. AC Travel Charger (Australia) 216–264 Vac ACP–7A 0675148

PAMS

Technical Documentation

NSE–6

General Information

Page 2 – 4 Original 08/98

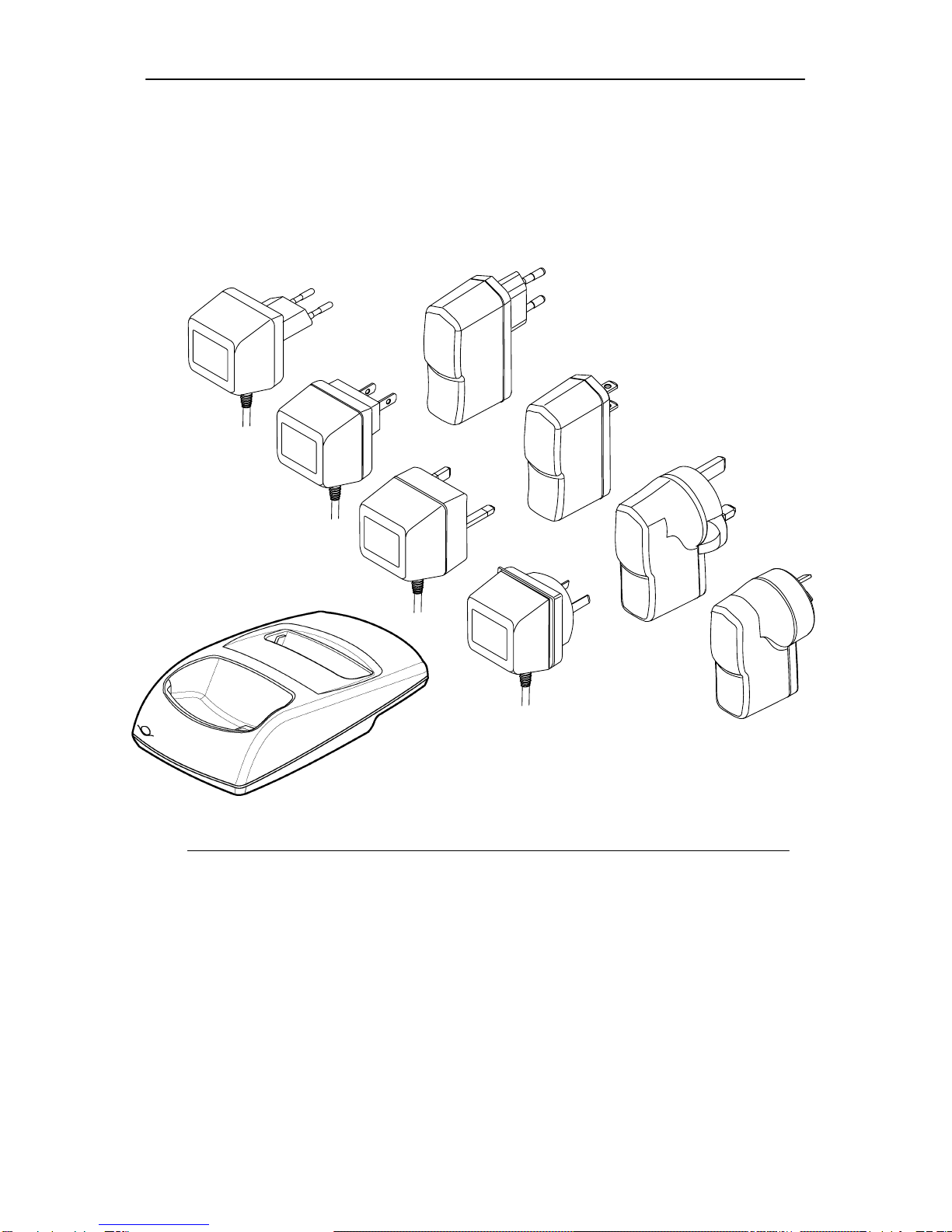

Desktop Option

The desktop option allows the user to charge the handportable and spare

battery from mains.

Item Name: Type code: Material code:

1. Desktop stand CGE–1 0675180

2. AC Travel Charger (Euro plug) 207–253 Vac ACP–7E 0675144

3. AC Travel Charger (US plug) 108–132 Vac ACP–7U 0675143

AC Travel Charger (US plug) 198–242 Vac ACP–7C 0675158

4. AC Travel Charger (UK plug) 207–253 Vac ACP–7X 0675145

AC Travel Charger (UK plug) 180–220 Vac ACP–7H 0675146

5. AC Travel Charger (Australia) 216–264 Vac ACP–7A 0675148

6. Performance Travel Chg. (Euro plug) 90–264 Vac ACT–1E 0675183

7. Performance Travel Chg. (US plug) 90–264 Vac ACT–1U 0675184

8. Performance Travel Chg. (UK plug) 90–264 Vac ACT–1X 0675185

9. Performance Travel Chg .(Australia) 90–264 Vac ACT–1A 0675186
