SUPPORT GUIDE FOR

HOW TO USE NOKIA 9210I COMMUNICATOR

AS AMODEM VIA SERIAL PORT CABLE IN

WINDOWS 2000

Contents

1. INTRODUCTION ............................................................................................................1

2. INSTALLING AND SETTING UP MODEM DRIVER .......................................................1

3. SETTING UP A DIAL-UP CONNECTION FOR USE WITH THE NOKIA 9210I

COMMUNICATOR VIA CABLE IN WINDOWS 2000 ......................................................5

4. TROUBLESHOOTING..................................................................................................11

Legal Notice

Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the

prior written permission of Nokia is prohibited.

Nokia and Nokia Connecting People are registered trademarks of Nokia Corporation. Other product and company

names mentioned herein may be trademarks or trade names of their respective owners.

Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements

to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental,

consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of any

kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness

for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia

reserves the right to revise this document or withdraw it at any time without prior notice.

1/1

1. INTRODUCTION

The purpose of this document is help you to use Nokia 9210i Communicator as a modem via

serial port cable.

2. INSTALLING AND SETTING UP MODEM DRIVER

Go to My Computer – Control Panel – Phone and Modem Options. In Phone And Modem

Options go to Modems leaflet and click on Add…

In Add/Remove Hardware Wizard select Don't detect my modem; I will select it from a

list and click Next (Figure 1).

Figure 1. Installing the Nokia 9210i Communicator as a modem.

2/2

In Add/Remove Hardware Wizard select Have Disk… (Figure 2).

Figure 2.

In Install From Disk click Browse… and browse to the CD-ROM drive where the Nokia

9210i Communicator CD-ROM is. Alternatively the mdmn9210.inf file is available on

http://www.nokia.com/phones/productsupport/9210i/index.html (Figure 3).

Figure 3.

3/3

Now select the cable version of driver and click Next (Figure 4).

Figure 4. Selecting modem driver.

Tip: If you want to use High Speed connection, High Speed Data Services must

be activated on the SIM card by GSM Operator.

Tip: If you use fax software i.e.WinFaxPro 10 and Nokia 9210i Communicator is

as a modem via serial port cable, install first Nokia 9210i Fax (Cable 19200 bps)

4/4

Select appropriate port and click Next (Figure 5).

Figure 5

After you have selected the appropriate modem .inf file Windows will ask you a question

(Figure 6): (just click on Yes).

Figure 6. Accepting warning.

5/5

Now you have successfully installed a new modem to your computer. Just click Finish.

(Figure 7).

Figure 7.

3. SETTING UP A DIAL-UP CONNECTION FOR USE WITH THE

NOKIA 9210I COMMUNICATOR VIA CABLE IN WINDOWS 2000

In the communicator select Extras - Fax modem – Settings. For Connection type

select Cable, Transfer rate 19200, Data bits 8, Stop bits 1, Flow control Software.

(Figure 8).

6/6

Figure 8.

Note: Transfer rate is the speed with which the data is transferred between your

communicator and PC. The best transfer rate for normal GSM calls is 19200. For

high-speed calls, you should select 57600 or 115200.

Change tab to Operating system by pressing Menu button. For Windows 2000 select Yes.

Set Connection type, Remote modem type and Max. connection speed to the same

settings you entered for the modem driver you installed on your PC and then select Done.

(Figure 9).

Press Activate in the Fax modem main view. (Figure 10).

Figure 10.

7/7

Click Next in Network Connection Wizard of Windows 2000 (Figure 11).

Figure 11.

Choose either Dial-up to private network or Dial-up to the Internet and click Next.

(Figure 12).

Figure 12.

8/8

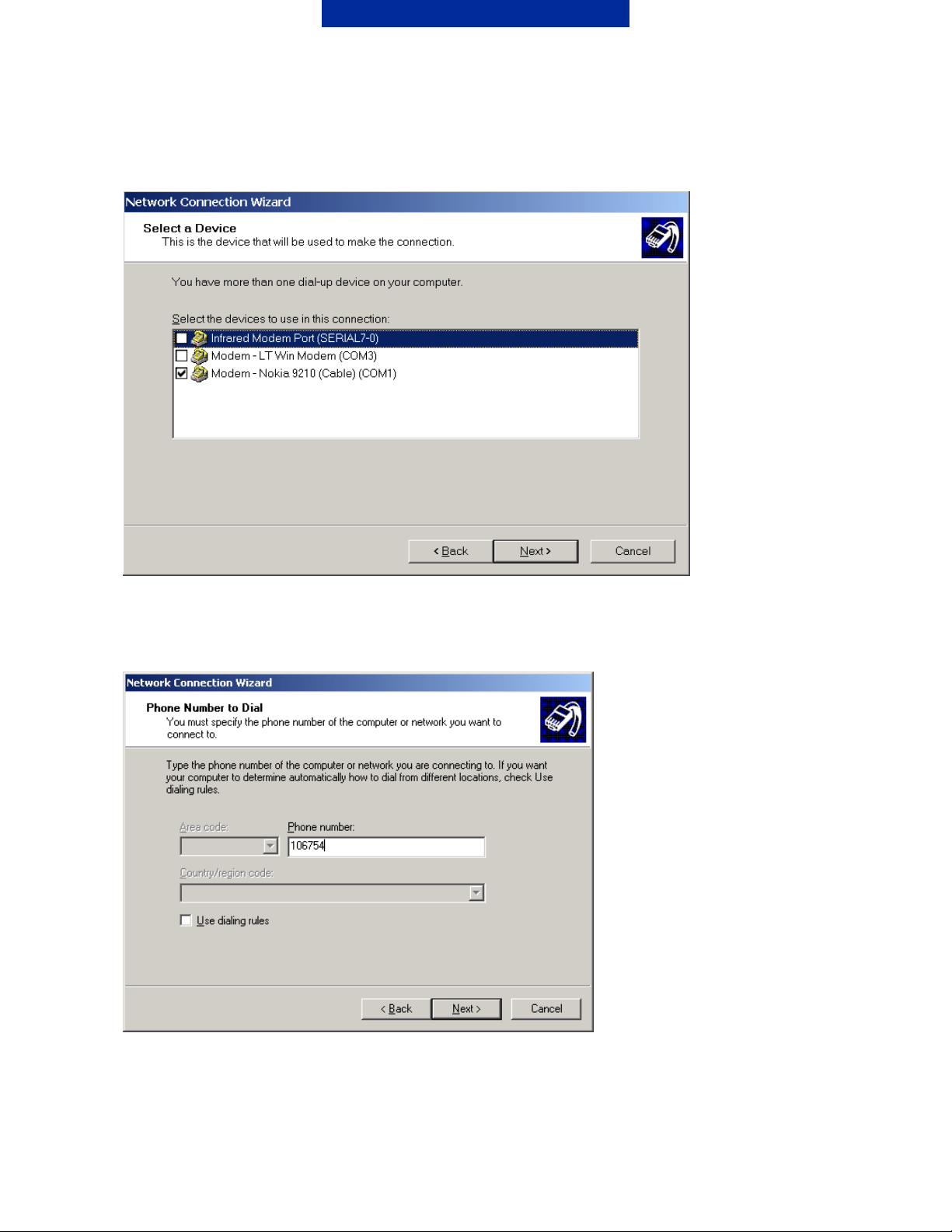

Choose applicable modem and click Next. (Figure 13).

Figure 13.

Type in the ISP's phone number and click Next (Figure 14).

Figure 14.
