NIVELCO UNICONT PDF 01-2 Series Instrucciones de montaje

BKI 04 ATEX 121X

♦

pdf4012a0600p_03.doc

♦

1 / 24

PDF – loop indicator and

converter to HART

INSTALLATION AND PROGRAMMING MANUAL

3rd Edition

Manufacturer:

NIVELCO Process Control Co.

1043 Budapest, Dugonics u. 11.

Tel: (36-1) 889-0100 ♦Fax: (36-1) 889-0200

e-mail: [email protected] ♦www.nivelco.com

2 / 24

♦

pdf4012a0600p_03.doc

♦

BKI 04 ATEX 121X

♦

pdf4012a0600p_03.doc

♦

3 / 24

CONTENTS

1. INTRODUCTION ........................................................................................................................................................................................... 5

2. ORDER CODES............................................................................................................................................................................................5

3. TECHNICAL DATA....................................................................................................................................................................................... 6

3.1 GENERAL DATA........................................................................................................................................................................................ 6

3.2 DIMENSIONS ............................................................................................................................................................................................ 7

3.3 ACCESSORIES.......................................................................................................................................................................................... 8

4. INSTALLATION AND ELECTRIC CONNECTION .......................................................................................................................................9

4.1 WIRING.................................................................................................................................................................................................... 9

4.2 SAFETY REGULATIONS FOR THE EEX CERTIFIED UNITS............................................................................................................................. 12

5. PUTTING INTO OPERATION, PROGRAMMING.......................................................................................................................................12

5.1 DEFAULT ............................................................................................................................................................................................... 13

5.2 DISPLAY OF THE SAP-202 AND KEYS OF THE UNIT ................................................................................................................................... 14

5.3 PROGRAMMING ...................................................................................................................................................................................... 14

5.3.1. STEPS OF PROGRAMMING ......................................................................................................................................................................................15

5.3.2. PARAMETERS –DESCRIPTION AND PROGRAMMING ...................................................................................................................................................17

5.4 ERROR INDICATIONS............................................................................................................................................................................... 23

5.4.1. VALID LED IS BLINKING AND A MESSAGE OF ERRXAPPEARS ON THE DISPLAY ...........................................................................................................23

5.4.2. VALID LED AND THE DISPLAYED VALUE IS BLINKING................................................................................................................................................23

5.4.3. ERROR INDICATION ON THE OUTPUT CURRENT (FOR 3-WIRE MODELS ONLY) ......................................................................................................23

6. MAINTENANCE AND REPAIR................................................................................................................................................................... 24

7. STORAGE................................................................................................................................................................................................... 24

4 / 24

♦

pdf4012a0600p_03.doc

♦

BKI 04 ATEX 121X

♦

pdf4012a0600p_03.doc

♦

5 / 24

Thank you for choosing NIVELCO instrument

We are sure that you will be satisfied throughout its use!

1. INTRODUCTION

The UNICONT PDF-4/501 and PDF-401-6/A/C Ex devices are 2-wire on-site indicators that can be inserted into a 4 … 20 mA current loop without the need for

additional power supply. Since the displayed value is proportional to the input, the units are suitable for indication of temperature, pressure, level, etc. values,

the information carried by the loop current. The customer can program the engineering units and the indication range.

The HART capable Unicont PF-4/501-4 and PF-401/8/B/D Ex 3-wire process indicators require additional power supply. Besides displaying the loop

current or the process values, these units convert input current to HART signals and so enable devices that have analogue outputs only to be integrated into

HART multidrop systems. The ratio between the input and output current can be programmed.

The intelligent electronics and HART communication enables versatile signal processing and remote programming. The software uses the Universal HART

commands No. 1-3, 6, 7, 11-18 and device specific commands No128-132, 135 and 139 of the HART Revision 5.

Robust enclosure makes applications under harsh conditions also possible. Explosion proof versions are available for hazardous environments.

2. ORDER CODES

UNICONT P F– 0 1– *

FUNCTION CODE HOUSING CODE OUTPUT /EXCODE

With display D Aluminium 4 Display 2

Without display T Plastic 5 4 ... 20 mA + HART* 4

Display / EEx ia 6

4 ... 20 mA + HART / EEx ia* 8

Display /EEx d A

Not all combinations are possible! 4 ... 20 mA + HART / Eex* d B

Display / EEx d ia* C

Ex certified units come with aluminium housing only.

* The order code of an Ex version should end in “Ex” 4 ... 20 mA + HART / EEx d ia* D

The models with display outputs are 2-wire units.

6 / 24

♦

pdf4012a0600p_03.doc

♦

BKI 04 ATEX 121X

3. TECHNICAL DATA

3.1 GENERAL DATA

TYPE

PDF- 01-2

PDF-401-6 EX

PDF-401-A EX

PDF-401-C EX

PF- 01-4

PF-401-8 EX

PF-401-B EX

PF-401-D EX

Powering 2-wire 3-wire

Input Current loop

Range 3.6 … 22 mA 0 … 22 mA

Display/indication 6-digit LCD, engineering units and bargraph

Range of displayed value -9999 … 29999

Engineering units (programmable) mA, ºC, ºF, %, m, cm, in ,ft, l, m3, gal, ft3

Displayed process values (programmable) DIST (distance), LEV (level), VOL (volume/content)

Ambient temperature Ordinary and EEx ia devices: -40ºC…+70ºC, with display module: -25ºC…+70ºC ; EEx d és EEx d ia devices: -40ºC…+70ºC, with display module: -20ºC…+70ºC

Accuracy ± 0,1 % for displayed values over 10000

Temperature coefficient ± 0.05 % / 10°K

Output ----

4…20 mA and/or HART

for 4…20mA current limit values: 3.9…20.5 mA

terminal resistor for HART Rtmin = 250 Ω

Error indication on the current output ---- Output = 3.8 or 22 mA

Voltage at the terminals ---- 10 V…36 V*

Load resistance ---- Rt≤(Ut-10V) / 0,022A (Ut supply voltage)

Voltage drop < 1.6 V < 1 V

Overvoltage capability 150 mA 200 mA

Damping 3 s, 5 s, 10 s or 20 s

Electric protection Class III

Ingress protection IP67

Electric connection Through M20x1.5 cable gland, shielded, multistrand, twisted cable of ∅6…12 mm (or ∅7…13mm for EEx- ia, and 8…12mm for EEx-d)

wire cross section 0,25 … 1,5 mm2

Housing Paint coated aluminium (öAlSi12) or PBT glass fibre reinforced

Mass 1 Aluminium housing appr. 0.9 kg, plastic housing appr. 0.55 kg

*For PF-401-8EX and PF-401-DEX units see table of ‘Additional data for Ex certified versions’

BKI 04 ATEX 121X

♦

pdf4012a0600p_03.doc

♦

7 / 24

ADDITIONAL DATA FOR EX CERTIFIED VERSIONS

TYPE PDF –401 –6EXPDF –401 –AEXPDF –401 –CEX

Ex protection Intrinsically safe Flame proof Flame proof, intrinsically safe

Ex marking II 1 G EEx ia IIC T6 II 2 G EEx d IIB T6 II 1/2 G EEx d ia IIB T6

Intrinsical safety data Ui= 2,1 V Ii= 140 mA

Ci≈0 nF Li< 200

H – Ui= 2,1 V Ii= 140 mA

Ci≈0 nF Li< 200

H –

Cable gland Metal M 20 x1.5 cable diameter 7…13 mm Metal M 20 x1,5 cable diameter: 8 … 12 mm

Housing Paint coated aluminium

TYPE PF–401 –8EXPF–401 –BEXPF–401 –DEX

Ex protection Intrinsically safe Flame proof Flame proof, intrinsically safe

Ex marking II 1 G EEx ia IIB T6 II 2 G EEx d IIB T6 II 1/2 G EEx d ia IIB T6

Intrinsical safety data Ui= 30 V Ii= 140 mA Pi= 1,0 W

Ci< 20 nF Li< 200

H – Ui= 30 V Ii= 140 mA Pi= 1,0 W

Ci< 20 nF Li< 200

Cable gland Metal M 20 x1,5 cable diameter 7…13 mm Metal M 20 x1,5 cable diameter: 8 … 12 mm

Housing Paint coated aluminium

3.2 DIMENSIONS

Type A

Ordinary,

EEx ia ~137mm

EEx d, EEx d ia ~145mm

Dimensions in mm

Figure 1.

102

51.0

4.2

108.0

120.0

4.0

8 / 24

♦

pdf4012a0600p_03.doc

♦

BKI 04 ATEX 121X

3.3 ACCESSORIES

Ordinary, EEx ia:

– Installation and programming manual

– Warranty Card

– Declaration of Conformity

– 2 cable glands

– Sticker set of engineering units

EEx d, EEx d ia:

– Installation and programming manual

– Warranty Card

– Declaration of Conformity

– Sticker set of engineering units

HART capable units

- EView Light software on CD-ROM (in addition)

BKI 04 ATEX 121X

♦

pdf4012a0600p_03.doc

♦

9 / 24

4. INSTALLATION AND ELECTRIC CONNECTION

The devices are suitable for working in closed areas or they can be used in open-air applications, too. Installation location should be selected so that proper

space is available for handling, programming and checking the display. Mounting the units on the wall or to a support can be done with using 2pcs of M4 nuts.

4.1 WIRING

•2-wire indicators are used in 4… 20 mA current loops. They do not require separate power supply.

•3-wire devices are powered with 10…36 VDC through the output.

•Current values on the terminals should not exceed overload capability limits. *

•Wiring should be made with shielded cable, specified under ‘Technical Data’.

•After removal of the cover of the housing and the display module the screw terminals can be accessed. ** Cover of the flame proof housing can be

removed after unhooking the safety clamp. Device should not be under power.

•After wiring and programming the cover should be screwed to tightness of the sealing. The safety clamp of the flameproof cover should be fastened.

*Max. 150 mA for 2-wire and max. 200 mA for 3-wires devices.

** Devices should be grounded by using their grounding screws.

The unit may be damaged by electrostatic discharge (EDS) at its terminal, thus the precautions commonly used to avoid

electrostatic discharge e.g. by touching a properly grounded point before removing the cover of the enclosure should be applied.

Transmitter Ex

4-20mA 4-20mA

PDF- 401-6/A/C Ex

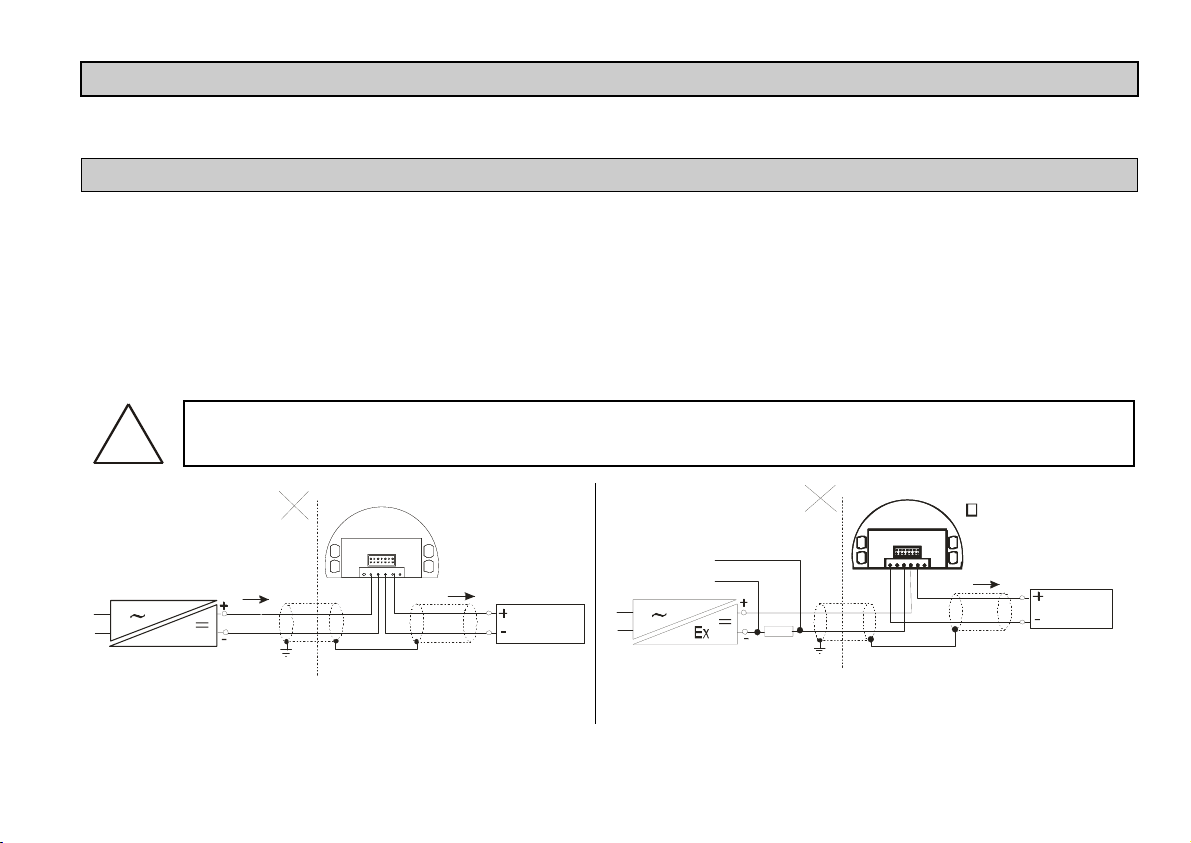

Figure 2. Wiring of a 2-wire Unicont in the current loop of a transmitter

R 250≥ Ω

HART

4-20mA

P F-401-8/B/D Ex

Ex Ex

Transmitter Ex

Figure 3. Wiring of a HART capable (3-wire) Unicont

in the current loop of a transmitter

Shielding should be grounded at one point.

10 / 24

♦

pdf4012a0600p_03.doc

♦

BKI 04 ATEX 121X

HART

P F - 01-4

4-20mA

()0-20mA

Transmitter

R 250

≥ Ω

Figure 4. Wiring of a HART capable (3-wire) Unicont in the current loop of a 4-wire transmitter.

HART

L+

L-

+Us

4-20mA

Transmitter Ex

F- 01-8/B/D Ex

HART

Transmitter Ex

R = 250 Ω

F- 01-8/B/D Ex

Multicont

Figure 5. Wiring of 3-wire Uniconts with Multicont controller and 2-wire transmitters
