Nitta NittaBeltPoly PI-30 Manual de usuario
PM-NIT-15002E
Follow this manual when using NittaBeltPoly Heat Press.
Please pass this manual to NittaBeltPoly Heat Press users for a
safe andtrouble-free operation.
NittaBeltPoly
H
He
ea
at
t
P
Pr
re
es
ss
s
P
PI
I-
-3
30
0
Operation Manual
- 1 -
Contents
1. Safety Precautions ・・・・・・・・・・・・・・・・ 2
2. Confirmation of Product ・・・・・・・・・・・・・・ 5
3. Specifications ・・・・・・・・・・・・・・・・・・ 6
4. Use Environment ・・・・・・・・・・・・・・・・・ 7
5. Storage Environment ・・・・・・・・・・・・・・・ 7
6. Name of Each Part ・・・・・・・・・・・・・・・・ 8
7. How to Operate NittaBeltPoly Heat Press ・・・・・・ 9
8. How to Make Belts Endless ・・・・・・・・・・・・ 10
9. Troubleshooting ・・・・・・・・・・・・・・ 12
10. Inspection ・・・・・・・・・・・・・・・・・・・ 13
11. Warranty and after-sales service ・・・・・・・・・・ 14
- 2 -
1. Safety Precautions
Please go over these safety precautions carefully to secure a correct and
safe operation of the NIttaBeltPoly Heat Press PI-30.
Disregarding instructions marked with this symbol
may lead to death or serious injury.
Disregarding instructions marked with this symbol
may lead to injury or property damage
WARNING
Do not use the Heat Press for any application other than the
intended purpose of making belts endless.
Use for any unintended purpose may cause an unexpected accident.
Failure to do this may cause fire, electric shock or injury.
This machine is not intended for the physical, sensory or
mental handicapped persons use.
They must have the supervision of a person responsible for
their safety, if they use this Heat Press.
Failure to do this may cause fire, electric shock or injury.
Do not allow the child to handle this Heat Press.
Keep this machine in the place where child's hand does not
reach.
Failure to do this may cause fire, electric shock or injury.
A person with experience and skills should always operate,
maintain and inspect the Heat Press.
Handling by an inexperienced person may cause fire, electric shock
or injury.
Do not dismantle or remodel the Heat Press in any event.
Dismantling or remodeling the Heat Press may cause fire,
electric shock or injury.
For repair or inspection, please contact your local distributor or agent
in your area.
In case of an emergency (such as smoke, fire, foul smell),
disconnect the main plug from the socket outlet and contact
Nitta or your local distributor or agent in your area for
inspection.
Failure to disconnect the main plug from the socket outlet may cause
fire or electric shock.
CAUTION
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
- 3 -
1 Safety Precautions- Continued-
Confirm that the power source used is within the designated
specifications of the Heat Press.
Use beyond the designated specifications may cause fire or electric
shock.
Specification Power Source Wattage Rating
For 100V 100V－110V 50/60Hz 70-80W
Connect the main plug correctly to the socket outlet.
The power cable of the press uses an earth connection plug.
Connect the main plug correctly into an earth connection outlet to
prevent electric shock.
Always use anti-heat gloves when handling the Heat Press to
prevent burns.
A label “Hot!” is on the top and bottom plates of the press to warn
against high temperature.
Disconnect the main plug from the socket outlet immediately after
use.
An operator should pay attention so that others do not touch the
press carelessly and get burned before the Heat Press has cooled
down.
It takes about one hours for a heated press (110°C) to cool down to
40°C in the room temperature of 25°C once it has been unplugged.
Do not use the Heat Press on a flammable material.
Use of any other product may cause fire.
Impressed voltage is distributed in the power cable.
To prevent fire, electric shock or damage, please consider the
following.
・ Disconnect the main plug from the socket outlet with your hand.
・ Do not remodel or replace the main plug.
・ Do not place any object on the power cable.
・ Do not fold the power cable.
・ Do not pull or stretch the power cable.
To prevent fire or electric shock, do not use the Heat Press under
the following conditions:
・ Under flammable gas or combustible gas environment
・ Under a corrosive gas environment
・ Under an ambient temperature of 5℃ or below
・ Under an ambient temperature of 30℃ or above
・ Under a high humidity environment. (Humidity surpassing 85%)
・ In places exposing the Heat Press to steam or water drops
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
- 4 -
1 Safety Precautions- Continued-
Use a three-pin earth line as an extension cord.
When an extension cord is required, use an earth-connection type
extension cord to prevent electric shock.
To prevent electric shock, do not operate the Heat Press with
moistened hands.
Do not pour water on the Heat Press and do not get it wet.
Use of a wet press may cause fire or electric shock.
Use a dry cloth for cleaning the Heat Press.
To prevent fire, do not use alcohol, benzine, thinner or
any other inflammable solvent.
Caution
Do not use the Heat Press outdoors.
When using the Heat Press on any equipment, use a safety
catcher for the press so it doesn’t fall or collapse. This will help
prevent fire, electric shock or injury.
This may cause fire or electric shock or injury.
Do not take place on the Heat Press the application of the
adhesive.
This may cause fire or burns.
Before using the Heat Press be sure to inspect the press in
accordance with the procedure described on page 13 to help
prevent fire or electric shock.
Do not use this machine for the endless splicing of belt of other
manufacturers.
Endless splicing may become imperfect if this machine is used for the
endless splicing of belt of other manufacturers.
This may spoil the full functioning and performance of the belt.
WARNING
WARNING
WARNING
WARNING
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
- 5 -
2. Confirmation of Product
Thank you for choosing our Heat Press PI-30
Check that the product is exactly what you have ordered.
Use of the wrong product may cause fire, electric shock or injury.
2-1）Confirmation of Product
Confirm the following items upon accepting delivery of your order. Contact your
local sales office or distributor in your area if you find any deficiency or defect in
your item.
① Are descriptions on the face plate the same as those of your order item?
Please confirm the model type and the power source specifications.
② Has the product been damaged during transportation?
③ Has a nut or screw slackened?

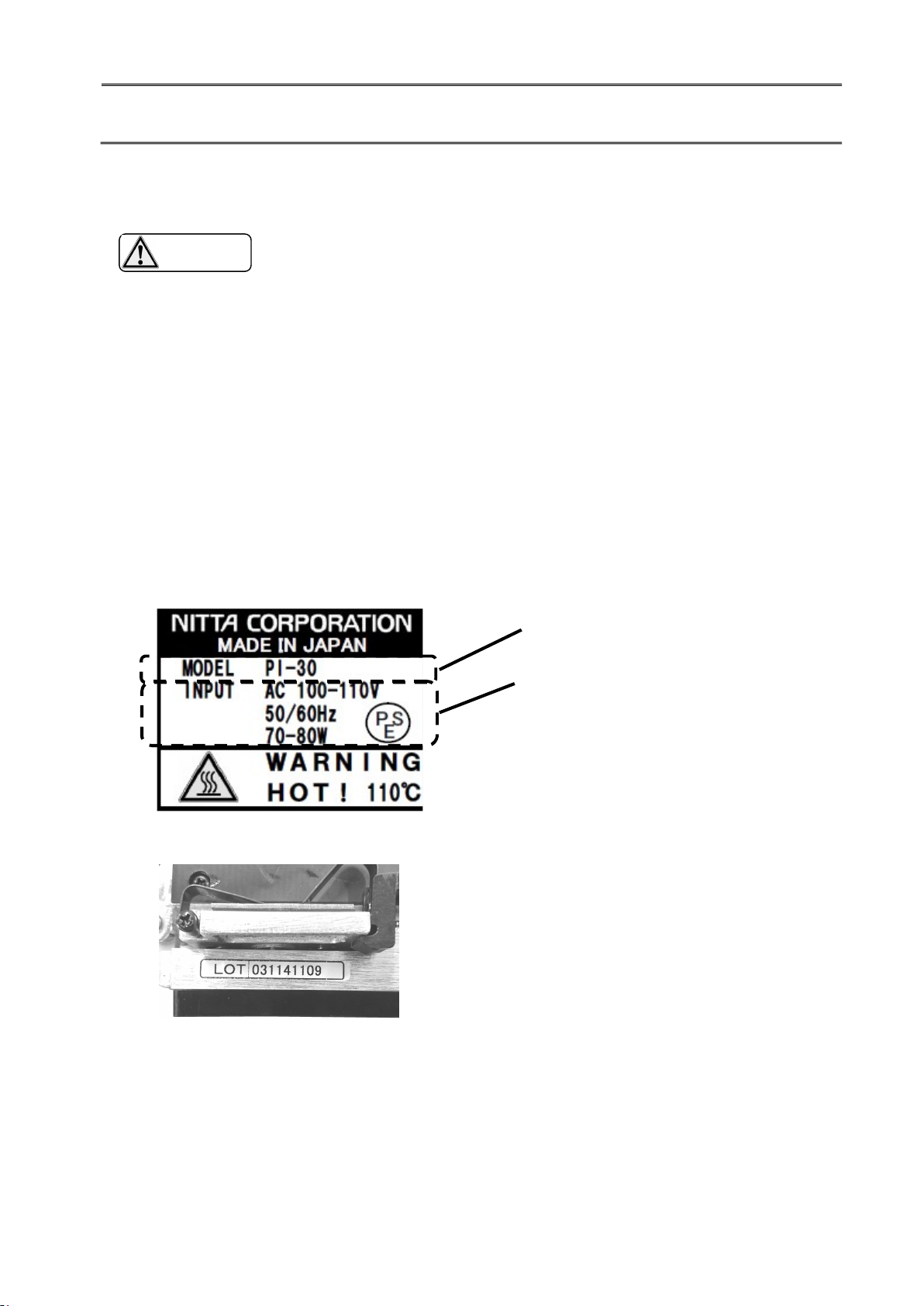

2-2）How to Read Face Plate
2-3）Serial number
2-4）Accessories
Operation Manual, Cushion rubber, Release sheet, Hanging hook
2-5） Notes for inquiry
When making inquiries, please contact us with both the press model and serial
number.
② Specifications of power source
① Model type
CAUTION
- 6 -
3. Specifications
3-1）Outline of Heat Press
① Heat Press is exclusively designed for making endless NittaBeltPoly belts
② Heat Press is compatible with the following endless specifications:
Joint specifications: skiver endless (Right angle)
Maximum belt width: up to 30mm
Maximum belt thickness: up to 1.5mm
③ Tools required for making skiver endless belts: NITTA Poly Skiver
3-2）Major Specifications of Heat Press
Type PI-30
Specification of
power source 100V
Input power supply
100V～110V
50/60Hz
70-80W
Temperature 110℃ ※
Outer Dimension 88mm wide ×139mm long ×73mm high
Weight 0.7kg
- 7 -
4. Use Environment
Ambient Temperature 5-30 ℃(no condensation)
Ambient Humidity 15～85%RH
Place of Use Indoors (free from dust, water)
Environment No flammable, combustible or corrosive gas;
no steam
In order to prevent fire or electric shock, do not use the Heat
Press under the following conditions:
・ Under flammable gas or combustible gas environment
・ Under a corrosive gas environment
・ Under an ambient temperature of 5℃ or below
・ Under an ambient temperature of 30℃ or above
・ Under a high humidity environment (humidity surpassing 85%)
・ In places exposing the Heat Press to steam or water drops
5. Storage Environment
Ambient Temperature 0-40 ℃ (no condensation)
Ambient Humidity 15～85%RH
Place of Use Indoors (free from dust, water)
Environment No flammable, combustible or corrosive gas;
no steam
The Heat Press which is not in use should be stored subject to the
above conditions.
Wrong or poor storage may cause mechanical disorder to the
press and may cause fire or electric shock.
Before using the Heat Press, perform a prior-to-use inspection
and confirm that the press is working properly.
Any problem found in the prior-to-use inspection should
immediately be notified to your local sales office or distributor in
your area.
WARNING
WARNING
WARNING
- 8 -
6. Name of Each Part
6-1）Main Press Body
Belt clamp
Heat plate
Surface plate
Handle
P
ower cable
Press
ing
roller
Belt clamp
C
over
F
ace plate
- 9 -
7. How to Operate NittaBeltPoly Heat Press
7-1) Required Tool
a. Heat Press（PI-30）
b. Release sheet（PI-30 contained）
c. Anti-heat Gloves (burn-preventive protection
kits)
The Heat Press body reaches
a high temperature. Always
use anti-heat gloves to
prevent burns.
d. Stopwatch or timer
7-2）Preheating
the closed state of the heating plate of the
press.
Connect the main plug correctly to an
electrical outlet, it is done preheating.
Be sure to connect an earth
line to prevent electric
shock.
It is to a temperature suitable for endless
about 30 minutes.
Do connect or disconnect the power plug
ON / OFF of the press.
Always use anti-heat
gloves when handling the
Heat Press to prevent
burns.
This may cause burns.
An operator should pay
attention so that others do
not touch the Heat Press
carelessly.
This may cause bums or
injury.
WARNING
ａ
ｂ
ｃ
ｄ
WARNING
WARNING
WARNING
