Nitgen NAC-5000 Manual de usuario

NITGEN&COMPANY Customer Service Center

Tel: +82.2.513.2150

Fax: +82.2.513.2191

Email: customer@nitgen.com

Unauthorized reproduction of part or all of this manual’s content in any form is

prohibited.

Product specifications may change without prior notice to improve functionality.

Other names and trademarks belong to respective companies.

Chapter 1 ................................................................................ 4

Before Installing..................................................................... 4

Product Package...........................................................................5

Chapter 2 ................................................................................ 7

Installation Environment ....................................................... 7

Installation Environment..............................................................8

Chapter 3 ................................................................................ 9

System Configuration............................................................ 9

Network Mode .............................................................................10

Standalone Mode ........................................................................ 11

Chapter 4 .............................................................................. 12

Installation ............................................................................ 12

Installation of Fixing Bracket.....................................................13

Installation of other parts...........................................................14

External Cable Connection........................................................15

Terminal Fixing ...........................................................................20

Chapter 5 .............................................................................. 21

After Installation................................................................... 21

After Installation..........................................................................22

Chapter 1

Before Installing

Product Package

Item Shape Quantity Usage

Terminal

1 Access controller

Installation

Bracket

1 Fixes the terminal.

Adapter

Power

Cord

Supplies power to the

terminal.

2 Fixes the terminal.

Bolts

4 Fixes the installation

bracket.

Door/AUX

Cable

2 Door cable and

external input cable.

S/W CD 1 AccessManager

Professional

Software CD

Chapter 2

Installation Environment

Select the installation location considering the following, and get

consent from the user if needed.

① This product should be installed indoors. If installed outdoors, the

product must be protected from direct sunlight, snow, and rain.

② Cables must not be exposed and it is recommended that they be

buried. If this isn’t possible due to the environment, get consent

from the user before installing.

③ Plug in the power only after all cables are connected. While the

unit is plugged in, do not disconnect the cables or connect them

to other cables.

④ The product can be used more effectively if it is installed at a

convenient height and location. The recommended height for a

normal adult is 150cm from the ground to the center of the

terminal.

⑤ Input power for the system is AC 100~240V, 50/60Hz.

Note

If the power unit is not grounded, static electricity, etc may cause

problems.

Chapter 3

System Configuration

Network Mode

Standalone Mode

Network Mode

Terminals are connected by network. It can be remote control.

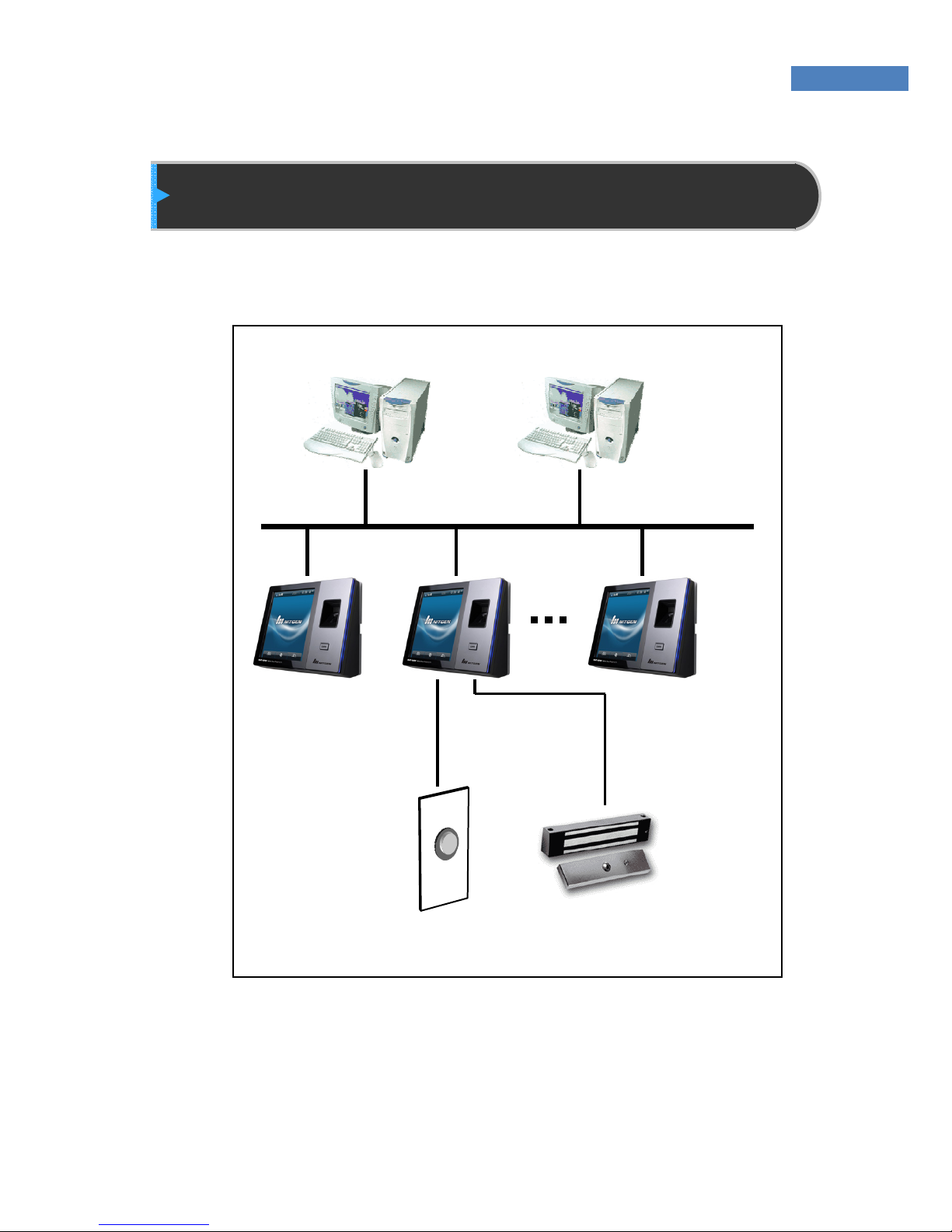

Figure3.1 Network Configuration

Network (TCP/IP)

Server PC Client PC

Terminal

LockDoor opening S/W
