Nintendo Wii U Hoja de instrucciones

1.As indicated by the picture, remove the 4 bottom left rubber stand and screws by

using the screw driver provided. (keep the screws, don't lose

them)

2.As indicated by the picture, remove the bottom rubber stand and screws by using the

classic screw driver provided.

3.remove

the battery and the screw.

4.Follow the instruction to take off these 2 plastic plates.

5.As indicated by the picture, remove those 3 screws by using the classic screw driver

provided.

6.Remove the top plate of the console then those 4 screws.

7.As indicated by the picture, unplug the power source.

8.Remove the right plastic plate and the metal DVD rom cover, and take off the

screws as indicated in the picture.

9.Open the DVD rom ,and follow the instruction of the number to take off the cables.

10.Remove those screws.

11.As shown in the picture, unplug the power source of the fan.

12.Remove the fan and the flow wind tunnel then take off 3 screws.

13.Remove the black plastic part then take off those 14 screws.

14.Take off the tape then remove the metal part.

15.Take off 4 screws and remove the heat sink.

16.Remove all the parts from the left plastic plate.

17.Place the rubber stand from the left plate to the same position of the replacement i

case.

18.put back the metal plate to the replacement i case.

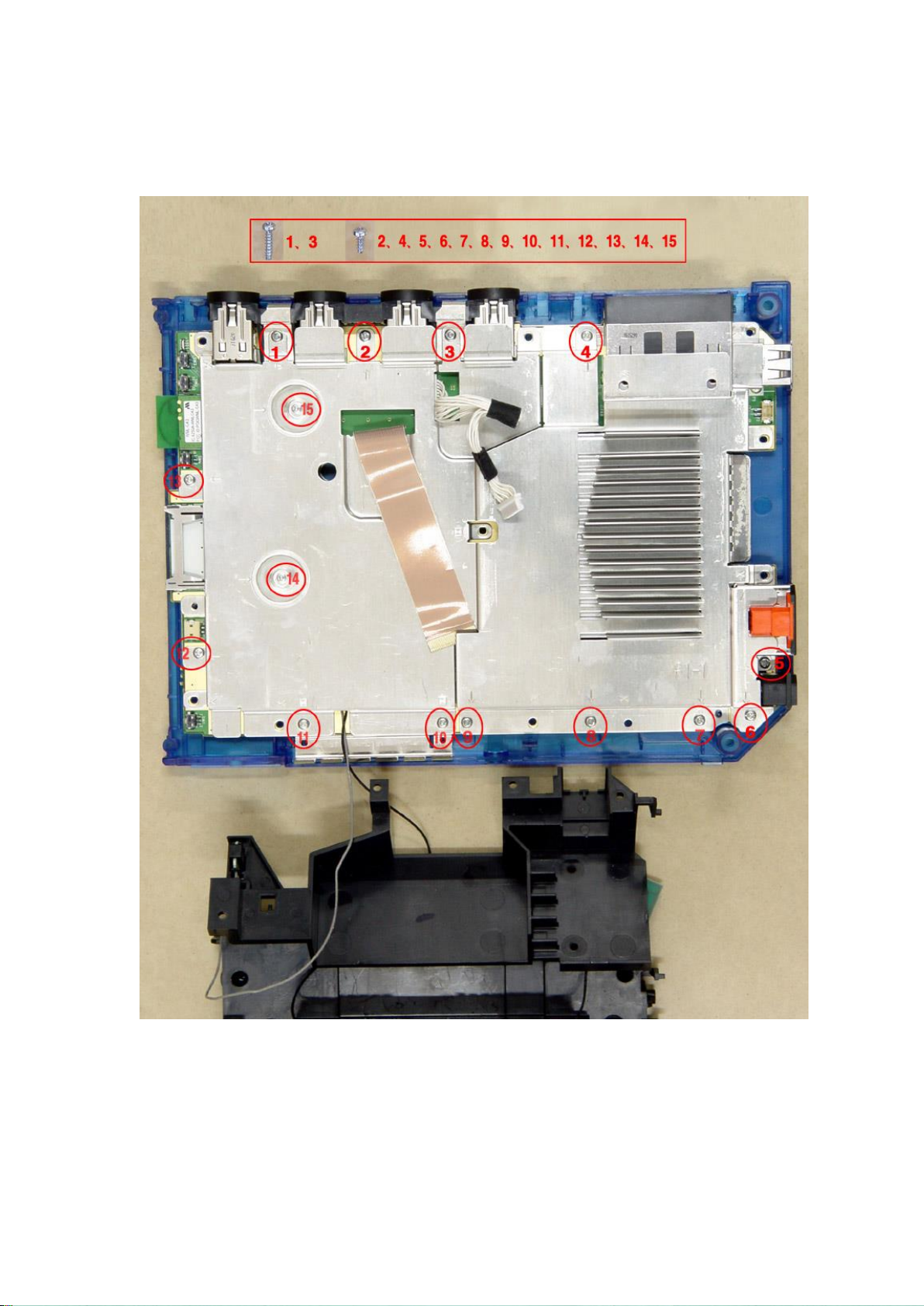

19.replace the mother board, put the indicated small metal plate to that position, then

put down the heat sink and put on 4 screws.

20.Put on the metal cover and those 15 screws.
