Nilfisk-Advance WT3SPD Manual de usuario

TABLE OF CONTENTS

Safety Precautions 3

Machine Operation 4

Machine Maintenance & Storage 4

Parts List 5---9

Wiring Diagram 1 0

SAFETY PRECAUTIONS

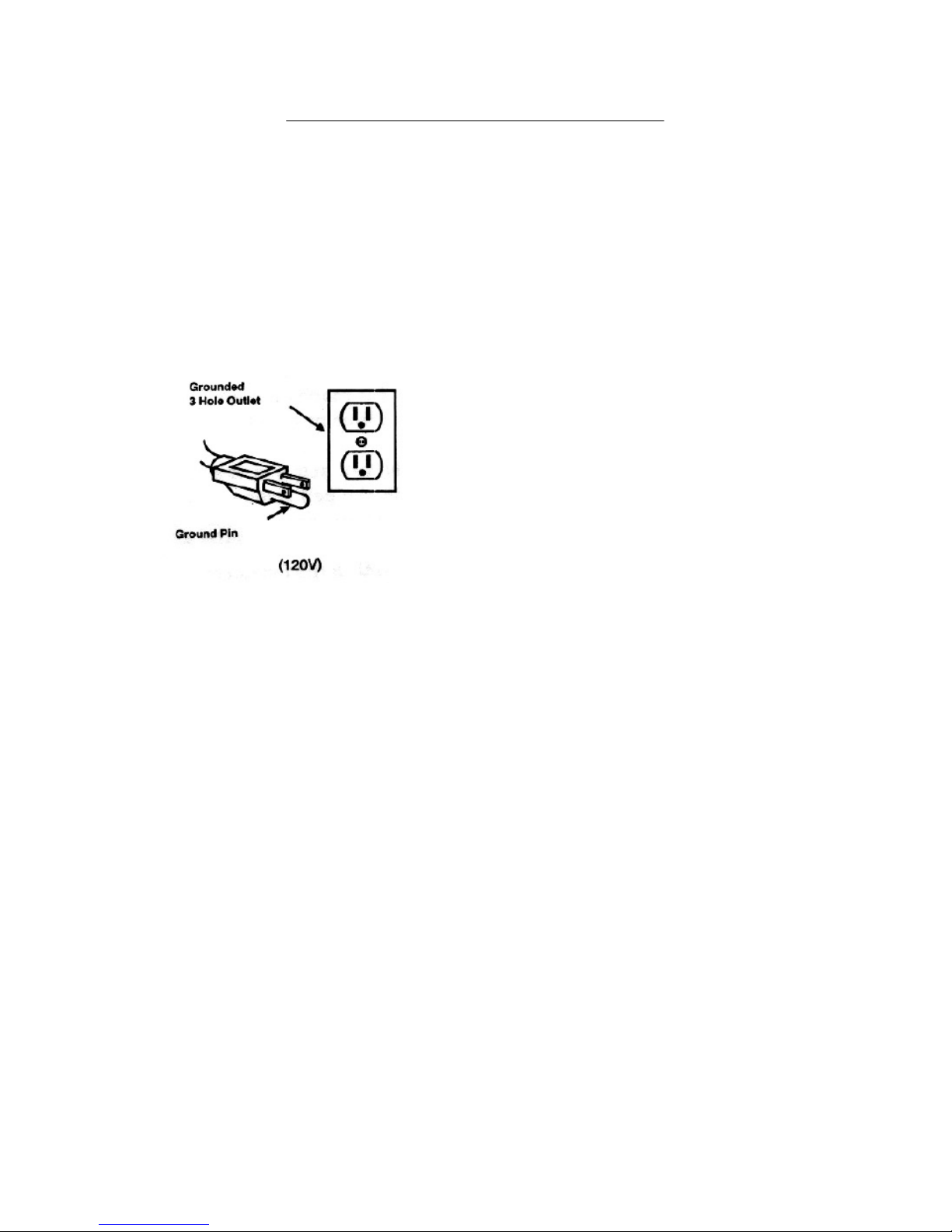

!!! This machine must be grounded!

Grounding provides a path of least resistance

for electrical current. To reduce the risk of

electrical shock should the machine

malfunction, the machine has a special

grounding plug. Don’t remove the ground pin

under any circumstances!

This machine is intended for commercial use.

It is constructed for use in an indoor

environment and is not intended for any other

use. Use only recommended accessories.

All operators shall read, understand and

exercise the following safety precautions:

1] Do not operate machine:

-Unless trained and authorized.

-Unless you have read and understand

operators manual.

-In flammable or explosive areas.

-With a damaged cord or plug.

-If not in proper operating condition.

-In outdoor areas.

-In standing water

-With the use of extension cords.

2] Before operating machine:

-Make sure all safety devices are in

place and operate properly.

3] When using machine:

-Do not run machine over cord.

-Do not pull machine by cord or plug

-Do not pull cord around sharp edges or

corners.

-Do not unplug by pulling on the cord.

-Do not stretch cord.

-Do not handle plug with wet hands.

-Keep cord away from heated surfaces.

-Do not pick up burning or smoking

debris such as cigarettes, matches or

hot ashes.

-Report machine damage of faulty

operation immediately.

4] Before leaving or servicing machine:

-Turn off machine.

-Unplug cord from outlet.

5] When servicing machine:

-Unplug cord from outlet.

-Use manufacturer supplied or approved

replacements parts.

Operation of Air Mover

* Read operators manual thoroughly prior

to operating or servicing this machine.

BASIC OPERATION

1] Check machine for any obstructions in fan

prior to operation.

* If an item blocks the intakes of the blower,

this will hurt the performance of the blower, and

could cause the motor to overheat.

2] Adjust machine to desired position for

operation by either pulling it back to it’s

preset height adjustments, or by lowering

the “kick stand” and setting the machine on

the stand.

3] Plug power cord into a grounded outlet.

* Do not use an extension cord in

conjunction with the standard power cord.

4] This machine has three power settings Turn

the power knob to the desired speed. Low =

1, Med = 2 & High = 3.

5] To stop the machine at any time, simply turn

the power knob to the “off” position.

* Never stick any object into the air inlet

vents or the air outlet vent.

MAINTENANCE

To keep the machine performing well for many

years, please follow the following maintenance

procedures.

* Always confirm that the machine is

unplugged prior to performing any

maintenance or repairs.

1] Unplug machine as soon as you are done

using it.

2] Wrap the power cord around the carrying

handle.

3] Check power cord for any damage. If any

damage is detected, replace the cord

immediately.

4] If you have the wheel kit, lubricate wheels

with a water resistant lubricant every

month.

5] Check machine for loose or missing nuts

and bolts, and replace as necessary.

6] Clean the outside of the machine with a mild

cleaner.

STORAGE

1] Unplug machine from power source.

2] Store in upright position in a dry area.

DIA

NO PART

NUMBER NO

REQ'D

1 VV13649 SCREW,SELF-TAPPING,ST,M4X25 4

2 VV30107 LEFT NET,VENT,INTAKE 1

3 VV30102 BLOCK,STAND,RIGHT FRONT 2

4 VF13613 SCREW,M5X20 8

5 VF14070 SCREW,M4X25 1

6 VV13647 RIVET,M4.8X18 4

7 VV13653 WASHER,PLAIN,M3.5XM10X1.0 15

8 VV13645 RIVET,M3.2X16 4

9 VV30124 RUBBER,BLOCK,STAND 2

10 VV20352 RIVET,M4X12 2

11 VV30119 CONNECTING PLATE 1

12 VA13482 WASHER,PLAIN,M5.0XM11X1.0 4

13 VV30112 NET,VENT,OUTLET 1

ROTATOR SWITCH KIT

DESCRIPTION

PARTS LIST

30015

ROTATOR

SWITCH

KIT

15 VV13658 SCREW,SWITCH,M5X20 2

16 VV30103 PLATE 1

17 VV30180 SWITCH 1

18 VV13608A SCREW,SELF-TAPPING,ST,M4X12 6

19 VV13656 SCREW,M8X16 1

20 VV13609 NUT,M4 1

21 VV30143 CAPACITOR,30UF/300V 1

22 VV30014 CLAMP,CAPACITOR 1

23 VV13642 SCREW,M4X8 1

24 VV30115 STAND 2

25 VA13475 SCREW,M5X25 4

26 VV13662 WASHER,PLAIN,M5XM12X1.0 8

27 VV30114-1 RUBBER,STAND,38mm 2

28 VV30117 SLEEVE,RUBBER 2

29 VV30118 PLATE,CHAMBER 1

30 VV30200 BLOCK,STAND,LEFT FRONT 2

31 VV30100A HOUSING,LEFT 1

32 GT13022 NUT,LOCK,M5 15

DIA

NO PART

NUMBER NO

REQ'D

DESCRIPTION

PARTS LIST

33 VV13640

SCREW,SELF-TAPPING,ST,M4X16

34 VV30110 RIGHT NET,VENT,INTAKE 1

35 VV13655 RIVET,M3.2X12 9

36 VV30114 RUBBER,STAND,48mm 2

37 VV13648 RIVET,M6.4X18 4

38 VV30011 CLAMP,MOTOR 1

39 VV13657 SCREW,M8X25 1

40 VF13503 NUT,LOCK,M8 1

41 VV30116 GASKET,MOTOR 1

42 YQ61000 MOTOR,120V,3/4HP 1

43 VV30010 IMPELLER,9" 1

44 VA21570 CABLE,200mm 1

45 VV30118A PLATE,CHAMBER 1

VF13527

WASHER TOOTH M4

VF13527

WASHER

TOOTH

47 VV20249 NUT,M4 4

48 VV30101A HOUSING,RIGHT 1

49 VV30202 READ MANUAL,LABEL 1

50 VV30505U SERIAL TAG 1

51 VV30182 POWER BUSHING 1

52 VV30183 POWER CORD 1

53 VV13636 SCREW,M5X30 3

54 VV30529 LABEL,SWITCH 1

55 VV30122 COVER,AXLE 2

1 VV30120 SEAT,HANDLE 1

2 VV30130 RELEASE BUTTON 1

3 VV30121 COVER,HANDLE SEAT 1

4 VV30106A TUBE,AL 1

5 VV30132 PLASTIC HANDLE 1

6 VV30134 COVER,HANDLE 1

7 VV13640 SCREW,SELF-TAPPING,ST,M4X16 3

8 VV30123 RUBBER COVER,HANDLE 1

9 VV30133 BOTTOM,HANDLE 1

10 VV30109B HANDLE ASSEMBLY 1

11 VV30131 SPRING,RELEASE BUTTON 1

12 VV13661 SCREW,M4X12 4

13 VV13664 WASHER,PLAIN,M4XM12X1 4

14 VF47027 WASHER,LOCK 2

15 VF47055 WHEEL,6.4" 2

16 VA96851 CAP,AXLE 2

17 VV30111 AXLE 2

PARTS LIST

DIA

NO PART

NUMBER NO

REQ'D

DESCRIPTION
