Niles RCA-SM2 Manual de usuario
REMOTE CONTROL ANYWHERE!®KIT
RCA-SM2
INSTALLATION GUIDE
II
CONGRATULATIONS!
Thank you for choosing the RCA-SM2 Remote Control Anywhere! Kit from Niles. With proper
installation and operation, you should enjoy years of trouble-free use.
Niles manufactures the industry’s most complete line of custom installation components and
accessories for audio/video systems. To see the complete Niles product assortment, visit us on the
internet at: www.nilesaudio.com.
TABLE OF CONTENTS
Introduction 1
Contents 1
Features and Benefits 2
Installation Considerations 6
Installation 7
Specifications 22
Limited Warranty 24
Warranty Registration Card 25
NILES AUDIO CORPORATION – 1-800-BUY-HIFI – (305) 238-4373 1
INTRODUCTION
The Niles RCA-SM2 Remote Control Anywhere! Kit enables you to operate your remote controlled
audio/video equipment from virtually any location. Now you can place your audio/video (A/V)
components out of sight (behind cabinet doors, in the rear of a room, or in a different room) and still
conveniently control your system.

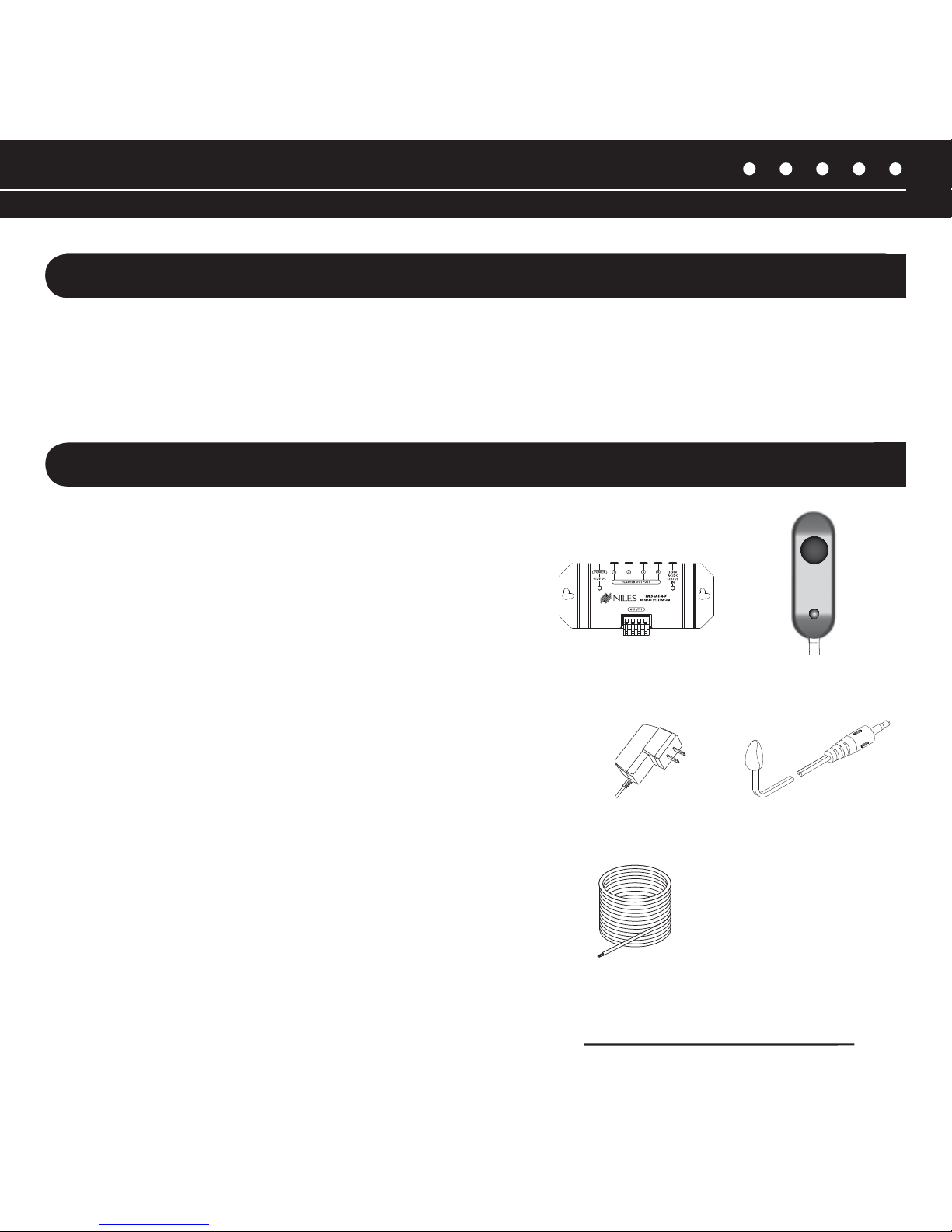

CONTENTS
Check that your RCA-SM2 Remote Control Anywhere! Kit contains the following:
t$POOFDUJPOIVC
t4VSGBDFNPVOU.JDSP4FOTPS®
t7%$QPXFSTVQQMZ
t.JDSP'MBTIFS®(3)
t$"5TFOTPSDBCMFNFUFST
Connection Hub
MicroFlasher (3)
CAT-5 sensor
Cable (50ft)
Surface Mount
MicroSensor®
12VDC Power
Supply
2
FEATURES AND BENEFITS – REMOTE CONTROL ANYWHERE! KIT
COMPLETE SYSTEM
Everything needed to assemble a complete IR extender system is included in one box:
ONE INFRARED MICROSENSOR®
Receives/initiates the IR commands and routes them to the Main System Unit
ONE MAIN SYSTEM UNIT
Amplifies and distributes the commands to each infrared MicroFlasher®
IR MICROFLASHER® (THREE)
Transmit the IR commands to the audio/video components
NILES AUDIO CORPORATION – 1-800-BUY-HIFI – (305) 238-4373 3
FEATURES AND BENEFITS – IR MICROSENSOR®
HIGH-FIDELITY WIDEBAND DESIGN
Ensures compatibility with virtually any brand of equipment, even those using faster, more difficult
to reproduce IR codes
PATENT PENDING UNIVERSAL NOISE SUPPRESION DESIGN
&OBCMFTPQFSBUJPOJOWJSUVBMMZBOZ*3FOWJSPONFOUOFBSQMBTNBBOE-$%EJTQMBZTDPNQBDUnVPSFT-
cent lights, and direct sunlight
EXTENDED IR RECEIVING RANGE
&OKPZUIFDPOWFOJFODFPGUPPGSFNPUFDPOUSPMSBOHFNFUFSTUPNFUFST
PRINTED CIRCUIT BOARD
Our printed circuit board uses surface mount technology (SMT) to ensure reliability
COMPACT SIZE
Fits almost anywhere; only 2” wide x 11/16” high x 1/2” deep
DNXJEFYDNIJHIYDNEFFQ
EXTRA LONG CABLE
PGDPOOFDUJOHDBCMFJTJODMVEFE
4
FEATURES AND BENEFITS – MAIN SYSTEM UNIT
UNIVERSAL SYSTEM
Compatible with virtually all brands of audio/video equipment and remote controls
VERSATILE CONNECTIONS
Accommodates one IR MicroSensor®XJUISFNPWBCMFTDSFXMFTTDPOOFDUPSQMVTGPVSnBTIFST
via 3.5 mm jacks
SYSTEM FEEDBACK LED
Confirms proper operation
3-30V AC/DC STATUS INPUT
Provides system status to connected sensors and keypads
EXPANDABLE
"O*3)*3&YQBOTJPO)VCDBOCFVTFEUPQSPWJEFBEEJUJPOBMJOQVUT
INTEGRATED MOUNTING WINGS
Both horizontal and vertical installation is supported
POWER SUPPLY
UL listed regulated power supply with universal voltage capability
NILES AUDIO CORPORATION – 1-800-BUY-HIFI – (305) 238-4373 5
FEATURES AND BENEFITS – MICROFLASHER®
MINIATURE AND DISCRETE
Each MicroFlasher mounts directly to the IR remote sensor window of your audio/video equipment
while maintaining a clean appearance
INFRARED BLOCKING COVER
Useful when controlling several identical TVs (or audio/video components) that use the same remote
control and IR commands
TRANSPARENT TO IR COMMANDS
Even though the MicroFlasher covers the IR remote sensor window, you can still directly operate
your equipment using a remote control
EASY INSTALLATION
A strip of self-adhesive tape provides secure mounting
CONNECTING WIRE
"DPOOFDUJOHXJSFNJTmUUFEXJUIBNNNPOPNJOJQMVHUPQSPWJEFBTFDVSFDPOOFDUJPO
to the MSU
6
INSTALLATION CONSIDERATIONS
8"3/*/(o5013&7&/51044*#-&*/+63:5)&'0--08*/(#"4*$4"'&5:13&$"65*0/44)06-%#&
0#4&37&%*/5)&*/45"--"5*0/"/%64&0':0633&.05&$0/530-"/:8)&3&,*5
1. Read through the entire manual – Before attempting any installation, read this manual
thoroughly and keep it for future reference.
2. Avoid contact with all high voltage electrical wiring and equipment!
3. Keep away from water and moisture – Never use or install electronic products near water,
ie., near a bathtub, sink, washing machine, in a wet basement, near a swimming pool, or
anywhere else the product may be exposed to water or moisture.
4. Power supply cord protection – Do not run the power cord where it may be subject to wear or
abuse. Do not allow anything to rest on or roll over the power cord which may damage it.
6. Lightning – It is suggested that you remove the power supply from the wall if your system will
not be used for long periods of time. Power surges due to lightning strikes may damage your
equipment.
7. Check your local building and electrical codes – There may be specific requirements
regarding running low voltage in your area.
NILES AUDIO CORPORATION – 1-800-BUY-HIFI – (305) 238-4373 7
Figure 1 Connection Hub Placement
INSTALLATION
TOOLS REQUIRED
t1FODJM
t4UBOEBSETDSFXESJWFS
t1IJMMJQTTDSFXESJWFS
t8JSFTUSJQQFST
t%SJMMBOEBTTPSUFECJUT
GETTING STARTED
While the Remote Control Anywhere! Kit is compatible with
most brands of audio/video components, there are a few
exceptions. You should perform a temporary hook-up to test
for compatibility before you conceal wire or permanently
mount any parts.
Steps one through five describe how to perform a quick
and easy check for compatibility.
Once you have determined that all of your remote
controlled A/V components are compatible, proceed with
the rest of the installation.
8
INSTALLATION

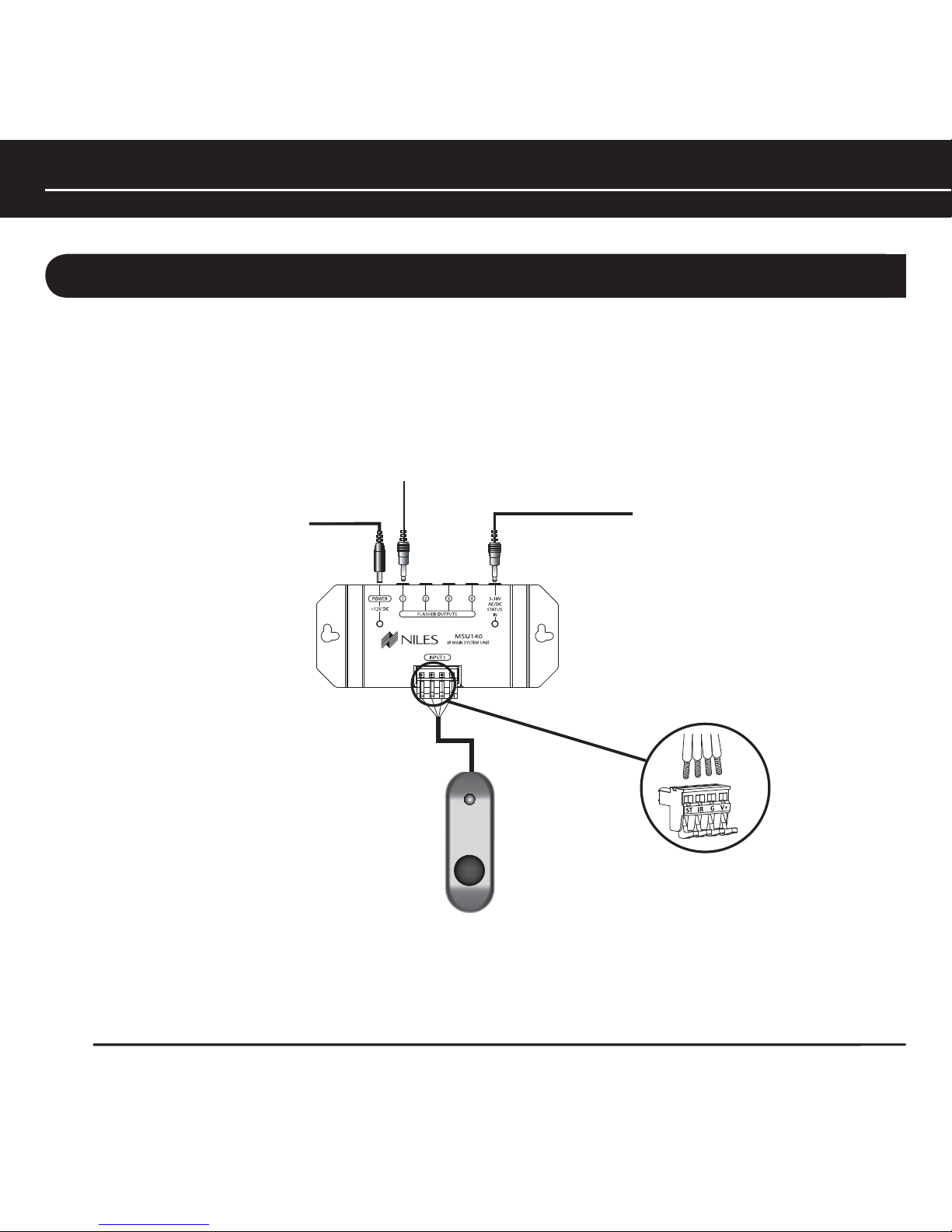

STEP 1 – PLACING THE CONNECTION HUB
Place the Connection Hub so that the MicroFlasher wires will reach the components.
Never place the connection hub closer than 1’ away from a television set (Figure 1).
.4.JDSP4FOTPS
To unswitched
AC Outlet
.464FOTPS
Connection
.46
5P7%$1PXFS4VQQMZ
Plugged into a switched
AC Outlet. Typically
found in back
of a receiver.
To Niles IR Flasher
Figure 2:.46*OTUBMMBUJPO
