REPAIR MANUAL

INC

- Ｄ･ -

logo_Q0650_forGraphic

071004_Gdesign_ito

VBA21001-R.3753.A

Points to notice for Disassembly / Assembly

㧍

内部に高電圧部あり。カバーを外す時は感電に注意すること。

カバーを外した後は、修理指針の指示に従ってメインコンデン

サーの放電を必ず行うこと。

警告

Caution:

Whenever "Separation of Front and rear bodies", "Disassembly of CCD/FPC unit", or

"Disassembly of Bayonet" are performed, be sure to perform "RESETAF-DEFOCUS

COMPENSATION" of camera adjustment software after reassembling.

WARNING

Due to an internal high voltage area, take extra care not to get

an electric shock when detaching covers.

After removing covers, besure to discharge the main

condenser according to the instructions of repair manuals.

Note:

①　When disassembling/(re)assembling, be sure to use the conductive mat (J5033) and wrist strap (J5033-5)

for static protection of electrical parts.

②　Before disassembling, be sure to remove batteries or AC power wires.

③　When disassembling, make sure to memorize the processing state of wires and FPC, screws to be xed

and their types, etc. 　　　　

④　Because the low pass lter of the imaging CCD PCB is easily damaged, handle it with enough care.

　Points to notice for Lead-free solder products

　・ Lead-free solder is used for this product.

　・ For soldering work, the special solder and soldering iron are required.

　・ Do NOT mix up lead-free solder with traditional solder.

　・ Use the special soldering iron respectively for lead-free solder and lead solder.

They cannot be used in common.

INC

- Ｄ･ -

logo_Q0650_forGraphic

071004_Gdesign_ito

VBA21001-R.3753.A

#5735

Bottom cover

#5674×2

#5735

#5674

#5735×2

#5674

Power-wire lid

・Take out the four screws (#5735)

and ve screws (#5674).

・Open the power-wire lid.Open the power-wire lid.

・Remove the bottom cover.

Disassembly

1. Separation of Front and Rear Bodies

Bottom Cover

・Take out the four screws (#6690) and two screws (#5618).

・Remove the rear cover.

・Remove the rear FPC from the connector.

Rear cover

Note: Remove the rear cover slowly so as not to cut the rear FPC

of the lower portion of the cover.

#5618×2

Rear FPC

#6690×4

Rear cover

INC

- Ｄ･ -

logo_Q0650_forGraphic

071004_Gdesign_ito

VBA21001-R.3753.A

Rear cover

#408

#402 #403

#5418

#5412

#448

#753

#423

#5429

#1037

#405×2

#404×2

#426-1

#425-2×2 #421

#5427

#5426

#5425

#5424

#670×3

#B5431

#5431

#5681×2

#433

#5432

#407

#630×3

#750

#406-2

#410

#409-1

#1017

#414

#413

#453

#452

#451×2

#1016

#6401-3

Ｍ

サービス

計画課

Mar.19.2008

Changed page　△×１

△(Addition)

Remove the only below parts

of thermal caulking.

Mold #426-1

Caulked portions

LCD-monitor retainer plate

Remove

INC

- Ｄ･ -

logo_Q0650_forGraphic

071004_Gdesign_ito

VBA21001-R.3753.A

Approx. 2cm

Approx. 4cm

SB pop-up

・Cut the tracing lm sheet, etc into the below size of piece.

Then insert it into the clearance of the top cover pop-up

part as shown right, and raise the SB by sliding the sheet in

the direction of the arrow.

㧍

内部に高電圧部あり。カバーを外す時は感電に注意すること。

カバーを外した後は、修理指針の指示に従ってメインコンデン

サーの放電を必ず行うこと。

警告

WARNING

Due to an internal high voltage area, take extra care not to get an

electric shock when detaching covers.

After removing the covers, be sure to discharge the main

condenser according to the instructions of repar manuals.

Covers

#5610×2

#29

#26

#131

#5120

#670

#792C

#626

#750×2

#B24

#6074

Adhesive: Super X

Adhesive: AlonAlfa

(Quick drying glue)

Adhesive: Super X

・Take out the four screws (#5610) and

the screw (#626).

・Remove the front cover unit (#B24) and

[#131].

(Be careful not to drop [#131].)

INC

- Ｄ･ -

logo_Q0650_forGraphic

071004_Gdesign_ito

VBA21001-R.3753.A

TOGO PCB unit / Loft PCB

・Disconnect the six FPCs and harness from the connector.

・Unsolder the six wires.

・ Take out the ve screws (#663).

Be careful so that the top cover does NOT touch the

discharge tool.

Discharge of Main condenser

・Discharge the main condenser from its both ends.

Main

condenser

2KΩ/5W

Uncoated

Blue: Backup battery

Coated

Pink: Relay-PCB

Uncoated

Coated

#663×5

TA-0025

(5×8)

#483

#1053

TOGO PCB (#B2001)

Harness

INC

- Ｄ･ -

logo_Q0650_forGraphic

071004_Gdesign_ito

VBA21001-R.3753.A

#B3051

#631×3

Red: Backup battery

Yellow:DC/DC

Blue:DC/DC

Red:DC/DC

Purple:DC/DC

Green:DC/DC

Adhesive double-coated tape

(attached on back of loft-PCB

Loft-PCB

(#1031)

Gray: Buzzer unit

TOGO-PCB unit (#B2001)

(The other side)

・Disconnect the TOGO-PCB unit (#B2001) from the connector, (while pressing the loft-PCB).

・Disconnect the two FPCs from each connector.

・Unsolder the eight wires.

・Remove the loft-PCB that is partially attached with the adhesive double-coated tape.

Caution:

Some bodies have already washer(s) attached on the

mounting surface of CCD unit.

・Take out the three screws (#631), and remove the CCD unit (#B3051).

CCD unit

INC

- Ｄ･ -

logo_Q0650_forGraphic

071004_Gdesign_ito

VBA21001-R.3753.A

・

Unsolder the four wires (connected

from Top cover).

SB PCB

Orange: Top cover

White: Top cover

Gray: Top cover

Black: Top cover

・Unsolder the wire (connected from Top cover).

DC/DC PCB unit

Top cover

・Take out the two screws (#5737).

・Take out the two screws (#635).

・The top cover and rubber eyecap (#B271)

come off.

Black: Top cover

#B271

#5737×2

#635×2

#486×2

#487×2

AUTO

INC

- Ｄ･ -

logo_Q0650_forGraphic

071004_Gdesign_ito

VBA21001-R.3753.A

#632×2

SB upper case (#5301)

Claw

Pop-up lever A part

　・ Press "Pop-up lever A part" and raise the built-in SB.

Disassembly of Top cover

SB upper case

　・ Take out two screws (#632).

・Release the two claws. House the built-in SB and remove the SB upper case (#5301).

INC

- Ｄ･ -

logo_Q0650_forGraphic

071004_Gdesign_ito

VBA21001-R.3753.A

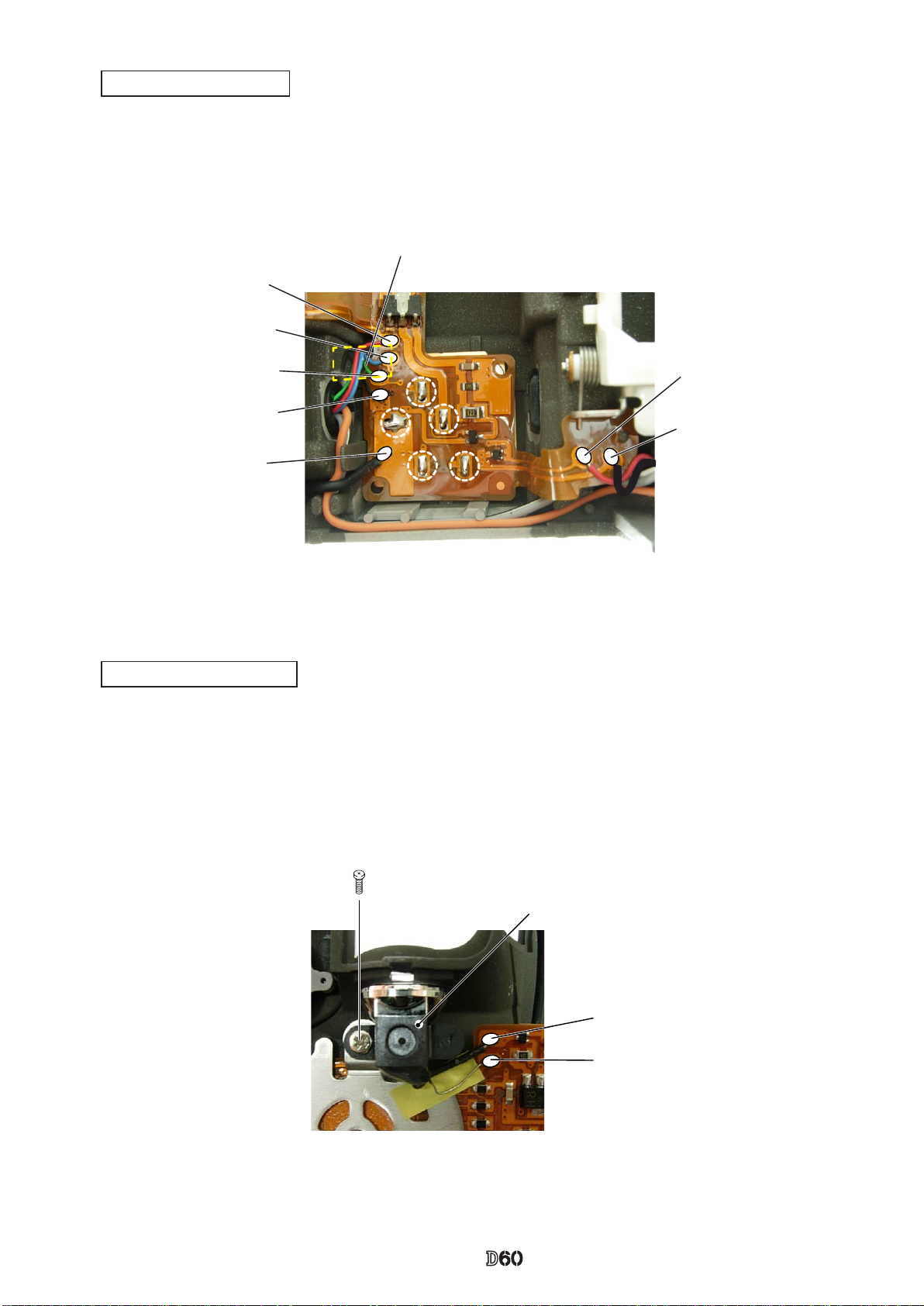

・Remove the tape (#956).

・Unsolder the seven wires (connected from SB lower case unit and SB release base unit).

・Remove the ve solder bridges.

Top cover FPC / Wiring

Red: SB release base unit

Black: SB release base unit

#956

Red: SB lower case unit

Blue: SB lower case unit

Green: SB lower case unit

Black: SB lower case unit

Black: DC/DC PCB

・Remove the two wires (black and uncoated) (connected from AF-assist illuminator unit).

・Take out the screw (#608), and remove the AF-assist illuminator unit (#B325).

AF-assist illuminator unit

#608

AF-assist illuminator unit (#B325)

Black: AF-assist illuminator unit:

Uncoated wire: AF-assist illuminator unit

INC
