Hugyfot Housing for Nikon D200 1User manual

Hugyfot camera housings

Nikon D200

Picture: Jordi Chias

User manual

Hugyfot Housing for Nikon D200 2User manual

Dear Dive buddy,

Regardless which model of Hugyfot you hold in you hand, you can be sure that it

is not only the best housing on the market but also the best looking one. Hugyfot

builds underwater housings for cameras as well as lighting systems since 1953.

The story began at a time when the first regulators were build and all the diving

equipment still had to be designed.

During the last decade, Hugyfot has invested a lot in new technologies. Together

with the emphasising of the ergonomical design, this investment has changed the

market of underwater housings. Recognition and a very high quality standard have

made the Hugyfot brand known throughout the world.

Underwater photography is our life.

Happy Diving!

Hugyfot nv - Industrielaan 30 Zuid III - 9320 Erembodegem - Belgium

All rights are reserved for HUGYFOT. Also on all copies.

Hugyfot Housing for Nikon D200 3User manual

Contents

1. Preface .....................................� 4

2. Techical information .� 5

3. Hugyfot for Nikon D200 ........................................................................................................................ 6

4. Opening and closing the housing .............................................................................................. 7

5. Port with bayonet catch ........................................................................................................................ 8

6. Flash connections ........� 9

7. Mounting the camera .......................................................................................................................... 11

8. Operation of the leakage indicator ........................................................................................ 13

9. Maintenance and service ................................................................................................................ 14

10. Photo practice ..............� 16

11. Accessories .....................� 18

WARRANTY

HUGYFOT NV guarantees for the actual status of techniques an impecca-

ble usage for 2 years. In order to be able to claim this warranty, this user

manual is to be followed unconditionally and the housing is to be used

in a professional way. Faults and imperfections will be fixed by HUGYFOT

during this period of warranty. All resulting damages are NOT INCLUDED

in this claim. Damages due to transportation can not be claimed from

HUGYFOT and remain under full responsability of the owner. The owner

has to forward his claim to the transport company itself in order to avoid

the loss of his right of claim.

Hugyfot Housing for Nikon D200 4User manual

First dive is a checkdive without the camera in the housing.

Check all buttons under water.

1. Preface

A camera in an underwater housing offers a lot of advantages to the profes-

sional and amateur underwater photographer:

 impeccable exposure due to the use of the most modern exposure

techniques of the camera;

 direct view on the subject, very short reaction time and swift image

processing;

 exact and swift focusing due to the autofocus objective;

 parallax faults no longer exist because one looks through the objective

(all settings are displayed on the LCD-screen);as the camera can also

be used on land, a second camera is not needed.

As housings and flashes have a long lifetime and are quite expensive, some

time should be invested in looking around to find the right equipment. Do-

ing this in cooperation with a professional salesman is probably the best

solution.

Different criteria determine the final choice of the camera:

 recording technique (viewfinder, controls, …);

 functionality and comfort (design of the housing, control switches and

their ergonomical position, …);

 price.

Also: some elements that determine ones choice when buying a safari

camera are not important at all when purchasing a camera for “underwater”

use. Cameras are always designed for “on land” use. Therefore HUGYFOT

always designs its housings from the divers’ ergonomical point of view and

translates this through the controls.

Hugyfot Housing for Nikon D200 5User manual

2. Techical information

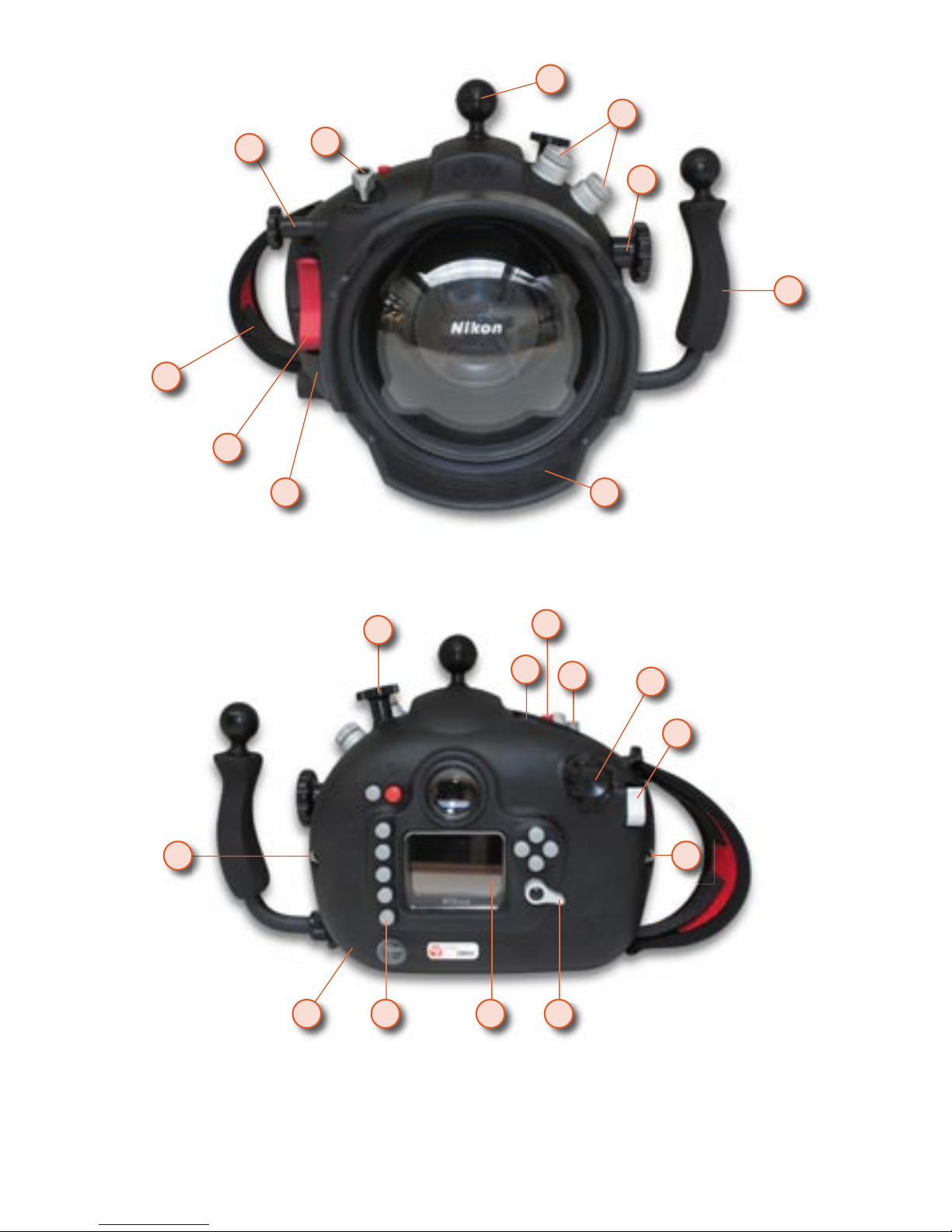

1. Front shell - 2. Exposure lever - 3. Neoprene handstrap - 4. Main dial - 5. On/off switch -

6. Ball-and-socket joint for mounting flash arm - 7. External flash connections - 8. Zoom/fo-

cus control - 9. Ergonomic grip with ball-and-socket joint for mounting flash arm - 10. Port

11. Countersunk bolt - 12. Back shell - 13. Metering mode & Multi selector- 14. LCD moni-

tor - 15. Menu buttons - 16. White balance/ISO/Quality control - 17. Top screen - 18. Mode

button - 19. Metering button - 20. Main dial - 21. Auto focus lock.

131412

19 20

Hugyfot Housing for Nikon D200 6User manual

3. Hugyfot for Nikon D200

It is a trend in underwater photography to use a digital camera that can be

used by the amateur as well as by the professional.

Nothing is as simple as taking pictures with the automatic settings of the

Nikon D200. One can choose to take control himself and set each para meter

to his preference. The sensitive exposure lever is integrated in the front shell

which is a part of the patented Hugyfot-grip. This enables one-hand pho-

tography. With this sensitive lever the exposure lever of the ca mera can be

slightly squeezed so the camera is activated. All the settings then become

visible on the LCD-screen. One-hand photography, taking pictures during a

drift dive or point-shooting with the flash in the other hand are “child’s play”

thanks to the HUGYFOT design. Just as easy is the manipulation of the

zoom on the left side, the diaphragm and the shutter speed.

All parameters can be changed through the menu driven system, this can

be operated through the buttons on the back of the housing. The big LCD-

screen of the camera is entirely visible through the integrated window on

the back of the housing. Any flash can be connected through the standard

Nikonos contact.

The sensitive exposure lever is integrated in the

front shell which is a part of the patented

HUGYFOT-grip. This enables

one-hand photography.

The sensitive exposure lever is integrated in the

front shell which is a part of the patented

HUGYFOT-grip. This enables

one-hand photography.

The sensitive exposure lever is integrated in the

front shell which is a part of the patented

HUGYFOT-grip. This enables

one-hand photography.

Hugyfot Housing for Nikon D200 7User manual

4. Opening and closing the housing

The HUGYFOT Nikon D200 housing is opened and closed by means of 2 built-

in countersunk bolts.

This guarantees the safest way of closing. Only

with the right key you can open and close the

housing. A curious buddy cannot open the

housing by accident. Herewith we exclude the

unwanted opening of the housing. To seal the

housing, the socket screw key is inserted into

the countersunk bolt with the extended part and

then turned by the shorter part until the shells

are squeezed to one another. Further squeezing

the screws hasn’t got any sense and can only

damage the thread. At a depth of 6 meters the

hydrostatic pressure takes over and keeps all

the o-rings under pressure. Always check the

tension on the bolts before diving if the housing

wasn’t opened in between two dives.

First maintenance command:

The screws, and more specific the tread, must

be kept very clean at all times. The main o-ring

merely lies in the o-ring groove. It can be removed by blowing it out with com-

pressed air, by using a credit card or by rubbing two pieces of paper towards

each other against the o-ring so the o-ring pops out of his groove. Never use

a metal object or any other hard material: by doing this you can DAMAGE the

O-ring and the groove.

Second maintenance command:

Whenever the o-ring is dirty or misted up, it must be removed from its

groove (see first command) and cleaned up with soap (do not use corrosive

or chemical degreasers). Afterwards clean it with clear water.

O-rings have to be dried up with a clean cloth (do not squeeze) or by air.

Grease the O-rings (except the main red o-ring) by using HUGYFOT grease.

Pull the o-ring gently through your fingers without stretching it! O-ring

grooves, housing and shell edges have to be cleaned with a clean cloth.

To seal the housing, the sock-

et screw key is inserted into

the countersunk bolt with the

extended part.

Hugyfot Housing for Nikon D200 8User manual

5. Port with bayonet catch

The front port bayonet catch is a secure and fast method to connect the dif-

ferent ports to the HUGYFOT Nikon D200 housing.

The port has a mark which has to be positioned opposite to the mark at the left

of the housing when mounting and demounting the port. To actually close the

port it has to be turned clockwise until the mark on the port is opposite to the

mark on top of the housing. To demount the port it has to be turned counter

clockwise until the mark on the port is opposite to the mark on the left of the

housing.

When mounting the port, mind that it is held exactly in the middle of the

port mounting. Only then you can press the port so it slides nicely into the

port mounting. Check whether the port is closed properly before turning it

towards the marking on top of the housing. (secure position).

Third maintenance command:

The o-ring around the port can be removed from its groove by pressing it

with 2 fingers.

Port mounting, o-ring groove and bayonet catch have to be cleaned with a

wet cloth. Afterwards let everything dry.

Clean the inside of the portglas with water and soap. Never scrub it with a

cloth. Rinse it with fresh water and let it dry, or dry it with compressed air.

Grease the O-rings with HUGYFOT grease by gently pulling it through your

fingers without stretching it! Put it back into their grooves.

When mounting the port,

A and C must be opposite

to each other. Make sure

that the port is held ex-

actly in the middle of the

port mounting. Then turn

the port clockwise until B

and C are opposite to each

other.

Hugyfot Housing for Nikon D200 9User manual

6. Flash connections

Hugyfot housings can be equiped with Nikonos 5-pins or S-6 flash connec-

tions. These flash connections are plugged into a circuit board inside the

housing. An optional TTL-converter is also available.

The flash connection can be shut off by

using a small protection cap which can be

removed by turning it counter clockwise.

The cap has 2 o-rings which have to be

cleaned together with the thread. After-

wards, slightly grease o-ring and thread.

The flash plug also has to be serviced.

Slightly grease the o-rings and thread and

keep the flash contacts dry.

The multiple socket in the housing has

a small ridge. The projecting part of the

connection has a groove with the same

measurements as the ridge of the connec-

tion. Be sure that, whenever plugging the

connection into the socket, the groove and

the ridge fit well together. Only then the

connection is well positioned. Press the

plug gently into the contact. Then turn it

clockwise to tighten it. Whenever the flash

connection has to be removed from a wet

housing it always has to be positioned downwards. If not, the remaining

water can work its way into the flash connection. In that case, the water has

to be removed immediately by using an absorbing paper. Do not close the

flash connection when it is not entirely dry.

Fourth maintenance command:

Keep the inside of the plug dry and clean. The o-rings, the plug and the

thread need to be clean and slightly greased. DO NOT use the housing with

an open multiple socket: this can cause leakage and corrosion!

Be sure that, whenever plugging the

connection into the socket, the groove

and the ridge fit together well.

Hugyfot Housing for Nikon D200 10 User manual

Hugyfot Strobe Connections

The Hugyfot strobe connections are integrated in the leakage detector

circuit board. This circuit board runs on a single 3.6 Volt 1/2 AA Lithium

battery. The main parts of this system are described as below.

Standard setup .

External strobe connection(s) A is (are) connected to D and/or E on leakage detector. Hotshoe B is connected to

C on leakage detector. X is used for ﬁrmware upload.

Setup with TTL converter .

External strobe connection(s) A is (are joined and) connected to D on leakage detector. Connection E on leakage

detector is joined with connection F on TTL converter. Hotshoe B is connected to H on TTL converter. G is power

supply on TTL converter.

In case you run out of batteries, a backup system is provided. TTL control will no longer be available!

Backup for standard setup .

External strobe connection(s) A is (are) connected to J and/or K on backup circuit board. Hotshoe B is connected

to I on backup circuit board.

Backup for setup with TTL converter .

External strobe connection(s) A is (are joined and) connected to J or K on leakage detector. Hotshoe B is con-

nected to I on backup circuit board.

External strobe connection

Nikonos 5-pin or S6-pin

Internal camera hotshoe

Nikon or Canon

Hugyfot leakage warner with integrated

strobe connections Nikon or Canon

Battery holder for

3.6 V 1/2AA Lithium battery

+ -

TTL Converter Backup

A B

Otros manuales para D200

Tabla de contenidos

Otros manuales de Accesorios para cámaras de Nikon

Nikon

Nikon AF-S DX VR Zoom-Nikkor 55-200mm f/4-5.6G... Manual de usuario

Nikon

Nikon EN-MH2-B2 Manual de usuario

Nikon

Nikon AFS NIKKOR 80-400mm f/4.5-5.6G ED VR Manual de usuario

Nikon

Nikon EN-EL8 Manual de usuario

Nikon

Nikon AF-S DX 18-55mm f/3.5-5.6GVR ED Manual de usuario

Nikon

Nikon DS-L3 Manual de usuario

Nikon

Nikon WM-E80 Manual de usuario

Nikon

Nikon AH-4 Manual de usuario

Nikon

Nikon WR-R10 Manual de usuario

Nikon

Nikon SB-25 Manual de usuario

Nikon

Nikon MC-EUI Manual de usuario

Nikon

Nikon f/3.5-5.6G ED VR Manual de usuario

Nikon

Nikon P-FLA2 Manual de usuario

Nikon

Nikon WP-CP5 Manual de usuario

Nikon

Nikon EN-EL12 Manual de usuario

Nikon

Nikon Universal Bracket Manual de usuario

Nikon

Nikon MC-35 Manual de usuario

Nikon

Nikon AF-S NIKKOR 28mm f/1.8G Manual de usuario

Nikon

Nikon WC-E63 Manual de usuario

Nikon

Nikon AF-S DX NIKKOR 18-300mm f/3.5-5.6G ED VR Manual de usuario

Nikon

Nikon 1 NIKKOR VR 70-300mm f/4.5-5.6 Manual de usuario

Nikon

Nikon AF-S NIKKOR 300mm f/4E PF ED VR Manual de usuario

Nikon

Nikon AF-S Fisheye NIKKOR 8-15mm f/3.5-4.5E ED Manual de usuario

Nikon

Nikon DR-4 Manual de usuario

Manuales populares de Accesorios para cámaras de otras marcas

Viltrox

Viltrox EF-NEX Instrucciones de instalación

Calumet

Calumet 7100 Series CK7114 Manual de usuario

Ropox

Ropox 4Single Series Manual de usuario

Cambo

Cambo Wide DS Digital Series Instrucciones de funcionamiento

Samsung

Samsung SHG-120 Manual de usuario

Ryobi

Ryobi BPL-1820 Manual de operación

Aegis

Aegis ABL-36020P Manual de usuario

Pentax

Pentax Data Back Fc Manual de usuario

Fantasea

Fantasea EyeGrabber F Series Manual de usuario

Honeywell

Honeywell HDZ20HD Manual de usuario

EGO

EGO BA1400T Manual de usuario

Sima

Sima SRW-62 Manual de usuario

Shape

Shape A7SSMKIT Manual de usuario

Slide Kamera

Slide Kamera HST-2 Manual de usuario

Power works

Power works 2902613 Manual de usuario

SES

SES SE-2047-2 Manual de usuario

Olympus

Olympus PT-EP05L Manual de usuario

Starlite

Starlite OctoDome nxt Manual de usuario
