This Application Note applies to the M700 & M702 Drive Series

Basic M700 Demo Drive and Motor Setup using MConnect Software

This application note will demonstrate how to set up the M700 demo for Analog Velocity Mode using

MConnect software. The application note will focus specifically on using the MConnect software and

will assume the user has an Ethernet patch cable connected to the drive with a PC static IP address set

to be able to communicate to drive IP address 192.168.1.100 along with a M700 demo unit connected

to 230 Vac input voltage.

After opening the MConnect software select ‘New project’. Keep the default ‘Empty Project’ enter a

Name for the project or accept the default name shown by Selecting ‘OK’.

Application Note

M700 Demo

AN0009

Rev.04, 11/20/17

7078 Shady Oak Road, Eden Prairie, MN 55344-3505

+1 952 995-8000 www.controltechniques.com

In the top right corner select ‘Add drive’:

Enter an optional ‘Name’ and make selections for the Model, Mode, Region, and

Communications as shown below. When finished select ‘Ok’:

7078 Shady Oak Road, Eden Prairie, MN 55344-3505

+1 952 995-8000 www.controltechniques.com

Select ‘Help’ in the ‘File’ tab above to access the third pane in MConnect software that has

useful parameter information while navigating through the MConnect project:

In the drive Dashboard expand Setup and select ‘Motor Setup’:

7078 Shady Oak Road, Eden Prairie, MN 55344-3505

+1 952 995-8000 www.controltechniques.com

Select ‘Choose a motor’, scroll down the list and select 067EDA300

shown below and select ‘OK’:

Select ‘Save to project’ in the upper right hand corner to save the motor data to the project:

7078 Shady Oak Road, Eden Prairie, MN 55344-3505

+1 952 995-8000 www.controltechniques.com

In the drive Dashboard expand ‘Setup’ and select ‘Motor Feedback Setup’:

Make the Drive P1 setup selections as shown below. Then select ‘Save to project’:

7078 Shady Oak Road, Eden Prairie, MN 55344-3505

+1 952 995-8000 www.controltechniques.com

Select the ‘Ethernet’ icon below in the Drive dashboard. Expand ‘Parameters’

and Select ‘Menu 4.02 Ethernet : Configuration’:

Uncheck the box shown below to turn ‘DHCP’ Enable ‘Off’ in Pr 4.02.005:

7078 Shady Oak Road, Eden Prairie, MN 55344-3505

+1 952 995-8000 www.controltechniques.com

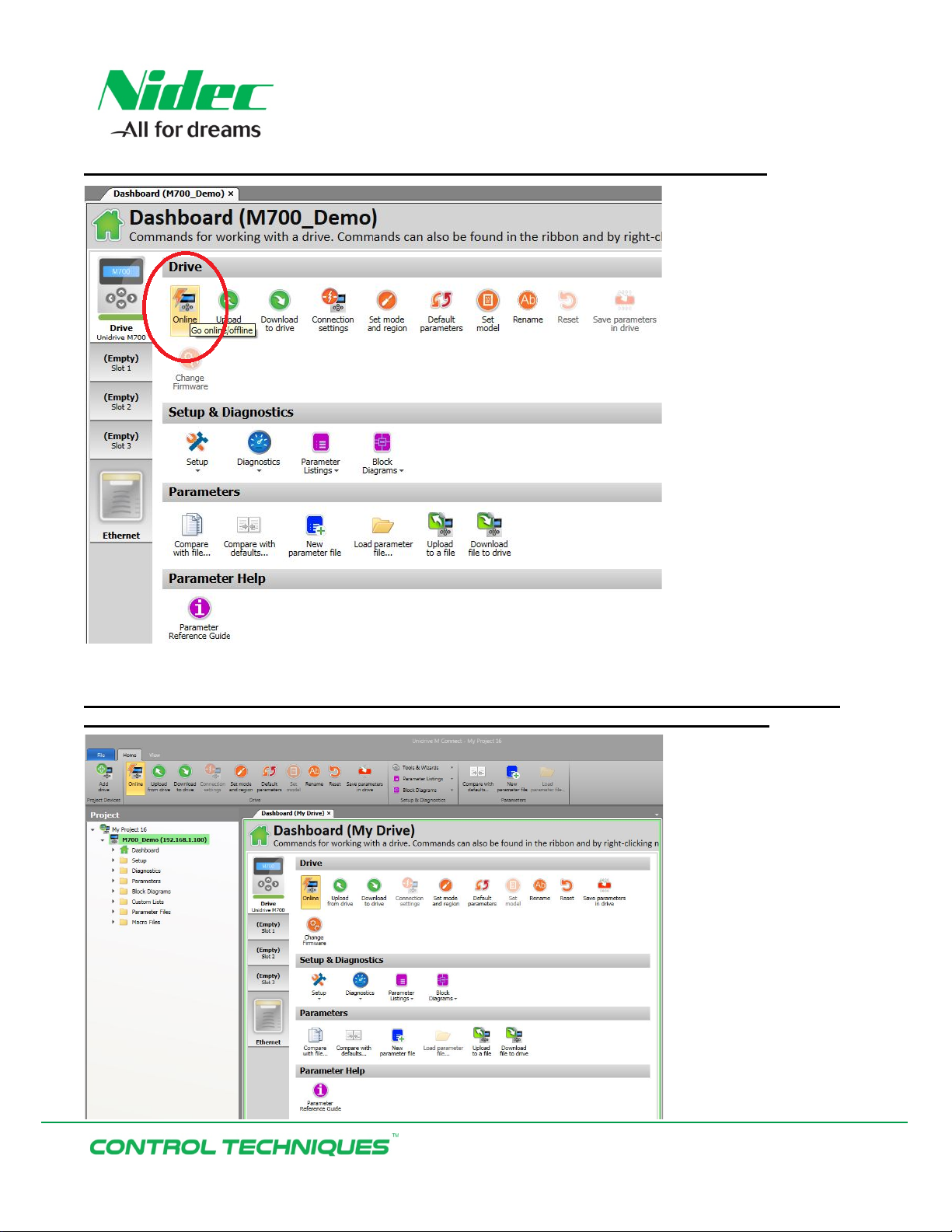

Select the ‘Drive’ Keypad Icon to go back to the Drive Dashboard and select ‘Online’:

Once successfully Online with the drive the drive name, IP address, and the Drive Dashboard

will be highlighted in Green. The ‘Online’ button will be illuminated yellow as shown:

7078 Shady Oak Road, Eden Prairie, MN 55344-3505

+1 952 995-8000 www.controltechniques.com

Select ‘Download to drive’ to download the project setup:

When prompted to ‘Overwrite drive parameters?’ select ‘Yes’:
