Nextar Q3-13 Manual de usuario

，

POWER SUPPLY:

Connect the supplied adapter to the side of the unit in the slot marked “DC 5V IN.” Plug

the two-prong end of the power cord to an AC100-240V outlet. If you have difficulty

inserting the plug, turn it over and reinsert it. If the unit will not the used for a long time,

disconnect the plug from the outlet.

NOTE:

Before plugging the power cord into an AC outlet, make sure that all the connections

have been made.

CAUTION: These servicing instructions are for use by qualified service personnel only.

To reduce the risk of electric shock, do not perform any servicing other than that

contained in the operating instructions unless you are qualified to do so.

Refer to service manual for servicing instructions. To reduce the risk of fire or electric

shock, do not expose this apparatus to rain or moisture.

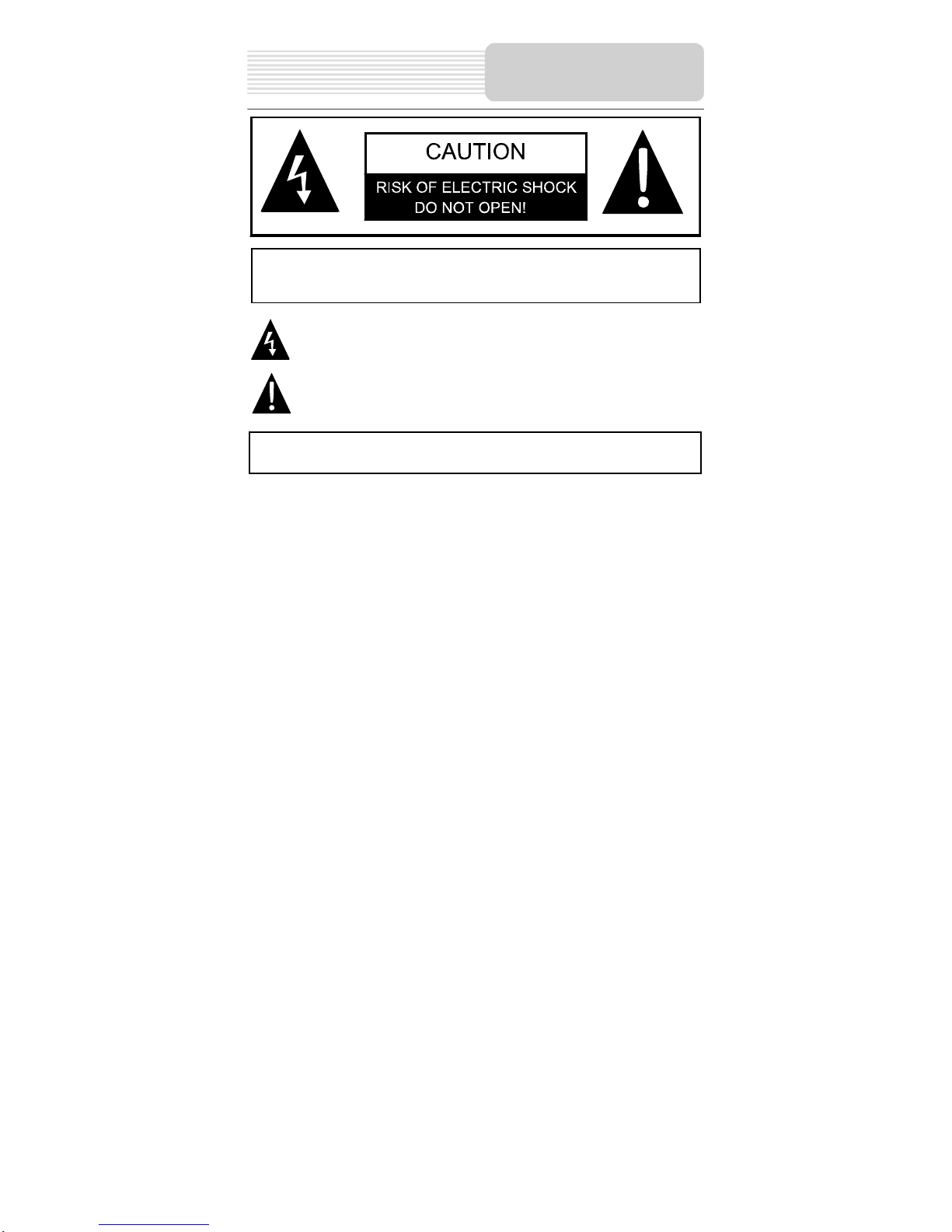

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of uninsulated “dangerous voltage”

within the product’s enclosure that may be of sufficient magnitude to

constitute a risk of electric to persons.

The exclamation point within an equilateral triangle is intended to alert the

user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE.

Important

ety

Instructions

NOTES

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with a damp cloth.

7) Do not block any of the ventilation openings. Install in accordance with the

manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. Apolarized plug

has two blades with one wider than the other. A grounding type plug has two blades and

a third grounding prong. The wide blade or the third prong is provided for your safety.

When the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with a cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is damaged,

liquid has been spilled or objects have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has been dropped.

15) Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,

such as vases, shall be placed on the apparatus.

Important

ety

Instructions

Warning

Failure to avoid the following potentially hazardous situations may result in injury or

property damage.

The unit is designed to provide you with route suggestions. It does not reflect road

closures or road conditions, traffic congestion, weather conditions, or other factors that

may affect safety or timing while driving.

Use the unit only as a navigational aid. Do not attempt to use the unit for any purpose

requiring precise measurement of direction, distance, location, or topography. This

product should not be used to determine ground proximity for aircraft navigation.

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may

cause undesired operation.

The images in this manual are only for reference and they may be

different from the actual ones.

Important

ety

Instructions

Navigation Function

Other Special Functions

Navigation Function: The unit is designed to provide you with route suggestions.

It supports voice navigation.

1 GB Flash Storage: Built-in 1G

Flash Storage can store map data. Support file formats: Supports

MP3 and WMA .

Power Adapter Switch: Automatically adapts to voltage requirements in U.S and

other countries.

Features

Accessories List

ITEM NAME QTY

Remote Control (with battery) 1

Owner’s Manual 2

Power Adaptor 1

Car Adaptor 1

Mounting Bracket 1

USB Cable 1

Mounting cradle 1

Touch Pen 1

Dashboard mount disk 1

Pouch 1

NOTE

Accessories and their parts numbers are subject to modification without prior notice due

to improvements.

Accessories

…………………………………..………..1

……………………………….…………...4

……………………………….…………...5

……………………………….…………...7

……………………………….……….…..9

…………………………….……….…….10

……………………………….…………..12

…………………………….……………..14

……………………………….…………..18

…………………………….……………..20

……………………………………………21

………………………………………..….22

Important Safety Instructions

Features

System Connections

Power Supply Preparation

Troubleshooting

General Setup

Specifications

Accessories

View of Main Unit

Remote Control

Playing Music

Use of the Mount Accessories

Contents

Front View

1. MENU button

Press to enter the main menu.

2. Speaker

3. Charge Indicator

When charging the battery, it is red. When the battery is fully charged, it turns

green.

4. POWER button

Press the power button to enter or exit the standby mode.

5. LCD Screen

6. Remote Sensor

Receive signal from remote control for operation.

View of Main Unit

Side View

Rear View

1. Build-in GPS Antenna

Receiving GPS signals.

2. External GPS Antenna Jack

Connected to the external

antenna (optional).

3. ON/OFF Switch

Used to switch power on or off.

1. Card Port

Insert the SD card into the port.

2. USB Port

1. Volume Control

Used to adjust the volume of the headphone

and speaker.

2. Headphone Jack

Used to connect headphones for private

listening. When the headphones are

connected to this jack, the speaker will be

turned off automatically.

3. DC 5V Input Jack

Used to connect to the supplied power

adaptor or car adapter.

View of Main Unit

1. POWER button

Press to enter or exit standby mode.

2.  direction buttons

Press to select items in the setup

menu.

3.  direction buttons

Press to adjust items in the setup

menu.

4. OK button

Press to confirm selection.

5. MENU button

Press to enter the main setup menu.

6. - button

Press to zoom out the map.

7. MAP button

Press to enter the map view.

8. MUTE button

Press to turn on or off the speaker

output.

9. BACK button

Press to return to the previous

menu.

10. + button

Press to zoom in the map.

Remote Control

zAlways ensure that the unit and any other external device connected to the unit are

switched off and unplugged from the power supply before you attempt to connect

the unit to any external device.

Connecting to PC

The unit is designed with a USB port which allows you to connect the unit to PC for map

updating. See the below figure for details:

System requirements:

-Windows 98SE, ME, 2000 and XP

(Driver required for Windows 98SE)

-DVD Rom Drive ( for map upgrade purposes)

-Intel Pentium II 233 Mhz

-64 MB RAM

-50 MB available hard drive space

-Available serial port and/or USB Port

-256-color display adapter and monitor

(16 bit color required)

In the near future map updates will be available for down load from our website. Please

check www.nextar.com periodically for the information on downloads.

System Connections
