X2 Environmental Data Logger Manual
The NexSens X2 Environmental Data Logger offers the latest in real-time monitoring technology with
wireless communication, large plug-and-play sensor library, and ultra-low power consumption. The
unit includes Integral Wi-Fi and smartphone connectivity with options for radio, cellular & satellite
telemetry. WQData LIVE web datacenter provides instant access on any web browser.
1
Unboxing
What’s included:
•X2 environmental data logger
•Quick Start Card with WQData LIVE Device Claim Code
•(3) Sensor port plugs
•(1) Power port plug
•(1) Magnetic screwdriver
•(1) Wireless antenna (telemetry units only)
3
Apply Power
Connect SP-Series Solar Power Pack or UW6-PW AC Power Adapter
4
SP6 UW6-PW
Configure Telemetry
Most cellular and iridium systems will be pre-configured by NexSens for plug-and-play transmissions to WQData LIVE. Wi-Fi and user-configured data
accounts may require set up.
Direct Connect –Establish permanent wireless data transmission for standard X2s.
Wireless Network Setup process
Cellular- a 4G Compliant Mini-SIM card is required for installation on cellular models of the X2. Factory-installation is recommended, but user installation is
possible.
SIM Installation process
Configure Network APN
Iridium- Factory-installed Iridium satellite modems allow for communication in the most remote deployment locations.
Iridium Setup process
5
Connect Sensors
All sensor cabling connected to the X2 must be configured with one of the following:
•NexSens factory installed UW plug connector.
•NexSens UW-FWP series field wireable plug.
Refer to the NexSens sensor listing at https://www.nexsens.com/support/product-manuals for sensor-specific wiring and configuration information prior to
integration with an X2 system.
6
UW-FWP UW-plug connector
Connect Sensors

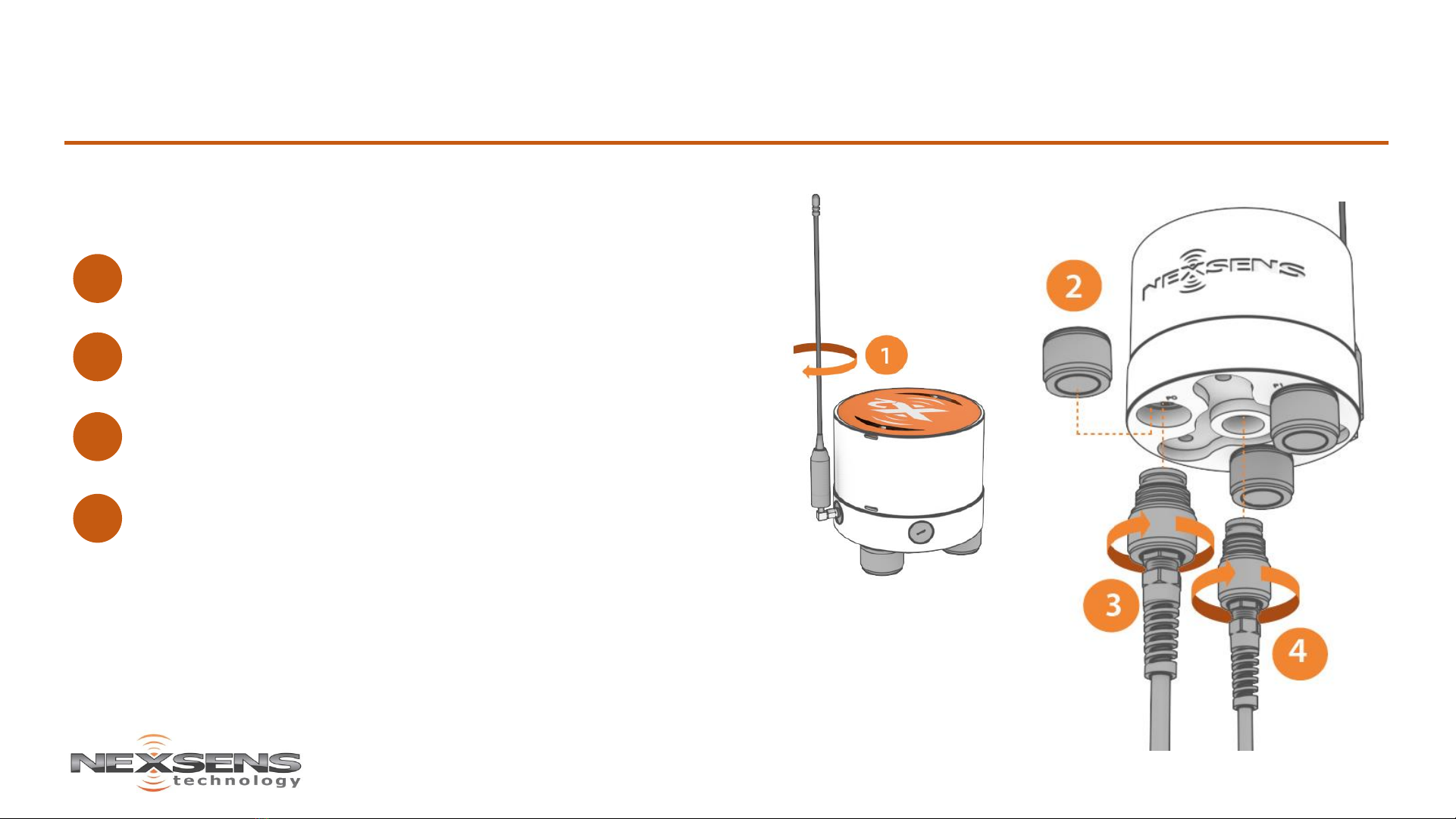

Connect the antenna, power and sensors to the X2
1Connect the system antenna (if equipped) and move into an area
with strong signal coverage.
Remove the center power plug and required outer port plugs (1
for each sensor to connect)
Connect sensors to any outer port (8 pin). *Record the port
number (P0, P1, or P2) occupied by each sensor.
Connect power (5 to 24VDC) to the center port (6 pin)
2
3
4
*After the initial setup, sensors must always be reconnected to the same port for proper communication.
Sensor Auto-Detection
Following the configuration of the logger telemetry (if required) and the connection of all sensors to the X2, disconnect and re-apply power to the X2.
Following power-up, the logger will automatically begin to scan through a list of common sensors to build the deployment sensor list. Sensors discovered during
this process will automatically be updated on WQData LIVE via the X2’s on-board telemetry.
Sensor detection will take approximately 10 minutes. Leave the full system connected and powered while proceeding through the WQData LIVE setup. Following
detection, sensor readings will be logged and uploaded at a 10-minute interval until adjusted by the user.
8
WQData LIVE Overview
WQData LIVE is a Cloud Data Center used in conjunction with the X2 data logger line for the following functionality:
Data Collection- automatic X2 data upload to the web
Data Export
Remote System Configuration
9
WQData LIVE Setup
To begin accessing sensor data from the X2 logger online, proceed through the following walkthrough:
https://www.nexsens.com/pdf/WQData-Live-Getting-Started.pdf
The guide covers the three main prerequisites for setting up the Data Center:
-Creating a free WQData LIVE account
-Creating a new project on the WQData LIVE Datacenter
-Using the Claim Code provided with each X2 to add the logger profile to the project
10
