Nexland WaveBase Pro Series Manual de usuario

LIMITED WARRANTY

Nexland guarantees that every Internet Sharing Box is free from physical defects in material

and workmanship under normal use for five (5) years from the date of purchase. If the

productproves defective during this warranty period, call Nexland Support to obtain a Return

Authorization number. Be sure tohave purchase information or invoice available when

calling.

LIABILITY LIMITATION

IN NO EVENT SHALL NEXLAND’S LIABILITY EXCEED THE PRICE PAID FORTHE

PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL

DAMAGESRESULTING FROM THE USEOF THE PRODUCT, ITS ACCOMPANYING

SOFTWARE, OR ITS DOCUMENTATION. Nexland makes no warranty or representation,

expressed, implied, or statutory, with respect to its products, and specifically disclaims its

quality, performance, merchantability, or fitness for any particular purpose. Nexland reserves

the right to revise or update its products, software, or documentation without obligation to

notify any individual or entity.

FCCSTATEMENT

The Internet Sharing Box has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed toprovide a

reasonable protection againstharmful interference ina residential installation. This

equipment generates,uses,and can radiate radio frequency energy and, if not installed and

used according to the instructions, may cause harmful interference toradio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference toradio or television reception, which is found

by turning the equipment offand on, the user isencouraged to try to correct the interference

by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment or device

• Connect the equipment to an outlet other than the receiver’s

• Consulta dealer or an experienced radio/TV technician for assistance

Pro, WaveBase and Technology that’s Securing the Internet are trademarksof Nexland, Inc.

Windows is a trademark of MicrosoftCorporation. Macintosh isa trademark of Apple

Corporation. All other trademarksand brand names are the propertyof their respective

proprietors.

Nexland, Inc.

1101 Brickell Avenue

North Tower • 2nd Floor

Miami, FL 33131

V2.1

Nexland Pro Nexland Pro: Introduction

Table of Contents Introduction

Introduction ........................................................................1

Features of All Units....................................................................................... 1

Pro800turbo Binding ...................................................................................... 2

Analog / ISDNUse......................................................................................... 2

Physical Features of All Units ..................................................................... 3-7

Requirements.................................................................................................. 8

Package Contents............................................................................................ 8

ANote About the Firewall ............................................................................. 9

Safety First...................................................................................................... 9

Installation........................................................................10

Gathering Your ISP Account Information.................................................... 10

Hardware Installation: Connecting Cables/Hubs.......................................... 11

Configuring Your Computer......................................................................... 13

Browsing the Pro for the First Time ............................................................. 14

DHCP Type Accounts .................................................................................. 17

PPPoE Type Accounts.................................................................................. 18

Static IP Accounts ........................................................................................ 19

Connection Trouble ...................................................................................... 20

WaveBase & Wireless Usage Notes

WirelessNetwork Security – WEP Setup..................................................... 21

Wireless Range ............................................................................................. 22

Wireless Roaming.................................................................................... 22-23

Advanced Networking Stuff

Internet Application Compatibility............................................................... 24

Virtual Private Networking Support............................................................. 25

SNMP Logging and Monitoring the Pro....................................................... 25

The Interface Screens ........................................................26

Interface Reference.................................................................................. 27-56

Trouble Shooting ..............................................................57

Contacting Support ....................................................................................... 58

Appendix

Installing TCP/IP .......................................................................................... 59

Finding Server Names .................................................................................. 61

Using the Serial Configuration Console ....................................................... 63

Manually Resetting the Pro .......................................................................... 64

Backing Up Your Configuration .................................................................. 65

Updating the Firmware................................................................................. 67

Specification................................................................................................. 68

Thank you for purchasing a Nexland Pro Series Internet Security Appliance. Using

technology originally designed to meet the standards of Fortune 1000 Enterprises,

Nexland’srouters are considered the most reliable in their class. Your Pro series

appliance is not only reliable; it alsois one of the most feature rich and fastest of the

low-costrouters.

The Nexland Pro is the perfect solution forsharing your high-speed broadband Internet

connection with more than one computer. You’ll be pleasantly surprised at how fast

all your computers will now be able access the Internet.

The firewall feature of the Nexland Pro makes your network “invisible” from the

outside. It turns away all unauthorized external requests for information from your

network.

The Pro appliance alsocreates a local area network (LAN). This allowsall the

computers connected to it to share files,printers and other network devices. You can

also play multiplayer games over your LAN.

Note for the Manual: The Nexland WaveBase is alsoa Pro series appliance and is

sometimes referred to as such.

Some of the Nexland Pro Series’ Major Features:

 Share your broadbandInternet connection with up to 253 computers

 Provides solid firewall protection for those computers

 Built-in high speed 10/100 switch (except Pro100): 4 Port on Pro400/WaveBase

and 8 Port Pro800/800turboto connect computers oradditional hubs

 High Speed Bi-Directional Throughput: Over 8Mbps!

 Pro800turbo: Bind two Broadband connections for blazing network performance

 WaveBaseand Wireless Enabled Models: Fully 802.11B Wireless Compliant to

connect computers/devices wirelessly on the LAN at speeds up to 11Mbps

 Automatic Analog/ ISDN Backup for truly “Always On” connections

 Easy to setupandconfiguration via Web browser with online help

 Unlimited IPsecClient Tunnels Passing-Through NAPT (patent pending)

 VPN (IPsec, PPTP) Server Behind NAPT Support

 Dynamic DNS to have Web and otherServers behind a Dynamic IP address

 DMZ to put one computer beyond the firewall for full 2-way communication

Nexland Pro: Introduction Nexland Pro: Introduction

Pro800turbo Dual Modem (WAN) Feature Pro400 & Pro100 Features…

The Pro800turbofeatures Broadband connection binding with its dual Modem Ports.

Youcan mix connectiontypes onthe ports (actually, for backup reasons, this is

recommended). So you can binda Cable Internet connection and a DSL connection,

or T1 and SDSL, PPPoE and DHCP, etc. This is great for power users, offices that

have outgrowna single Internet connection,or for users that need an automatic

broadband fail-over capability.

The Pro800turbo load-balances 2 Internet connections making them seem as one.

The Pro800turbowill bind the bandwidth by establishing external network

connectionsto both WAN ports based on a user defined load-balance setting(on the

Expert Level screen).

Load-balancingallows you to download multiple files, like MP3s, at twice the speed

(assuming twoequal speed lines). Utilities that separate single file downloads into

multiple connections will allow you to double the speed of a single file download.

Also, Web browsingis noticeably quicker because web browsers open up multiple

connections for each page you view (like multiple downloads at once). If you want,

you can bind hosts to a single WAN port (on the HostIP & Group screen).

One WAN port alsobacks up the other. If one WAN connection drops, the load

balance will be upped to 100% on the good connection…if that connection drops, you

can have an Analog/ISDN modem connected to the serial port automatically connect.

Thus, this provides automatic triple redundancy backup… excellent for office

networks that require truly “always on” Internet connections.

Analog / ISDN Backup

The Pro has a serial port used for Analog or ISDN connectionsas well as pre-

configuringor resettingthe unit via a terminal console (see Appendix). The Serial

port can be used in Backup mode or as the sole Internet connection of the unit until

broadbandis available in your area.

To use the Backup feature or to connect via Analog / ISDN, you must use an External

Analog Modem (28.8, 33.6, 56k) or ISDN Modem that has a serial connector. Use the

serial cable that came with your modem (not the Null modem cable in the package) to

connect to the Pro. After connectingthe Modem to the Pro, you must configure the

Backup / Analog / ISDN interface screen with your account information (most DSL

accounts come with an analog account free of charge for backup purposes). Click

“Backup” to use that connection as a backup to your broadband. The Backup engages

automatically when broadband drops and will auto-disengage when broadband returns.

Rear of Pro400

Rear of Pro100

Pro800 & Pro800turbo Features…

1 3 5 6 7

Front of Unit

2 4

Front of Unit

5 4

10 2n

Modem Port on

Pro800turbo Only

Rear of Unit

Picture of

Pro800turbo

1 87 6

WaveBase™ and Wireless Enabled Unit Features… 1.

Nexland Pro: Introduction

Front of Unit

Rear of Unit

Picture of

WaveBase™

Nexland Pro: Introduction

DIP Switches – These are used for disablingthe DHCPServer, Resettingthe unit,

activatingthe Serial Console Interface and to configure the Pro for firmware

upgrades. Normal operationis with all 4 in the OFF (Up) position. More

informationcan be found in the Appendix.

LAN Link LEDs – 100BaseT, 10BaseT and Duplex LED link indicators for LAN

port(s). When the LED is on, your link is good. 100BaseT is the preferable

connection as it provides the highest throughput on your local network. You’ll

need a 100BaseT compatible Ethernet card in your computer. Duplex indicates

that your card supports Duplex mode Ethernet; this gives you up to 200mb

throughput on your network! The Duplex LEDs will flash if there is a collision

state on the network. Collisions happen when packets are beingdropped or

misdirected. This is most often caused by duplicate IP addresses/gateways or

extremely heavytraffic that’soverloadingthe network.

Pro400, Pro800, o800turbo & WaveBase:Pr

LAN Switch with 10/100BaseT (auto sense) Ports with Duplex (200MB)

4 Ports on Pro400 • 8 Ports on Pro800 & Pro800turbo – Plug your computers

or additional hubs into here. Use only CAT5 Ethernet cables for best

performance. If plugging in an additional hub,use the “Uplink” port on your hub.

Pro100:

LAN 10/100BaseT (auto sense) Port – Plug a computer or hub/switch into here.

Use only CAT5 Ethernet cables for best performance. This port functions like an

“Uplink” port on a hub. See Installation for cablinginstructions.

Modem (WAN) 10BaseT Port – Connect your external modem here. It must

have a 10BaseT compatible connection.Use the cable that came with the modem

to plug into this port. Note: If connecting other network devices to this port,

make sure they are compatible with a 10BaseT connection.

The Pro800turbohas DualWAN Ports & WAN Link LEDs.

Modem (WAN) Link LED – When lit, it indicates a proper 10BaseT connection

to your Modem (or othernetwork device). If it doesn’t light, make sure you are

usingthe proper cable (theone that came with your modem).

Reset Switch – This will reset (reboot) the unit. If having connectivity trouble for

anyreason, try hittingthe reset switch.Resetting doesn’t erase the Pro’s settings.

9v DC1000mAPower Connector – Connect the power adapter plug here. Make

sure to use only the power supply that came with the Pro as plugging in the wrong

voltage can damage the unit.

RS232 Male Serial Port – Connect external ISDN / Analog to use automatic

broadbandbackup feature. Also used with Null Modem cable(included) to

configureunit (see Configuring via Serial Port).

2 3

5 4

10 13

1 87 611 12 3.

Nexland Pro: Introduction Nexland Pro: Introduction

9. Pro400 and Pro100 Only:

Backup Active LED – Lights when the ISDN / Analog backup feature is in

progress(when broadband has dropped).

WAN Connected LED – Lights when your WAN IP Address isnon-zero. This

indicates that you have connected to your ISP (it is not always an indicator of a

functioning Internet connection as the ISP may have problems not related to IP

addresses). If you make a Static IP entry into the Pro, this LED will stay on.

PPPoE Active LED – Lights a PPPoE session is in progress.

WAN Transmit/Receive LED – It lights GREEN under normal conditions.

Flashes when data is sent through the Modem (WAN) port.

LAN Transmit/Receive & Error LED – This is a Dual Purpose LED. It lights

GREEN under normal conditions. When flashing, it indicates data is beingsent

through any of the LAN ports (switch). If it lights/flashes RED, this indicates one

of the Pro’s diagnostics have failed. This is usually a problem with the firmware

or hardware. Contact technical support if you have an error (RED) light. Note:

The LED will flash red duringa firmware upgrade procedure or when usingthe

Serial Console; this is normal.

10. WaveBase, Pro800 & Pro800turbo (from left to right):

Power Indicator LED – Lights when the power switch is on and power is

supplied to the unit.

Error LED indicator – Similar function to the Error light on the Pro400

LAN/WAN Transmit/Receive – Lights when data is transferred between the

WAN and LAN

Backup Active LED – Lights when the ISDN / Analog backup feature is in

progress(when broadband has dropped).

11. WaveBase™, Pro800 & Pro800turbo: Power Switch

WaveBase™ and Wireless Enabled Units Onl

…

12. Wireless Status LEDs

Ready LED – Ready for 802.11B communication (wireless). This light should

always be on after the unit is powered up. If not, check that you are usingthe PC

card from Nexlandin the rear ofthe unit. Also, with the unit off, try ejectingand

carefully re-seatingthe card.

Active LED – Flashes when wireless communication is be transmitted with

wireless client(s) onthe LAN.

13. Wireless PCMCIA slot – APCMCIA card supplied by Nexland provides the

WaveBase’s wireless function(included). You must insert the card into this slot

for the WaveBase to communicate with wireless clients onthe LAN. Otherwise,

the WaveBase operates only in the “wired” Ethernet mode. Note: NEVER

INSERT OR REMOVE THE CARD WHEN THE UNIT IS ON. Power off

the unit before removing or insertingthe wireless card. Only insert cards

provided by Nexland for use in the wireless slot.

6 7

Nexland Pro: Introduction Nexland Pro: Introduction

Network Requirements: What you’ll need ANote About the Firewall

 A Cable or DSL Internet account (or other network connection)

 A Cable or DSL modem (or other network device) with an RJ45 (Ethernet)

10BaseT compatible connection – This is usually available from your ISP upon

request

 An Ethernet 10BaseT or 100BaseT compatible Network Card incomputer(s) you

want to connect to the Pro – Optional for WaveBase and Wireless Enabled units.

 WaveBaseand Wireless Enabled units: an 802.11B compliant Network Client.

Clients are available in USB, PCI and PCMCIA types.

 UTP(CAT5 grade) cabling with RJ45 connector to connect computers to the Pro

(1 cable included) – Optional for WaveBase and Wireless Enabled units.

 A standard Web Browser (one is included on the CD)

 TCP/IP Network Protocol (this is usually alreadyinstalled in your computer andis

a part ofall modern OperatingSystems). See Appendix about installing TCP/IP.

 OPTIONAL:A 100BaseT or 10/100BaseT hub/switch to connect additional

computers to the Pro. Note: A hub or switch is required to connect more than one

computer to the Pro100.

If you have any questions about these requirements or for informationabout different

network configurations, you can contact Nexland Support.

The package should contain…

 The Nexland Pro Appliance

 A6.5 Ft CAT5 grade Ethernet Cable

 Pro100 Only: A 3 Ft Cross-Over (Red Tipped) Ethernet Cable

 WaveBase Only: A Radio Card for the Wireless Slot

 ANull Modem (cross-over) Serial Cable

 CD with Manual, Browser andUtilities

 9v DC 1000mAPower Adapter

 Quick Start Guide

 Printed Manual

The Pro protects your computers from intrusion by its firewall feature. It prevents an

outsider from gainingaccess to the computers connected to the unit. It will not protect

your computers against information requested from insidethough. This is the case

when you download a suspect program or e-mail with an attachment that has harmful

viruscode.

The Pro should be used in conjunction with Anti-Virus software (with an e-mail scan

feature) to provide the best protection. With this software, your computer is better

protected against Viruses and e-mail born Trojan programs.

Remember, to be safe, you should never open e-mails with attachments

that end in “.exe”, “.vbs”, “.pif”, “.bat”, “.scr” …even if they’re from

someone you know. As e-mail Trojanstakeover a computer and send

their destructive payload to contact lists automatically.

If you work in an office environment, installing a good Personal Firewall on each computer provides an

even better measure of protection.This protects a computer’s data internally on the LAN from another

computer on the same LAN. Some personal firewalls haveadditional features to make sure only registered

applications usethe network; this prevents Trojan FTP programsand the like from working.

Safety First

Make sure you follow these precautions and your Nexland Pro appliance will last

you a very very very long time:

 Follow all warnings, notes, and instructions that may be marked on the unit.

 To protect the unit from overheating make sure it is not blocked orcovered.

 Do not use or store the unit in an environment that exceeds temperature and humidity specifications.

 Do not place the unit near a radiator or heat register, orin a built-in installationunless adequate

ventilation is provided.

 Before cleaning the unit, unplug from wall outlet. Donot use liquid cleaners or aerosol cleaners. Use a

dampcloth for cleaning.

 Do not place cords or cables where they may be walked on or tripped over.

 Be sureto comply with any applicable local safety standards or regulations.

 General-purpose cables areprovided with the unit. Any cables or other requirements mandated by

local authority are your responsibility.

 Cables that areattachedto devices in different locations that havedifferent power sources and

grounding may havehazardous voltagepotentials. Consult a qualified electrical consultant before

installing the unit to see if this phenomenon exists and, if necessary, take correctiveaction.

 Never touch annunciated telephone wires or terminalsunless the line has been disconnected.

 Avoid using telephone equipment orinstalling the unit during an electrical storm.

 Never installtelephone jacks, lines, network cables, the unit, orpower connections in wet locations.

 Never spill liquid ofany kind onthe unit.

8 9

Nexland Pro: Installation

Installation

Before you install the Pro, gather information about your Internet account and

computers. ontact your ISP ifyou aren’t sure about something.C

You must determine what type of Internet connection you have to determine the

informationrequired for installation. For the purposes ofthis manual, it should be one

of three different types:

 PPPoE Internet Account - Most large DSL ISPs have adopted this method.

Hint: If you have “Dial Up” software on your computer to access your

account, then you most likely have a PPPoE account.

o Note your User Nameand Password before installingthe unit

o Disable (or Uninstall) the PPPoE “Dial-Up” Software

 Dynamic IPDHCP Internet Account - Most Cable ISPs, some DSL.

o Sometimes noinformationis required, just connectingthe unit and

rebooting your computer will get you connected

o The MAC(Network Adapter) addressof your Ethernet card might

be needed if used by your ISP.See below on how to obtain it.

o The Host Name or Domain Name on your computer might be

needed if it is a coded name given to you by your ISP.

 Static IP Internet Account (or Network Connection)

o You’ll need your IP Address, Network Mask, Gateway andDNS

Important Note: Some ISPs (usually Cable) have abbreviated names for

your E-Mail servers and Web Home Page. his is the case if your

Internet home page is a very short name, like “www” or “web” rather than

www.nexland.com, or your E-Mail server’s name is something like

“pop3” or “mail” instead of mail.nexland.com

You MUST obtain the actual server names (Internet names) in order to accessthe Web

and E-Mail when using the Pro. Youcan obtain this information from your ISP or see

Finding Server Names in the Appendix (must be done beforeinstalling).

If it isn’t already, connect your modem to your DSL or Cable line as instructed in

your modem directions.

Nexland Pro: Installation

Hardware Installation

It is strongly recommended that you installyour Nexland Pro with only one

computer directly connected to it first. This will greatly simplifyanytroubleshooting

duringinstallation. After the install is successful with a single computer, you can then

addadditional computers and/or hubs to the Pro. The following installationassumes

this simple network setup.

Connecting the Cables

use the Adapter that came with the unit.

STEP 1: Insert the 9v DC1000mAPower Adapter that was included

with the Pro and plug it into an electrical outlet. Makesure to ONLY

STEP 2: Take the cable that came with your modem and remove it

from your computer (if applicable) and insert the free end into the

Modem (WAN) port of the Pro. You should see the WAN Link light

illuminate green. If not, check that you are usingthe samecable that

came with the modem. For the Pro800turbo: Repeat this step for

other Modem port with a separate modem or connection (you can

mix Cable, DSL, or routed connections on the Pro800turbo’s2 Modem ports).

Note: Step 3 is optional on the WaveBase and wireless enabled units.

STEP 3: Note: For the Pro100, use the included red-tipped

Ethernet “cross-over” cable for this step. For all other models, a

standard “straight-thru” cable is needed.Take the Ethernet cable

that was included with the Pro and connect it from your computer to

a free LAN port – LAN portsare labeled 1 thru 4 inPro400 &

WaveBase & Wireless Enabled Units…

With the unit powered off, carefully insert the PC card includedin the

Nexland box into the slot in the rear of the unit labeled “Wireless”

until the eject button pops out.

Confirm that your computer(s) on the network have their 802.11b adapter

cards installed. You must set your adapter cards’ ESSID to My Network

(with a space andcase sensitive!) andtheir Network type set to Access

Point or Ad-hoc. The other settings should remain at their defaults. For

installation purposes, leave encryption disabled. After a successful installation, it is

strongly recommended that you turn on encryption.

Nexland Pro: Installation

WaveBaseor 1 thru 8 inPro800 & turbo.

You should seeagreen link light on the

corresponding LANLED. If not, confirm that

Configure Your Computer

Always use the

included “cross-over” cable

when connecting a single

computer DIRECTLY to the

Pro100.

ro100

Connecting Hubs to the Pro400, 800, 800turbo & WaveBase

If you are connecting a hub or switch to the LAN ports of the Pro, you must use

the “Uplink” port on your hub. lus, your hub MUST be a compatible with a

10BaseT or 100BaseT connection. You can tell that the link is good by the

corresponding LAN link LED lighting green.

If there is no “Uplink” port on your hub, you can use what is called a “Cross-

Over” cable to connect from a regular port on your hub to a LAN port on the Pro.

Consult your local networking dealer on obtaining a “Cross-Over” cable.

The next step involves setting upyour computer to automatically accept the IP

addressing from the Pro’sDHCPServer. This formsan internal network (LAN),

separate from the outside, with it’s own private IP addressing scheme. If this

sounds like Greek to you, don’t worry; the Pro will handle the hard part.

Nexland Pro: Installation

If you donothave

your computer is powered on and your Ethernet

card is functioning properly. This is true for

every connection you make to the Pro. Always

check for a Green Link LED!

Confirm you are obtaining an IP Address Automatically

In a Windows95/98/ME environment (NT/2000 usersplease

refer to your User Manual)…

Open your Control Panel (Click Start then Settings).

Open Network then Click on TCP/IP (if there is more

than one TCP/IP, pick the one bound to your Ethernet

card) then click Properties; verifythat “Obtainan IP

AddressAutomatically” is selected.

the TCP/IP protocol

installed in your

computer, please see

Installing TCP/IP in

the Appendix.

Click on the Gateway tab and confirm that there are noentries and the DNS tab

should have “DNS disabled.” If there are entries under these tabs, make a note of

them before clearing, as they may have to be entered into the Pro.

In a Macintosh Environment:

Go to Apple > Control Panels > TCP/IP. Confirm that “UsingDHCP Server” is set.

Now Reboot You must followthe procedure onthis

page the first time for each additional

Your Computer computer you connect to the Pro.

Connecting Hubs to the Pro100 ONLY

When you connect an additional Hub or Switch to the Pro100, you have two

options:

 First, you can use the included Ethernet “straight-thru” cable (theone

without the red tips) to connect from the Pro100’s LAN port to any free

port on the hub… except the “Uplink” Port.

 Or you can use the included “cross-over” cable to connect from the

Pro100’s LAN port to the “Uplink” port on a hub.

You can tell that the link is good by the corresponding LAN link LED lighting

green.

Nexland Pro: Installation Nexland Pro: Installation

Browsing the Pro for the First Time

The Pro has a Web-based configuration

interface. This meansthat any standard web

browser can be used to make settings on the

unit. Start your browser.

Type http://192.168.0.1 into the

addressbar of your browser and hit enter on

your keyboard…

If you have proxy settings in your

browser, clear them now.

Internet Explorer 5 or higher: Click

Tools> Internet Options >

Connections > LAN Settings.

Remove all checks from all the

boxes and click OK. “Never Dial a

Connection” should be clicked.

Netscape Navigator: Click Edit >

Preferences > Advanced >

Proxies. Click Direct Connection

to the Internet

Pro800

turbo

Users

The Pro800turbo has duplicate Setup fields for bothModem (WAN) Portson the Main

Setup screen as well as other interface screens. The Installation instructions on the

following pages should be repeated for each Modem Port.

Before making additional settings, you should set your Modem Port Modes and Alive

Indicator right now for bothModem Ports. The Port numbers (1 and 2) correspond to

the same numbers printed on the front ofthe unit. Click SAVE after setting both.

 Mode: Leave on Normal if this port is connected to an Internet (or network)

connection and you wish touse this connection in the Bandwidth Binding

feature of the Pro800turbo or if it is the only connection.

 Select Off if there is no current Internet (or network) connection being made

with that port. Yourisk packet loss if you fail to do this.

 Set to Backup if you wish to use this connection only as a fail-over backup in

case the other connection drops. his is ideal for slower connections.

If your Internet connectiontype is Dynamic DHCP or Static IP, the Alive Indicator

must beset. The Alive Indicator is used by the Pro to determine whether that WAN

connectionis functioning or not even if traffic is idle onthe WAN (needed when

binding orfor backup activation). Every 20 seconds, the unit pings the ISP’s gateway

and DNS to see if it’sconnected. ally this is fine except some ISPsprevent

pings to their gateways. Enter a www or IP into this field for an additional ping test

should the gateway not respond (don’t use the http:// prefix). est by pinging

manually first. Not used for PPPoE.

Norm

This brings up the Main Screen with the Interface Navigation bar on the left…

Skip ahead to the appropriate page determined by the type of Internet

Account you have (Dynamic IP DHCP, PPPoE or Static IP)…

See Next Pa

es…

Pro800turbo & WaveBase

14 15

Nexland Pro: Installation Nexland Pro: Installation

For Dynamic IPDHCP Internet Accounts (most Cable ISPs, some DSL)

Note: See PPPoE on the Next Page for that Type of Account

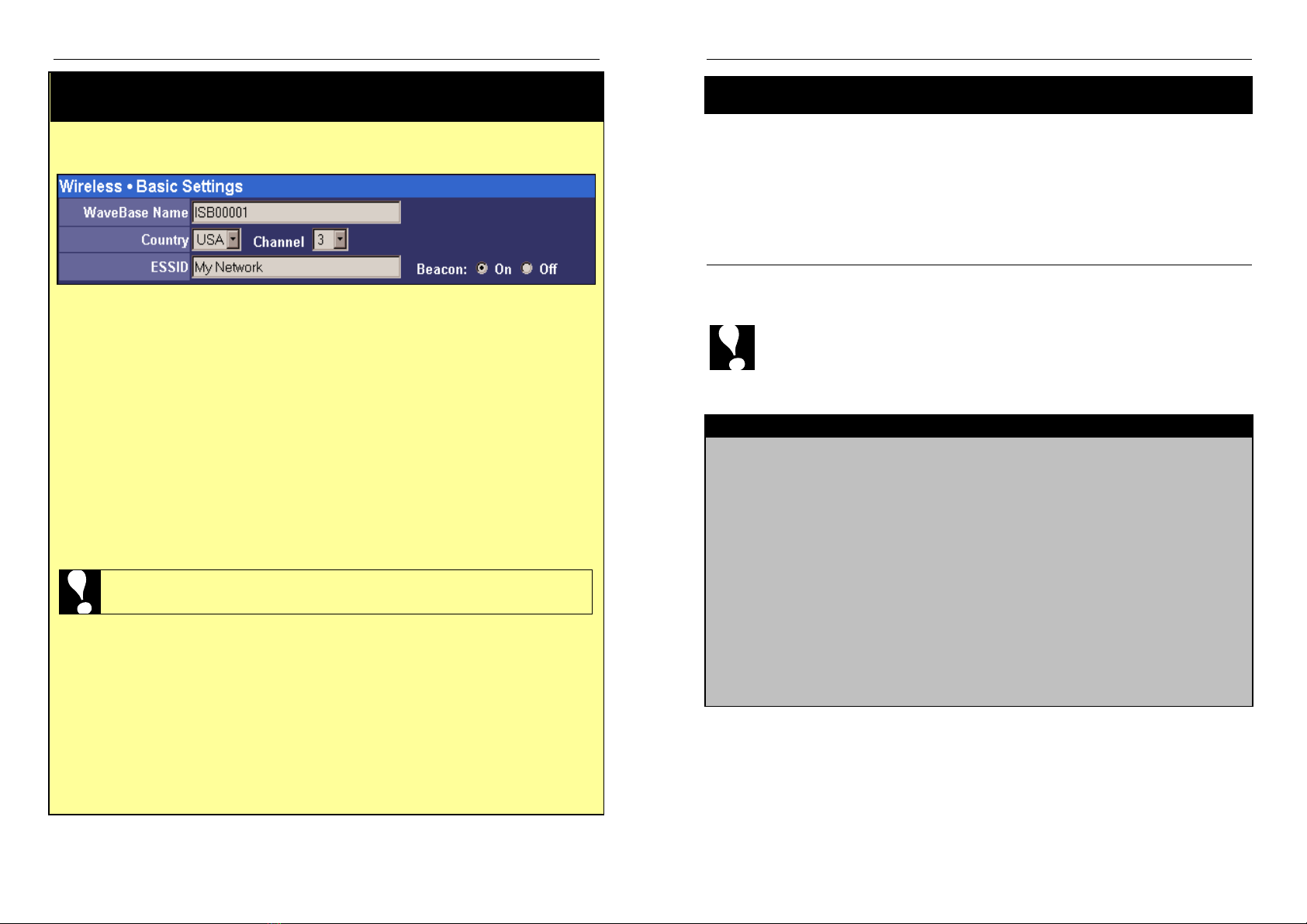

WaveBase & Wireless Enabled Units

The WaveBase has additional setup fields for Access Point Name, Country, Channel

and ESSID on the Main Setup screen.

WaveBase Name shows up on Site Scans as an Identifier (usually referred to as “AP

Name”) for this Nexland unit.

The Country menu should be used to select your current location now.

The Channel menu selects the default channel. der normal conditions, the

WaveBase will try to communicate onthe clearer channel automatically. u can

change the default if you have problems in your area.

The ESSID identifies the wireless Network that the WaveBase is operating on.

should be changed toa custom name now. The ESSID must be no longer than 16

characters andis case sensitive. mputers connecting via wireless must have a

matching ESSID in their clientsettings. Beaconing can be turned Off(also known as

“Closed Network”) to prevent the WaveBase from broadcastingits ESSID. te that

the unit will respond with its ESSID if scanned.

Click SAVE after making your settings

Note: When youchange the ESSID, you will lose wireless connectivity

until youchange the ESSID in the Clientsettings on your computer.

If you have trouble bringing up the Main Screen:

•Check that the Wireless Ready LED is illuminated on the front ofthe WaveBase.

not, the Radio Card might not have been inserted correctly. ower down the unit

and re-insert the card. e sure you are usingthe card supplied from Nexland.

•Check your Wireless Client settings and managersoftware. It should have a link to

an ESSID of My Network and an IP address within 192.168.0.x.If not, you might

be communicating with another Access Point.

•Check your Wireless Client “Ready” LED if it has one. not illuminated, you may

have installed the Wireless Client driver incorrectly or there is a conflict.

Mak

You may already be connected. The Connection Status is on the top of the Main

Setup page. If it says Connected…

Try entering http://www.nexland.com in the addressbar of the browser. You

should see our home page. Have fun surfing the web! You can now connect

additional computers to the Pro. Remember to followthe steps on page 8 for each.

If you have this type of account and it says Disconnected…

Then you will have to enter your Network Adapter (MAC) or ISP supplied Host

Name or Domain Name.

Enter the MAC (see below) or Host/Domain Namein the appropriate fields

(host & domain names are case sensitive) then click the “Save.” The Pro

will restart andattempt to connect. Wait a moment then click Backto the

Main Setup page and hit Refreshon your browser. It should say Connected at top. If

it doesn’t, try refreshing again in a moment or consult Troubleshooting.

How To Obtain Your Network Adapter (MAC) Address

Note: The computer originally used to connect to the Internet must be used for this procedure.

On Win95/98/ME...

 Type "winipcfg" at the "Run..." prompt on your Start Menuthen hit OK

 Hit the "More Info" button

 Select your Ethernet Card from the drop down menu. The adapter address

should appear.

On Win2000/NT…

 Type "ipconfig /all" at a DOS prompt. our MAC is the “Physical Address.”

On Macintosh (OS9)…

 In the Apple Menu, click “Apple System Profiler”

 Under the System Profile Tab, Click the Down Arrow for “Network Overview”

 Click the Down Arrow for “AppleTalk”

 The Hardware Address should be listed – This is the MACaddress

16 17

Este manual sirve para los siguientes modelos

Tabla de contenidos

Manuales populares de Puerta de otras marcas

LST

LST M500RFE-AS Manual de usuario

Kinnex

Kinnex Media Gateway Manual de usuario

2N Telekomunikace

2N Telekomunikace 2N StarGate Manual de usuario

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manual de usuario

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manual de usuario

Telsey

Telsey CPVA 500 - SIP Manual de usuario

RTA

RTA 460A-NNA4 Hoja de especificaciones

Shaw

Shaw Gateway HDPVR Manual de usuario

ABB

ABB VSN900 Guía de inicio rápido

Commander

Commander Pulse Manual de usuario

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manual de usuario

NETGEAR

NETGEAR C6300BD Manual de usuario

Amit

Amit CDW531AM Manual de usuario

HMS

HMS Netbiter EasyConnect EC150 Manual de usuario

Huawei

Huawei EchoLife HG620 Manual de usuario

AT&T

AT&T U-verse 3801 Manual de uso y cuidado

Logic IO

Logic IO RTCU MX2 turbo Manual de usuario

Suttle

Suttle MediaMAX MXM-521 Manual de usuario
