Chapter 1 Introduction
A perfect presentation can be ruined if it can't be seen by all participants,
or if setup delays cause the audience to lose interest. Presto! WMS
(Wireless Multimedia Presentation System), included with your wireless
multimedia card will keep things moving. You need a projector or monitor
for the adapter, and a computer to act as Sender. The Sender can be
easily changed without reconnecting any wires. It's all very easy to set up
and the hard choices like channel and serial number selection are made
automatically.
If you buy more than two devices, the one-to-many
transmission mode will not be supported for Ethernet
connections.
• System Requirements
• Hardware Box Requirements
• Features
• Installation
System Requirements
Presto! WMS requires hardware in the form of a wireless card. Here is a
list of the system requirements that must be met before installing the
programs.
• Intel Pentium III processor, 800 MHz or faster.
• Windows 2000 or XP with DirectX 8.1 or later.
1
Chapter1 Introduction
• A minimum of 256 MB RAM and 200 MB free hard disk space.
• A display card supporting 16-bit high color or true color with 800 x
600 or above resolution. (1024 x 768 is recommended.)
• At least 200 MB hard disk space for running the program. At least
500 MB of available working space.
• A Windows-compatible sound card and speakers.
• CD-ROM or DVD-Rom drive.
• Wireless card.
• For transmitting desktop images, the following resolutions are
supported: 800 x 600, and 1024 x 768.
Hardware Box Requirements
The WMS-R hardware box supports the NewSoft Wireless Multimedia
System Protocol.
• Power: 5 V, 1 A for Asia and the U.S.A (5V, 1.7 A for Europe).
• LAN supported: Ethernet, WLAN 802.11 a/b/g.
• Processor: TF-530 or TF-522.
• Flash ROM: 1 MB.
• SDRAM: 128 KB.
• Graphics Processor: ASIC or FPGA.
• DRAM: 2 x 32 MB.
• Output: D-Sub 15 pins.
2
Chapter1 Introduction
• Graphics resolution: 800 x 600 and 1024 x 768, for ASIC design,
1280 x 1240 will also be supported.
• Color Quality: 16-bit (Normal), 24-bit (Better), 32-bit (Best)
Features
• Mouse movement on the Sender computer can be seen on the
projected screen.
• Low transmission error rate.
• Automatic channel selection and serial number assignment.
• Automatic scanning for Senders and Adapters, and a list to select
from.
• WEP (Wired Equivalent Privacy) protection for added security.
Installation
Before you begin, make sure the hardware is correctly set up. The
installation will be done in two parts: one for the Presto! WMS program
and one for the hardware driver. Follow the steps below.
1. Insert the disc into the disc drive. The installation program will
automatically open and guide you through the process.
2. After installing the software, the system will detect the related
hardware and install the driver.
Presto! WMS is now ready to use.
3
Chapter 2 Setting Up the System
Here is how to prepare the program for a presentation.

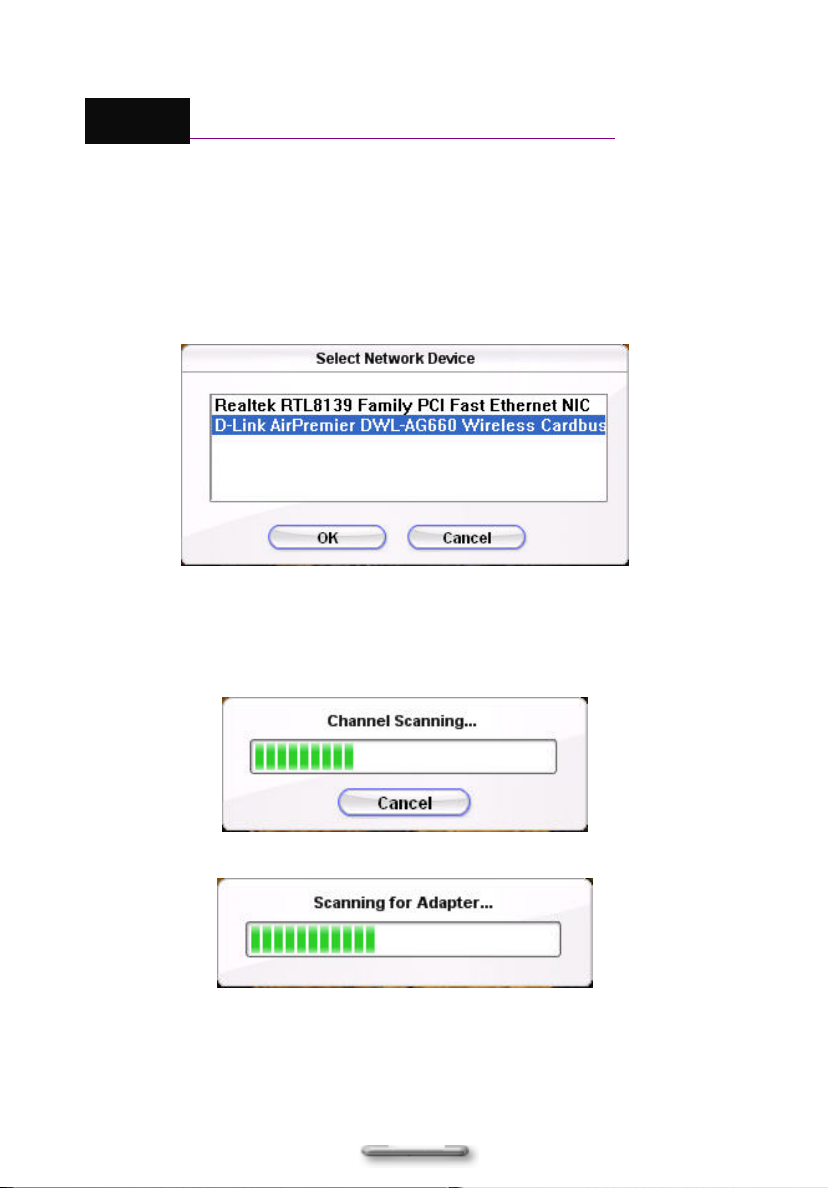

1. Start Presto! WMS. Presto! WMS will automatically display any
network devices. Select one from the list.
2. Click OK to start scanning for channels, and then scanning for the
adapters.
4
Chapter2 Setting Up the System
This scanning process only happens when (1) opening
Presto! WMS the first time (2) the adapter has been
modified.
Presto! WMS will recognize the previously connected
device when opening and skip the device scanning. If
the previously connected device has been removed, a
message will open and device scanning will be done
again.
For WLAN cards that have yet to pass the Windows
certification, the scanning process won’t find the
adapter. This message will appear to help you find a
solution: “WMS is unable to connect to the WMS
receiver with the Windows Standard Utility. To begin
using the software, please use your Windows WLAN
card utility to manually locate a wireless connection to
the WMS receiver”. After you click OK, the main control
panel will open. If you used the WLAN Card utility to
manually locate a wireless connection to the WMS
receiver, you can start to play. Otherwise an adapter
won't be found.”
For Ethernet, the scanning process won't start and the
main control panel will open.
3. The scanned adapters will be shown on the Adapter List. Click one
to select it.
5
Chapter2 Setting Up the System
You can select more than one adapter. If Multiple Adapters is
selected, there will be a check box for each device on the Adapter
List. The selected adapters will receive the same source from Presto!
WMS .
4. Click the button on the control panel to open the Settings dialog
box.
6
Chapter2 Setting Up the System
5. Click the Adapter tab and make the following settings.
Serial Number: Shows the available adapters.
Multiple Adapters: Enable this option to select more than one
adapter for transmission. There won't be a check box in front of the
listed adapters if this option is not enabled.
Search: Click this button and the program will scan again for
available adapters.
7
